iLight LCMD-10 Manuel utilisateur

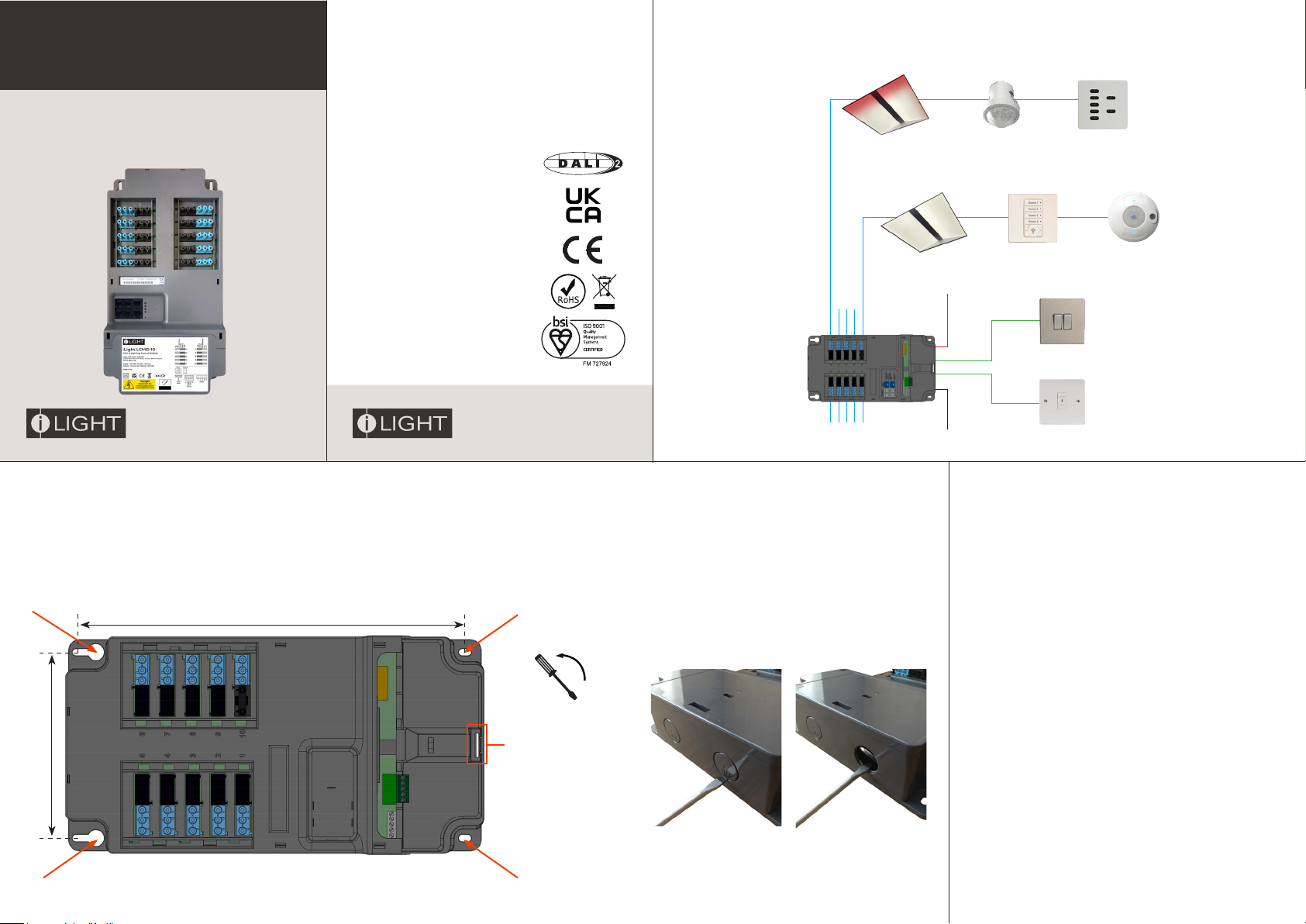

Typical Schematic
LCMD-10
DALI-2 Lighting Control Module
Doc No: 9850-000754-04
LCMD-10 must be securely mounted to a suitable surface using the 4 mounting holes provided with xings
suitable for the substrate (Maximum xing diameter 6mm). The LCM can be mounted in any orientation to
cable trays, walls and direct to a ceiling slab. All cables should be independantly secured with appropriate
xing straps in accordance with local electrical regulations. Incoming mains, data and input cables should
be installed using suitable compression cable glands to provide strain relief.
Once securely mounted,
remove cover using a
at-head screwdriver
to access the wiring
compartment. Gently tilt
the screwdriver towards
the top (connectors) of
LCM to release.
Mounting Hole
Mounting Hole350mm Hole Centres
170mm Hole Centres
Mounting Hole
Mounting Hole
Mounting & Installation Technical Data
Electrical Data
Supply: 230 volts -/+ 10%, 50/60 Hz
Terminals max. wire size: 4mm2loop in/out
iCANnet™ inputs/output: 5 pole Phoenix connector
Maximum DALI cable length: 300m per LCM
Minimum DALI cable conductor diameter: 1.5mm2
Protection: Provided by installer - Max 16A
DALI signal: Nominal 14V, max current 250mA supply.
Minimum guaranteed current 195mA
Automatic shut-down and restart after short-circuit
(maximum 1 per bus) according to IEC 62386-101
Inputs & Outputs
10 ports with 6 pole GST/18 connectors
4 x RJ12 analogue sensor inputs
Max 30 DALI luminaires (or short addresses) distributed at will
across 10 ports
In addition: 1 DALI sensors per port,
1 DALI control plate or DALI-I-U per port
1 DALI emergency luminaire per port
Mechanical Data
Dimensions: 200.2mm (w) x 382.8mm (h) x 57.5mm (d)
Maximum diameter of xings: 6mm
Weight: 2.5 kg
Operating Conditions
Operating temperature: +2ºC to +50ºC
Max storage temperature: +60ºC
Humidity: +5 to 95% non-condensing
Environmental protection: IP20
Removing Knockouts
The knockouts can be removed with a at-head
screwdriver in 2 simple steps:
1. Place the at-head screwdriver into the slot of the
knockout that is to be removed. The screwdriver must be
placed in the slot nearest to the bottom of the enclosure
(opposite the cover).
2. Hit the end of the screwdriver to shear the knockout and
remove the rest of the knockout by hand if necessary.
Alternatively an appropriate sized hole saw can be used
utilising the drill bit location point at the centre of each
knockout.
230V and DALI
230V and DALI
DALI
Control Plate
DALI
Control Plate
DALI
Combined Sensor
DALI
High Bay Sensor
DALI
Drivers / Ballasts
DALI
Emergency Luminaire
iCAN Network
230V Supply
LCMD-10
Third Party
Light Switch
Key Switch
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
t: +44 (0)1923 495495
www.
iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
Installation Guide
9850-000754-04. E&OE.
Incoming Supply
230 volts -/+ 10%, 50/60 Hz
Mains supply protection:
Provided by installer (16A Max)
Status LED
Data LED
Alarm LED
iLight Network
Connection
via RJ45
Sensor Inputs
1
2
3
4
Device Identication Button (IDENT)
SW-L
Earth
Neutral
Maintained Live
DA+
DA-
iLight Network
Connection
Status LED
Green LED ashes – device OK
Data LED
Red LED ashes when messages sent on network
Red LED solid indicates iCANnet network error
Alarm LED
Red LED ashes ON for local initiated alarm
Red LED solid for network initiated alarm
Device Identication (IDENT)
By pressing the IDENT button
Device LEDs and Buttons
Typical Connection Diagram
LCMD-10
DALI Lighting Control Module
Function iCANnet Cable Colours
0V Black
CAN L Blue
Shield Silver
CAN H White
+V DC Red
Maximum segment distance: 500m (1640 ft)
Devices per segment: 100 (without bridge or repeater)
Consult iLight for information on alternative cable types.
Input 1&2: 2 position retractive switch:
1- ‘local LCM’ short press = On
and ‘press and hold’ = Dim up.
2- ‘local LCM’ short press = Off
and ‘press and hold’ = Dim down.
Input 3: Keyswitch for network emergency
test set/release.
Input 4: Single position retractive switch
for network integrity test. Set/Release
(Cycles all connected luminaries On/Off)
iCAN Network Connections
Network Power Requirements
Nominal operating voltage: 15V DC (12-18V)
IMPORTANT NOTE: Connecting a mains potential cable to the
iCAN Network terminals is likley to damage the unit and other
devices connected, and invalidate warranty.
IMPORTANT NOTE: If the external luminaire requires a protective
earth for safety purposes then a protective earth must be installed
during the installation process by a qualied installation engineer/
electrician to the local/national regulations. LCMD-10 does not
provide a protective earth.
Switched
Inputs
Network termination
If the LCMD-10 is connected as the
last device on the iCAN network, the
supplied 120ohm network termination
resistor will need to be added.
Install the supplied 120ohm resistor
between CAN-H & CAN-L in addition to
the network wiring.
Network
Terminator
120ohms
iCANnet Connection
