Ikelite 6242.62 Manuel utilisateur

Product Registration

Please register your product at ikelite.com within 15 days of purchase.

Our product registration database is the best way for us to contact you

in the event of a product update.

Underwater Housing for Canon Powershot SX620 HS

Product Number 6242.62

About this Product

Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive

with this product. Please visit ikelite.com to register your product

to receive information on any updates or notices pertaining to your

equipment.

Included in the Box

• O-ring # 0132.45 (installed)

• Port cover # 0200.08 (installed)

• Lanyard # 0321.10

• Silicone lubricant

Specifications

• 200 ft (60m) depth rating

• Controls for all camera functions except Flash pop-up switch; ash

may be opened prior to installation of camera in the housing

• Slightly positive buoyancy in fresh water

• 1/4-20 thread tray mounting with 3” (76mm) spacing

• 1.6 lb (726 g)

• 6.2 x 5.3 x 4.5” (158 x 135 x 114 mm)

• 3.9” diameter glass lens port

Important Notices

»To prevent salt build-up and sticking controls, submerge the

empty housing in clean, freshwater. Operate the controls

several times each while underwater to ush out any residue.

»Never leave a housing in a rinse tank, even if it is the only

system in the tank. Many catastrophic oods happen when the

user walks away from a housing while it is in the rinse tank.

»Do not use alcohol, cleaning agents, spray lubricants, Rain-X,

or other solvents on the housing or lens port. Use of an

incompatible chemical compound can damage the plastic and

o-rings, and may result in leaking.

»Always assemble in a cool, dry location. Opening the housing

in a humid environment will lead to fogging.

»This housing is designed for use with the Canon SX620 HS

camera as shipped by the manufacturer. This housing is not

compatible with any other camera models.

Contents

Product Registration 1

About this Product 2

Included in the Box 2

Specications 2

Important Notices 3

Getting to Know Your Housing 5

Getting to Know Your Housing - continued 6

Setting Up Your Camera 7

Pre-Installation Checklist & Initial Camera Settings 7

Setting Up Your Housing 8

Opening the Housing 8

Installing the Camera 8

Closing the Housing 9

Setting Up An External Strobe 10

About the Built-In Flash 10

Attaching a Fiber Optic Cord 10

Final Check 11

Entering the Water 12

Maintenance 13

Post-Dive 13

Travel and Storage 13

Troubleshooting 14

Limited Warranty 15

Service and Repairs 16

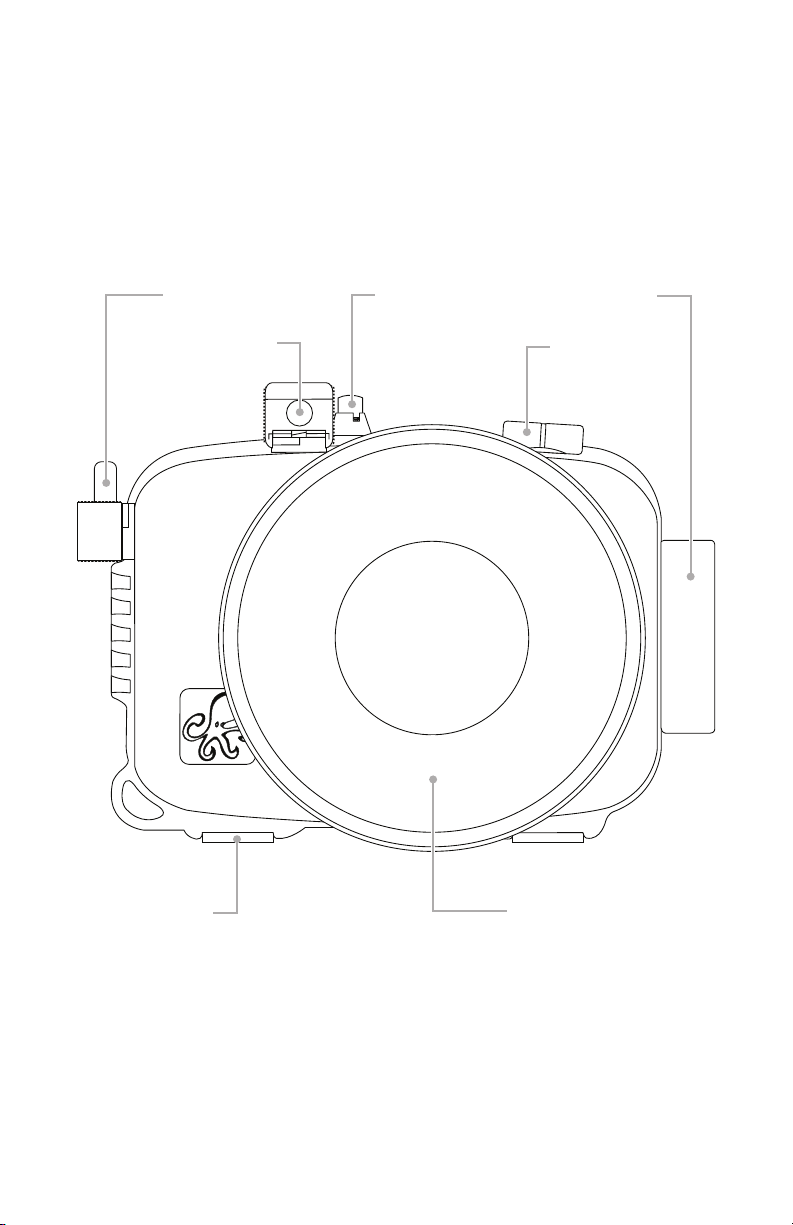

Getting to Know Your Housing

Shutter Button

Zoom Lever

Latch

Lens port

Tray mount

Fiber Optic

Ports

Power Button

Getting to Know Your Housing - continued

Right/Flash

Button

Movie

Button

Playback Button

INFO./Down

Button

/ Left Button

MENU Button

WiFi Button

Mode Switch

FUNC./SET

Setting Up Your Camera

Pre-Installation Checklist & Initial Camera Settings

1. Fully charge camera battery.

2. Insert and format an SD card.

3. Set shooting mode to “P” Program and ISO to “200.”

4. Set White Balance to “AWB.” When not using an external strobe,

AWB can still be used, however, for the most consistent colors in

different lighting, use “custom white balance” .

5. Set Light Metering to “Center Weighted Avg.”

6. RAISE camera ash to trigger a Fiber Optic Strobe. CAUTION:

Camera ash CANNOT be raised after camera is closed inside

housing.

7. Set Flash Mode to “ ” when connecting housing to a ber optic

strobe.

8. Set AF Area to the “Center” and AF Frame Size to “Normal.”

9. Set Continuous AF to “ON” and AF-assist Beam to “OFF.”

10. In Flash Settings, set Red-Eye Lamp to “Off.”

11. Set Review Image after shooting to “4 sec”.

12. In Power Saving, set Auto Power Down to “On” and Display Off to

“3 min).”

Recommended initial settings are not ideal for every shooting

situation and should be adjusted as necessary.

Settings not mentioned should be set to the user’s preference.

Setting Up Your Housing

Opening the Housing

1. Thoroughly dry the housing if wet. To reduce the likelihood of

fogging, only open the housing in a cool, dry place. If possible, open

only in an air conditioned room.

2. Depress both latch buttons and rotate the latch away from the

housing.

PUSH TO

UNLOCK

Latch buttons

3. The back of the housing will be compressed by pressure after

taking it underwater or in an airplane. Rotate the latch FULLY to

break the seal of the housing.

4. Lift the latch up and away from housing.

5. Carefully open the housing back and rotate it 180º to the opposite

side of the housing. Do not use metal objects or tools to pry the

back open, as this may damage the o-ring or sealing surface.

Installing the Camera

1. Remove adhesive backing from anti-reection ring. Attach ring to

front of camera lens.

2. Remove any lanyard, neck strap, or accessory attached to the

camera.

3. Pull out any camera control knobs until they stop.

4. Place the camera into the front of the housing with the lens

centered in the lens port.

5. Make sure the camera is sitting at in the housing and ush to the

front support ribs.

Support ribs

Lens port

Closing the Housing

1. Clean and lightly lubricate the housing o-ring. Use Ikelite lubricant

ONLY. Use only enough lubricant to make the o-ring appear

uniformly shiny. Lubricant is not a sealant. Excessive lubricant may

attract debris and adversely affect the seal.

2. Rotate the housing back 180º until it meets the front.

3. Latch the housing back and press the latch towards the housing

until the lock buttons click into place.

4. Check the latch. The buttons will not be depressed when the latch

is properly locked. Pulling on the latch without pressing the buttons

should not allow the latch to open.

Setting Up An External Strobe

About the Built-In Flash

Due to the opaque housing design, the internal “built-in” ash can

only be used to trigger external ber optic strobes. To shoot ash

photography underwater, an external strobe must be connected to

the housing and then triggered by a ber optic cord. The camera ash

must be RAISED and activated in order to re an external strobe.

We recommend attaching an external strobe for optimal color and

clarity in a wide variety of shooting situations, including daylight

photography.

Attaching a Fiber Optic Cord

1. Check the end of the ber optic cord to ensure that it is clean and

smooth.

2. Ensure that the ber optic cord o-ring is in place. This o-ring does

not provide waterproong, however, it does keep the ber optic cord

in place.
