Ikan VX17e Manuel utilisateur

VX17e

17" 3G- SDI Monitor QUICKSTART GUIDE

www.ikancorp.com

1.713.272.8822

[email protected]

What’s included

Checked by

 VX17e HD Monitor

 AC Adapter

 Table Stand (installed)

 Pair of Rack Ear (installed)

VX17e

17" 3G- SDI Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

1 2 3 4 5 6 7 8 9 10

Table

Stand

Top Handle

Rack

Ear

Rack

Ear

POWER OFF BATTERY F1 F2 F3 F4 SDI HDMI DVI YUV Y/C VIDEO EXIT MENU

2 3 4 5 6 7 8 9 10

Table

Stand

Top Handle

Rack

Ear

Rack

Ear

POWER OFF BATTERY F1 F2 F3 F4 SDI HDMI DVI YUV Y/C VIDEO EXIT MENU

Power Switch

Power ON / OFF

F1 to F4 Buttons

User Programmable Function Buttons

HD-SDI Selection Switch

Serial Digital Interface input & output (HD/SD compatible)

HDMI Selection Switch

High-Denition Multimedia Interface input & output

DVI Selection Switch

Digital Visual Interface input

YUV Selection Switch

Analog Component or RGB input & output

Y/C Selection Switch

S-Video input & output

VIDEO Selection Switch

Composite input & output

EXIT Button

In MENU, it is to exit the menu.

MENU Knob

It is to display menu, select settings, and adjustments.

(Push the knob to select, turn the knob to adjust settings.)

For quick access, the user may program the F1 to F4 buttons to

enable frequently accessed monitor features. Via the main monitor

conﬁguration menu, either button may be assigned to perform the

following functions: Window 1, Window 2, HV delay, Blue Gun, and

Pixel to Pixel, .

VX17e

17" 3G- SDI Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

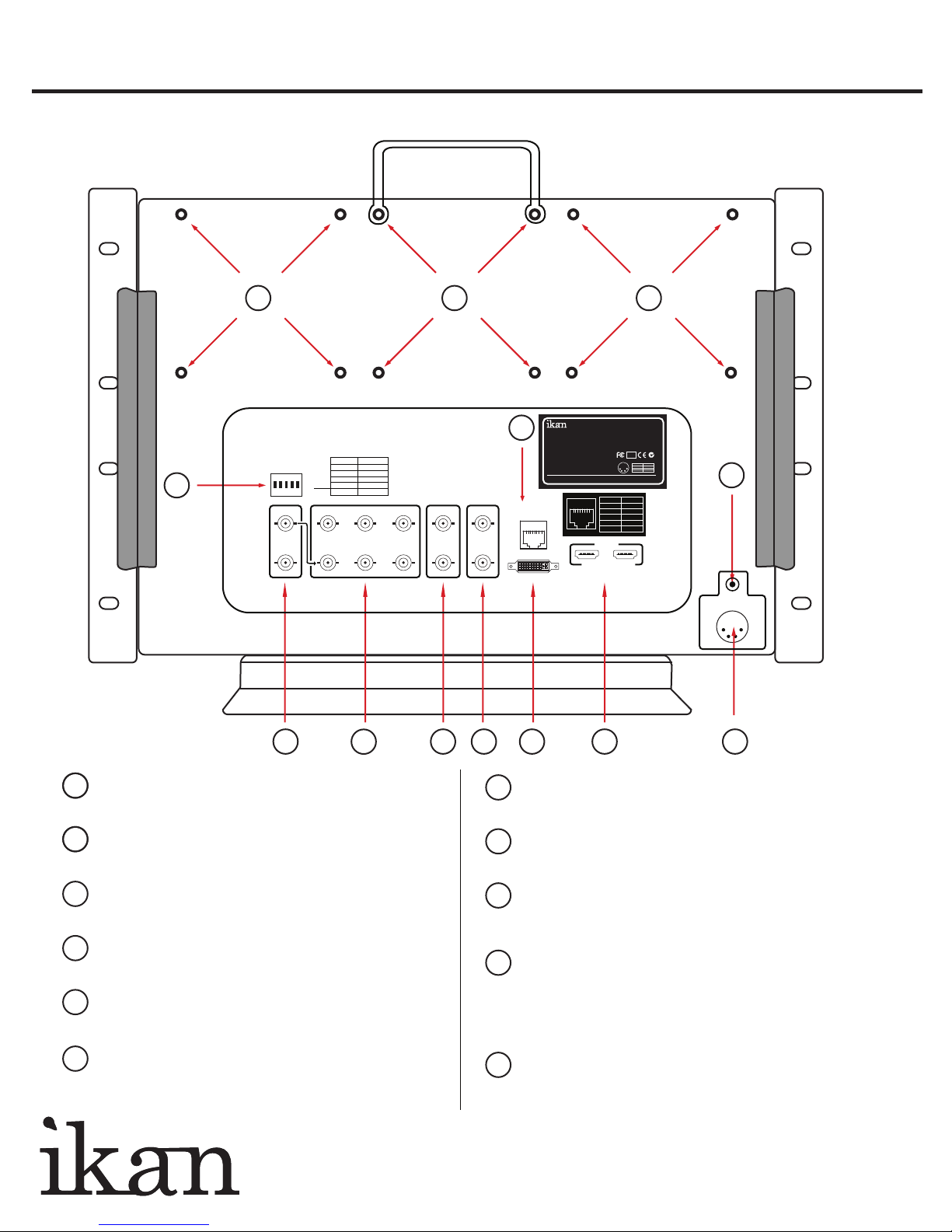

HD-SDI Input & Output BNC Connection

YPbPr - Component Input & Output BNC Connection

Y/C - S-Video Input & Output BNC Connection

VIDEO - Composite Input & Output BNC Connection

DVI Connection

HDMI Input & Output Connection

DC 12V-20V power terminal

XLR DC Connection

DC 12V-20V power terminal

Standard DC Connection

DIP Switch

Enable special 720p modes. For the monitor to correctly display

certain 720p signals, it is necessary to configure the DIP switches.

TALLY

• Do not provide power to tally connections.

• Tally light system is unpowered and works by closing

the contact between any of the grounding pins and the

pin for the desired LED color.

Vesa 100mm Mount Holes

Threaded for M4x.07 screws.Use to attach Pro Battery

Plate adapter.

123 4 5 6 7

11 11 11

VIDEO

DVI

TALLY

IN OUT

DC12V-24V

HDMI

Y/CPrPbYHD-SDI

OUT

Switch

50p

30p

1 2 3 4 5 6 7 8

PIN Number Signal

Yellow

Red

Green

GND

4 5 6 7

Switch

50p

30p

25p

24p

24psf

720p

1080p

1 2 3 4 5

OFF

HIGH DEFINITION

HD-SDI LCD MONITOR

www.ikancorp.com MADE IN CHINA

Model: VX17e

Picture Size: 17 inch

Resolution: 1440 x 900

Display Color: 16.2M

Aspect Ratio: FULL / 16:9 / 4:3

Color System: NTSC / PAL

Operating Volts: DC 12 ~ 20V

Power Consumption: 18 Watt

RoHS

COMPLIANT

2 3

Pin number Signal

2,3

GND

+12V

VX17e

17" 3G- SDI Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

SPECIFICATIONS

Screen Size : Diagonal 17" TFT - LCD

Resolution : 1440 x 900

LCD Brightness : 250cd/m

Contrast Ratio : 600:1

Viewing angles : 85°/85°(R/L) 85°/85°(U/L)

Operating Volts : DC 12-20V

Dimension : 15.125” x 11.75” x 1.75” (384.17mm x 298.45mm x 44.45mm)

Weight : 11.5 lbs (5.21kgs)

SUPPORT RESOLUTION - HD-SDI, HDMI, Component, Composite

HD-SDI 1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz

1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz

SD SDI 720x480i @ 60Hz

720x576i @ 50Hz

Video NTSC-M, NTSC-J, NTSC 4.43

PAL B/G H I D, PAL M, PAL N

SECAM

YPrPb 720x480i @ 60 Hz

720x576i @ 50 Hz

1280x720p @ 23.97, 24, 25, 29.94, 30 Hz

1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz

1920x1080p @50,59.94, 60 Hz

HDMI 1920x1080p @ 50,59.94, 60 Hz

720x480i & 720x480p @ 59.94, 60 Hz

720x576i & 720x576p @ 50 Hz

1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz

VX17e

17" 3G- SDI Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

CONFIGURATION OF SETTING MENUS

Brightness 0-100

Contrast 0-100

Chroma 0-100

Sharpness 0-100

Tint 0-100

Color Temp. Manual

5600K

6500K

9300K

Guides

Guides Option [ Off, 90%, 80%, 4:3 ]

Guides Background [ Normal, Half, Black ]

Crosshair [ Off, On ]

Return

System Conguration

OSD Language [ English, 简体中文 ]

OSD Duration 5-60 second

Menu Setup [ User 1 to User 5 ]

LED Control [ Off, On ]

DSLR Autoscaling [ Off, DSLR Full, DSLR 16:9, DSLR 3:2 ]

System Reset

Return

Function Setup

Luma Under Warn

Luma Over Warn

Function 1 Window 1

Window 2

HV Delay

Guides

Crosshair

Peaking

False Color

Clip Guide

Underscan

Check Field

Pixel

Function 2 ( same as Fuction 1)

Function 3 ( same as Fuction 1)

Function 4 ( same as Fuction 1)

Return

Exit

RGB Setup

R 0-255

G 0-255

B 0-255

Exit

VX17e

17" 3G- SDI Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

DESCRIPTION OF FEATURES

System Conﬁguration > Menu Setup > User 1 - User 5

This function recalls user dened values settings .The user setting will remain in memory indenitely and can be

erased by using the reset option in the main menu.

DSLR Autoscaling

This function will allow users to extend their DSLR camera’s HDMI video output any option of four – Normal, 3:2, 16:9

or Full Screen – convenience made simple.

Guides > Crosshair

Display a crosshair on the center of screen.

Color Temerature > Manual > RGB Setup

Allows you to manually control the red, blue, and green channels from 0 - 255.

Function Setup > Check Field

Allows to see the image in monochrome or only the red, blue, or green channels.

Function Setup > Pixel

A signal of any other resolution is scaled to t this native resolution. There may be time when it is desired to view the

incoming signal without scaling. Enabling Pixel to Pixel mode turns off the scaling and displays a 1440 x 900 pixel

window of the original image. Each pixel of the panel displays one pixel of the original image. The user may use the

scroll wheel on top of the monitor to move the window left, right. Push the scroll wheel again to toggle up and down.

Function Setup > Peaking

This is equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline.

The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating

optimal focus. For the best results, be sure the subject is properly exposed.

Function Setup > False Color

The False Color feature utilizes a full spectrum of assigned color indicators, ensuring awless shot exposure. As the

camera Iris is adjusted, the subject of the image will change color based on specic brightness values indicating

optimal exposure. See included chart for color assignments.

Function Setup > Luma Under Warn / Luma Over Warn

Adjustable Under Exposure and Over Exposed Waning feature gives the operator full control of the False Color

brightness values. By setting the preferred IRE exposure limits, the operator is warned when the image exposure is

exceeding or falling under the preset IRE limit, providing customizable, full image exposure control.

Function Setup > Clip Guide

This adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The

operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will ash in a vivid

purple, indicating only the over exposed area.

VX17e

17" 3G- SDI Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

Use the adjustable

warning to prevent

over exposures in

your video

0 IRE

below 0 IRE

Red over warning is

adjustable from

80 IRE - 110 IRE /

1 IRE - 12 IRE

13 IRE - 22 IRE

Use the 70 - 80 IRE

indicators to assist in

setting exposure for

white objects.

Use the 56 IRE indicator

to assist in setting

exposure for skin tones

Use the 45 IRE indicator

in assist in setting

exposures when using

a gray card

Use the adjustable

warning to prevent under

exposures in your video

23 IRE - 42 IRE

43 IRE - 47 IRE

48 IRE - 55 IRE

56 IRE - 58 IRE

59 IRE - 78 IRE

79 IRE - 80 IRE

81 IRE - 83 IRE

84 IRE - 100 IRE

100 IRE and up

Magenta under

warning is adjustable

from 10 IRE to -10 IRE

www.ikancorp.com

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period has expired.

Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
