Ikan V17E Manuel utilisateur

V17e

17 inch HD Monitor QUICKSTART GUIDE

www.ikancorp.com

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period has expired.

Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.

3903 Stoney Brook Dr. Houston TX 77063

1.713.272.8822

[email protected]

What’s included

Checked by

 V17 HD Monitor

 AC Power Cord

 Rack Ear (Pair)

 Table Stand

V17e

17 inch HD Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

1. POWER Power switch (I = AC On, O = Off, II = DC On)

2. LAMP Power signal indicator

3. GUIDES On-screen guide: 4:3 or 16:9

4. ASPECT Aspect ratio: 4:3 or 16:9

5. INPUT A/V (Composite), S-Video, SD/HD Component, HDMI

6. > While in MENU mode, toggle as up adjust setting

7. MENU Access to all monitor settings: Brightness, Hue, etc.

8. < While in MENU mode, toggle as down adjust setting

9. LAMP Tally Lights

345678

[ Labeling Box ]

V17e

< MENU > INPUT ASPECT GUIDE

1. AC 110V-220V Power Connection

2. Tally

3. HDMI Input

4. DVI Connection

5. VGA Connection

6. A/V - I/O for standard definition composite signal

7. S-Video - I/O for standard definition S-Video signal

8. Component - I/O for standard definition, 720p, and 1080i HD signals

9. DC 12V-24V Power Connection

10. 100mm Holes for Vesa Mount / Pro Battery Mounting Plates

10 10

59 8 7 6

RED GREEN YELLOW

GND GND GND

3 2 1

Tally Light - Pin Configurations

Tally Light Operation

• Do not provide power to tally connections.

• Tally light system is unpowered and works by closing

the contact between any of the grounding pins and the

pin for the desired LED color.

VIDEO

S-VIDEO

YPb Pr

HDMI

12V-24V

DC IN

110~220v

59 8 7 6

RED GREEN YELLOW

GND GND GND

3 2 1

TALLY AC IN

12 3 4

Pin number Signal

2,3

GND

+12V

VGA

DVI

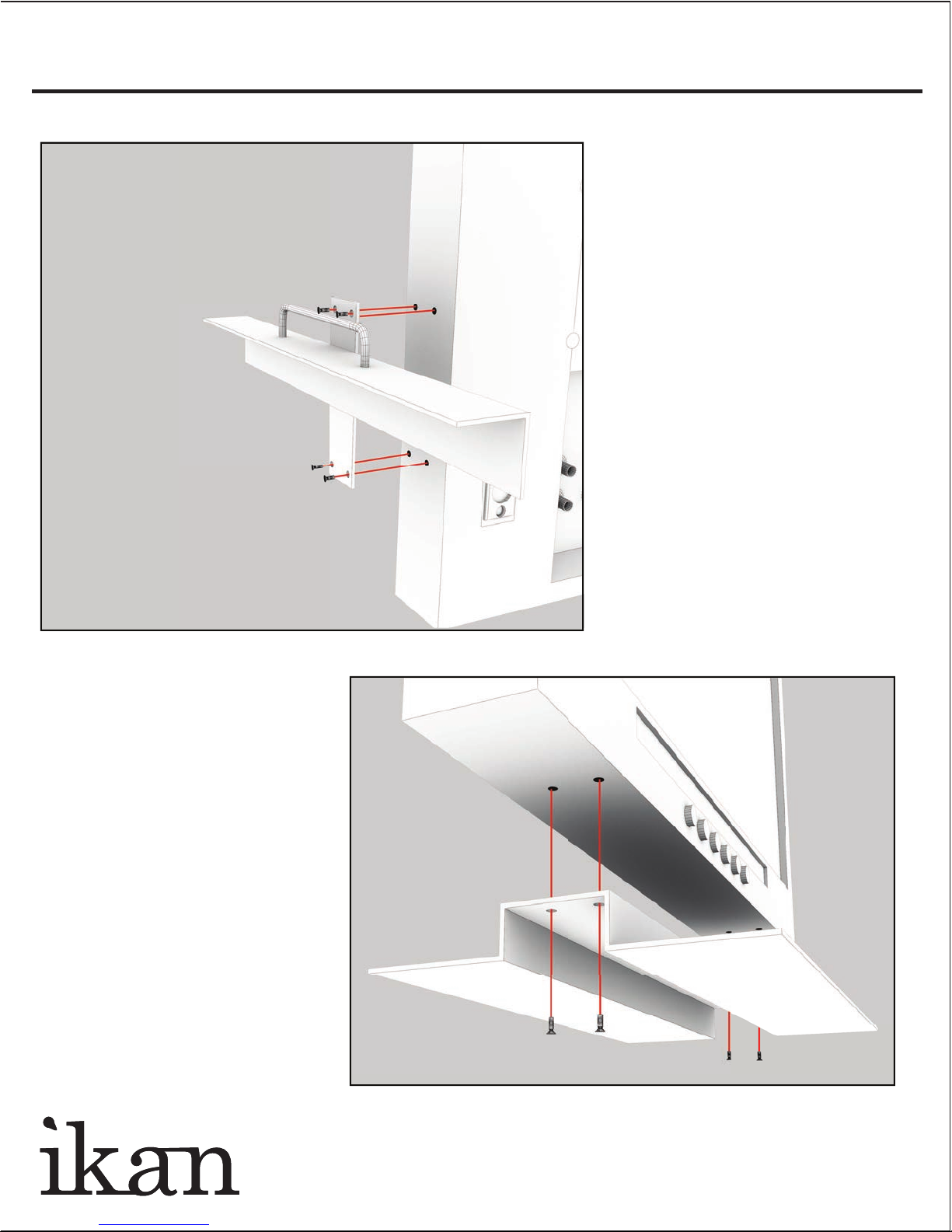

Assemble the rack ears

Assemble the table stand

V17e

17 inch HD Monitor QUICKSTART GUIDE

www.ikancorp.com 713-272-8822
