User’s Manual for “S” and “L” series Fluorescent Lights.

www.ikancorp.com

3903 Stoney Brook Dr. Houston, TX 77063

Phone : 713-272-8822 Fax : 713-995-4994 info@ikancorp.com

The Visual Professionals

Thank you for purchasing our ikan Fluorescent lights. We know you will be satisfied

with our “S” and our “L” series lights. Please visit www.ikancorp.com for more

information on our future products including monitors, stands and light accessories.

Getting Started

Box Includes:

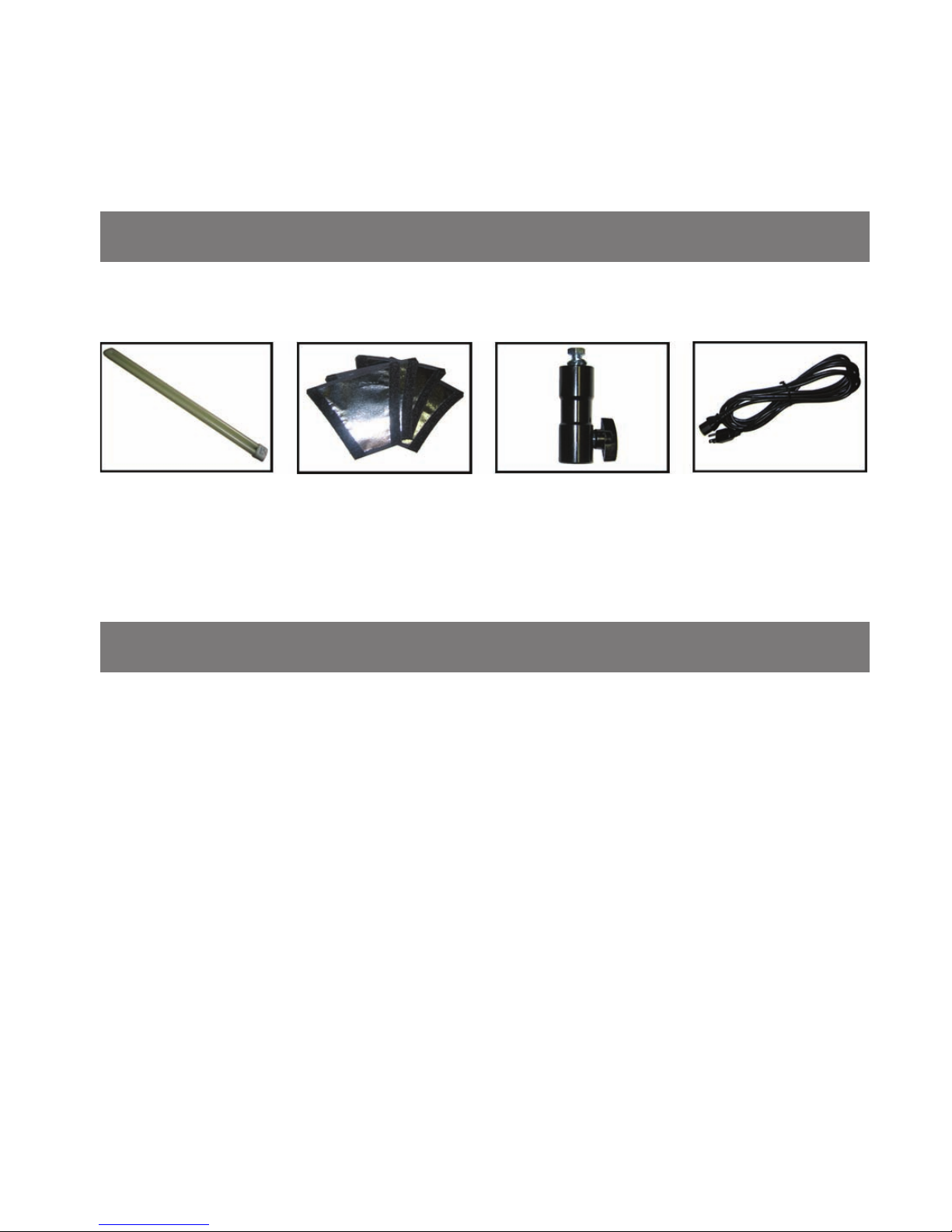

55w Bulbs Reflectors Corners Stand Mount Power Cord

Note:

Step by Step

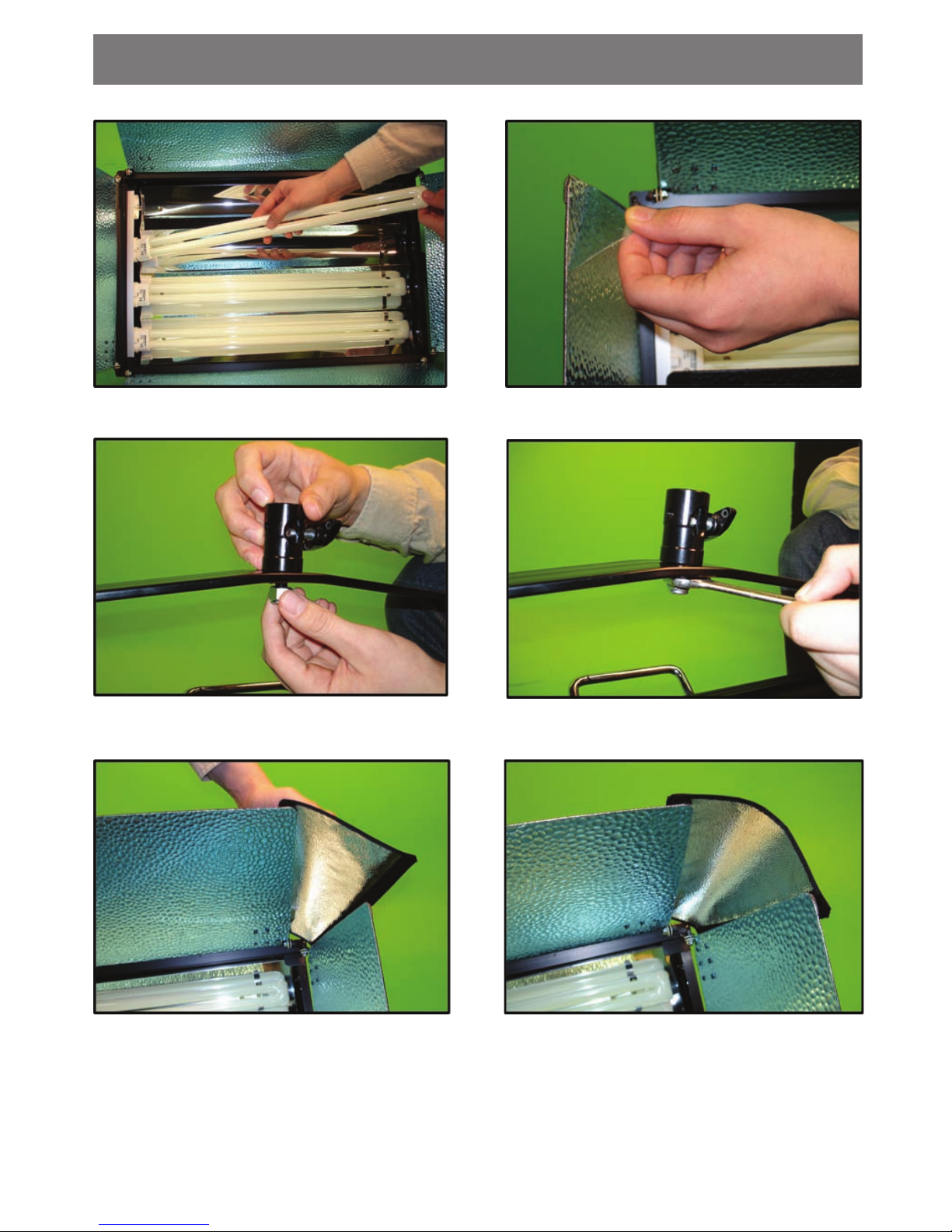

1. Carefully remove light from the packaging.

2. If the bulbs were not already installed proceed to install them now.

(Please refer to figure 1)

3. Remove the blue protective film from the barn doors.

(Please refer to figure 2)

4. Install stand mount on the bottom of the yoke. Use a wrench to properly tighten it.

(Please refer to figure 3 and 4)

5. Attach the reflector corners to the Velcro strips on the outer edge of the barndoors.

(Please refer to figure 5 and 6)

Step by Step continued

Figure 1 Figure 2

Figure 3

Figure 5 Figure 6

Figure 4

FAQS

Q: What color temperature bulbs are included with the lights?

A: 3000K

Q: Are Different color Temperature bulbs available?

A: Yes, you can order different temperature bulbs thought ikan Corp. 713-272-8822.

Q: Can you mix and match different color temperature bulbs with the ikan

fluorescent lights?

A: Yes.

Q: Are the bulbs proprietary

A: No, the bulbs are industry standard bulbs. Bulbs available from many manufactures

ex: General Electric

Note:

For any additional questions please call ikan customers service 713-272-8822 or

E-mail to [email protected].

Warranty

Ikan products are engineered with you in mind for a trouble free performance and a

productive product life. For your assurance, product warranties on all parts are

available for all ikan products against defective material or workmanship. In case of a

defect within the one year warranty period please contact the ikan Corporation for an

RMA# and a speedy replacement for your ikan product.

5. 2.

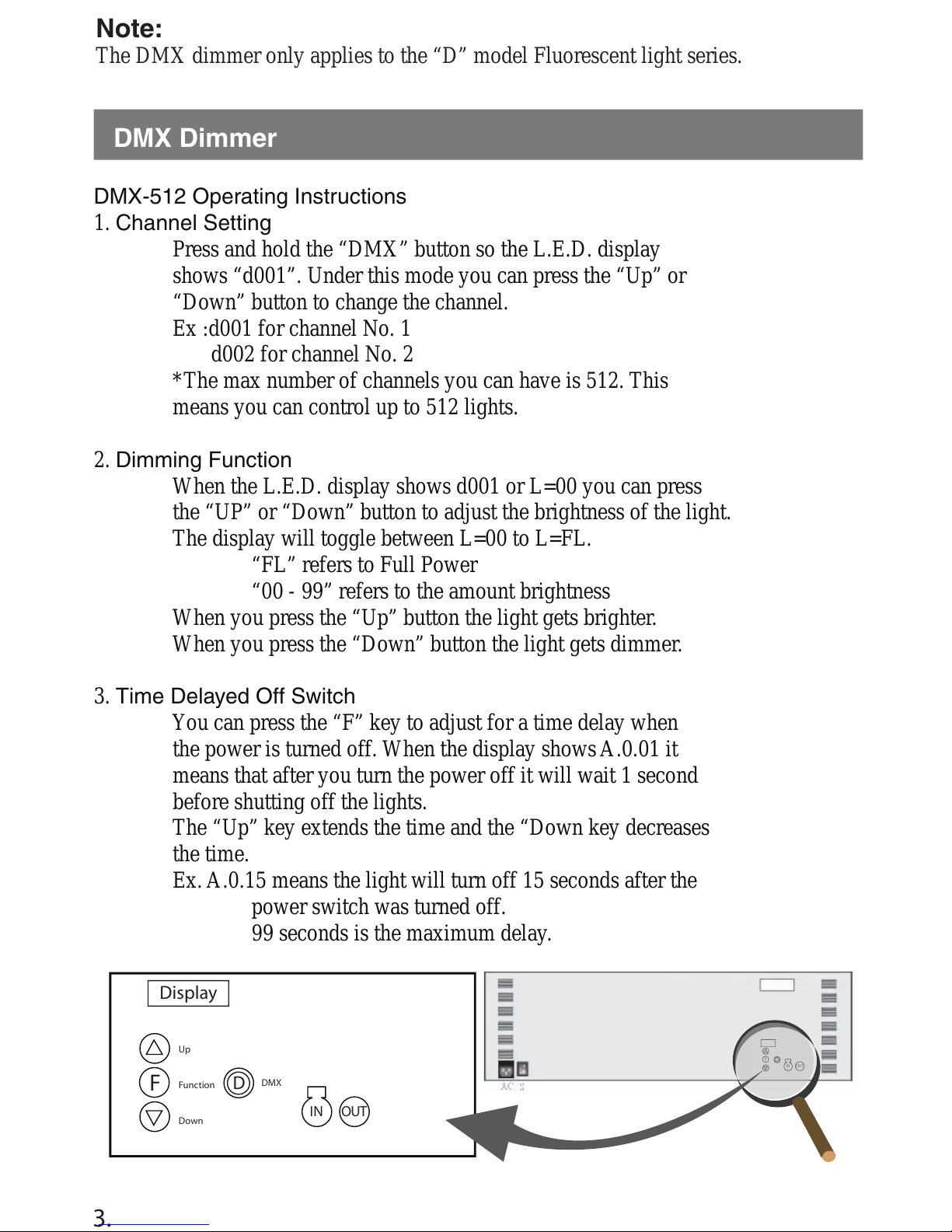

DMX-512 Operating Instructions

1. Channel Setting

Press and hold the “DMX” button so the L.E.D. display

shows “d001”. Under this mode you can press the “Up” or

“Down” button to change the channel.

Ex :d001 for channel No. 1

d002 for channel No. 2

*The max number of channels you can have is 512. This

means you can control up to 512 lights.

2. Dimming Function

When the L.E.D. display shows d001 or L=00 you can press

the “UP” or “Down” button to adjust the brightness of the light.

The display will toggle between L=00 to L=FL.

“FL” refers to Full Power

“00 - 99” refers to the amount brightness

When you press the “Up” button the light gets brighter.

When you press the “Down” button the light gets dimmer.

3. Time Delayed Off Switch

You can press the “F” key to adjust for a time delay when

the power is turned off. When the display shows A.0.01 it

means that after you turn the power off it will wait 1 second

before shutting off the lights.

The “Up” key extends the time and the “Down key decreases

the time.

Ex. A.0.15 means the light will turn off 15 seconds after the

power switch was turned off.

99 seconds is the maximum delay.

DMX Dimmer

Note:

The DMX dimmer only applies to the “D” model Fluorescent light series.

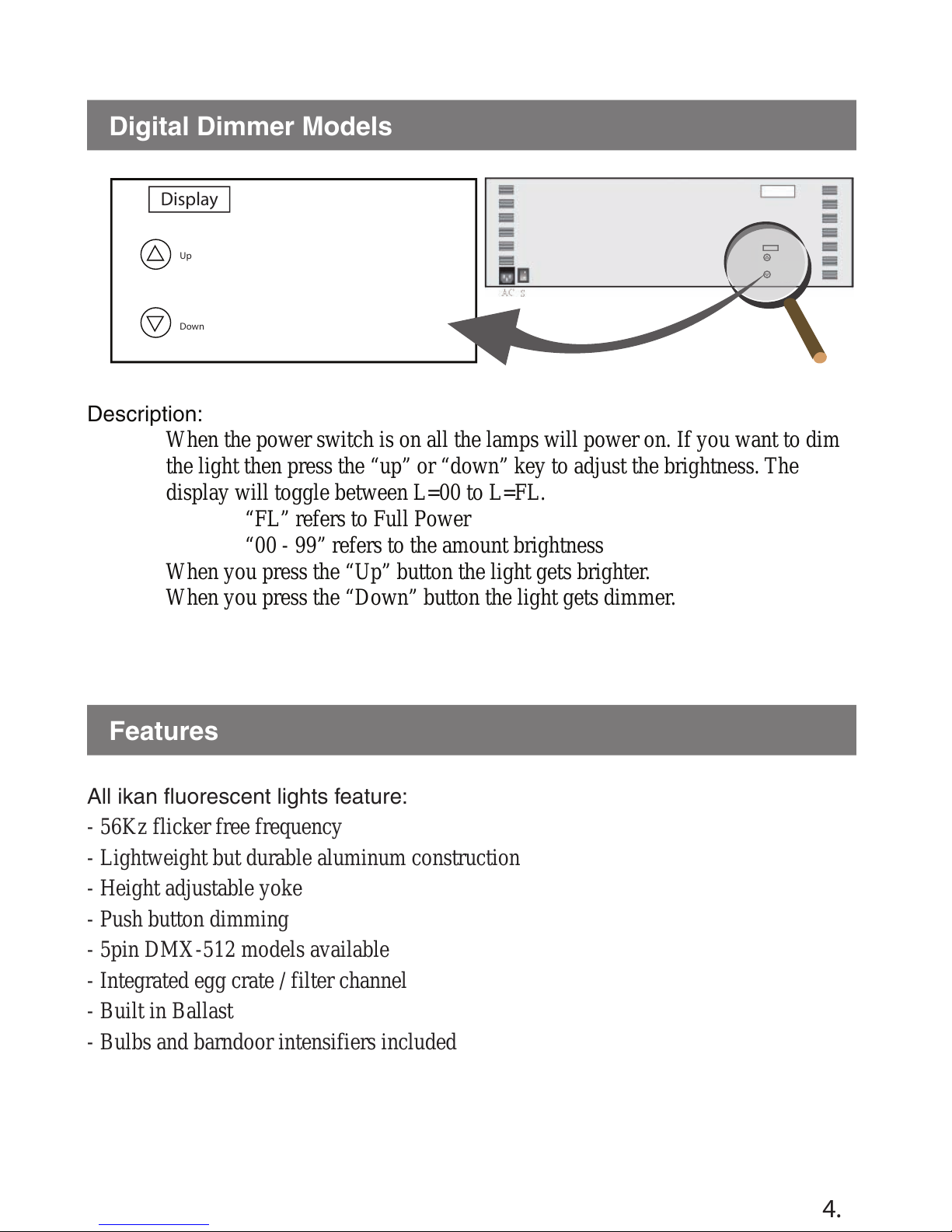

Digital Dimmer Models

Description:

When the power switch is on all the lamps will power on. If you want to dim

the light then press the “up” or “down” key to adjust the brightness. The

display will toggle between L=00 to L=FL.

“FL” refers to Full Power

“00 - 99” refers to the amount brightness

When you press the “Up” button the light gets brighter.

When you press the “Down” button the light gets dimmer.

Function

Down

DMX

IN OUT

Display

IN OUT

Down

Display

All ikan fluorescent lights feature:

- 56Kz flicker free frequency

- Lightweight but durable aluminum construction

- Height adjustable yoke

- Push button dimming

- 5pin DMX-512 models available

- Integrated egg crate / filter channel

- Built in Ballast

- Bulbs and barndoor intensifiers included

Features

3. 4.

DMX-512 Operating Instructions

1. Channel Setting

Press and hold the “DMX” button so the L.E.D. display

shows “d001”. Under this mode you can press the “Up” or

“Down” button to change the channel.

Ex :d001 for channel No. 1

d002 for channel No. 2

*The max number of channels you can have is 512. This

means you can control up to 512 lights.

2. Dimming Function

When the L.E.D. display shows d001 or L=00 you can press

the “UP” or “Down” button to adjust the brightness of the light.

The display will toggle between L=00 to L=FL.

“FL” refers to Full Power

“00 - 99” refers to the amount brightness

When you press the “Up” button the light gets brighter.

When you press the “Down” button the light gets dimmer.

3. Time Delayed Off Switch

You can press the “F” key to adjust for a time delay when

the power is turned off. When the display shows A.0.01 it

means that after you turn the power off it will wait 1 second

before shutting off the lights.

The “Up” key extends the time and the “Down key decreases

the time.

Ex. A.0.15 means the light will turn off 15 seconds after the

power switch was turned off.

99 seconds is the maximum delay.

DMX Dimmer

Note:

The DMX dimmer only applies to the “D” model Fluorescent light series.

Digital Dimmer Models

Description:

When the power switch is on all the lamps will power on. If you want to dim

the light then press the “up” or “down” key to adjust the brightness. The

display will toggle between L=00 to L=FL.

“FL” refers to Full Power

“00 - 99” refers to the amount brightness

When you press the “Up” button the light gets brighter.

When you press the “Down” button the light gets dimmer.

Function

Down

DMX

IN OUT

Display

IN OUT

Down

Display

All ikan fluorescent lights feature:

- 56Kz flicker free frequency

- Lightweight but durable aluminum construction

- Height adjustable yoke

- Push button dimming

- 5pin DMX-512 models available

- Integrated egg crate / filter channel

- Built in Ballast

- Bulbs and barndoor intensifiers included

Features

3. 4.

Step by Step continued

Figure 1 Figure 2

Figure 3

Figure 5 Figure 6

Figure 4

FAQS

Q: What color temperature bulbs are included with the lights?

A: 3000K

Q: Are Different color Temperature bulbs available?

A: Yes, you can order different temperature bulbs thought ikan Corp. 713-272-8822.

Q: Can you mix and match different color temperature bulbs with the ikan

fluorescent lights?

A: Yes.

Q: Are the bulbs proprietary

A: No, the bulbs are industry standard bulbs. Bulbs available from many manufactures

ex: General Electric

Note:

For any additional questions please call ikan customers service 713-272-8822 or

E-mail to [email protected].

Warranty

Ikan products are engineered with you in mind for a trouble free performance and a

productive product life. For your assurance, product warranties on all parts are

available for all ikan products against defective material or workmanship. In case of a

defect within the one year warranty period please contact the ikan Corporation for an

RMA# and a speedy replacement for your ikan product.

5. 2.

Thank you for purchasing our ikan Fluorescent lights. We know you will be satisfied

with our “S” and our “L” series lights. Please visit www.ikancorp.com for more

information on our future products including monitors, stands and light accessories.

Getting Started

Box Includes:

55w Bulbs Reflectors Corners Stand Mount Power Cord

Note:

Step by Step

1. Carefully remove light from the packaging.

2. If the bulbs were not already installed proceed to install them now.

(Please refer to figure 1)

3. Remove the blue protective film from the barn doors.

(Please refer to figure 2)

4. Install stand mount on the bottom of the yoke. Use a wrench to properly tighten it.

(Please refer to figure 3 and 4)

5. Attach the reflector corners to the Velcro strips on the outer edge of the barndoors.

(Please refer to figure 5 and 6)

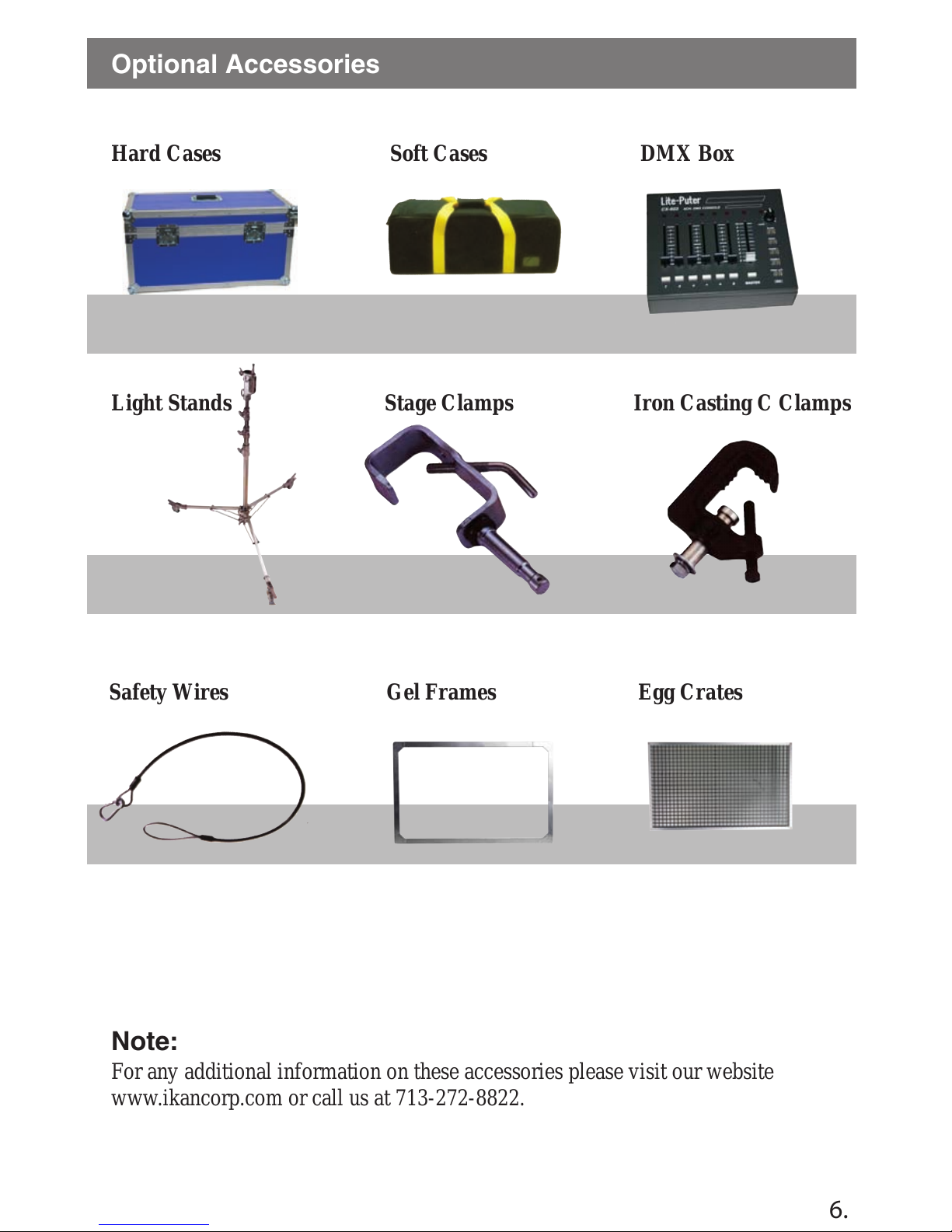

Optional Accessories

Hard Cases Soft Cases DMX Box

Light Stands Stage Clamps Iron Casting C Clamps

Safety Wires Gel Frames Egg Crates

For any additional information on these accessories please visit our website

www.ikancorp.com or call us at 713-272-8822.

Note:

1. 6.
