Iget SECURITY M3 Manuel utilisateur
iGET SECURITY M3
Designed for home and business security.
Easy to setup and use with App M3.
Home Intelligent Alarm System
Perfectly match all Android and iOS smart phones.
World famous expert of smart-home alarm system
User Manual
1
P3
P4
P7
P8
P10
P11
P12
P13
P14
P17
P18
Get ready and power on
Work with the main panel
Initializing
Add a new Alarm M3
Switch between one /two hands mode
How to use the Easy Control Panel
How to add emergency contacts
(with brief instructions about incoming alarm call)
MENU
The mobile app in this manual is the Android version of iGET SECURITY M3 app.
The snapshots and texts might be different from the version you’re using. Please refer to the latest version.
How to add accessories
Advanced settings and other features
FAQ
Appendix1: Accessory installing
2
3
Get ready and power on

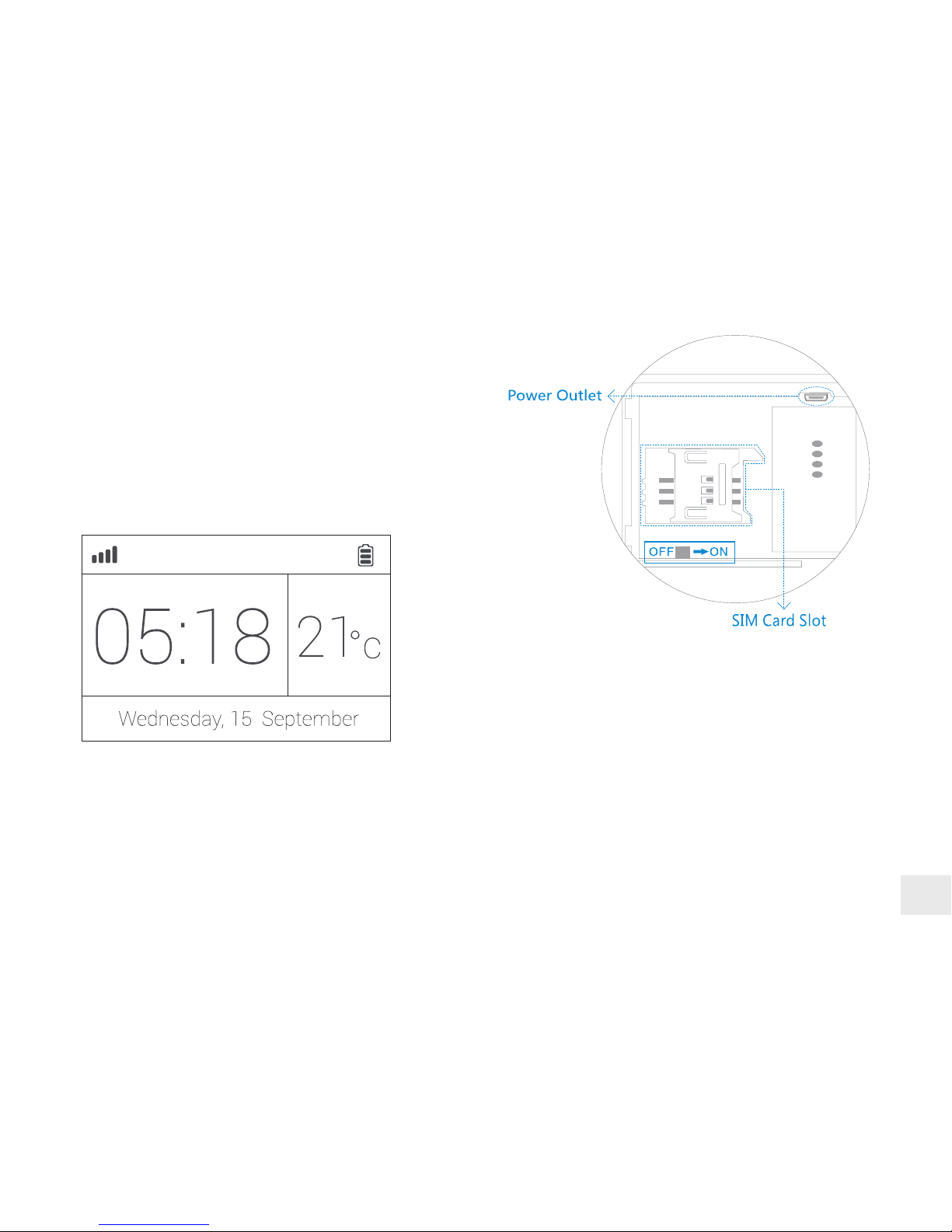

Insert sim card and connect the power cable
Power ON
• On the back of the panel, open the battery cover, you will see a slot for your
SIM Card. Insert the Sim Card and connect the power cable.
For those micro or nano SIM cards, please use sim adapter to fit the card slot.
• Flip the switch on the back of the panel to the ON position. Replace the battery cover.
Wait 20 seconds as the system runs a start-up diagnostic with a welcome screen.
• You will hear a confirmation when the test is complete.
When you see the main screen ( left ) the system is ready.
•M3 uses GSM based SIM cards to send text messages and make phone calls.
•Make sure PIN-codes and voicemail are de-activated on the SIM before use with the
panel.
• Make a note of the SIM telephone number, you will need it for setup.
4
Work with the main panel 1/3
• The M3 uses MicroUSB as the power cable interface..
• You can easily recharge it via any MicroUSB cable.
LED Monitor
Control Button
Press to enter the settings menu.
Press to navigate.
Press to select.
Press to go back.
Child Lock
Lock: Long-press for 6 seconds until the lock icon shows on screen.
Unlock: Long-press for 6 seconds until the lock icon disappears.
Power Light & Delay Arming Button
Power Light with logo.
Long-press to activate delayed arming.
Delayed Arming means the system will wait a few seconds before going into ARM status.
This allows you to leave your home without triggering the alarm. The delay time can be adjusted in the APP.
5
Work with the main panel 2/3
08:18 18°c
Wednesday, September 15
Signal Bars
Indicate the GSM signal strength.
Battery Life
Indicate the remain battery life when AC power is OFF.
Arm
All active sensors can trigger alarm.
Home Arm
Only those on Home mode stop trigger alarm.
Alarm Clock Status
Indicate one or more Alarm Clock has been set.
Real-time Temperature
The temperature surrounding main panel.
Users can change ºC or ºF in settings.
Clock
After initializing process, the time
will synchronize with your phone’s.
SIM Card Status
Flashing when starting up or SIM card error.
AC Power
External power is available.
Disarm
Stop trigger alarm, except those on 24-hours mode.
Arming Schedule
Indicate the Arm Schedule has been set.
Child Lock
Indicate the Child Lock is active.
6
Work with the main panel 3/3
Alarm Clock
Check all working alarm clocks set by APP.
ºC/ ºF Switch
Switch the temperature scale between Fahrenheit and Celsius.
Screen Timeout
Set the screen saving time.
7
Initializing by APP iGET SECURITY M3
About languages
• There is a build-in default language
pack on App. The app will automatically
check and fetch the latest available
language files, or use the latest saved
language pack or default one.
• You don’t have to reset App while
switching language. The setting will
immediately effect right after the lan-
guage being selected.
• Make sure your smart phone is
online.
• Tap iGET SECURITY icon.
• You can download iGET SECURITY M3 from both App Store or Google Play, or visit
our download page listed above from your phone.
•APP supports global languages
• Choose Auto Detect to use the phone’s current
language.
http://din.bz/iGetAndroidd http:/ din.bz/iGetiOS
8
Add a new Alarm M3 1/2
•APP is a great tool to control alarm M3. M3 should be added to APP before using, which we call binding.
One APP can handle more than one alarms M3. The phone number of M3 and the password would be asked during binding. Different
role has its default password.
Administrator: General operations and advanced settings are available. User: General operations only.
• The beginners will get kindly reminder, which could help them through the settings step by step.
•APP supports renaming for the main panel, which is especially useful when managing multiple devices.
• Users without having a M3 may experience the products in the demo mode of APP.
9
Add a new iGET SECURITY M3 2/2
About the reply SMS
• Because the iOS’s limitation, we can’t
capture the SMS. So you have to type in the
codes by your own.
•Few Android phones may also need to
enter codes manually due to the limitation from
some so-called security software, or the self-made
ROM by hobbyists.
•Most of the time, users only need to wait
few seconds.
•If you can’t receive the reply SMS, please
check the M3 phone numbers entered before,
or if the phone is charged.

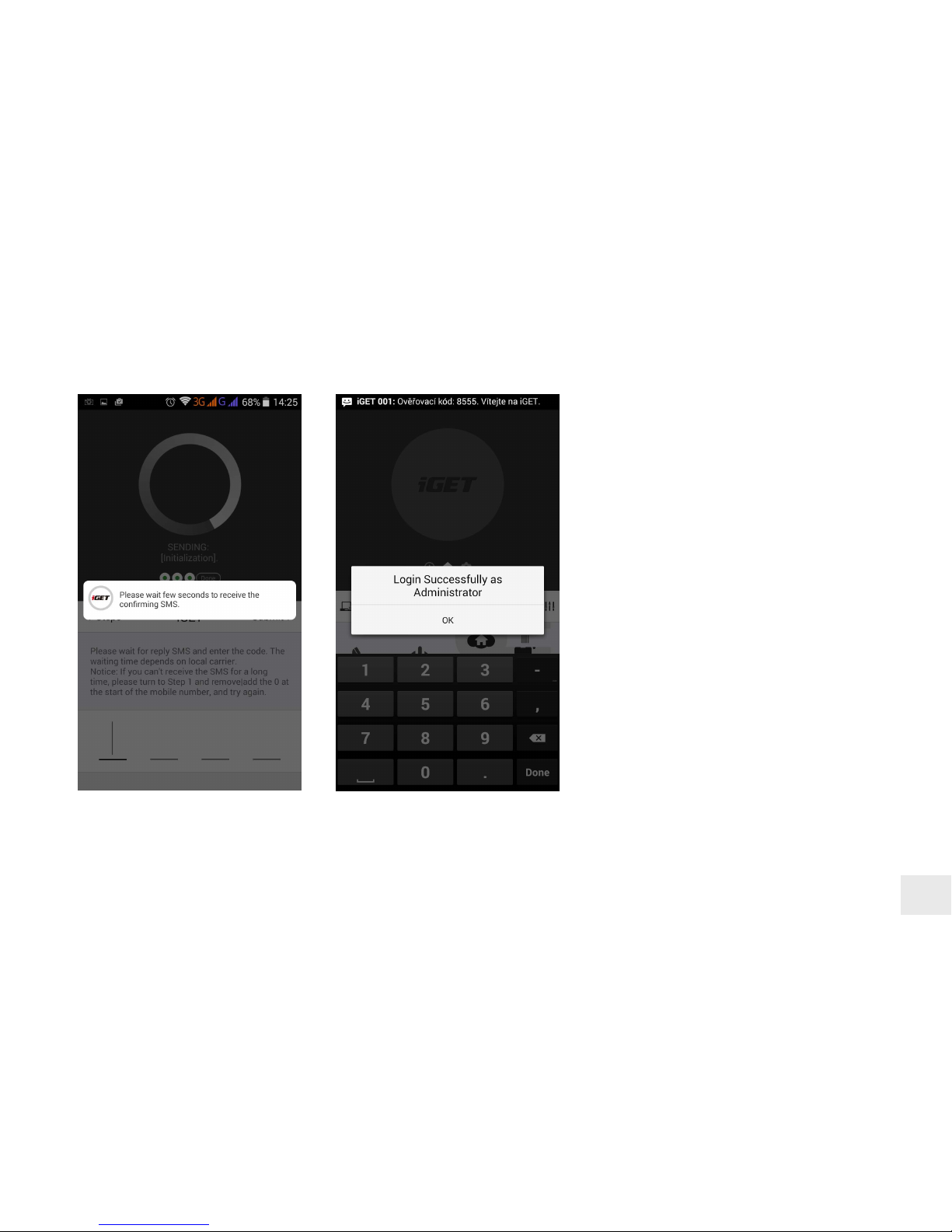

• APP sends an authorization request SMS to M3, Please wait for the reply.
• APP can recognize the verification code in SMS and fill it automatically. (Android only)
• Users may need to fill the codes manually due to some limitation of iOS system or some Android
phones.
