IFM Efector 200 O6E4 Manuel utilisateur

Operating instructions

Through-beam sensor

O6E4 / O6S4

O6E400 / 00 10 / 2015

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

[…] Designation of pushbuttons, buttons or indications

→Cross-reference

Important note

Non-compliance can result in malfunctions or interference.

2 Functions and features

The through-beam sensor detects objects and materials without contact and

indicates their presence by a switching signal.

3 Installation

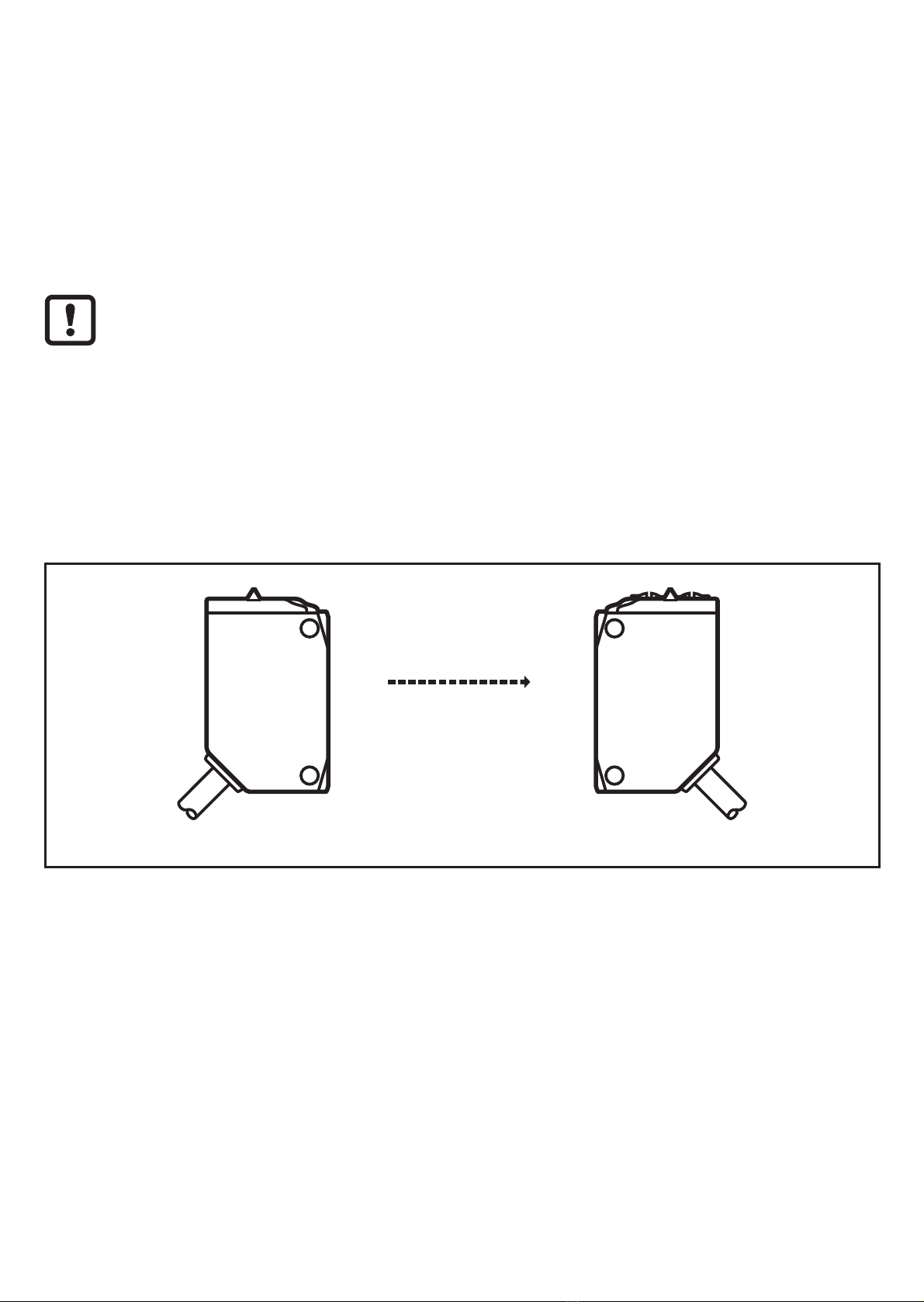

Transmitter Receiver

►Install the receiver (O6E...) and secure it to a bracket.

►Align the transmitter (O6S...) to the receiver and fix it.

Maximum range only with accurate alignment.

4 Operating and display elements

1: LED green - operation

Transmitter

1: LED yellow - switching output active

2: Setting potentiometer „sensitivity“

3: LED green - operation

4: Selector „output function“

Receiver

4.1 Stability indication

The green LED is lit when the supply voltage is applied and the sensor signal is

stable.

stable signal switch point stable signal

Light-on mode

LED green on off off on

LED yellow on on off off

Dark-on mode

LED green on off off on

LED yellow off off on on

5 Electrical connection

The unit must be connected by a qualified electrician.

►The national and international regulations for the installation of electri-

cal equipment must be adhered to.

►Ensure voltage supply to EN 50178.

►Disconnect power.

►Connect the unit as follows:

5.1 Transmitter

Connector M12 pigtail Cable *

L+









Connector M8 3-pin Connector M8 4-pin

L+

* Core colours: BN = brown, BU = blue, BK = black

5.2 Receiver

5.2.1 PNP

Connector M12 pigtail Cable *





















Connector M8 3-pin Connector M8 4-pin





















* Core colours: BN = brown, BU = blue, BK = black

5.2.2 NPN

Connector M12 pigtail Cable *

L+

Connector M8 3-pin Connector M8 4-pin

L+

* Core colours: BN = brown, BU = blue, BK = black

6 Settings

6.1 Set the output function

►Setting D: dark-on mode

►Setting L: light-on mode

Receiver

6.2 Set the sensitivity

►Increase sensitivity:

turn the setting screw of the potenti-

ometer clockwise.

►Decrease sensitivity:

turn the setting screw of the potenti-

ometer anti-clockwise.

Receiver

7 Operation

►Check whether the unit operates correctly.

> The green LED is lit when the sensor is ready for operation.

> Dark-on mode: the output is switched / the yellow LED is lit when an object is

detected.

> Light-on mode: the output is switched / the yellow LED is lit when no object is

detected.

8 Maintenance, repair, disposal

►Keep the lens of the sensor free from soiling.

►For cleaning do not use any solvents or cleaning agents which could damage

the plastic parts.

►After use dispose of the unit in an environmentally friendly way in accordance

with the applicable national regulations.

Faulty sensors must only be repaired by the manufacturer.

Technical data and further information at unter www.ifm.com
