Operating instructions
Through-beam sensor
O6E3 / O6S3
O6E3IO / 00 01 / 2015
UK
2
1 Preliminary note
1.1 Symbols used
►Instruction
> Reaction, result
[…] Designation of pushbuttons, buttons or indications
→Cross-reference
Important note
Non-compliance can result in malfunctions or interference.
2 Functions and features
The through-beam sensor detects objects and materials without contact and
indicates their presence by a switching signal.
3 Installation

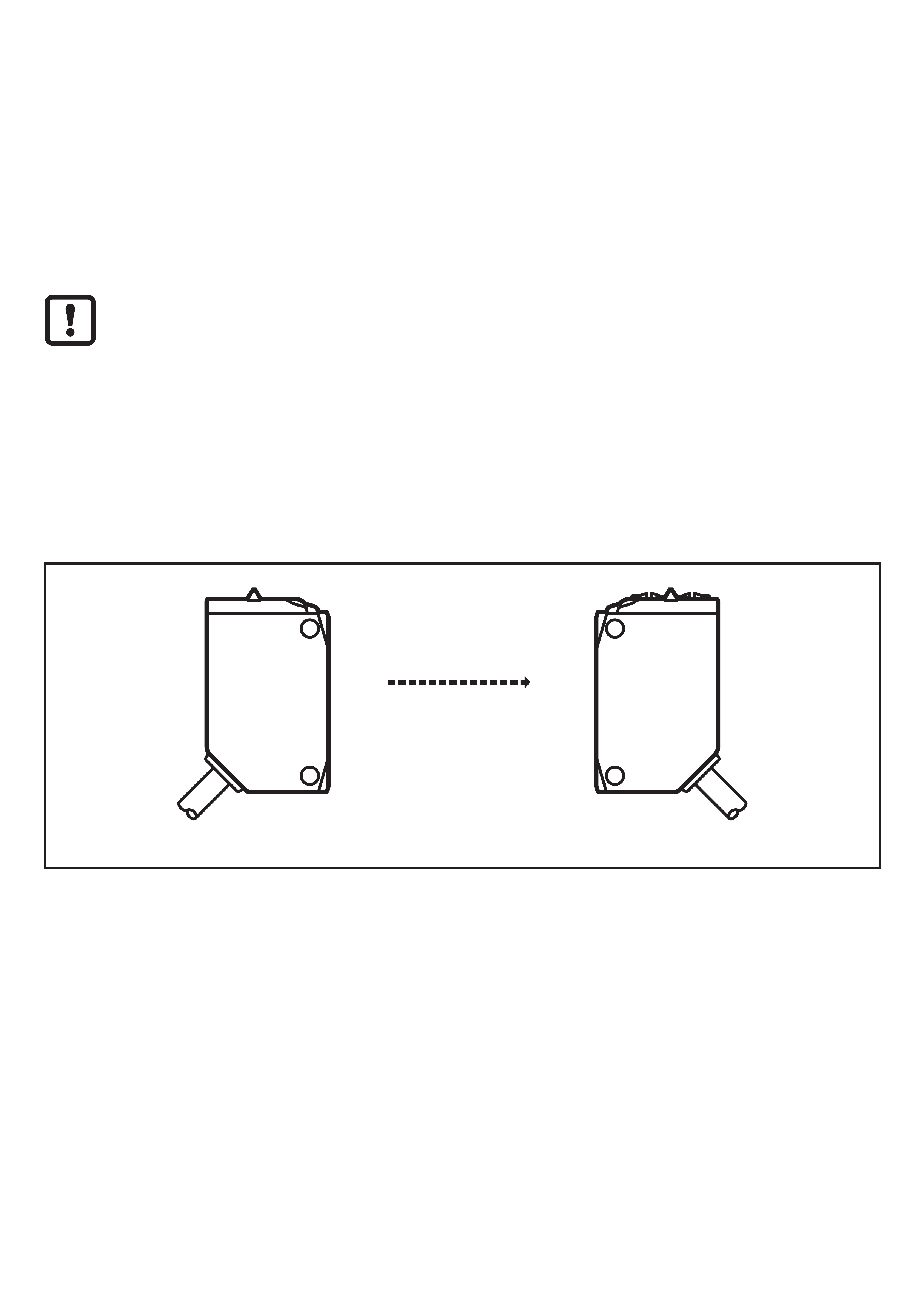

Transmitter Receiver
►Install the receiver (O6E...) and secure it to a bracket.
►Align the transmitter (O6S...) to the receiver and fix it.
Maximum range only with accurate alignment.
3
UK
4 Operating and display elements
1: LED green - operation
Transmitter
1: LED yellow - switching output active
2: Setting potentiometer „sensitivity“
3: LED green - operation, stability indication
4: Selector „output function“
Receiver
4.1 Stability indication
The green LED on the receiver is lit when the supply voltage is applied and there
is sufficient excess gain. Under these conditions the sensor receives a stable
signal.
stable signal switch point stable signal
Light-on mode
LED green on off off on
LED yellow on on off off
Dark-on mode
LED green on off off on
LED yellow off off on on
4
5 Electrical connection
The unit must be connected by a qualified electrician.
►The national and international regulations for the installation of electri-
cal equipment must be adhered to.
►Ensure voltage supply to EN 50178.
►Disconnect power.
►Connect the unit as follows:
5.1 Transmitter
Connector M12 pigtail Cable *
1
3
L+
L
Connector M8 3-pin Connector M8 4-pin
1
3
L+
L
2
1
4
3
1
3
L+
L
* Core colours: BN = brown, BU = blue, BK = black
5.2 Receiver
5.2.1 PNP
Connector M12 pigtail Cable *
Connector M8 3-pin Connector M8 4-pin
2
1
4
3
* Core colours: BN = brown, BU = blue, BK = black
5
UK
5.2.2 NPN
Connector M12 pigtail Cable *
L+
L
1
4
3L
BN
BK
BU
L+
Connector M8 3-pin Connector M8 4-pin
L+
L
1
4
3
2
1
4
3
L+
L
1
4
3
* Core colours: BN = brown, BU = blue, BK = black
6 Settings
6.1 Set the output function
DL
►Setting D: dark-on mode
►Setting L: light-on mode
Receiver
6.2 Set the sensitivity
►Increase sensitivity:
turn the setting screw of the potenti-
ometer clockwise.
►Decrease sensitivity:
turn the setting screw of the potenti-
ometer anti-clockwise.
Receiver
6
7 Operation
►Check whether the unit operates correctly.
> The green LED is lit when the sensor is ready for operation.
> Dark-on mode: the output is switched / the yellow LED is lit when an object is
detected.
> Light-on mode: the output is switched / the yellow LED is lit when no object is
detected.
8 IO-Link
8.1 General information
This unit has an IO-Link communication interface which requires an IO-Link-
capable module (IO-Link master) for operation.
The IO-Link interface enables direct access to the sensor values and parameters
and provides the possibility to set the parameters of the unit during operation.
In addition communication is possible via a point-to-point connection with a USB
adapter cable.
You will find more detailed information about IO-Link at www.ifm.com/uk/io-link.
8.2 Device-specific information
You will find the IODDs necessary for the configuration of the IO-Link unit and
detailed information about sensor values, diagnostic information and parameters
in the overview table at www.ifm.com/uk/io-link.
8.3 Parameter setting tools
You will find all necessary information about the required IO-Link hardware and
software (e.g. ifm LINERECORDER SENSOR ZGS210) at www.ifm.com/uk/io-link.
7
UK
9 Maintenance, repair, disposal
►Keep the lens of the sensor free from soiling.
►For cleaning do not use any solvents or cleaning agents which could damage
the plastic parts.
►After use dispose of the unit in an environmentally friendly way in accordance
with the applicable national regulations.
Faulty sensors must only be repaired by the manufacturer.
Technical data and further information at unter www.ifm.com
