IFB 23BC5 Manuel utilisateur

MODEL: 23BC5

CONVECTION MICROWAVE OVEN

User Manual

PLEASE READ THESE OWNERS’S MANUAL INSTRUCTION CAREFULLY BEFORE

OPERATION AND KEEP IT FOR FUTURE REFERENCE.

Please record the details of your microwave oven below for future reference:

Serial no:

Purchase Date:

Warranty:

Customer copy:

CONTENTS................................................................................................................................................................2

PRECAUTIONS TOAVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY...............3

SPECIFICATIONS....................................................................................................................................................3

INSTALLATION........................................................................................................................................................3

IMPORTANT SAFETY INSTRUCTIONS..............................................................................................................4

RADIO INTERFERENCE........................................................................................................................................5

GROUNDING INSTRUCTIONS .............................................................................................................................6

MICROWAVE COOKING PRINCIPLES...............................................................................................................6

BEFORE YOU CALLFOR SERVICE....................................................................................................................6

UTENSILS GUIDE....................................................................................................................................................7

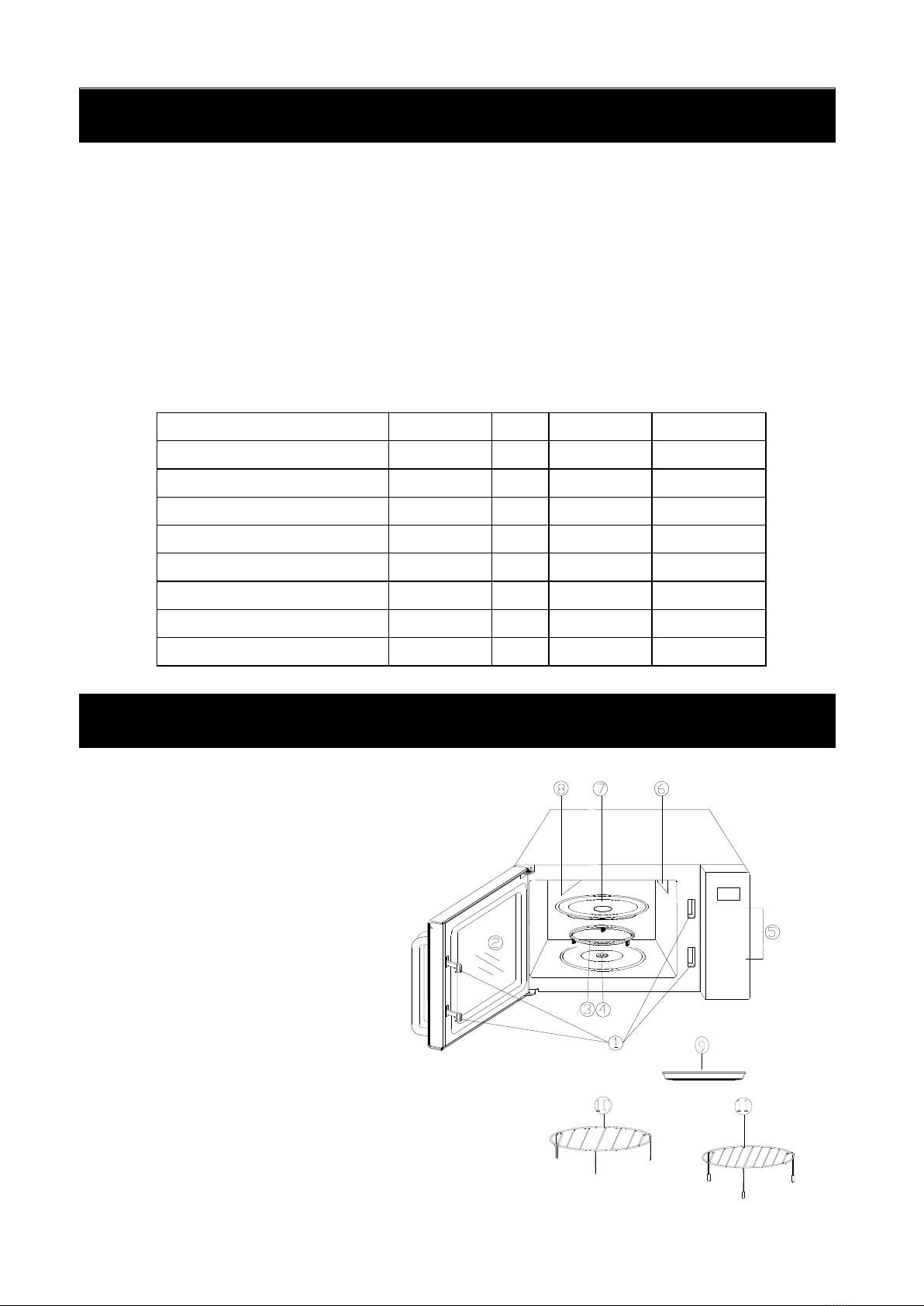

PART NAMES............................................................................................................................................................7

CONTROLPANEL....................................................................................................................................................8

HOW TO SET THE OVEN CONTROLS................................................................................................................9

SETTINGTHE CLOCK ..............................................................................................................................................9

SETTINGTHE OVEN TIMER....................................................................................................................................9

EXPRESS COOKING..................................................................................................................................................9

MICROWAVE COOKING.........................................................................................................................................10

GRILL........................................................................................................................................................................10

MICROWAVE +GRILL.............................................................................................................................................11

CONVECTION..........................................................................................................................................................11

MICROWAVE +CONVECTION...............................................................................................................................12

WEIGHTDEFROST..................................................................................................................................................13

MULTI-STAGE COOKING.......................................................................................................................................13

REHEAT FUNCTION .............................................................................................................................................13

STEAM CLEAN FUNCTION ...................................................................................................................................14

DEODORIZE FUNCTION........................................................................................................................................14

KEEPWARM FUNCTION........................................................................................................................................14

FERMENT FUNCTION ............................................................................................................................................14

DISINFECT FUNCTION...........................................................................................................................................14

CHILD PROOF LOCK ..............................................................................................................................................15

POWER SAVE...........................................................................................................................................................15

AUTOMATIC PROTECTION MECHANISM..........................................................................................................15

AUTO MENU...........................................................................................................................................................15

CAKE/CARAMEL .........................................................................................................................................................15

TEA/COFFEE(TC) ....................................................................................................................................................22

SPAGHETTI(SP) .......................................................................................................................................................23

POTATO(PA)..............................................................................................................................................................28

POPCORN(PC)..........................................................................................................................................................32

PIZZA(PI) ..................................................................................................................................................................32

HOME MADE GHEE ...............................................................................................................................................34

MILK REHEAT ........................................................................................................................................................35

CHICKEN(CI) ...........................................................................................................................................................35

H1/H2 MODE ...........................................................................................................................................................41

H1/H2 MENUS(HC)..................................................................................................................................................42

CLEANINGAND CARE.........................................................................................................................................70

1.Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure

to microwave energy. It is important not to defeat or tamper with the safety interlocks.

2.Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate

on sealing surfaces.

3.Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that

there is no damage to the

1）Door (bent),

2）Hinges and latches (broken or loosened),

3）Door seals and sealing surfaces.

4.The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Power Supply 230V/ 50Hz

Power Consumption (Microwave) 1400W

Power Consumption (Grill) 950W

Power Consumption (Convection) 1850W

Rated Microwave Power Output: 900W

Operation Frequency: 2450MHz

Outside Dimensions: 281mm(H)×483mm(W)×400mm(D)

Oven Cavity Dimensions: 220mm(H)×340mm(W)×320mm(D)

Oven Capacity: 23Litres

Cooking Uniformity: Turntable System

Net Weight: Approx. 15.7Kg.

1.Make sure that all the packing materials are removed from the inside of the door.

2.WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing

surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any

damage, do not operate the oven and contact qualified service personnel.

3.This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be

cooked in the oven.

4.Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5.For correct operation, the oven must have sufficient airflow. Allow minimum 20cm of free space necessary above

the top surface of the oven and 5cm at both sides. The microwave oven rear plate must be placed close to the

wall. Do not cover or block any openings on the appliance. Do not remove feet.

6.Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7.Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp

surface.

8.The socket must be readily accessible so that it can be easily unplugged in an emergency.

9.Do not use the oven outdoors.

10.The microwave oven should be operated at the same voltage as that specified on the rating label.

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave

energy:

1.Read all instructions before using the appliance and keep for future reference.

2.Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors

in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for

industrial or laboratory use.

3.Do not operate the oven when empty.

4.Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been

damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

or a similarly qualified person in order to avoid a hazard.

5.Warning: When the appliance is operated in the combination mode, children should only use the oven under adult

supervision due to the temperatures generated.

6.WARNING: Only allow children to use the oven without supervision when adequate instructions have been given

so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7.To reduce the risk of fire in the oven cavity:

a)When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.

b)Remove wire twist-ties from paper or plastic bags before placing bag in oven.

c)If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

d)Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity

when not in use.

e)The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads,

slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

8.WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

9.Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle

the container.

10.Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

11.Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may

explode even after microwave heating has ended.

12.Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

13.The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be

checked before serving in order to avoid burns.

14.Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed

to handle the utensil.

15.Utensils should be checked to ensure that they are suitable for use in microwave oven.

16.WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation

which involves the removal of any cover which gives protection against exposure to microwave energy.

17.This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM

(Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or

used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For

Class B equipment is equipment suitable for use in domestic establishments and in establishments directly

connected to a low voltage power supply network which supplies buildings used for domestic purpose.

18.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

19.Children should be supervised to ensure that they do not play with the appliance.

20.The microwave oven is only used in freestanding.

21.WARNING: Do not install oven over a range cook top or other heat-producing appliance. If installed could be

damaged and the warranty would be avoid. .

22.The microwave oven shall not be placed in a cabinet.

23.The door or the outer surface may get hot when the appliance is operating.

24.Warning:Accessible parts may become hot during use. Young children should be kept away.

25.During use the appliances becomes hot. Care should be taken to avoid touching heating elements inside the

oven, for cooking ranged and ovens.

26.WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a

competent person

27.The instructions shall state that appliances are not intended to be operated by means of an external timer or

separate remote-control system.

28.The microwave oven is for household use only and not for commercial use.

29.Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for

air circulation.

30.Please secure the turntable before you move the appliance to avoid damages.

31.Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these

circumstances the cover have to be removed which assures protection against microwave radiation. This

applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service

centre.

32.The microwave oven is intended for defrosting, cooking and steaming of food only.

33.Use gloves if you remove any heated food.

34.Caution! Steam will escape, when opening lids or wrapping foil.

35.This appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall

not be made by children unless they are aged from 8 years and above and supervised.

36.If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1.Clean door and sealing surface of the oven.

2.Reorient the receiving antenna of radio or television.

3.Relocate the microwave oven with respect to the receiver.

4.Move the microwave oven away from the receiver.

5.Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch

circuits.

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug.

It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short

circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is

recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may

result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1.If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service

person.

2.Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting

from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue/ Black = NEUTRAL

Brown/ Red = LIVE

1.Arrange food carefully. Place thickest areas towards outside of dish.

2.Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely

overcooked can smoke or ignite.

3.Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4.Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large

items like roasts must be turned over at least once.

5.Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the

dish to the outside.

If the oven fails to operate:

1.Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds,

and plug it in again securely.

2.Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the

outlet with another appliance.

3.Check to ensure that the control panel is programmed correctly and the timer is set.

4.Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave

energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. CALL

ON THE IFB CARE NUMBER MENTIONED ON THE ON PRODUCT STICKER. DO NOT TRY TO ADJUST OR

REPAIR THE OVEN YOURSELF.

1.Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens. Metallic

containers for food and beverages are not allowed during microwave cooking. This requirement is not

applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

2.Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.

3.Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which

may cause sparks and/or fires.

4.Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

5.Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t use too

much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware Microwave Grill Convection Combination*

Heat–Resistant Glass Yes Yes Yes Yes

Non Heat–Resistant Glass No No No No

Heat–Resistant Ceramics Yes Yes Yes Yes

Microwave–Safe Plastic Dish Yes No No No

Kitchen Paper Yes No No No

Metal Tray No Yes Yes No

Metal Rack No Yes Yes No

Aluminum Foil & Foil Container No Yes Yes No

*Combination: applicable for both "microwave+grill", and "microwave+convection" cooking.

1. Door Safety Lock System

2. Oven Window

3. Roller Ring

4. Shaft

5. Control Panel

6. Wave Guide(Please do not remove the

mica plate covering the wave guide)

7. Glass Tray

8. Grill Heater

9. Baking Plate

10. Metal Rack 1

11. Metal Rack 2

DISPLAY SCREEN

Cooking time, power, indicators and clock time are displayed.

NUMBER PADS

Use to enter clock, cooking time, temperature, etc.

QUICK COOK BUTTONS

Instant settings to cook popular foods.

REHEAT

Press to set reheat function.

STEAM CLEAN/ DEODORIZE

Press to use steam to clean the oven inside.

Press to set a deodorize program.

KEEP WARM/FERMENT

Press to set the oven to operate at keep warm and fermentation

mode.

DISINFECT

Set the disinfection function

MICROWAVE POWER LEVEL

Press to select microwave power level.

GRILL/ MICRO.+ GRILL

Press to set a grill-cooking program.

Press to select one of two combination cooking settings.

CONV/MICRO+CONV

Press to program convection cooking or micro+convection

cooking.

TIMER/CLOCK

Use to set the clock and the oven timer.

WEIGHT DEFROST

Touch to set a defrost program by the weight you entered.

STOP/RESET

Touch to stop cooking program or clear all previous settings

before cooking starts.

It also used to set child lock.

POWER SAVE

Press to set power saving mode.

START/EXPRESS COOK

Press to start a cooking program or to start the oven to cook at

100% power level quickly.

OFC-H1/H2 MENUS

Press to set H1/H2 function or H1/H2 menu cooking program.

wWhen the oven first plugged in, beep will sound and the display will show“1:01“ and“CLOCK“.

wAfter cooking ends, the screen will display End with sound every two minutes until user press any pad or open the

door.

wDuring cooking setting mode, the oven will return to waiting mode if there is not any operation within 20 seconds.

wDuring cooking, if press STOP/RESET pad once or open the door, the program will be paused, then press

START/EXPRESS COOK pad to resume, but if press STOP/RESET pad twice, the program will be canceled.

wThe electronically control system of the microwave oven has the feature of cooling. As for any

cooking mode with cooking time above 2 minutes, the oven fan will work about 3 minutes automatically to cool

the oven for prolonging the life of the oven.

SETTING THE CLOCK

This is a 12 or 24 hours cycle. You can choose it by touching TIMER/CLOCK pad.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

1.In standby mode, press and hold TIMER/CLOCK pad for 3 seconds to choose 12 hour clock (if you want to

choose 24 hour clock, press the pad again).

2.Use the number pads to enter clock time“8 :30”.

3.Press TIMER/CLOCK to confirm.

SETTING THE OVEN TIMER

To use the timer feature, as when you need to be reminded the cooking time or some other things.

Press TIMER/CLOCK button once.

Use the number pads to enter the time to be counted down. The longest time you can set is 99 minutes and 99

seconds.

Press START/EXPRESS COOK button.

NOTE: During timing countdown, press TIMER/CLOCK pad once, time countdown can be seen in display for 3

seconds, press STOP/RESET to cancel the function within these 3 seconds.

EXPRESS COOKING

Use this feature to program the oven to start at 100% power conveniently. The max time can be set is 10minutes

Open the oven door and place the food, close it. Press START/EXPRESS COOK button in quick succession to set

the cooking time and the oven will auto-start cooking.

Table des matières

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
