IEI Technology PPC-5050A Manuel utilisateur

Manual Revision 1.0

October7,2002

PPC-5050A

15” TFT Panel PC Ver 1.0

Revision: 1.0. Oct., 7 2002.

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the

part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

Trademarks

PPC-5050A is a registered trademark of ICP Electronics Inc. IBM PC is a registered

trademark of International Business Machines Corporation. Intel is a registered

trademark of Intel Corporation. Other product names mentioned herein are used for

identification purposes only and may be trademarks and/or registered trademarks of

their respective companies. If you have any questions or need other information,

please visit to our web site.

http://www.iei.com.tw

Revision History

Revision Revision Note Date

1.00 Initial release of the PPC-5050A user’s manual Oct. 7 20002

Note:

The author assumes no responsibility for any errors or omissions that may appear this

manual nor does the author make a commitment to update the information contained

herein.

Table of Contents

1. INTRODUCTION....................................................................................................4

1.1 CHECKLIST ............................................................................................................4

1.2 FEATURES ..............................................................................................................4

1.3 SPECIFICATIONS.....................................................................................................5

1.4 MECHANICAL DIMENSION .................................................................................9

2. SYSTEM SETUP ...................................................................................................10

2.1 THE REVERSE SIDE OF PPC-5050A..................................................................10

2.2 THE REVERSE SIDE OF THE REAR CABINET ...................................................... 11

2.3 THE SIDE VIEW OF PPC-5050A........................................................................12

2.4 POS-566/370 CPU BOARD INSTALLATIO N .......................................................13

2.5 POWER SUPPLY INSTALLATION..........................................................................14

2.6 DRIVE DISK INSTALLATION ...............................................................................15

2.6.1 FDD Installation......................................................................................15

2.6.2 HDD Installation .....................................................................................16

2.6.3 CD-ROM Installation...........................................................................17

2.7 PANEL MOUNTING ............................................................................................18

2.8 WALL MOUNTING .............................................................................................19

2.9 ARM MOUNTING ...............................................................................................20

2.10 RACK MOUNTING ...........................................................................................21

APPENDIX A EXPLODED DIAGRAM ..............................................................22

APPENDIX B USER MODE OSD FEATURE DESCRIPTION .......................23

APPENDIX C DISPLAY INTERFACE................................................................26

APPENDIX D TOUCH PANEL CONTROLLER...............................................27

1. Introduction

The PPC-5050A, 15" LCD TFT Panel PC, takes advantages of modern flat-panel

display, POS-566/370 CPU board, drive spaces and power supply for minimum size.

It is an IBM PC/AT compatible computer specially designed to meet the applications

for industrial environment.

1.1 Checklist

Item Description Qty.

1 Y Cable 1

2 Power Cable 1

3 Wall Mounting kit 1

4 BOLT M4*8 4

5 Mounting Clip 10

6 Round Head Screw M5*50 10

7 Round Head Screw M3*6 10

8 Flat Head Screw M3*6 5

9 Screw Accessories (19600-000103) 1

10 Screw Accessories (19600-000104) 1

11 Screw Accessories (19600-000105) 1

12 Screw Accessories (19600-000063) 1

12 A49 1

13 SLIM-05 1

14 JUMPER Pitch:2.0 10

15 POS-566/370 User’s Manual 1

16 PPC-5050 User’s Manual 1

17 CD-ROM Driver 1

18 Touch Panel Pen (Option) 1

19 Touch Panel Driver (Option) 1

1.2 Features

CPU Board

PPC-5050A is designed for POS-566/370 CPU board. The POS-566/370 board is a

LPX specification board, which equipped with high performance socket 370 Celeron

Pentium III®CPU, LCD/CRT and 10/100Mbps Ethernet, designed for the system

manufacturers, integrators, or VARs to provide all the performance, reliability, and

quality.

LCD Display

The PPC-5050A is equipped with a 15" TFT LCD.

Power Supply

The standard industrial power supply of PPC-5050A is equipped with ACE-916AP.

Touch Screen (option)

Dynapro resistive touch screen.

HDD, FDD & CD-ROM

It is suggested to be equipped with one 2.5” internal HDD, one slim FDD, and one

slim CD-ROM.

1.3 Specifications

zDisk Drive Bay: Support one 2.5" HDD, one slim FDD, and one slim CD-ROM.

zBest solution for Panel mount man machine interface.

zDimensions : Front Panel: 410mm x 309mm x 9mm (WxHxD)

Cabinet: 383.6mm x 282.6mm x 97.6mm (WxHxD)

zLCD Display: TTL LCD connector interface to support screen reverse function.

Display Model CHI MEI

Display Type 15” TFT color

LCD model M150X2-T05

Resolution 1024x768

Display colors 262,144 color

Brightness 250 cd/m2

LCD MTBF 50,000 hrs

Backlight MTBF 50,000 hrs

Supply Voltage 3.3V

zDynapro Touch Screen (option)

Type: Analog Resistive

Resolution: Continuous

Light transmission: Typical value 75%

Surface Hardness: 4H (Test condition: ASTM D3363-92A)

8-wire touch screen

Support driver: Supports Linux,MS-DOS,Windows 3.1/95/

98/CE,ME/2000/NT,OS/2,MAC,etc.

zEnvironmental specifications

Operating Temperature : 0 ~ 50℃

Relative Humidity: 5~85% @40℃, non-condensing

Vibration: 5 to 17 Hz, 0.1"double-amplitude displacement,

17 to 500 Hz, 1.5 G peak to peak.

zIndustrial Power Supply: ACE-916AP series Power Supply

High reliability triple outputs switching Power Supply with height 40.6mm only

Standard Power Supply: ACE-916AP

Optional Power Supply: ACE-916A, ACE-816A/ AP and ACE-815T

Operating temperature: -0°C to 50°C

Vibration: 10-55Hz at 2G 3 min. period, 30 min. along X, Y, and Z axis

Shock: 10G for 20ms once on each X, Y, and Z axis

Safety: meet UL1950/TUV: EN60950

EMI: meet FCC class B /CISPR:EN 55022 class B/CE: Harmonic EN61000-3-2

zSpecifications of POS-566 CPU Board:

The POS-566/566L 450MHz K6-3 / PentiumProcessor Multimedia POS

Control SBC provides the following specifications:

•CPU: Pentium®MMX up to 233Mhz, AMD®K6®/K6®-2/K6®-3 up to

450MHz, IDT C6, Cyrix 6x86MX, etc. Processor

•RAM: 3x DIMM sockets up to 768MB SDRAM

•Cache memory: 512KB Pipelined Burst SRAM on board

•Bus: PCISA bus expansion to support ISA and PCI bus signal

•Chipset: Ali 5, support 100MHz CPU clock

•LCD/CRT Controller: CHIPS 65555 2MB EDO RAM on board

•Support 3.3V or 5V flat panel.

•Support Mono, Color STN, TFT, EL,.. wide range flat panel.

•Optional One Channel or Two Channels LVDS module.

•10/100Mbps Ethernet Controller: Realtek RTL8139 IEEE 802.u 100

BASE-TX standard Dual Auto-sensing interface to 10MBps or 100MBps

networks

Warning: Whenever you need to take off a part for either maintenance or

upgrading purpose, you should switch off the power supply and unplug the

power cord first.

RJ45 connector for 10BASE-T and 100BASE-TX

Full duplex capability, full software driver support.

•Creative Sound Blaster 16 compatible and Roland MPU401 UART

Mode compatible

•Four high speed Serial ports : three RS-232C, one RS-232C, or

RS-422/485 Port

•Parallel Ports : Two SPP/EPP/ECP Parallel Ports

•Enhanced IDE Interface :

One 44-

in Header for 2.5” HDD

One 40-pin Header for 3.5” HDD

•PCISATM Bus Expansion to support ISA and PCI bus signal

•Isolated Digital I/O: 4 Digital Inputs and 4 Digital Output channels

•IrDA port: Support Serial Infrared (SIR) and Amplitude Shift Keyed

IR (ASKIR) interface.

•Two USB ports: Support dual USB ports for future expansion.

•Watchdog timer: Can be set by 1, 2, 10, 20, 110 or 220 seconds period.

Reset or NMI is generated when CPU does not periodically trigger the timer.

•E2KeyTM Function: A special designed 1Kbit EEPROM (non volatile

memory) provided to accept read/ write data by customer’s program. It is

useful to store system ID, Password, Critical Data on the board.

•Keyboard connector

•Mouse: PS/2 Mouse Port on-board.

•Power Consumption: +5V/5.5A (AMD K6-2 350MHz, 384MB SDRAM)

+12V: 170mA , -12V : 60mA

•Support ATX and AT power supply

•Operating Temperature: 0°~ 60°C ( CPU needs Cooler)

•Operating Humidity: 5-95% non-condensing

zSpecifications of POS-370 CPU Board:

The POS-370 socket 370 Celeron Pentium IIIProcessor Multimedia POS

Control SBC provides the following specifications:

•CPU: Celeron & Pentium III®Processor

•RAM: 2x DIMM sockets up to 1GB SDRAM.

•Bus: PCI bus expansion to support .

•Chipset: SIS630, support 133MHz CPU clock

•LCD/CRT Controller: On chip SIS300

•Support 3.3V or 5V flat panel.

•Support Mono, TFT, EL... wide one channel that panel.

•Optional One Channel or One Channel LVDS module.

•10/100Mbps Ethernet Controller: On chip SIS900 LAN BASE-TX

standard Dual Auto-sensing interface to 10MBps or 100MBps networks

RJ45 connector for 10BASE-T and 100BASE-TX

Full duplex capability, full software driver support.

•On CHIP AC97 SIS 7018

•Four high speed Serial ports : three RS-232C, one RS-232C, or

RS-422/485 Port

•Parallel Ports : Two SPP/EPP/ECP Parallel Ports

•Enhanced IDE Interface :(DMA66)

Two 40-pin Header for 3.5” HDD

•PCI Bus Expansion to support PCI bus signal

•Isolated Digital I/O: 4 Digital Inputs and 4 Digital Output channels

•IrDA port: Support Serial Infrared (SIR) and Amplitude Shift Keyed

IR (ASKIR) interface.

•Five

USB ports: Support dual USB ports for future expansion.

•Watchdog timer: Can be set by 1 min.(min.) period.

•Keyboard connector

•Mouse: PS/2 Mouse Port on-board.

•Power Consumption: +5V/6.5A (see POS-370 manual))

•Support ATX and AT power supply

•Operating Temperature: 0°~ 60°C ( CPU needs Cooler)

•Operating Humidity: 5-95% non-condensing

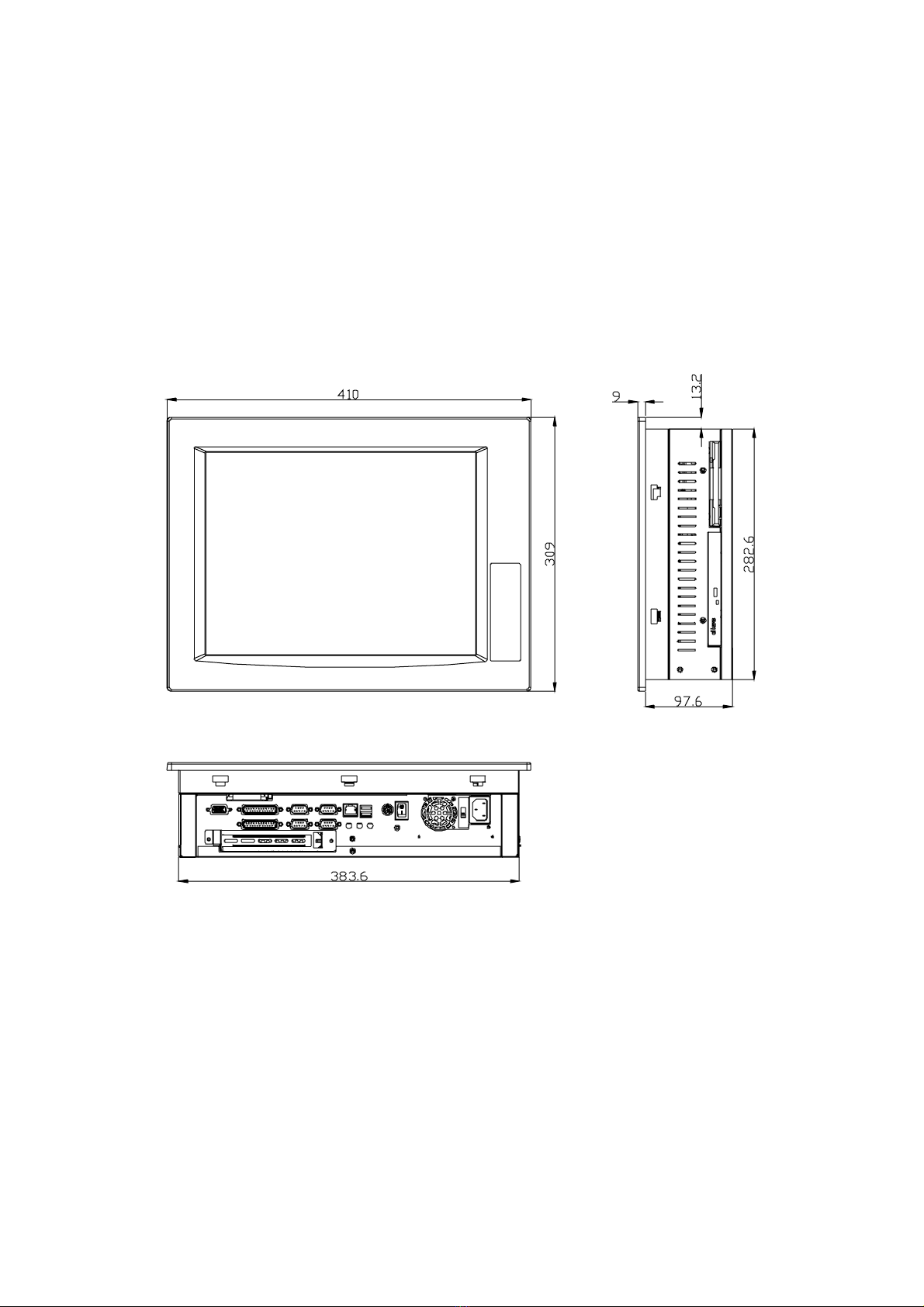

1.4 Mechanical Dimension

Front Panel: 410mm x 309mm x 9mm (WxHxD)

Cabinet: 383.6mm x 282.6mm x 97.6mm (WxHxD)

Table des matières

Autres manuels IEI Technology Écran tactile

IEI Technology

IEI Technology IOVU-571N Manuel utilisateur

IEI Technology

IEI Technology AFOLUX CX Series Manuel utilisateur

IEI Technology

IEI Technology POCi-W24C-ULT5 Manuel utilisateur

IEI Technology

IEI Technology AFL2-12A-HM65/PC-EM-R11 Manuel utilisateur

IEI Technology

IEI Technology AFL-4 Series-N270 Manuel utilisateur

IEI Technology

IEI Technology AFL-17D Manuel utilisateur

IEI Technology

IEI Technology IOVU-572M Manuel utilisateur

IEI Technology

IEI Technology AFL2-W15A-N270 Manuel utilisateur

IEI Technology

IEI Technology IKARPC-07A-A9 Manuel utilisateur

IEI Technology

IEI Technology AFL2-17AB-H61 Series Manuel utilisateur

IEI Technology

IEI Technology PPC-F D-ULT5 Series Manuel utilisateur

IEI Technology

IEI Technology AFL2-12A-HM65/PC-R15 Manuel utilisateur

IEI Technology

IEI Technology AFL2-W07A-N26 Manuel utilisateur

IEI Technology

IEI Technology AFL-057A-Z510 Manuel utilisateur

IEI Technology

IEI Technology AFOLUX AM2 Series Manuel utilisateur

IEI Technology

IEI Technology IOVU-210AD-RK39 Manuel utilisateur

IEI Technology

IEI Technology PPC-FxxA-H81 Manuel utilisateur

IEI Technology

IEI Technology AFL4-W10-EHL Manuel utilisateur

IEI Technology

IEI Technology AFL A-N270 Series Manuel utilisateur

IEI Technology

IEI Technology PPC-5152-D525-E Manuel utilisateur

IEI Technology

IEI Technology PPC2-C-EHL Series Manuel utilisateur

IEI Technology

IEI Technology AFL4-W07-EHL Manuel utilisateur

IEI Technology

IEI Technology PPC2-C ADL Series Manuel utilisateur

IEI Technology

IEI Technology POC-W24C-ULT3 Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
