IEI Technology AFL3-W07A-BT Manuel utilisateur

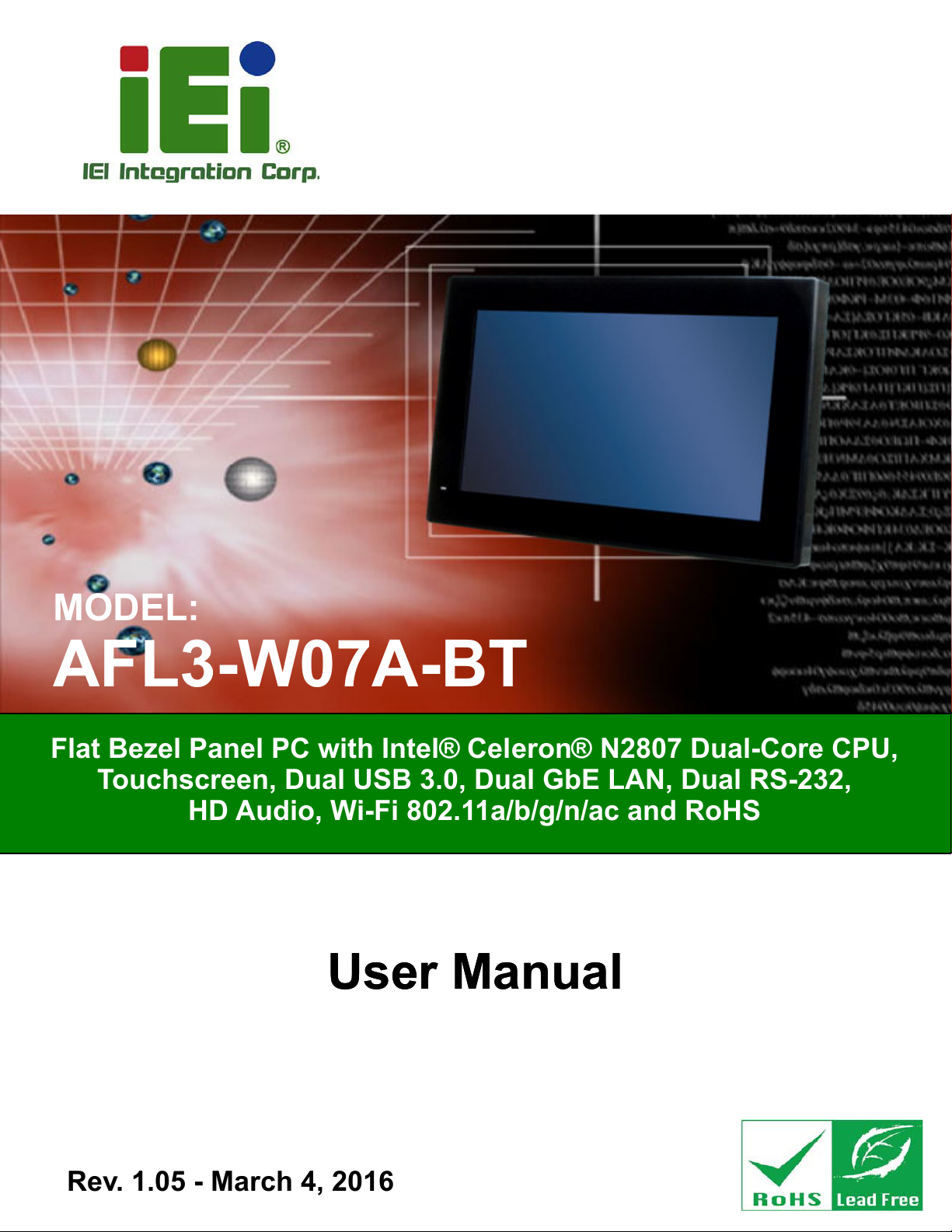

AFL3-W07A-BT Panel PC

Page I

User Manual

AFL3-W07A-BT

MODEL:

Flat Bezel Panel PC with Intel® Celeron

N2807 Dual-Core CPU,

Touchscreen, Dual USB 3.0, Dual GbE LAN, Dual RS-232,

HD Audio, Wi-Fi 802.11a/b/g/n/ac and RoHS

Rev. 1.05 - March 4, 2016

User Manual

AFL3-W07A-BT Panel PC

Page II

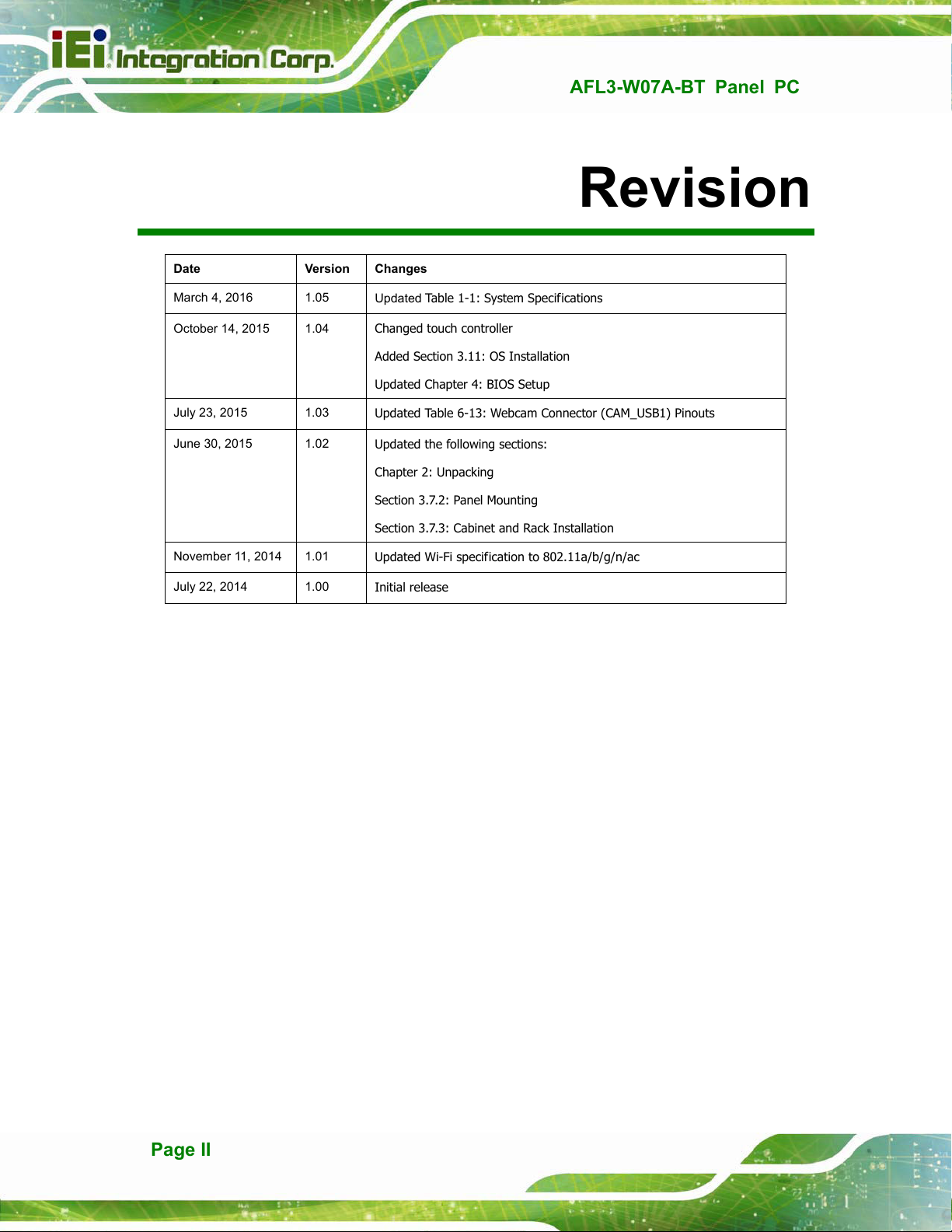

Revision

Date Version Changes

March 4, 2016 1.05 Updated Table 1-1: System Specifications

October 14, 2015 1.04 Changed touch controller

Added Section 3.11: OS Installation

Updated Chapter 4: BIOS Setup

July 23, 2015 1.03 Updated Table 6-13: Webcam Connector (CAM_USB1) Pinouts

June 30, 2015 1.02 Updated the following sections:

Chapter 2: Unpacking

Section 3.7.2: Panel Mounting

Section 3.7.3: Cabinet and Rack Installation

November 11, 2014 1.01 Updated Wi-Fi specification to 802.11a/b/g/n/ac

July 22, 2014 1.00 Initial release

AFL3-W07A-BT Panel PC

Page III

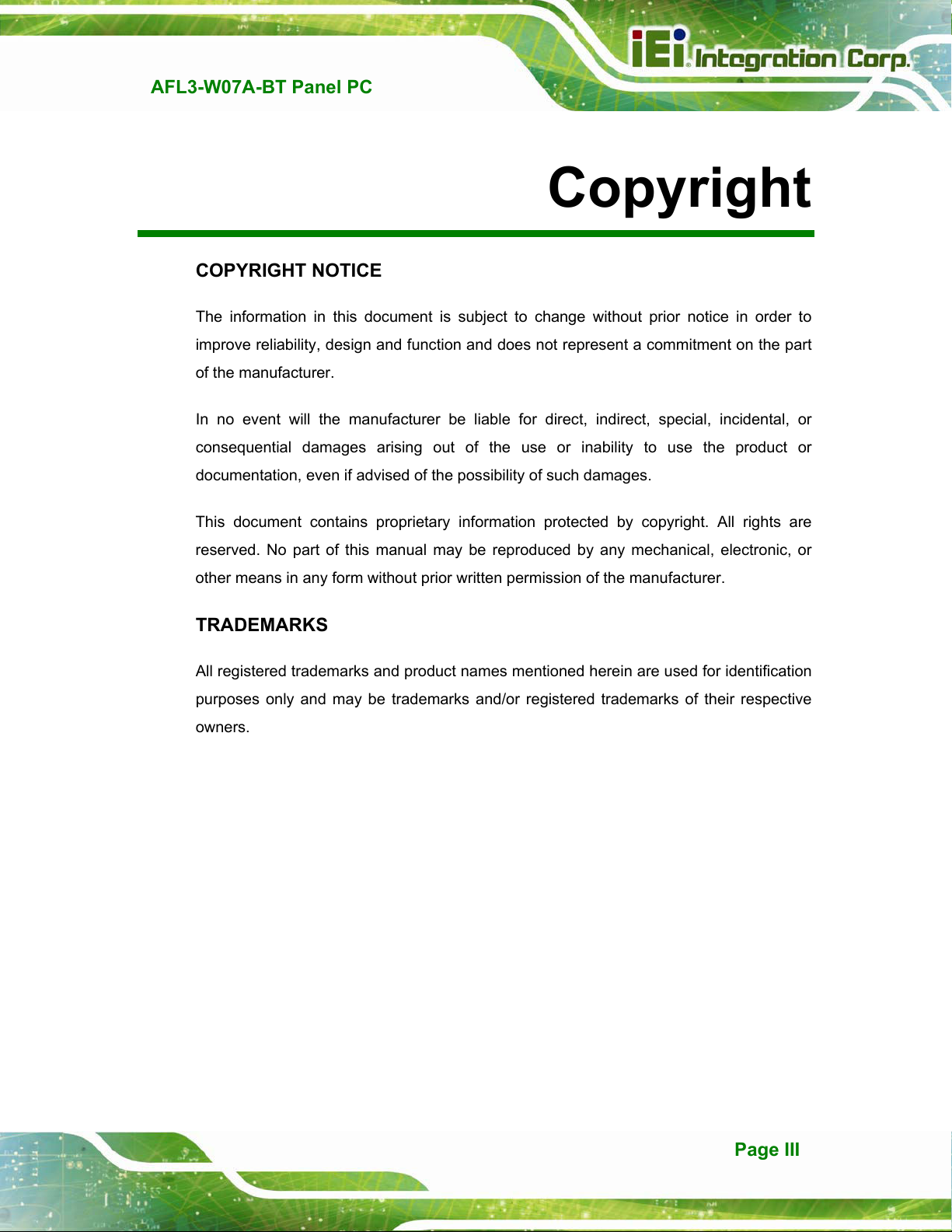

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part

of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of their respective

owners.

AFL3-W07A-BT Panel PC

Page IV

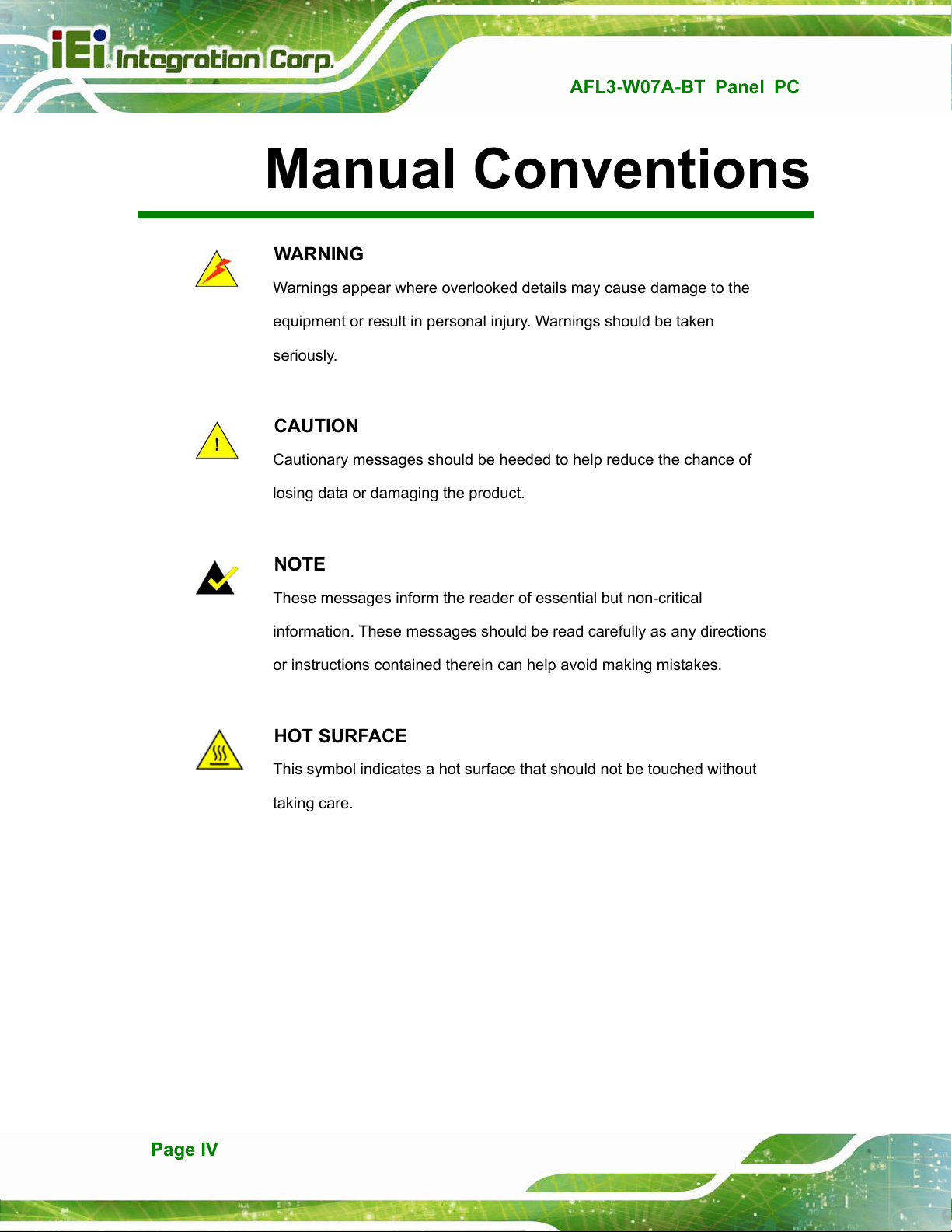

Manual Conventions

WARNING

Warnings appear where overlooked details may cause damage to the

equipment or result in personal injury. Warnings should be taken

seriously.

CAUTION

Cautionary messages should be heeded to help reduce the chance of

losing data or damaging the product.

NOTE

These messages inform the reader of essential but non-critical

information. These messages should be read carefully as any directions

or instructions contained therein can help avoid making mistakes.

HOT SURFACE

This symbol indicates a hot surface that should not be touched without

taking care.

AFL3-W07A-BT Panel PC

Page 23

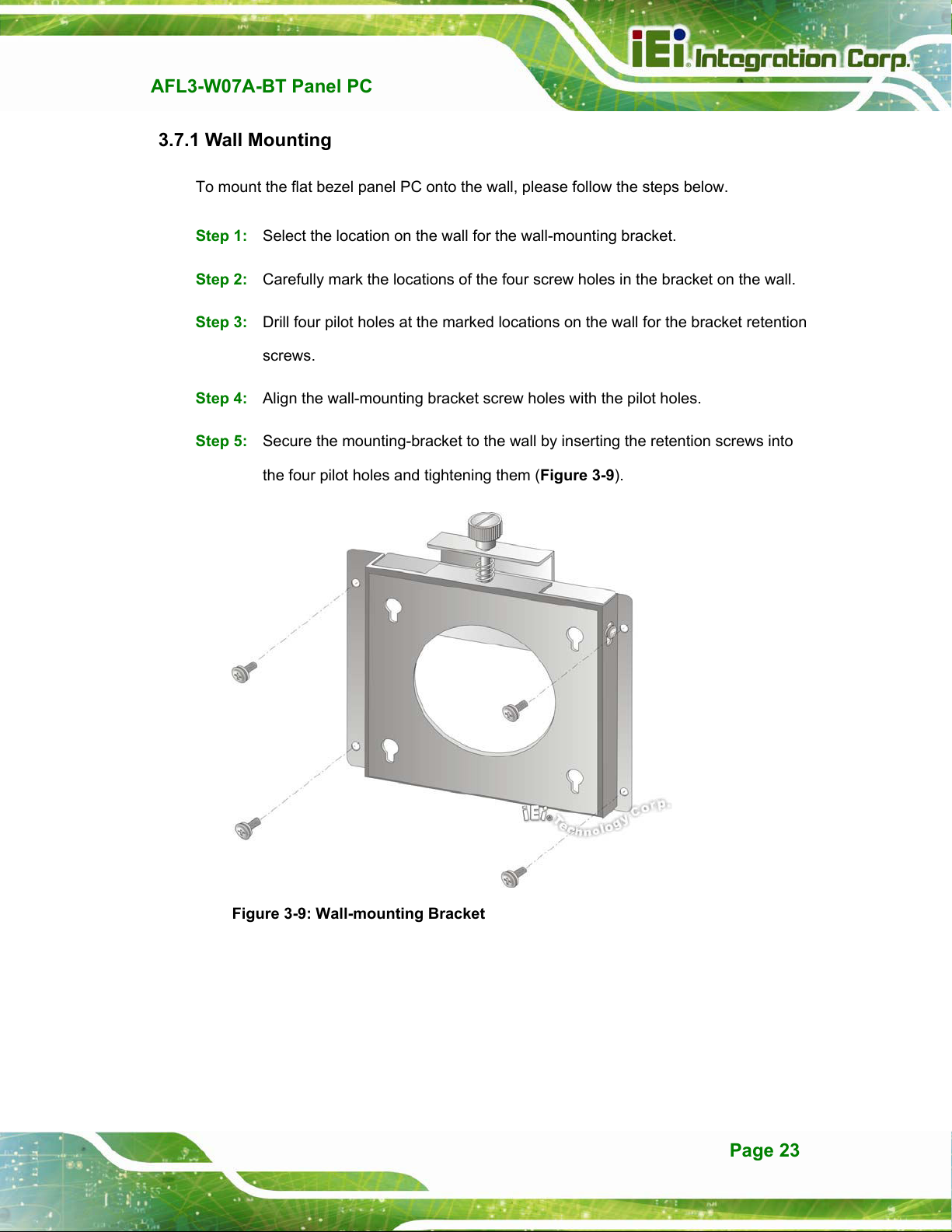

3.7.1 Wall Mounting

To mount the flat bezel panel PC onto the wall, please follow the steps below.

Step 1: Select the location on the wall for the wall-mounting bracket.

Step 2: Carefully mark the locations of the four screw holes in the bracket on the wall.

Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention

screws.

Step 4: Align the wall-mounting bracket screw holes with the pilot holes.

Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into

the four pilot holes and tightening them (4Figure 3-9).

Figure 3-9: Wall-mounting Bracket

AFL3-W07A-BT Panel PC

Page 24

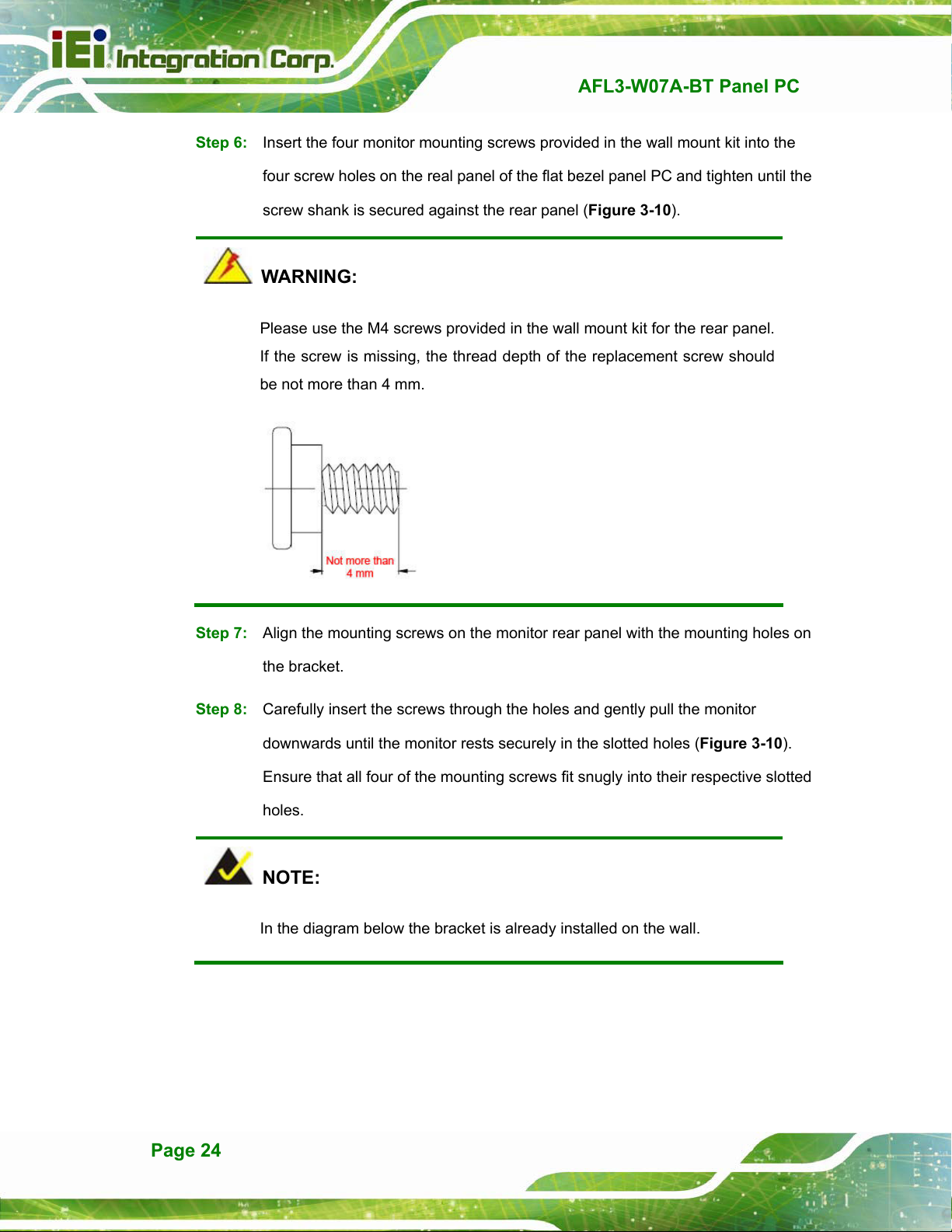

Step 6: Insert the four monitor mounting screws provided in the wall mount kit into the

four screw holes on the real panel of the flat bezel panel PC and tighten until the

screw shank is secured against the rear panel (4Figure 3-10).

WARNING:

Please use the M4 screws provided in the wall mount kit for the rear panel.

If the screw is missing, the thread depth of the replacement screw should

be not more than 4 mm.

Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on

the bracket.

Step 8: Carefully insert the screws through the holes and gently pull the monitor

downwards until the monitor rests securely in the slotted holes (4Figure 3-10).

Ensure that all four of the mounting screws fit snugly into their respective slotted

holes.

NOTE:

In the diagram below the bracket is already installed on the wall.

AFL3-W07A-BT Panel PC

Page 25

Figure 3-10: Chassis Support Screws

Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting

bracket. (4Figure 3-11).

Figure 3-11: Secure the Panel PC

AFL3-W07A-BT Panel PC

Page 26

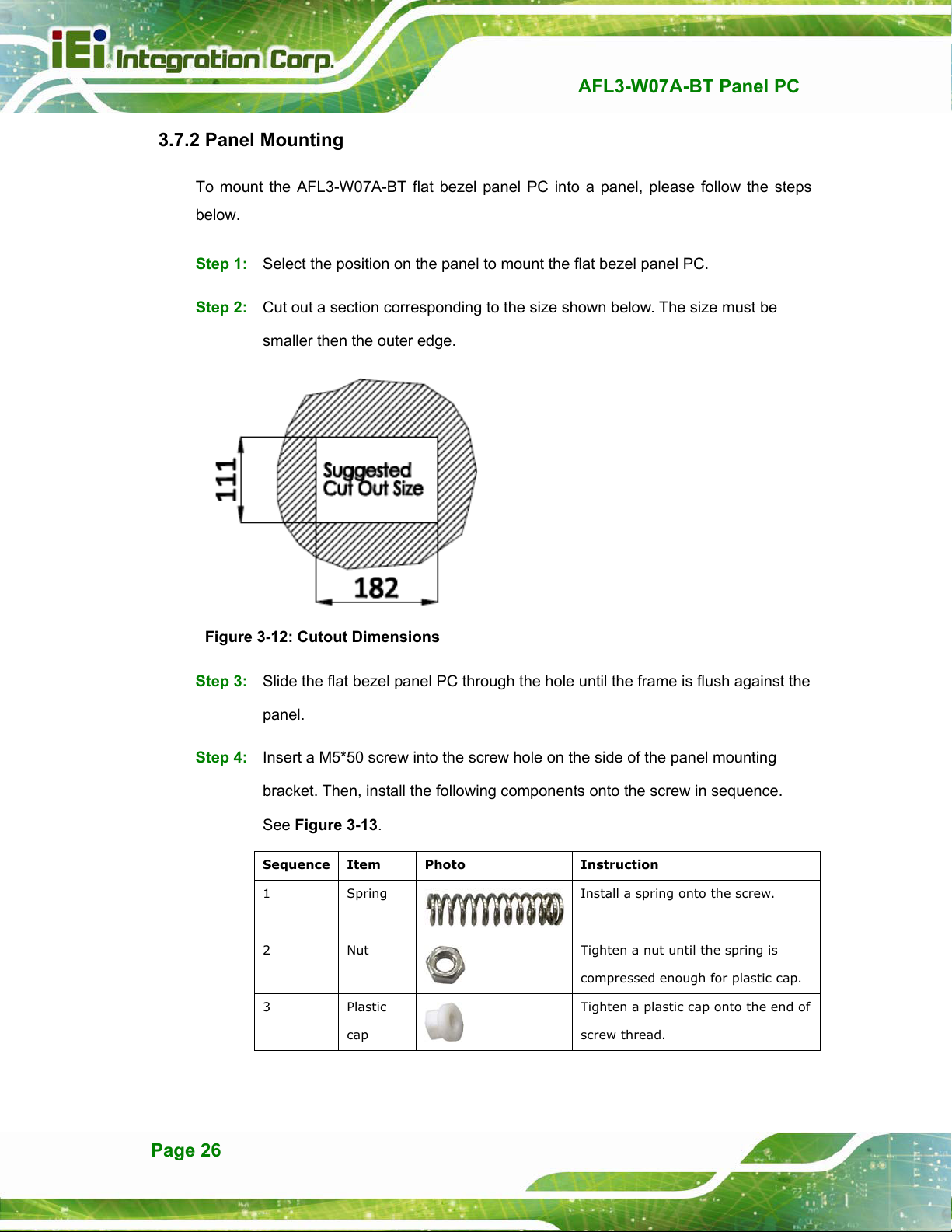

3.7.2 Panel Mounting

To mount the AFL3-W07A-BT flat bezel panel PC into a panel, please follow the steps

below.

Step 1: Select the position on the panel to mount the flat bezel panel PC.

Step 2: Cut out a section corresponding to the size shown below. The size must be

smaller then the outer edge.

Figure 3-12: Cutout Dimensions

Step 3: Slide the flat bezel panel PC through the hole until the frame is flush against the

panel.

Step 4: Insert a M5*50 screw into the screw hole on the side of the panel mounting

bracket. Then, install the following components onto the screw in sequence.

See Figure 3-13.

Sequence Item Photo Instruction

1 Spring

Install a spring onto the screw.

2 Nut

Tighten a nut until the spring is

compressed enough for plastic cap.

3 Plastic

cap

Tighten a plastic cap onto the end of

screw thread.

AFL3-W07A-BT Panel PC

Page 27

Step 5: Repeat Step 4 to install the other three screws into the sides of the two panel

mounting brackets.

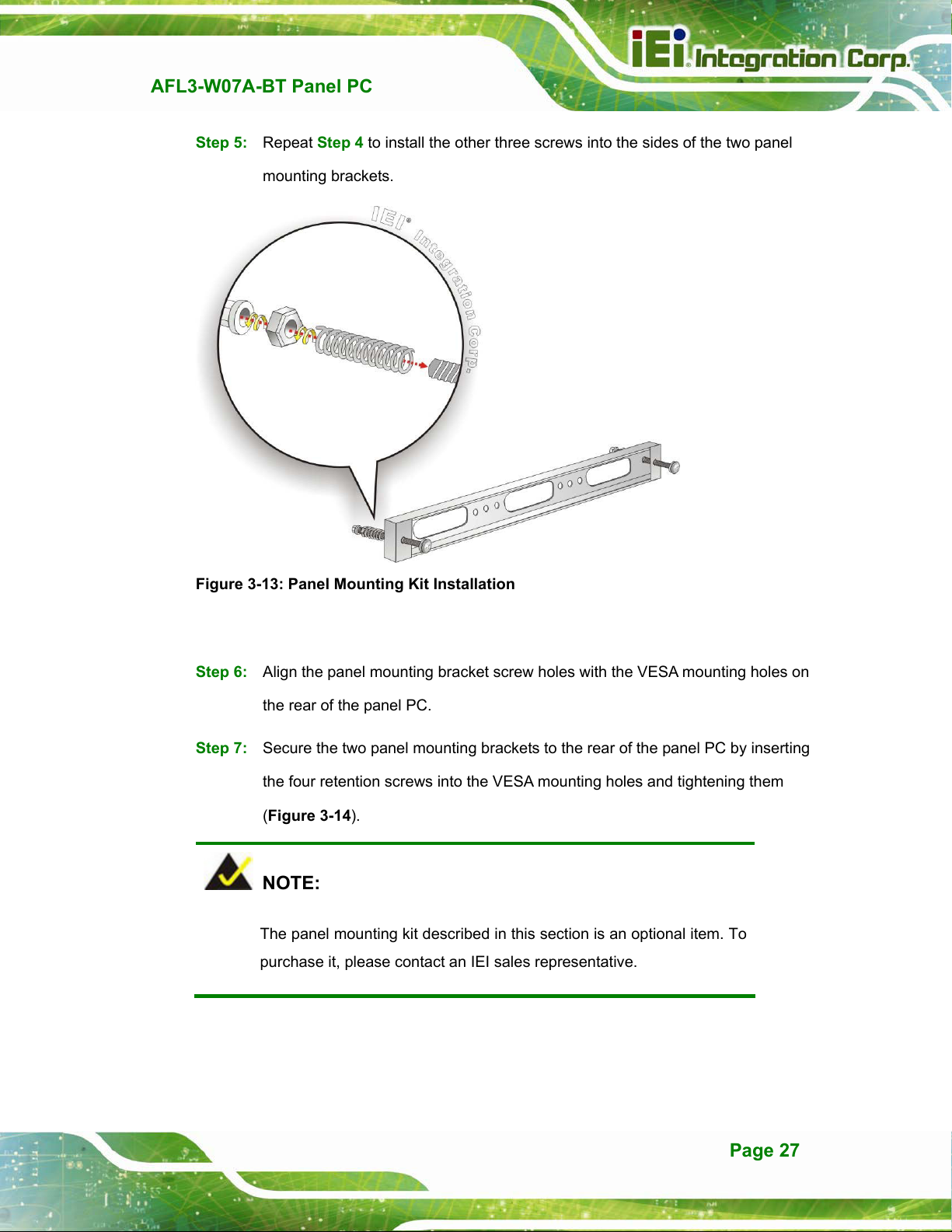

Figure 3-13: Panel Mounting Kit Installation

Step 6: Align the panel mounting bracket screw holes with the VESA mounting holes on

the rear of the panel PC.

Step 7: Secure the two panel mounting brackets to the rear of the panel PC by inserting

the four retention screws into the VESA mounting holes and tightening them

(Figure 3-14).Step0:

NOTE:

The panel mounting kit described in this section is an optional item. To

purchase it, please contact an IEI sales representative.

AFL3-W07A-BT Panel PC

Page 28

Figure 3-14: Securing Panel Mounting Brackets

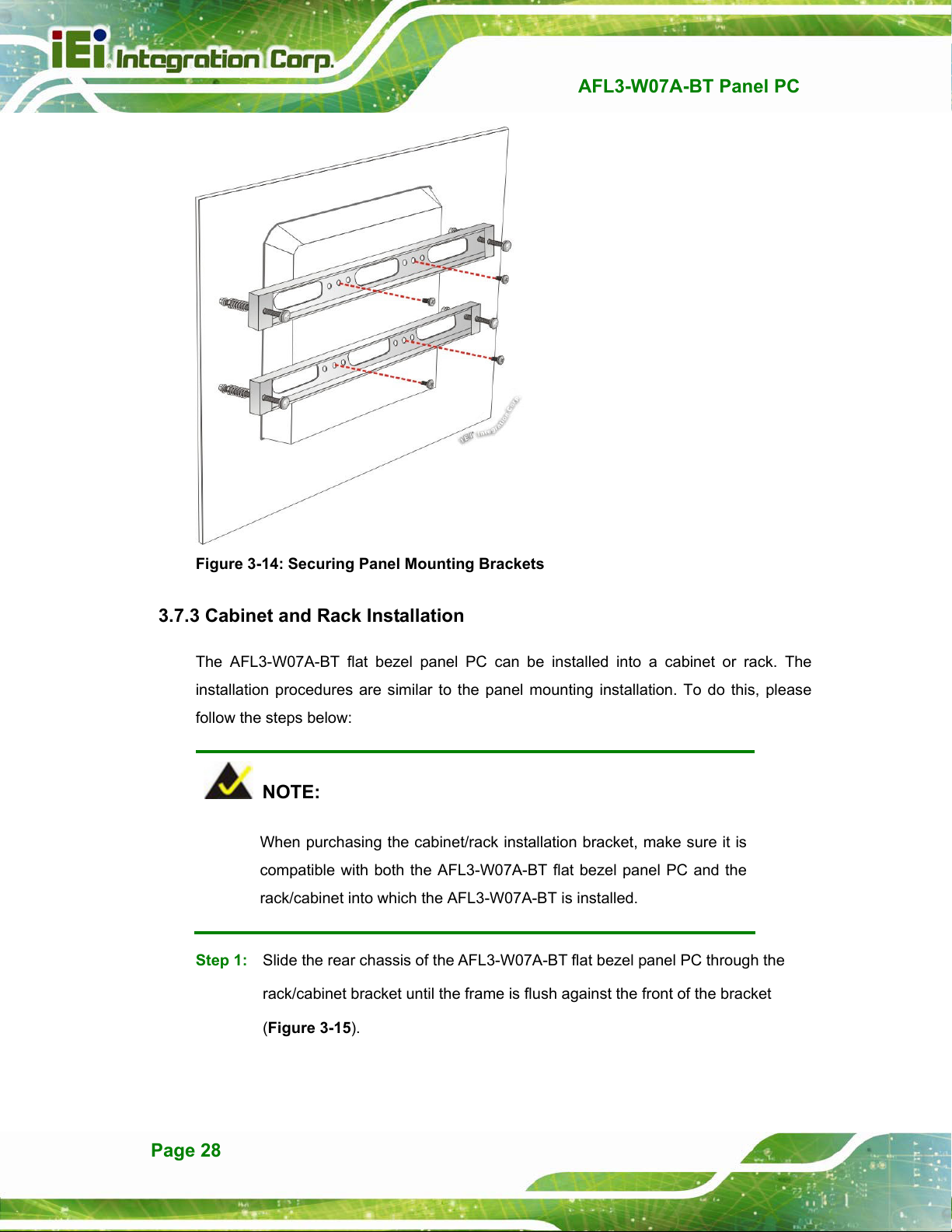

3.7.3 Cabinet and Rack Installation

The AFL3-W07A-BT flat bezel panel PC can be installed into a cabinet or rack. The

installation procedures are similar to the panel mounting installation. To do this, please

follow the steps below:

NOTE:

When purchasing the cabinet/rack installation bracket, make sure it is

compatible with both the AFL3-W07A-BT flat bezel panel PC and the

rack/cabinet into which the AFL3-W07A-BT is installed.

Step 1: Slide the rear chassis of the AFL3-W07A-BT flat bezel panel PC through the

rack/cabinet bracket until the frame is flush against the front of the bracket

(Figure 3-15).
