IEI Technology ECA-200 Manuel utilisateur

ECA-200

Industrial Chassis for microATX SBC

Quick Installation Guide

Version 1.00

PACKING LIST

1 x ECA-200 chassis

1 x SATA cable

1 x Power cord

2 x Wall mount brackets

1 x Holder bracket

1 x Slide track

1 x Power housing

SAFETY INSTRUCTIONS

Warning! Read this installation guide before connecting the system to the power source.

Warning! To prevent the device from overheating, do not operate it in an area that exceeds the

maximum operating temperature described in the user manual came with the SBC.

Warning! Ultimate disposal of this product should be handled according to all national laws and

regulations.

SPECIFICATIONS

Construction Heavy duty metal

SBC Form Factor microATX

PSU 1U flex power supply

Drive Bays 1 x 3.5"/2.5" HDD/SSD

Expansion: 1 x 3.5”/2.5” HDD/SSD by the optional

ECA-HDD-KIT-R10

Cooling Fans 1

I/O Openings 2 x USB

6 x COM

Expansion Slots 4

Indicators 1 x Power LED, 1 x HDD LED

Buttons 1 x Reset button, 1 x Power switch

Installation Desktop, wall mount

Operating Temperature -10°C ~ 50°C

Operation Humidity 5% ~ 95%

Color Black

Dimensions (DxWxH) 310 mm x 310 mm x 162 mm

Operating Vibration MIL-STD-810F 514.5C-1

Operating Shock Half-sine wave 3G, 11ms, 100 shocks per axis

Weight (Net/Gross) TBD

COMPATIBLE SBC

Model No. SBC Type PCI PCle

x1 x4 x8 x16

IMB-Q870-i2-R10 microATX 1 1 1 0 1

IMB-H810-i2-R11 microATX 2 1 0 0 1

IMB-Q770-R10 microATX 1 1 1 0 1

IMB-H810-i2-R10 microATX 2 1 0 0 1

IMB-H610A-R10 microATX 0 3 0 0 1

IMB-H110-R10 microATX 2 1 0 0 1

POWER SUPPLY OPTIONS

Type Model No. Watt

ATX

ACE-A615A-RS-R11 150W

ACE-A618B-RS-R10 180W

ACE-A622A-RS-R11 220W

ACE-A627A-RS-R11 270W

ACE-A630B-RS-R10 300W

DIMENSION DRAWING

The dimensions of ECA-200 are shown below (Unit: mm).

INSTALLATION STEPS

To install the ECA-200 chassis, follow the steps below:

Step 1: Remove chassis cover.

Step 2: Install motherboard.

Step 3: Install power supply unit.

Step 4: Install system fan.

Step 5: Install hard disk drive.

Step 6: Reinstall top cover.

Step 7: Install wall mount brackets.

Step 8: Install front handles.

The installation steps outlined above are described in detail below. Please refer to the

relevant section.

REMOVE CHASSIS COVER

Step 1: Remove the top cover. Loosen the two thumbscrews on the top panel, slide

the cover outward, and then lift the cover up gently.

Step 2: Remove the front panel. Remove nine screws from the front panel, two on

left panel, three on right panel and four on bottom panel.

MOTHERBOARD INSTALLATION

Step 1: Install the motherboard. Align the screw holes on the motherboard with

the standoffs on the bottom panel. Secure the motherboard with the screws as figure

shown below.

Step 2: Install the I.O shielding. Push the I.O shielding in the chassis.

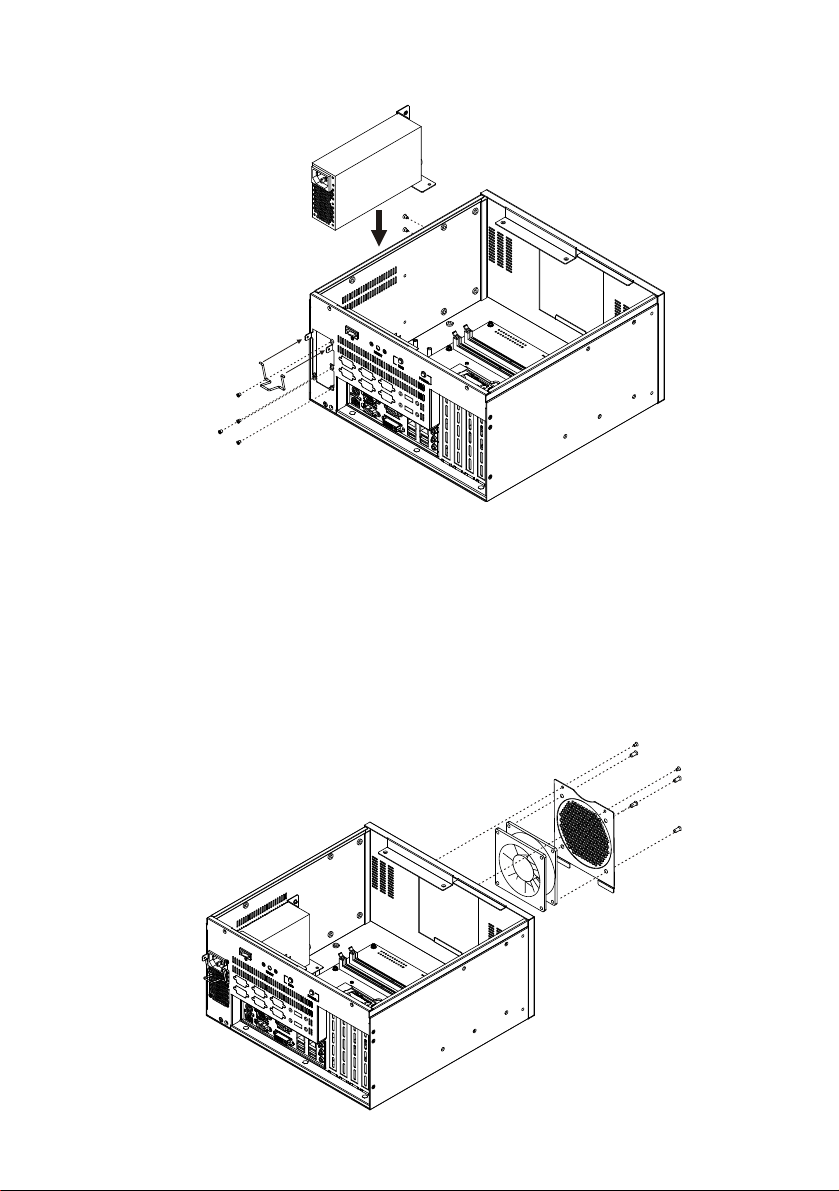

POWER SUPPLY UNIT INSTALLATION

Step 1: Install the power supply bracket to the power supply. Secure the power

supply bracket to the power supply with the screws as figure shown below.

Step 2: Install the power supply to the chassis. Secure the power supply to the

chassis with the screws as figure shown below.

SYSTEM FAN INSTALLATION

Step 1: Install the system fan. Place the system fan inside the chassis and align

the retention screws holes on the system fan with the retention screw holes on the

chassis. Install the fan to the chassis with the screws as figure shown below.

-----------------------------------------------------------------------------------------------------------------

NOTE:

To correctly connect the system fan cable from the system fan to the motherboard,

please refer to the user manual that came with the motherboard.

-----------------------------------------------------------------------------------------------------------------

HARD DISK DRIVE INSTALLATION

Step 1: Attach the HDD to the HDD bracket. To do this, slide the HDD to the HDD

bracket and secure the HDD to the HDD bracket with four retention screws.

Step 2: Install the HDD bracket to the chassis. Install the bracket with HDD to the

chassis by aligning the bracket retention screw holes in the top of the HDD bracket

with the retention screw holes on the chassis. Secure the HDD bracket to the chassis

with the screws as figure shown below.

-----------------------------------------------------------------------------------------------------------------

NOTE:

The SATA cables from the installed HDD must be connected to the SATA connector

and SATA power connector on the motherboard before installing the top panel to the

chassis. To correctly connect these cables, please refer to the user manual that came

with the motherboard.

-----------------------------------------------------------------------------------------------------------------

FRONT PANEL CABLE CONNECTION

The following buttons and LEDs are on the front panel of the ECA-200 chassis.

1 x Power switch

1 x Reset button

1 x HDD LED

1 x Power LED

These components are all connected to the motherboard with cables. To correctly

connect these cables, please refer to the user manual that came with the

motherboard.

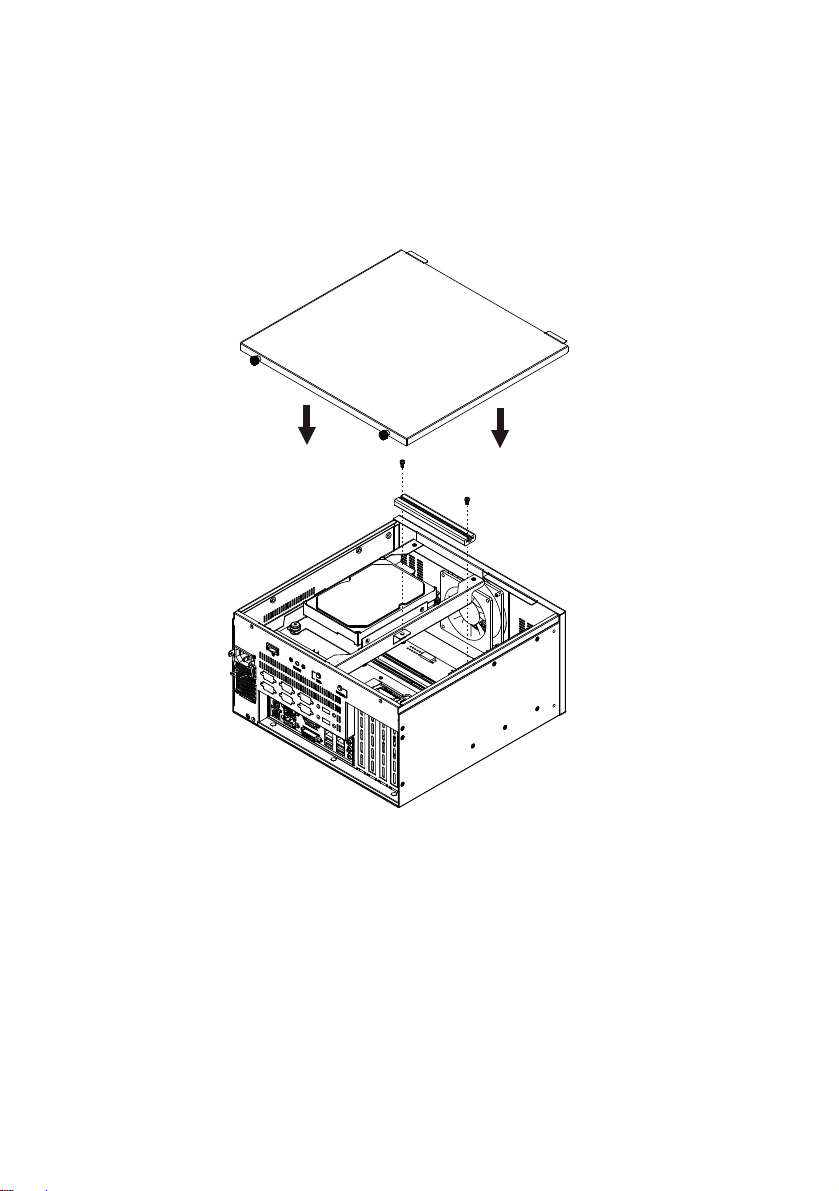

REINSTALL TOP COVER

Step 1: Install the bracket. Install the bracket to chassis and tighten the two screws

as figure shown below.

Step 2: Reinstall top cover. Reinstall the top panel to chassis and tighten the two

thumbscrews on the top panel.

WALL MOUNT BRACKETS INSTALLATION

Step 1: Install the wall mount brackets.Align the four retention screw holes in the

wall-mount brackets with the retention screw holes on the side of the chassis.

-----------------------------------------------------------------------------------------------------------------

NOTE:

There are two methods of mounting the ECA-200. The mounting methods are shown

below.

-----------------------------------------------------------------------------------------------------------------

FRONT HANDLE INSTALLATION

Step 1: Install the front handle.Align the retention screw holes in the handles with

the retention screw holes on the side of the chassis. Install each handle to the chassis

with four retention screws.
