IR-1100

Quick Guide

Version 1.0.0

Quick Guide

IR-1100

Version 1.0.0

Before reading this manual

This manual contains basic instructions on installing and using IR-1100 Network Video Recorder.

Users who are using this product for the first time, as well as users with experience using comparable

products, must read this manual carefully before use and heed to the warnings and precautions contained

herein while using the product. Safety warnings and precautions contained in this manual are intended to

promote proper use of the product and thereby prevent accidents and property damage and must be

followed at all times.

Once you have read this manual, keep it at an easily accessible location for future reference.

• The manufacturer will not be held responsible for any product damage resulting from the use of

unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this

manual.

• It is recommended that first-time users of IDIS IR-series Network Video Recorder and individuals who are

not familiar with its use seek technical assistance from their retailer regarding product installation and use.

• If you need to disassemble the product for functionality expansion or repair purposes, you must contact

your retailer and seek professional assistance.

Safety, Environmental, and Regulatory Information

Refer to the Safety, Environmental, and Regulatory Information document included in the product

package.

IDIS Co., Ltd. reserves all rights concerning this manual.

Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly

prohibited.

Contents of this manual are subject to change without prior notice..

Registered Trademarks

IDIS is a registered trademark of IDIS Co., Ltd.

Other company and product names are registered trademarks of their respective owners.

Version 1.0.0

Quick Guide

IR-1100

Table of Contents

1Introduction............................................................................................................................................ 4

2Accessories ........................................................................................................................................... 5

3Overview................................................................................................................................................. 6

3.1 Dimension................................................................................................................................................ 6

3.2 Front Panel.............................................................................................................................................. 6

3.3 Rear Panel..............................................................................................................................................11

3.4 Front Bezel............................................................................................................................................ 13

4Getting Started..................................................................................................................................... 14

4.1 Setting Windows OS.............................................................................................................................. 14

4.2 Setting Built-in SSD Storages ............................................................................................................... 16

4.3 Setting Recording Drives....................................................................................................................... 17

4.4 Installing IDIS Solution Suite................................................................................................................. 33

4.5 Teaming Network Interface Controller(NIC) .......................................................................................... 34

5Licenses and Service Codes.............................................................................................................. 40

5.1 Windows OS License ............................................................................................................................ 40

5.2 IDIS Solution Suite License................................................................................................................... 41

5.3 Service Tag or Express Service Code................................................................................................... 41

6Specification ........................................................................................................................................ 42

7Warranty............................................................................................................................................... 44

Version 1.0.0

Quick Guide

IR-1100

1 Introduction

This is a video recorder that supports surveillance, recording, and playback of video from network cameras

or video encoders.

This NVR (Network Video Recorder) unit offers the following features:

Tested and validated with IDIS Solution Suite up to 256 Full HD H.264/H.265 IP cameras

Supports up to 256 Full HD cameras in real-time for enterprise-level surveillance systems

1,024Mbps (128MBps) maximum recording bandwidth per server

Redundancy of power for mission-critical reliability

Complete compatibility with IDIS components: IP cameras, analog DVR, DirectCX TVR, DirectIP NVR,

and encoders

Equipped with RAID 5, RAID 6 recording, Hot swappable

2U rack mount chassis with sliding rails and cable management arm for ease of serviceability

Supports H.264, H.265 compression, and Intelligent Codec

Supports Onvif Profile S, Axis, Panasonic, etc.

Version 1.0.0

Quick Guide

IR-1100

2 Accessories

Upon unpackaging the product, check the contents inside to ensure that all the following accessories are

included.

No.

Component

Quantity

IR-1100 Main Body

Front Chassis & Lock Key

Safety, Environmental, and Regulatory Information Manual

Power Code (AType- Deskside)

Power Jumper Code (10A,4M,C13/C14)

Rack Mounting Bracket

Rack Installation Instructions Manual

Cable Strap

2 (1 pack)

Version 1.0.0

Quick Guide

IR-1100

3 Overview

3.1 Dimension

482.0 mm (18.98 inch)

86.8 mm (3.42 inch)

717.6 mm (28.25 inch)

3.2 Front Panel

1 2 3

Item

Component

Description

Left control panel

Contains system health and system ID, status LED and optional

iDRAC Quick Sync 2 (wireless).

Drive slots

Enable you to install up to 8 drives that are supported on your system.

Right control panel

Contains the power button, VGA port, iDRAC Direct micro USB port,

and two USB 2.0 ports.

Version 1.0.0

Quick Guide

IR-1100

Left control panel3.2.1

Item

Indicator

Icon

Description

Status LED

N/A

Indicate the status of the system.

The indicators display solid amber if any error occurs.

For more information, see Status LED indicators.

System health

and ID

Indicates the system health.

For more information, see System Health and System ID

indicator.

iDRAC Quick

Sync 2 wireless

indicator

Indicates if the iDRAC Quick Sync 2 wireless option is activated.

The Quick Sync 2 feature allows management of the system

using mobile devices. This feature aggregates

hardware/firmware inventory and various system level

diagnostic/error information that can be used in troubleshooting

the system.

For more information, see iDRAC Quick Sync 2 indicator.

(1) Status LED Indicators

Icon

Indicator

Condition

Corrective Action

Drive

The indicator turns solid

amber if there is a drive error.

Check the System Event Log to determine

if the drive has an error.

If the drives are configured in a RAID

array, restart the system, and enter the

host adapter configuration utility program.

Temperature

The indicator turns solid

amber if the system

experiences a thermal error.

Ensure that none of the following conditions

exist:

A cooling fan has been removed or has

failed.

System cover, air shroud, memory module

blank, or back filler bracket is removed.

Ambient temperature is too high.

External airflow is obstructed.

Electrical

The indicator turns solid

amber if the system

experiences an electrical

error (for example, voltage

out of range, or a failed

power supply unit (PSU) or

voltage regulator).

Check the System Event Log or system

messages for the specific issue. If it is due to a

problem with the PSU, check the LED on the

PSU. Reseat the PSU.

Memory

The indicator turns solid

amber if a memory error

occurs.

Check the System Event Log or system

messages for the location of the failed

memory. Reseat the memory module.

Version 1.0.0

Quick Guide

IR-1100

PCIe

The indicator turns solid

amber if a PCIe card

experiences an error.

Restart the system. Update any required

drivers for the PCIe card. Reinstall the card.

(2) System Health and System ID indicator

Indicator code

Condition

Solid blue

Indicates that the system is turned on, system is healthy, and system ID mode is not

active. Press the system health and system ID button to switch to system ID mode.

Blinking blue

Indicates that the system ID mode is active. Press the system health and system ID

button to switch to system health mode.

Solid amber

Indicates that the system is in fail-safe mode.

Blinking amber

Indicates that the system is experiencing a fault. Check the System Event Log for

specific error messages.

(3) iDRAC Quick Sync 2 indicator

Indicator code

Condition

Corrective Action

Off (default state)

Indicates that the iDRAC Quick

Sync 2 feature is turned off.

Press the iDRAC Quick Sync 2 button to turn

on the iDRAC Quick Sync 2 feature.

If the LED fails to turn on, reseat the left

control panel flex cable and check.

Solid white

Indicates that iDRAC Quick

Sync 2 is ready to communicate.

Press the iDRAC Quick Sync 2 button to turn

off.

If the LED fails to turn off, restart the system.

Blinks white

rapidly

Indicates data transfer activity.

If the indicator continues to blink indefinitely,

contact the installer or seller.

Blinks white

slowly

Indicates that firmware update is

in progress.

If the indicator continues to blink indefinitely,

contact the installer or seller.

Blinks white five

times rapidly and

then turns off

Indicates that the iDRAC Quick

Sync 2 feature is disabled.

Check if iDRAC Quick Sync 2 feature is

configured to be disabled by iDRAC.

Solid amber

Indicates that the system is in

fail-safe mode.

Restart the system.

Blinking amber

Indicates that the iDRAC Quick

Sync 2 hardware is not

responding properly.

Restart the system.

Version 1.0.0

Quick Guide

IR-1100

Drive slots3.2.2

Each drive carrier has an activity LED indicator and a status LED indicator.

1 2 3 4

Item

Component

Icon

Description

Drive status indicator

Indicates the power condition of the drive.

Drive activity indicator

Indicates whether the hard drive is currently in use or not.

Drive release button

N/A

Press the button to open the drive carrier release handle to

remove or replace the drive.

Drive information tag

N/A

Shows the drive information such as capacity, drive type,

rpm and so on.

(1) Drive status indicator code

Indicator code

Condition

Flashes green twice per second

Identifying drive or preparing for removal.

Off

Drive ready for removal.

NOTE: The drive status indicator remains off until all

drives are initialized after the system is turned on.

Drives are not ready for removal during this time.

Flashes green, amber, and then turns off

Predicted drive failure.

Flashes amber four times per second

Drive failed.

Flashes green slowly

Drive rebuilding.

Solid green

Drive online.

Flashes green for three seconds, amber for three

seconds, and then turns off after six seconds

Rebuild stopped.

NOTE: If the drive is in the Advanced Host Controller Interface (AHCI) mode, the status LED indicator does

not turn on.

Version 1.0.0

Quick Guide

IR-1100

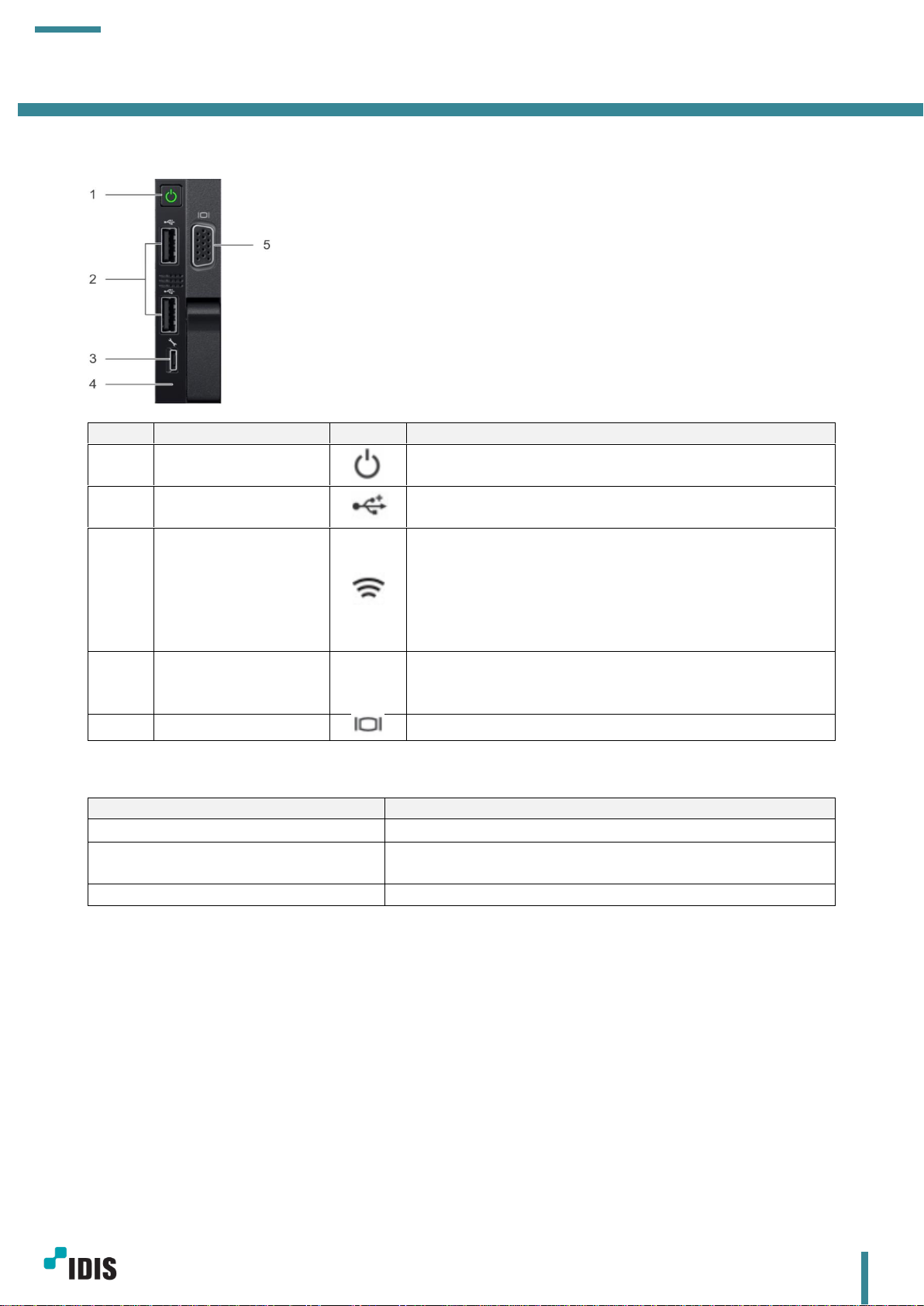

Right control panel3.2.3

Item

Indicator

Icon

Description

Power button

Indicates if the system is turned on or off. Press the power

button to manually turn on or off the system.

USB port (2)

The USB ports are 4-pin, 2.0-compliant. These ports enable

you to connect USB devices to the system.

iDRAC Direct port

Indicates if the iDRAC Quick Sync 2 wireless option is

activated. The Quick Sync 2 feature allows management of

the system using mobile devices. This feature aggregates

hardware/firmware inventory and various system level

diagnostic/error information that can be used in

troubleshooting the system.

iDRAC Direct LED

N/A

The iDRAC Direct LED indicator lights up to indicate that

the iDRAC Direct port is connected.

For more information, see iDRAC Direct LED indicator.

VGA port

Enables you to connect a display device to the system.

(1) iDRAC Direct LED indicator

Indicator code

Condition

Solid green for two seconds

Indicates that the laptop or tablet is connected.

Flashing green (on for two seconds and

off for two seconds)

Indicates that the laptop or tablet connected is recognized.

Turns off

Indicates that the laptop or tablet is unplugged.

Table des matières

Autres manuels Idis Matériel réseau

Idis

Idis DR-8516 Manuel utilisateur

Idis

Idis DR-6216PS-S Manuel utilisateur

Idis

Idis DR-2304P Manuel utilisateur

Idis

Idis DR-6308P-A Manuel utilisateur

Idis

Idis DR-8364D Manuel utilisateur

Idis

Idis DR-6308P Manuel utilisateur

Idis

Idis DR-8564D Manuel utilisateur

Idis

Idis DR-1504P-A Manuel utilisateur

Idis

Idis DR-6100 Series Manuel utilisateur

Idis

Idis DirectIP DR-6508P Manuel utilisateur

Idis

Idis DR-2304P Manuel utilisateur

Idis

Idis DR-2308P Manuel utilisateur

Idis

Idis DR-1500 Series Manuel utilisateur

Idis

Idis DirectIP DR-1304P Manuel utilisateur

Idis

Idis DR-2100P Series Manuel utilisateur

Idis

Idis DirectIP DR-1304P Manuel utilisateur

Idis

Idis DR-2516P Manuel utilisateur

Idis

Idis DR-6308P-SA Manuel utilisateur

Idis

Idis DR-2504P-B Manuel utilisateur

Idis

Idis DirectIP DR-6532P Manuel utilisateur

Idis

Idis DR-8364F Manuel utilisateur

Idis

Idis DR-6100P Series Manuel utilisateur

Idis

Idis DR-8364 Manuel utilisateur

Idis

Idis DR-1508P Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
