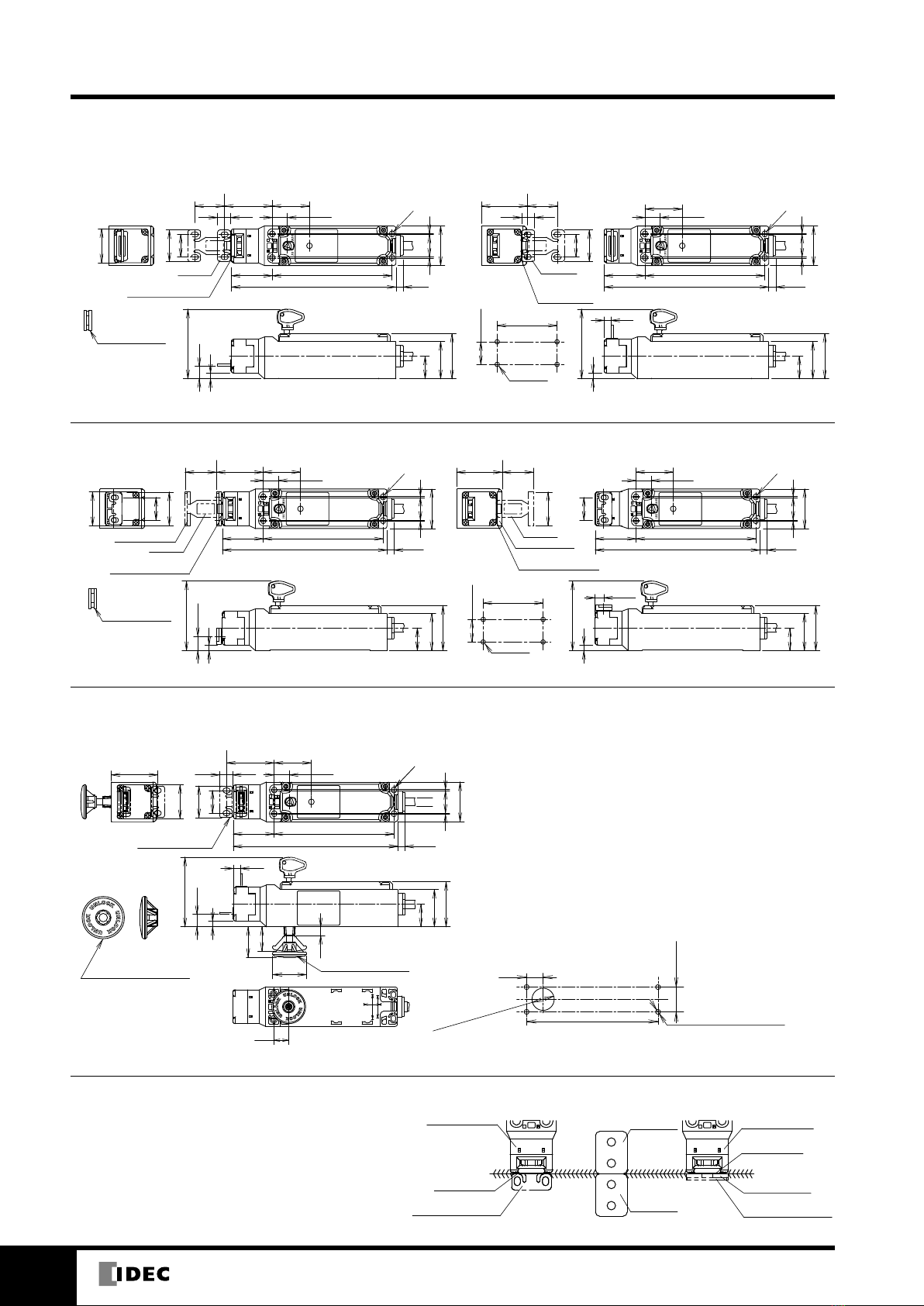

HS5E Miniature Interlock Switches with Solenoid
Specifications
Applicable Standards
ISO14119, IEC60947-5-1, EN60947-5-1 (TÜV approval), EN1088 (TÜV approval), GS-ET-19 (BG ap-
proval), UL508 (UL recognized), CSA C22.2, No. 14 (c-UL recognized), GB14048.5 (CCC approval)
IEC60204-1/EN60204-1 (applicable standards for use)
Operating Temperature –25 to +50°C (no freezing)
Relative Humidity 45 to 85% (no condensation)
Storage Temperature –40 to +80°C (no freezing)
Pollution Degree 3
Impulse Withstand Voltage 2.5 kV (between LED, solenoid and grounding: 0.5 kV)
Insulation Resistance
(500V DC megger)
Between live and dead metal parts: 100 MΩminimum
Between live metal part and ground: 100 MΩminimum
Between live metal parts: 100 MΩminimum
Between terminals of the same pole: 100 MΩminimum
Electric Shock Protection Class II (IEC61140)
Degree of Protection IP67 (IEC60529)
Shock Resistance Operating extremes: 100 m/s2 (10G)
Damage limits: 1000 m/s2 (100G)
Vibration Resistance Operating extremes: 10 to 55 Hz, amplitude 0.35 mm minimum
Damage limits: 30 Hz, amplitude 1.5 mm minimum
Actuator Operating Speed 0.05 to 1.0 m/s
Direct Opening Travel Actuator HS9Z-A51: 11 mm minimum
Actuator HS9Z-A51A/A52/A52A/A53/A55: 12 mm minimum
Direct Opening Force 80N minimum
Actuator Retention Force 1400N minimum (GS-ET-19) (See page 709 for actuator retention force.)
Operating Frequency 900 operations per hour
Rear Unlock Button Mechanical Durability 3000 operations minimum (HS5E-∗∗L)
Mechanical Durability 1,000,000 operations minimum (GS-ET-19)
Electrical Durability 100,000 operations minimum (operating frequency 900 operations per hour, load AC-12, 250V, 1A)
1,000,000 operations minimum (operating frequency 900 operations per hour, load 24V AC/DC.
100mA)
Conditional Short-circuit Current 50A (250V) (Use 250V/10A fast acting type fuse for short-circuit protection.)
Cable UL2464
HS5E-V: AWG22 (12-core, 0.3 mm2/core)
Others: AWG21(8-core: 0.5 mm2/core)
Cable Outside Diameter ø7.6 mm
Weight (approx.) 400g (1m cable), 580g (3m cable), 770g (5m cable) . Add 20g for rear unlocking button.
Small safety switch with four poles and solenoid.
Ideal for applications in tight spaces.
Compact body. 35•×40 ×146 mm.
Rear unlocking button for emergency escape available. Also• available is the rear unlocking button kit.
A variety of circuits—dual safety circuit and four-circuit independent• outputs available.
Gold-plated contacts.•
Spring lock and solenoid lock are available.•
The head orientation can be rotated, allowing 8 different actuator• entries.
A metal entry slot ensures high durability.•
An actuator with rubber bushings alleviates the impact of actuator• entry into the slot.
The actuator retention force is 1400N minimum (GS-ET-19).•
Integral cable design minimizes wiring, preventing wiring mistakes.•
LED indicator indicates the solenoid status.•
Double insulation structure.•
Spring Lock
Automatically locks the actuator without power applied to the• solenoid.
After the machine stops, unlocking is completed by the solenoid,• providing high safety features.
Manual unlocking is possible in the event of power failure or•
maintenance.
Solenoid Lock
The actuator is locked when energized.•
The actuator is unlocked when de-energized.•
Flexible locking function can be achieved for an application where locking is not required and sudden stopping of machine must be• prevented.
Right-angle Actuator
(SUS304)
Straight Actuator
(SUS304)
w/Rubber Bushings
Angle Adjustable
(Vertical)
Rear unlocking
button
Sliding Actuator
