2icos system - User's
Introduction
The icos system is a wall mounted, room sealed, condensing
boiler, featuring full sequence automatic spark ignition and fan
assisted combustion.
Due to the high efficiency of the boiler, condensate is produced
from the flue gases and this is drained to a suitable disposal
point through the plastic waste pipe at the lower rear of the
boiler. A condensate 'plume' will also be visible at the flue
terminal.
Safety
Current Gas Safety (Installation & Use)
Regulations or rules in force.
In your own interest, and that of safety, it is the law that this boiler
must be installed by a Gas Safe Registered Engineer.
In IE the installation must be carried out by a Registered Gas
Installer (RGII) and installed in accordance with the current
edition of I.S. 813 “domestic Gas Installations”, the current
Building Regulations and reference should be made to the
current ETCI rules for electrical installation.
It is essential that the instructions in this
booklet are strictly followed, for safe and
economical operation of the boiler.
Electricity Supply
This appliance must be earthed.
Supply: 230 V ~ 50 Hz. The fusing should be 3A.
Connection must be made in a way that allows complete
isolation of the electrical supply such as a double-pole switch,
having a 3mm (1/8") contact separation in both poles, serving
only the boiler and system controls. Alternatively, a 3-pin
UNSWITCHED socket may be used. The means of isolation
must be accessible to the user after installation.
Important Notes
zz
zz
zThis appliance must not be operated without the casing
correctly fitted and forming an adequate seal.
zz
zz
zIf the boiler is installed in a compartment then the
compartment MUST NOT be used for storage purposes.
zz
zz
zIf it is known or suspected that a fault exists on the boiler
then it MUST NOT BE USED until the fault has been
corrected by a Gas Safe Registered Engineer or in IE a
Registered Gas Installer (RGII).
zz
zz
zUnder NO circumstances should any of the sealed
components on this appliance be used incorrectly or
tampered with.
zThis appliance is not intended for use by persons (including
chilcren) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning
use of the appliance by a person responsible for their safety.
zChildren should be supervised to ensure that they do not
play with the appliance.
In cases of repeated or continuous shutdown a Gas Safe
Registered Engineer or in IE a Registered Gas Installer (RGII)
should be called to investigate and rectify the condition causing
this and carry out an operational test . Only the manufacturers
original parts should be used for replacement.
Minimum Clearances
Clearances of 165mm (6 1/2") above, 100mm (4") below, 5mm
(1/4") at the sides and 450mm (17 3/4") at the front of the boiler
casing must be allowed for servicing.
The minimum front and bottom clearance allowed when built
into a cupboard is 5mm.
To light the boiler. Refer to Frame 1
If a programmer is fitted refer to separate instructions for the
programmer before continuing.
1. CHECK THAT THE ELECTRICITY SUPPLY TO THE BOILER
IS OFF.
2. Set the mains ON/OFF switch (A) to OFF and the thermostat
knob (F) to maximum.
3. Switch ON the electricity supply to the boiler and check that
all external controls, e.g. programmer, room thermostat, etc.,
are ON.
4. Set the mains ON/OFF switch to ON.
The boiler will commence the ignition sequence, supplying heat
to the central heating, if required.
Note. In normal operation the control unit display (C) will show
the codes:
Standby - no demand for heat.
CH being supplied.
Boiler Frost Protection.
During ignition, the LED (E) will flash.
During normal running the LED (E) will remain illuminated.
Note.
If the boiler fails to light after 3 attempts the fault code L F will be
displayed.
Press the reset button (D) for 2 seconds then release. The
boiler will repeat the ignition sequence. If the boiler still fails to
light consult a Gas Safe Registered Engineer or in IE a
Registered Gas Installer (RGII).
Note.
The pump will operate briefly as a self-check, once every 24
hours regardless of system demand.
Note.
Boiler Frost Protection occurs when the temperature is less than
3 degrees. Then the boiler will fire.
All Gas Safe Registered Engineers carry a Gas Safe Register ID card, and have a registration number. Both should be recorded
in the Benchmark Commissioning Checklist. You can check your installer by calling Gas Safe Register direct on 0800 4085500
HE15 G.C. Appliance No. 41 421 99
HE24 G.C. Appliance No. 41 397 82
Destination Countries: GB, IE
icos system HE15 & HE24
(Natural Gas Only)
THE BENCHMARK SERVICE INTERVAL RECORD MUST BE COMPLETED AFTER EACH SERVICE
Ideal Stelrad Group is a member of the Benchmark scheme and fully supports the aims of
the programme. Benchmark has been introduced to improve the standards of installation and
commissioning of central heating systems in the UK and to encourage the regular servicing of
all central heating systems to ensure safety and efficiency.
back
3
icos system - User's
Approx. flow temperatures for the boiler thermostat settings are:
Knob Setting Flow Temperature
oCo
F
Minimum 30 86
Maximum 82 180

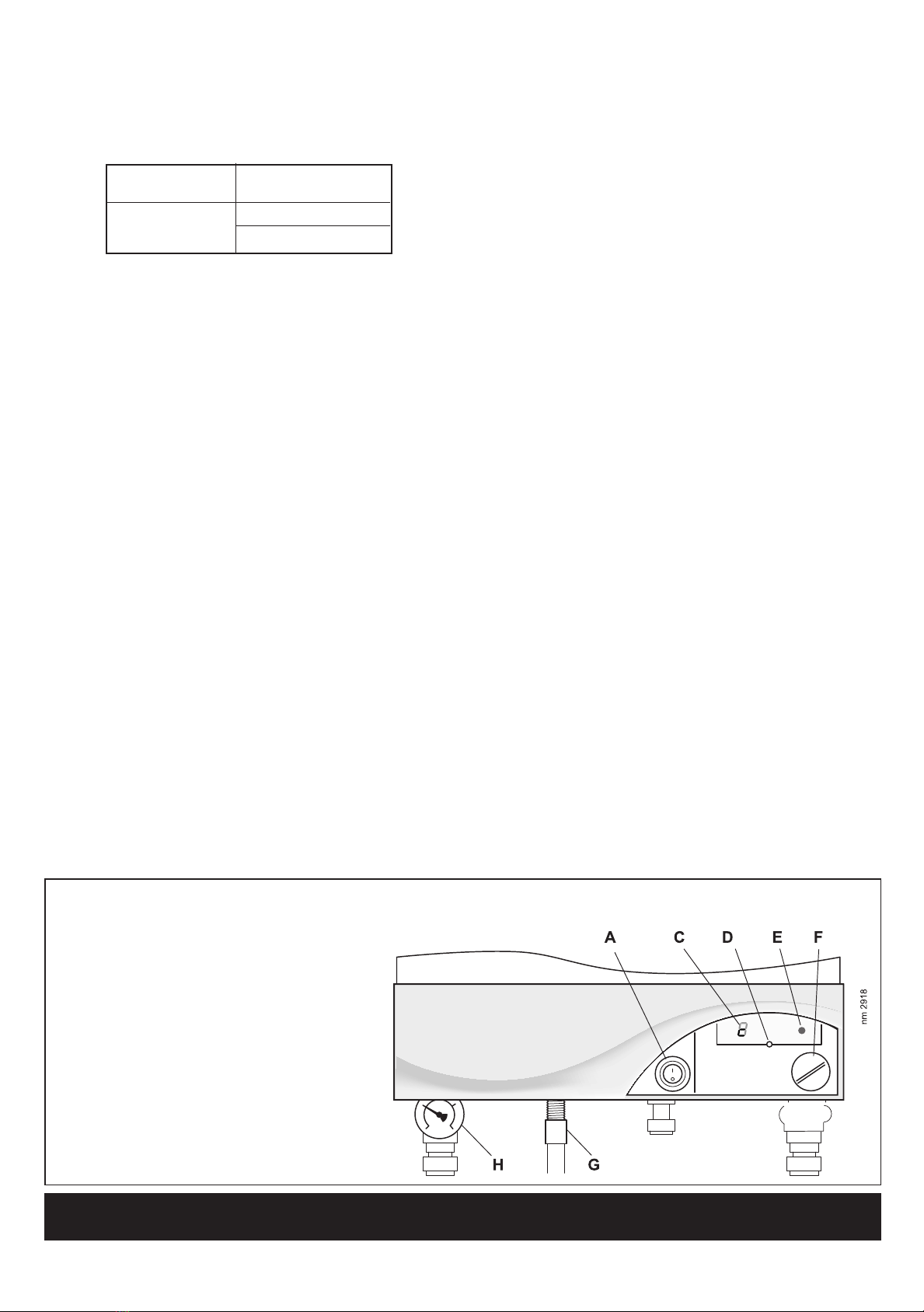

LEGEND
ABoiler ON/OFF switch
CDisplay
DReset button
ELED
FCH thermostat knob
GCondensate drain
HPressure gauge
CAUTION.
To avoid the possibility of injury during the installation, servicing or cleaning
of this appliance care should be taken when handling edges of sheet steel components.
1
BOILER CONTROLS
Control of water temperature
The boiler controls the central heating radiator temperature to a
maximum of 82oC, adjustable via the thermostat knob (F).
To shut down the boiler
1. For short periods
Set the mains ON/OFF switch (A) to OFF
2. For longer periods
Set the mains ON/OFF switch (A) to OFF, and switch the
electricity supply to OFF.
For longer periods the entire system should be drained.
To relight the boiler
Repeat the procedure detailed in 'To light the boiler'.
Frost protection
If no frost protection is provided and frost is likely during a short
absence from home, leave the heating controls (if fitted) at a
reduced temperature setting. For longer periods, the entire
system should be drained.
If the system includes a frost thermostat then, during cold
weather, the boiler should be turned OFF at the time switch (if
fitted) ONLY. The mains supply should be left switched ON, with
the boiler thermostat left in the normal running position.
Boiler overheat thermostat
This thermostat will shut down the boiler in the event of
overheating. Should this occur a fault code L A will be displayed.
Press the reset button (D) and the boiler will re-light.
If the fault re-occurs, turn off the boiler and consult a Gas Safe
Registered Engineer or in IE a Registered Gas Installer (RGII).
Flame failure
Should this occur a fault code L-F will be displayed. Press the
reset button and the boiler will relight. If the fault recurs, turn off
the boiler and consult a Gas Safe Registered Engineer or in IE a
Registered Gas Installer (RGII).
Loss of system water pressure
The gauge (H) indicates the central heating system pressure. If
the pressure is seen to fall below the original installation
pressure of 1-2 bar over a period of time then a water leak may
be indicated. In this event conduct the re-pressurising procedure
(see Trouble shooting problem 4). If unable to do so or if the
pressure continues to drop a Gas Safe Registered Engineer or
in IE a Registered Gas Installer (RGII) should be consulted.
DO NOT FIRE THE BOILER IF THE PRESSURE HAS
REDUCED TO ZERO FROM THE ORIGINAL SETTING.
Condensate Drain
The condensate drain (G) must not be modified or blocked.
Blockage of the condensate drain, caused by debris or freezing,
can cause automatic shutdown of the boiler.
If freezing is suspected and the pipe run is accessible an
attempt may be made to free the obstruction by pouring hot
water over the exposed pipe and clearing any blockage from the
end of the pipe. If this fails to remedy the problem the
assistance of a Gas Safe Registered Engineer or in IE a
Registered Gas Installer (RGII) should be sought.
Escape of gas
Should a gas leak or fault be suspected contact your local gas
supplier without delay.
Do NOT search for gas leaks with a naked flame.
Cleaning
For normal cleaning simply dust with a dry cloth.
To remove stubborn marks and stains, wipe with a damp cloth
and finish off with a dry cloth.
DO NOT use abrasive cleaning materials.
Maintenance
The appliance should be serviced at least once a year by a Gas
Safe Registered Engineer or in IE a Registered Gas Installer
(RGII).
back
Ideal Boilers, P.O. Box 103, National Ave, Kingston Upon Hull, HU5 4JN. Tel.
01482 492251 Fax. 01482 448858. Registration No. London 322 137.
Ideal Stelrad Group pursues a policy of continuing improvement in the design and performance
of its products. The right is therefore reserved to vary specification without notice.
Ideal Consumer Helpline
Tel: 01482 498660
www.idealboilers.com
POINTS FOR THE BOILER USER
Note. In line with our current warranty policy we would ask that you check through the following guide to identify any
problems external to the boiler prior to requesting a service engineers visit. Should the problem be found to be other than
with the appliance we reserve the right to levy a charge for the visit, or for any pre-arranged visit where access is not gained
by the engineer.
TROUBLESHOOTING - TYPICAL NON PRODUCT FAULTS
Problem Solution
Boiler is not working for
central heating or hot water.
• Check there is power to the boiler – switch (A) in the ON position and ‘0’ displayed on the
controls.
• If ‘0’ not displayed then not a boiler fault – contact your installer/service company.
• Check external programmer is set to an ‘ON’ period and the relevant function selected i.e.
central heating or domestic hot water. Test by overriding the programmer by setting to
‘continuous.
• Check room thermostat for central heating or the cylinder thermostat for domestic hot water,
are set at the required temperature. To test operation of either thermostat turn fully up. If no
response contact your installer.
Boiler is not working for
central heating or hot water
and the display shows ‘
L:AL:A
L:AL:A
L:A
’
(flashing).
• Press reset button (D) for 2 seconds, the boiler should then re-light. If fault recurs this
indicates an overheat condition. The boiler should be turned off and your installer contacted.
• Check if ALL radiators have thermostatic radiator valves fitted. If they have contact your
installer.
Boiler is not working for
central heating or hot water
and the display shows ‘
H:AH:A
H:AH:A
H:A
’
(flashing).
• Check pressure gauge on boiler shows a minimum of 1 bar. If not re-pressurise via the
filling loop to 1 bar (if unsure contact your installer), turn off the tap on the filling loop and turn
the on/off switch (A) off and then back on again to reset the boiler. If unable to do so or if the
pressure continues to drop after filling then contact your installer.
• Check if ALL radiators have thermostatic radiator valves fitted. If they have contact your
installer.
Boiler is not working for
central heating or hot water
but attempts to fire by going
through 3 ignition attempts.
Display shows ‘
L : FL : F
L : FL : F
L : F
’(flashing).
• Press reset button (D) for 2 seconds to repeat ignition sequence.
• Check gas supply (try another appliance – cooker/fire etc.) – If no gas supply then not a
boiler fault – contact gas supplier.
• Check condensate pipe is not blocked or frozen. If blocked clear blockage – if not possible
to check contact your installer.
1
3
4
2
back
Autres manuels pour HE15
2
Ce manuel convient aux modèles suivants
1
Autres manuels Ideal Boilers Chaudière
Ideal Boilers
Ideal Boilers Classic Combi FF 280 Manuel utilisateur
Ideal Boilers
Ideal Boilers Buccaneer GTE 4 Manuel utilisateur
Ideal Boilers
Ideal Boilers 330 RDI Manuel utilisateur
Ideal Boilers
Ideal Boilers LOGIC COMBI ESP1 24 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers Classic FF 360 Manuel utilisateur
Ideal Boilers
Ideal Boilers ESPRIT ECO 24 Manuel utilisateur
Ideal Boilers
Ideal Boilers British Gas RD2 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers istor HE260 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers Atlantic 24 Note de version
Ideal Boilers
Ideal Boilers HE24 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers LOGIC COMBI C24IE Manuel utilisateur
Ideal Boilers
Ideal Boilers Mexico Slimline RS 3/40 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers 30 RD1 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers Classic FF230 Fiche technique
Ideal Boilers
Ideal Boilers SE9 RS Manuel utilisateur
Ideal Boilers
Ideal Boilers Classic LXFF 230 Fiche technique
Ideal Boilers
Ideal Boilers British Gas 330 RD1 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers isar m30100 Manuel utilisateur
Ideal Boilers
Ideal Boilers British Gas 440 RD2 Guide de l'utilisateur
Ideal Boilers
Ideal Boilers H12IE Manuel utilisateur
Manuels Chaudière populaires d'autres marques
Vaillant
Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur
Radijator
Radijator BIO max 23.1 Manuel utilisateur
Brunner
Brunner BSV 20 Manuel utilisateur
Buderus
Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur
Potterton
Potterton 50e Fiche technique
UTICA BOILERS
UTICA BOILERS TriFire Manuel utilisateur
