iDataLink maestro Rr Manuel utilisateur
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED
OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SI)-SUB01-DS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Compatible Radio
INSTALL GUIDE
SUBARU FORESTER
BASE 20092014
retains steering wheel controls and adds gauges
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
ADS-RR(SI)-SUB01-DS maestro.idatalink.com
subaru Forester base 2009-2014
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle as per the Getting Started
section, and that you carefully
review the Installation Diagram and
Vehicle Wire Reference Chart.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
DURING INSTALLATION
Wiring Diagram 3
Vehicle Wire Reference Chart 4
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
ADS-RR(SI)-SUB01-DS maestro.idatalink.com
subaru Forester base 2009-2014
Automotive Data Solutions Inc. © 2014 3
452 3
15 16
13 14
8 96 7
19
1
17 18
11 12
2010
A
H
G
A
G
H
10 11 12 13 14 15 16
1234567 8
9
06 CANH
14 CANL
4
OBDII CONNECTOR
LOCATED UNDER DRIVER SIDE DASH
MAESTRO RR MODULE
CONNECT TO
AFTERMARKET RADIO
BROWN/RED - CANH
C - LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI 2
SWI 2
SWI FEED
SWI FEED
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
BLACK/WHITE -
BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
BLACK
BLACK
RED
RED
YELLOW
YELLOW
BROWN/YELLOW - CANL
WIRES FROM
VEHICLE
YELLOW - 12V (+) INPUT
BLACK - GROUND
GRAY/RED - ACCESSORY (+) INPUT
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
STEP 1
STEP 2
STEP 3
STEP 4

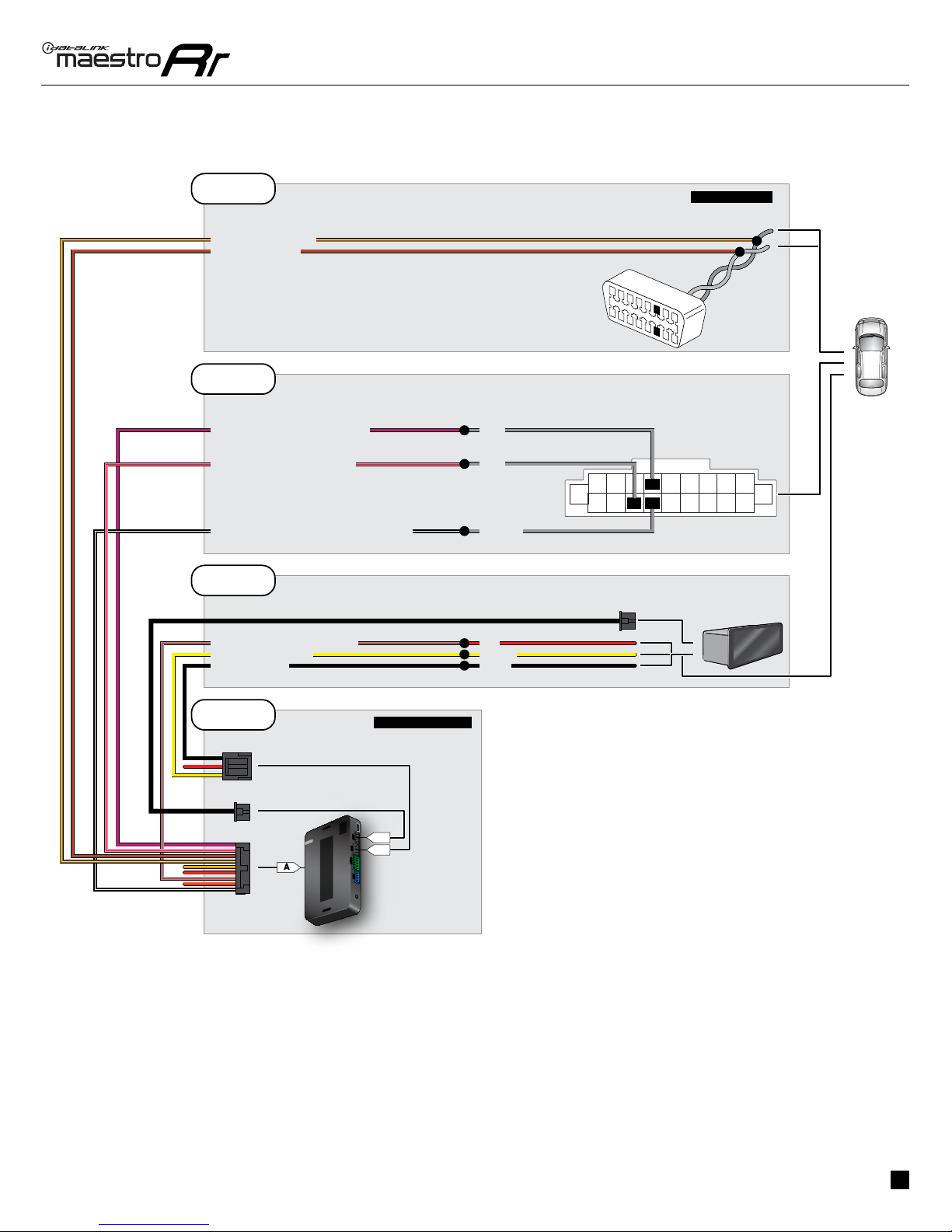

WIRING DIAGRAM
ADS-RR(SI)-SUB01-DS maestro.idatalink.com
subaru Forester base 2009-2014
Automotive Data Solutions Inc. © 2014 4
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Module
Location
Component
Locator
CanH A ~ 16 pin 06 Red (DATA) OBDII connector, under driver side dash ~
CanL A ~ 16 pin 14 Blue (DATA) OBDII connector, under driver side dash ~
SWI 1 C ~ 20 pin 04 LtGreen/Red (DATA) Behind radio ~
SWI 2 C ~ 20 pin 13 Red (DATA) Behind radio ~
SWI Feed C ~ 20 pin 14 Yellow (-) Behind radio ~
OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SI)-SUB01-DS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Compatible Radio
INSTALL GUIDE
SUBARU FORESTER
NAV 20092014
retains steering wheel controls and adds gauges
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
ADS-RR(SI)-SUB01-DS maestro.idatalink.com
subaru Forester nav 2009-2014
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle as per the Getting Started
section, and that you carefully
review the Installation Diagram and
Vehicle Wire Reference Chart.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
DURING INSTALLATION
Wiring Diagram 3
Vehicle Wire Reference Chart 4
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
ADS-RR(SI)-SUB01-DS maestro.idatalink.com
subaru Forester nav 2009-2014
Automotive Data Solutions Inc. © 2014 3
87654321 109
28
22
21 26 27
1211
2524
2320
1413
18 19171615
A
H
G
A
G
H
10 11 12 13 14 15 16
1234567 8
9
06 CANH
14 CANL
5
OBDII CONNECTOR
LOCATED UNDER DRIVER SIDE DASH
MAESTRO RR MODULE
CONNECT TO
AFTERMARKET RADIO
BROWN/RED - CANH
C- LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI 2
SWI 2
SWI FEED
SWI FEED
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
BLACK/WHITE - BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
BLACK
BLACK
RED
RED
YELLOW
YELLOW
BROWN/YELLOW - CANL
WIRES FROM
VEHICLE
YELLOW - 12V (+) INPUT
BLACK - GROUND
GRAY/RED - ACCESSORY (+) INPUT
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT

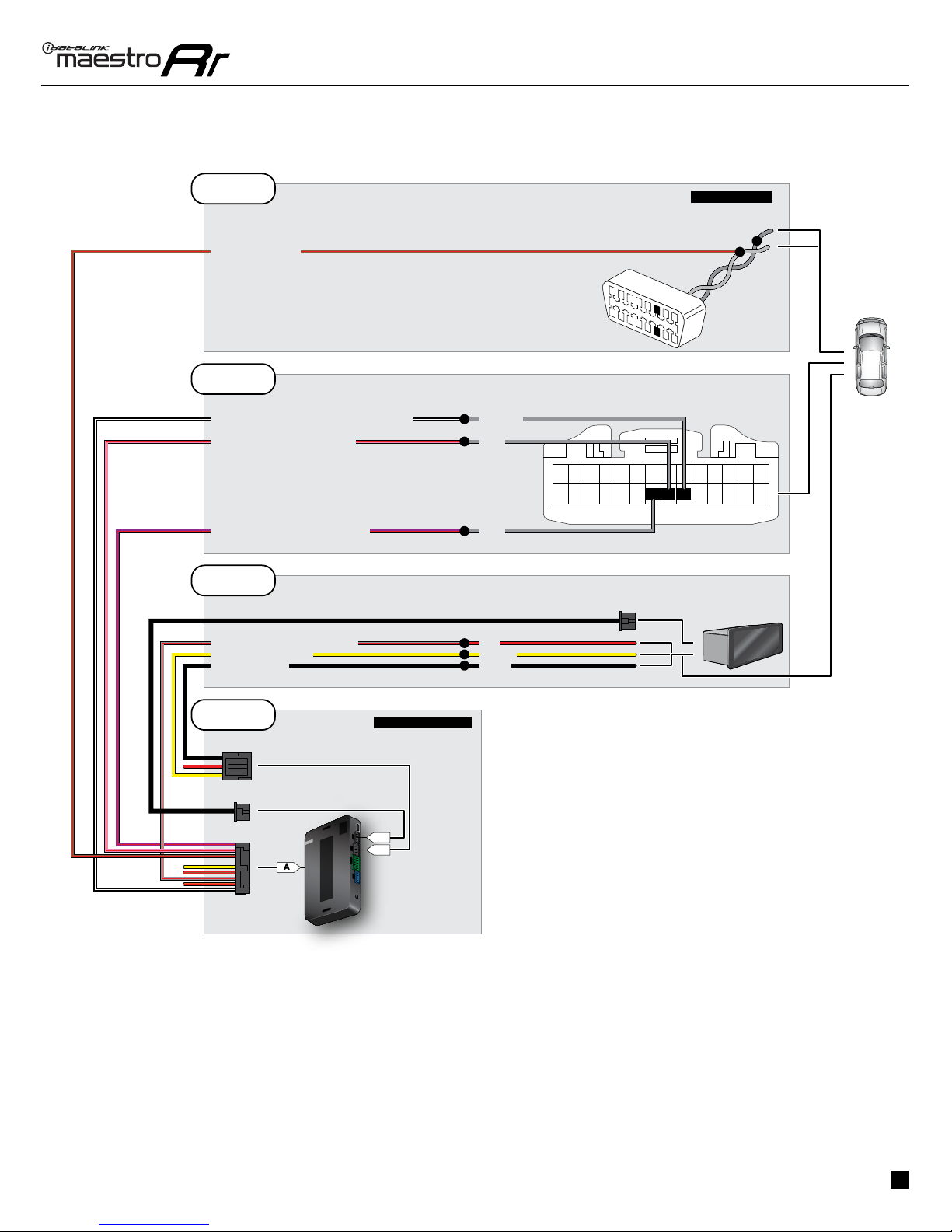

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
ADS-RR(SI)-SUB01-DS maestro.idatalink.com
subaru Forester nav 2009-2014
Automotive Data Solutions Inc. © 2014 4
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Module
Location
Component
Locator
CanH A ~ 16 pin 06 Red (DATA) OBDII connector, under driver side dash ~
CanL A ~ 16 pin 14 Blue (DATA) OBDII connector, under driver side dash ~
SWI 1 C ~ 28 pin 21 LtGreen/Red (DATA) Behind radio ~
SWI 2 C ~ 28 pin 22 Red (DATA) Behind radio ~
SWI Feed C ~ 28 pin 23 Yellow (-) Behind radio ~
OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SI)-SUB01-DS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Compatible Radio
INSTALL GUIDE
SUBARU IMPREZA
BASE 20082013
retains steering wheel controls and adds gauges
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
