iDataLink maestro Rr Manuel utilisateur
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED
OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SI)-TOY01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Compatible Radio

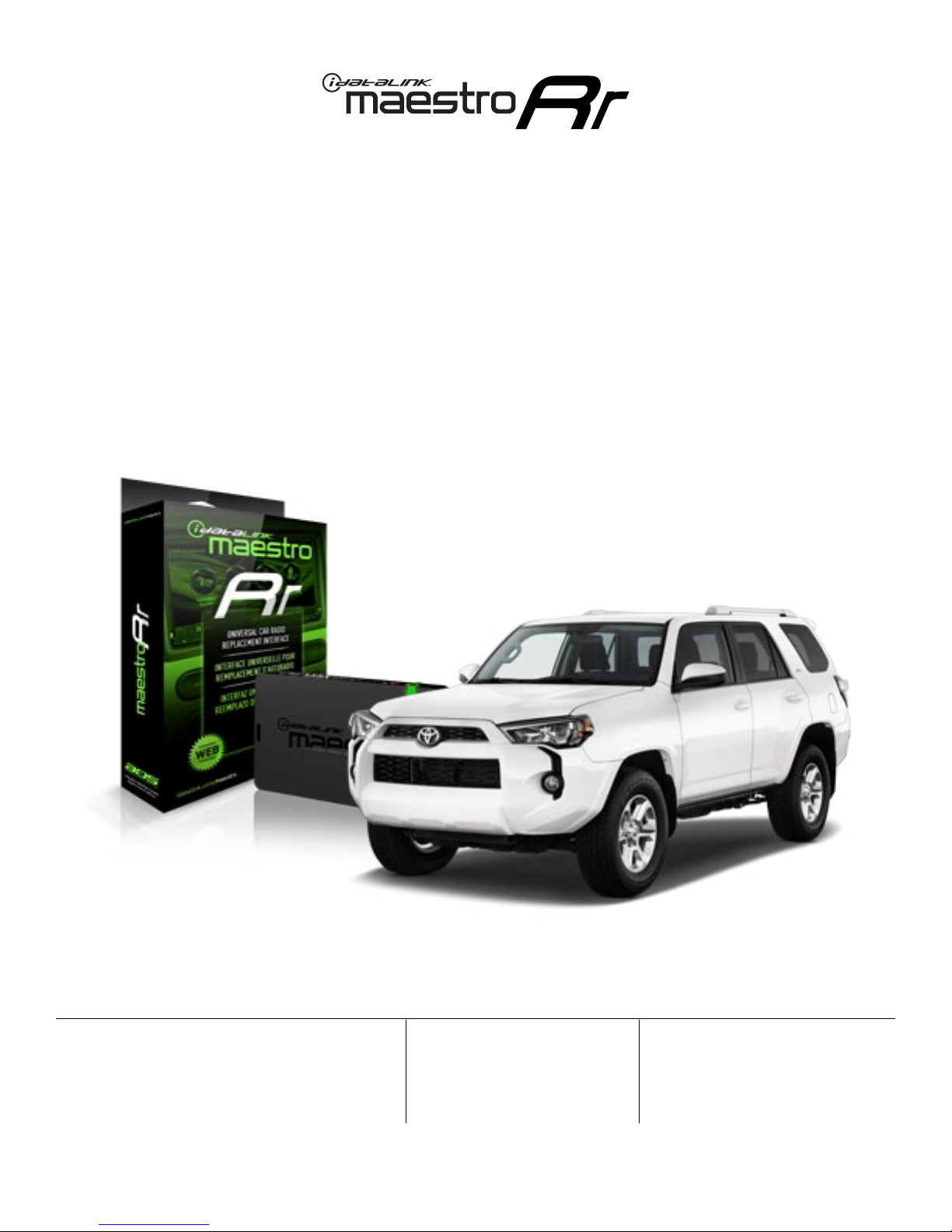

INSTALL GUIDE
TOYOTA 4 RUNNER
20142015
retains steering wheel controls
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
ADS-RR(SI)-TOY01-AS maestro.idatalink.com
toyota 4 runner 2014-2015
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
ADS-RR(SI)-TOY01-AS maestro.idatalink.com
toyota 4 runner 2014-2015
Automotive Data Solutions Inc. © 2014 3
1
E
E
87654321 109
28
22
21 26 27
1211
25
242320
1413
18 19171615
A
G
A
G
NOT CONNECTED
MAESTRO RR MODULE
C- LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI 3
SWI 3
SWI 2
SWI 2
SWI FEED
SWI FEED
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
ORANGE/RED -
ORANGE/RED - SWI CIRCUIT 3 INPUT
BLACK/WHITE -
BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
WIRES FROM
VEHICLE
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT

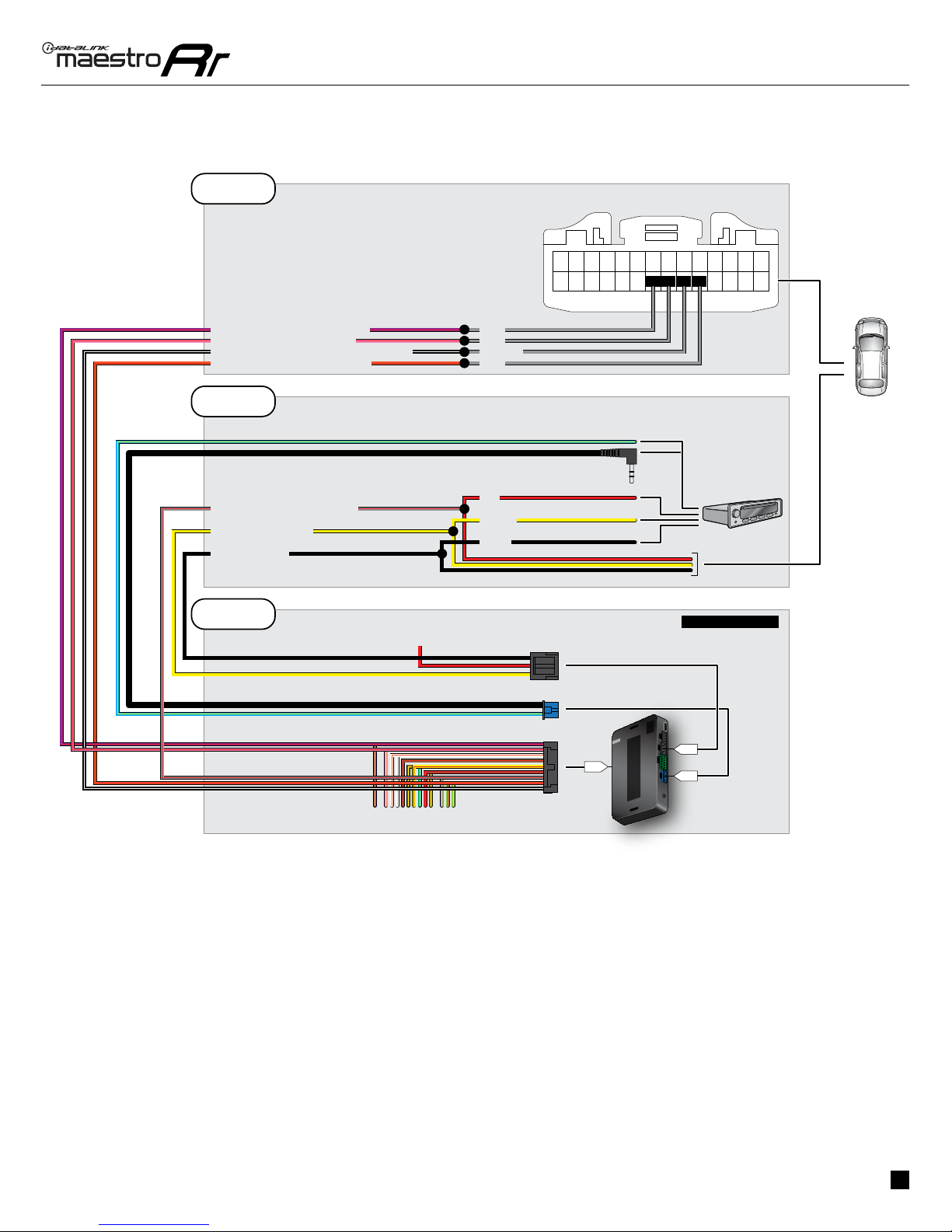

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
NOT CONNECTED
YELLOW - 12V (+) INPUT
BLACK - GROUND
GRAY/RED - ACCESSORY (+) INPUT
BLACK
BLACK
RED
RED
YELLOW
YELLOW
CONNECT TO
AFTERMARKET RADIO
ADS-RR(SI)-TOY01-AS maestro.idatalink.com
toyota 4 runner 2014-2015
Automotive Data Solutions Inc. © 2014 4
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
SWI 1 ~ ~ 28 pin 21 White (DATA) Behind radio
SWI 2 ~ ~ 28 pin 22 Red (DATA) Behind radio
SWI 3 ~ ~ 28 pin 24 Pink (DATA) Behind radio
SWI Feed ~ ~ 28 pin 23 Blue (-) Behind radio
OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SI)-TOY01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Compatible Radio

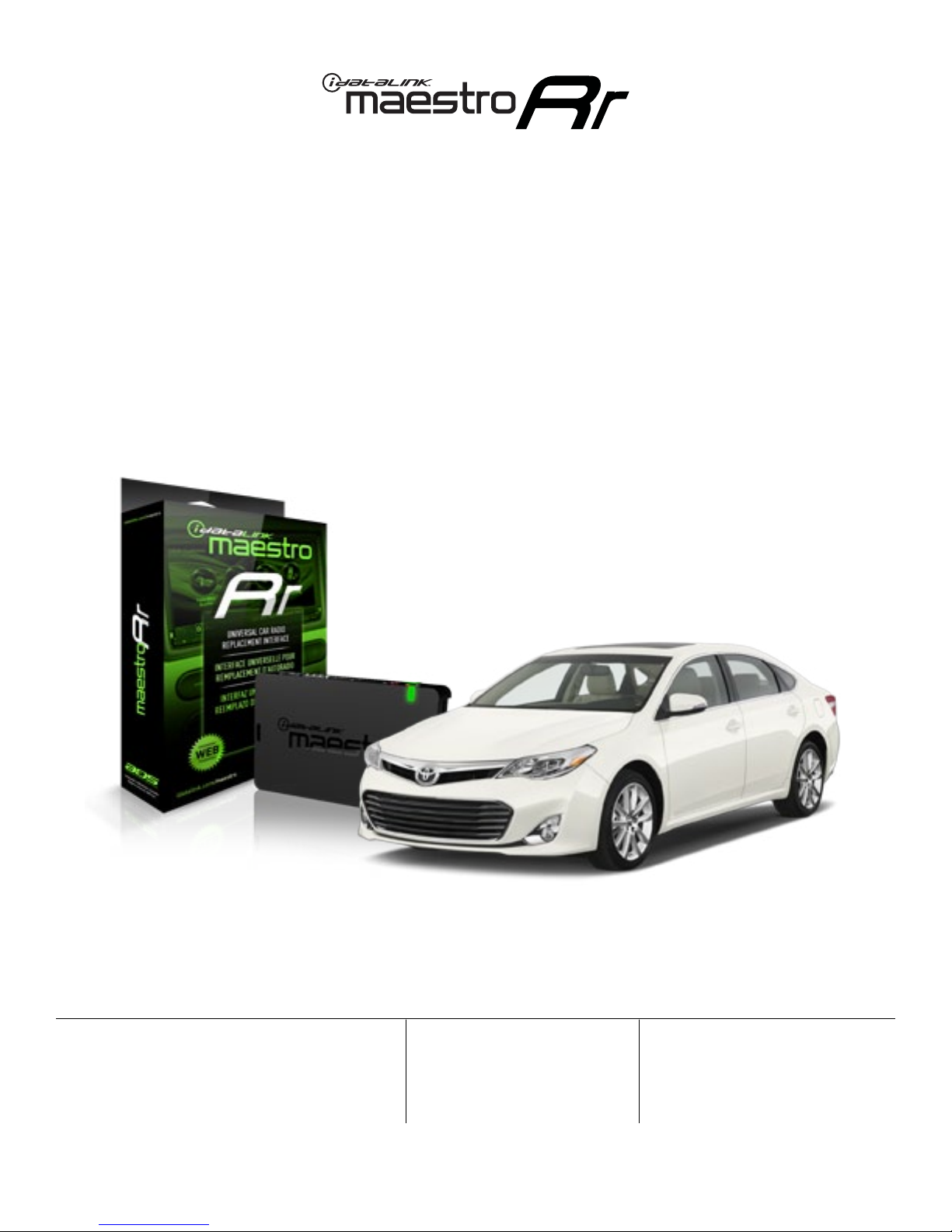

INSTALL GUIDE
TOYOTA AVALON
20132014
retains steering wheel controls
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
ADS-RR(SI)-TOY01-AS maestro.idatalink.com
toyota avalon 2013-2014
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
ADS-RR(SI)-TOY01-AS maestro.idatalink.com
toyota avalon 2013-2014
Automotive Data Solutions Inc. © 2014 3
1
E
E
87654321 109
28
22
21 26 27
1211
25
242320
1413
18 19171615
A
G
A
G
NOT CONNECTED
MAESTRO RR MODULE
C- LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI 3
SWI 3
SWI 2
SWI 2
SWI FEED
SWI FEED
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
ORANGE/RED -
ORANGE/RED - SWI CIRCUIT 3 INPUT
BLACK/WHITE -
BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
WIRES FROM
VEHICLE
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
NOT CONNECTED
YELLOW - 12V (+) INPUT
BLACK - GROUND
GRAY/RED - ACCESSORY (+) INPUT
BLACK
BLACK
RED
RED
YELLOW
YELLOW
CONNECT TO
AFTERMARKET RADIO
ADS-RR(SI)-TOY01-AS maestro.idatalink.com
toyota avalon 2013-2014
Automotive Data Solutions Inc. © 2014 4
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
SWI 1 ~ ~ 28 pin 21 black (DATA) Behind radio
SWI 2 ~ ~ 28 pin 22 Yellow (DATA) Behind radio
SWI 3 ~ ~ 28 pin 24 Blue (DATA) Behind radio
SWI Feed ~ ~ 28 pin 23 Pink (-) Behind radio
OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SI)-TOY01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Compatible Radio

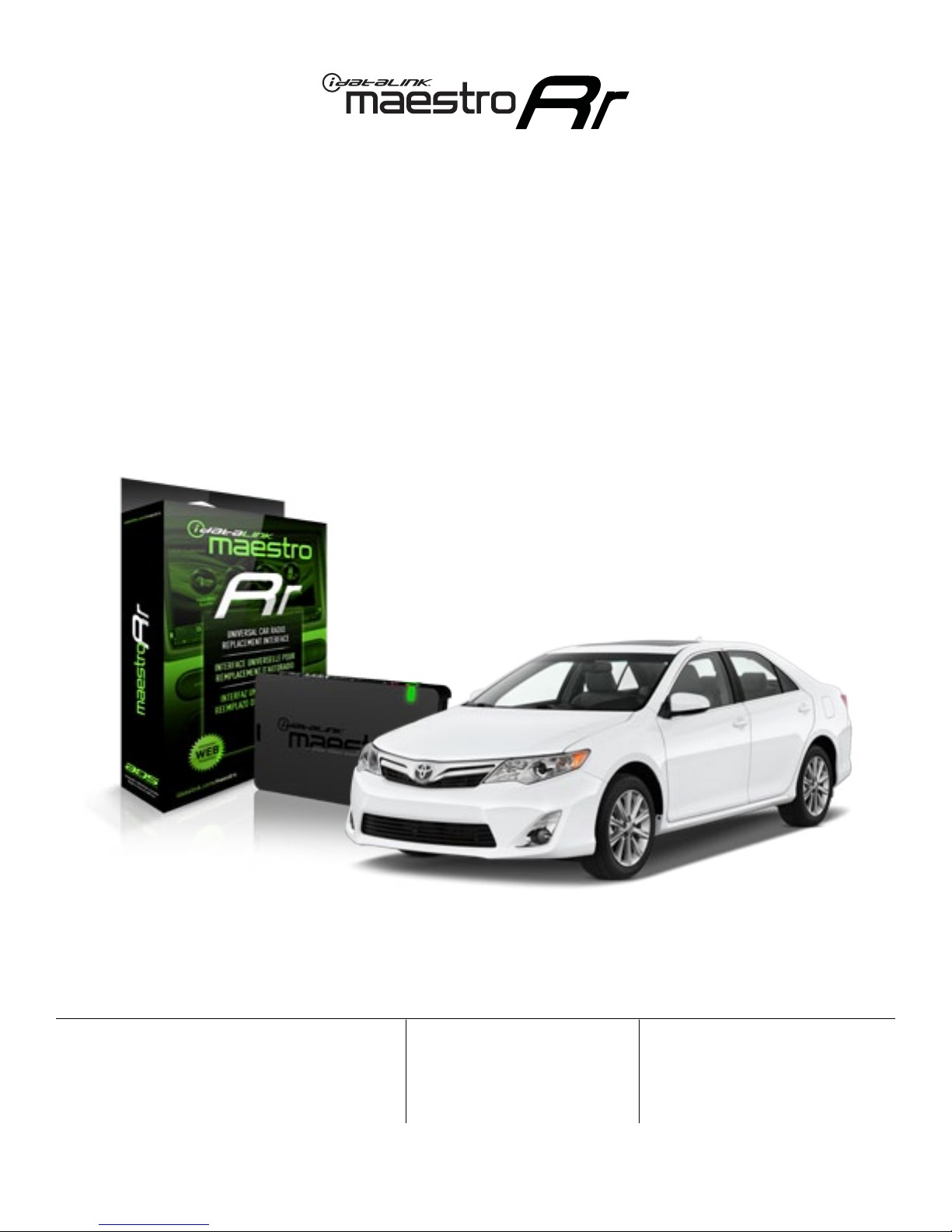

INSTALL GUIDE
TOYOTA CAMRY
20122015
retains steering wheel controls
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
