Id300 Short-Pulse Laser Source Operating guide

id300

Short-Pulse

Laser Source

User Information

and

Operating Guide

Version 1.5

Id Quantique

Ch. de la Marbrerie, 3 1227 Carouge Switzerland

Tel: +41 (0)22 301 83 71 Fax: +41 (0)22 301 83 79

sales@idquantique.com www.idquantique.com

Id300 Short-Pulse Laser Source Operating guide

system, or transmitted, in any form or by any means, electronic, mechanical, photocopying,

recording or otherwise, without the prior written permission of id Quantique SA.

Printed in Switzerland.

Id300 Short-Pulse Laser Source Operating guide

1 Contents

Contents................................................................................................................................... 3

Getting started.......................................................................................................................... 4

2.1

Accessories supplied and Available ................................................................................. 4

2.1.1

Accessories Supplied ................................................................................................ 4

2.1.2

Accessories Available................................................................................................ 4

2.1.3

Supplied Manuals...................................................................................................... 4

2.2

Preparation for use and Safety......................................................................................... 4

2.3

The front panel at a glance ............................................................................................... 5

2.4

The rear panel at a glance................................................................................................ 6

Operation.................................................................................................................................. 7

3.1

General description........................................................................................................... 7

3.2

Using the id300 SPLS....................................................................................................... 7

Maintenance............................................................................................................................. 8

4.1

Transportation and Storage.............................................................................................. 8

4.1.1

Safety Precautions..................................................................................................... 8

4.1.2

AC Requirements ...................................................................................................... 9

4.1.3

Power Cable .............................................................................................................. 9

4.2

General Maintenance........................................................................................................ 9

4.3

Cleaning the Fibre Ends ................................................................................................. 10

4.4

Cleaning the Laser Port .................................................................................................. 10

Warranty................................................................................................................................. 11

5.1

General information ........................................................................................................ 11

5.2

Liability............................................................................................................................ 11

5.3

Exclusions....................................................................................................................... 11

5.4

Certification..................................................................................................................... 11

Specifications......................................................................................................................... 12

6.1

Module ............................................................................................................................ 12

6.2

Input................................................................................................................................ 12

6.2.1

Trigger Specifications.............................................................................................. 12

6.3

Output ............................................................................................................................. 12

6.3.1

Optical output........................................................................................................... 12

6.4

Output .....................................................................................Erreur ! Signet non défini.

6.4.1

Optical output........................................................................................................... 12

Id300 Short-Pulse Laser Source Operating guide

2 Getting started

2.1 Accessories supplied and Available

2.1.1 Accessories Supplied

Power cord

The type of power cord supplied with each unit is determined according to the

country of destination.

2.1.2 Accessories Available

Single-mode optical fibre patch cord

2.1.3 Supplied Manuals

Operating guide – this guide

2.2 Preparation for use and Safety

Before starting to use the id300 Short-pulse Laser Source (SPLS), it must be

unpacked and connected to a suitable power supply line. Refer to Specifications for a

description of such a power supply line. A power cord is supplied with the id300 SPLS.

When properly connected to a power supply line, the id300 SPLS can be switched on

using the ON/OFF switch on the rear panel. When switched ON, the green LED on the

front panel will turn on. The module is ready for operation.

The fibre patch cord ends connected to the id300 SPLS optical output port must be

kept clean at all times.

IMPORTANT

The input connector of the id300 SPLS cannot be cleaned or re-polished by the

user. In order to ensure minimum insertion losses, it is recommended to

connect before the first use of the detector an optical fibre patch cord to the

id300 SPLS optical input port. This patch cord should then be used for all

connections of the module to a device under test. In case of inappropriate

insertion losses, the connector of this patch cord can be easily cleaned or re-

polished by the user.

IMPORTANT

THE id300 LASER SOURCE IS A CLASS 1 LASER. DO NOT STARE INTO THE

BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

Caution – use of controls or adjustments or performance of procedure other

than those specified herein may result in hazardous radiation exposure.

CLASS 1 LASER PRODUCT

CLASSIFIED PER IEC 60825-1, Ed 1.2, 2001-08

Id300 Short-Pulse Laser Source Operating guide

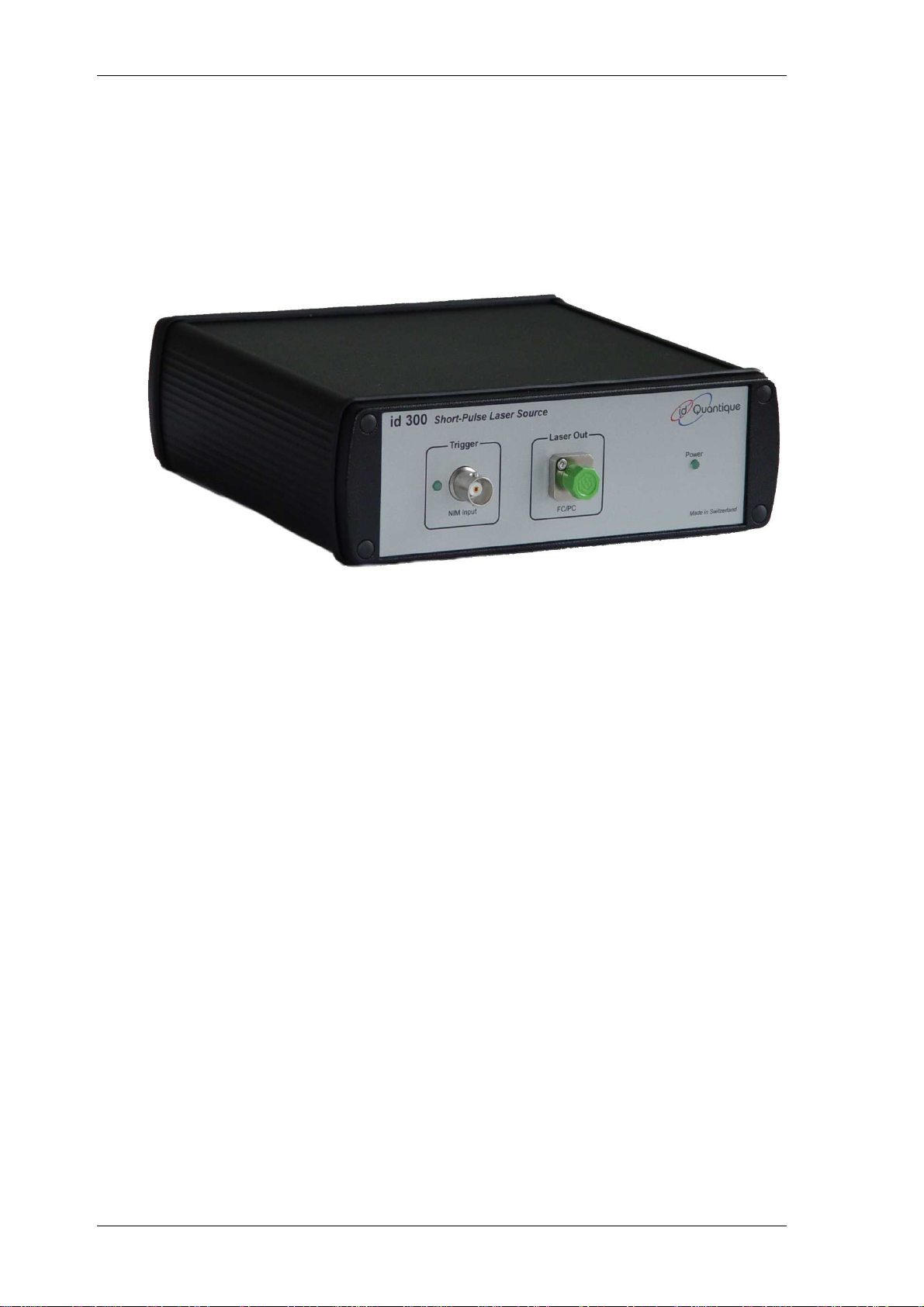

2.3 The front panel at a glance

Figure 2.1 Front panel

Note: Your id300 SPLS may slightly differ from this illustration.

Front panel indicators:

Power Status LED: On Green ok

Laser Out: FC/PC optical connector

Note: The protective cap, provided with the module, should

be mounted on the input port whenever the module is

not being used.

Trigger: Input BNC connector for trigger signal.

A green LED turns on upon valid triggering.

Id300 Short-Pulse Laser Source Operating guide

2.4 The rear panel at a glance

Rear side of the id300

Figure 2.2 Rear panel

Note: Your id300 SPLS may slightly differ from this illustration.

Id300 Short-Pulse Laser Source Operating guide

3 Operation

3.1 General description

The id300 is a short-pulse laser source. The wavelength is set at the factory and

cannot be changed by the user. A Fabry-Perot or a Distributed-feedback laser can be

mounted at the factory. Two wavelengths are available:

1310nm

1550nm

The id300 is triggered externally, via a trigger input, to produce sub-nanosecond laser

pulses with a repetition rate ranging from DC to 500MHz. The trigger input is set at the

factory and cannot be changed by the user. Several inputs are available:

NIM

ECL

PECL

LVPECL

TTL

TTL 50Ω

3.2 Using the id300 SPLS

Once connected to the main, the green LED will turn on. Connect the trigger source to

the trigger input using the BNC connector on the front panel. The trigger input of the

instrument connected to the id300 should be compatible with the trigger input of the

id300. The id300 will produce short laser pulses at the repetition rate set by the trigger

input. The repetition rate can be varied from 0Hz (DC operation) to 500MHz. Each

laser pulse has duration of typically 300 ps.

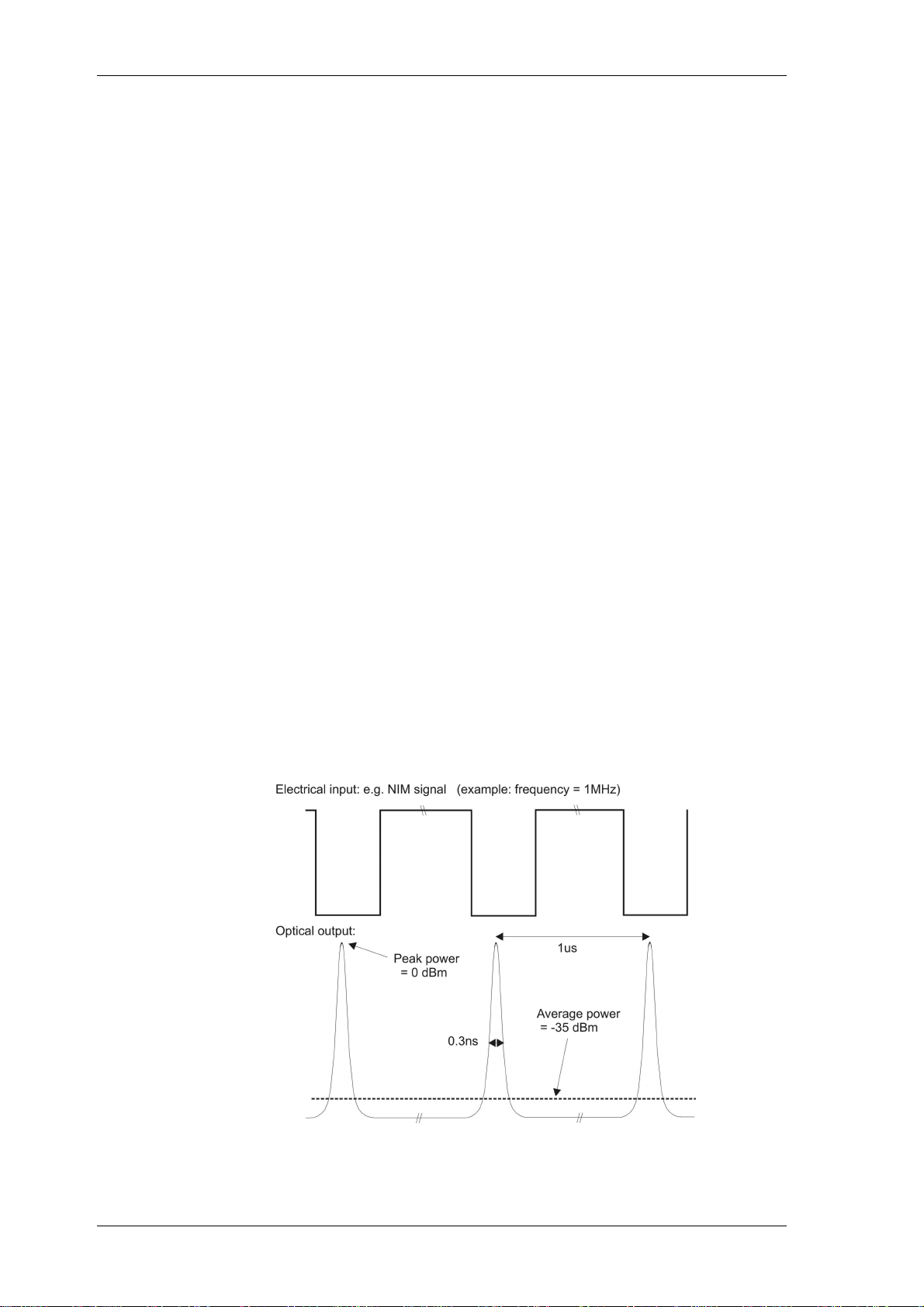

The operating principle is illustrated in Figure 3.1 in the case of a NIM input trigger

signal.

Figure 3.1 Operating principles.

Id300 Short-Pulse Laser Source Operating guide

4 Maintenance

4.1 Transportation and Storage

Maintain a temperature range within specifications when transporting or storing the

unit. Transportation damage can occur from improper handling. The following steps

are recommended to minimize the possibility of damage:

Pack the unit in the original packing material when shipping.

Store unit at room temperature in a clean and dry area.

Avoid high humidity or large temperature fluctuations.

Keep the unit out of direct sunlight.

Avoid unnecessary shock and vibration.

4.1.1 Safety Precautions

While manipulating optical fibres, laser radiation may be encountered at source output

ports and at fibre ends. Avoid long-term exposure to laser radiation.

Warning

Never look directly into a live optical fibre and ensure that your eyes are

protected at all times.

The following safety precautions must be observed during the operation and servicing

of the unit. Failure to comply with these precautions or with specific indications

elsewhere in this manual violates safety standards of intended use of the unit. id

Quantique assumes no liability for the user's failure to comply with these requirements.

This unit is intended for indoor use only.

Unit covers must not be removed at all time.

Before powering on the unit, all grounding terminals, extension cords, and

devices connected to it should be connected to a protective ground via a

ground socket. Any interruption of the protective grounding is a potential shock

hazard and may cause personal injury.

Whenever the ground protection is impaired, the unit is not to be used and

must be secured against any accidental or unintended operation.

Only fuses with the required rated currents and specified type (T1.6A) may be

used for replacement. Do not use repaired fuses or short-circuited fuse

holders.

Any adjustments, maintenance, and repair of opened unit under voltage

should be avoided and carried out only by skilled personnel aware of the

hazards involved. Do not attempt internal service or adjustment unless another

person qualified in first aid is present. Do not replace any components while

power cable is connected.

Operation of any electrical instrument around flammable gases or fumes

constitutes a major safety hazard.

Installation of replacement parts or modification of the unit must be carried out

by id Quantique. There is no service allowed by the customer.

The unit is to be returned to id Quantique for any service or repair.

Certain components inside the unit – e.g. capacitors – may be charged even if

the unit has been disconnected from its electrical supply.

Id300 Short-Pulse Laser Source Operating guide

4.1.2 AC Requirements

The id300 SPLS can operate from any single-phase AC power source between 100 V

and 240 V (50/60 Hz).

4.1.3 Power Cable

This unit uses an international safety standard three-wire power cable. This cable

serves as a ground when connected to an appropriate AC power receptacle. The type

of power cable supplied with each unit is determined according to the country of

destination.

Only qualified electricians should connect a new plug if needed. The colour coding

used in the electric cable depends on the cable. New plugs should meet the local

safety requirements and include the following features:

adequate load-carrying capacity

ground connection

cable clamp

Warning

To avoid electrical shock, do not operate the unit if there are signs of damage to

any part of the outer surface (covers, panels, etc.).

To avoid serious injury, the following precautions must be observed before

powering on the unit.

If the unit is to be powered via an auto-transformer for voltage reduction,

the common terminal must be connected to the grounded power source

pole.

Insert the plug into a power outlet with a protective ground contact. Do

not use an extension cord without a protective conductor.

Before powering on the unit, the protective ground terminal of the unit

must be connected to a protective conductor using the unit power cord.

Do not tamper with the protective ground terminal.

4.2 General Maintenance

There are no user-serviceable components in the id300 SPLS, notwithstanding the

procedure described in this section. The id300 has been designed to require no

maintenance and to provide reliable operation for many years to come.

No service is allowed by customer. The unit is to be returned to the factory for any

service or repair.

Important

When the module is not being used, the protective cap should be fitted over the

detector port.

To help ensure long, trouble-free operation,

Keep the id300 SPLS free of dust

Do not spill liquids on or into the unit. If the unit does get wet, turn off the

power immediately and let the unit dry completely

Clean the id300 SPLS casing with a slightly damp (with water) cloth.

Do not open or modify the unit.

Do not remove protective covers or housings.

Id300 Short-Pulse Laser Source Operating guide

4.3 Cleaning the Fibre Ends

The patch cord fibre ends connected to the id300 SPLS optical input port must be kept

clean at all times to ensure minimum loss and to reduce reflection.

1. Gently wipe the fibre end with a lint-free swab dipped in isopropyl alcohol (98%

pure or better).

2. Dry using clean compressed air.

4.4 Cleaning the Laser Port

To ensure optimum performance, the optical port should be kept as clean as possible.

It is recommended to connect before the first use of the detector an optical fibre patch

cord to the id300 SPLS optical input port. This patch cord should then be used for all

connections of the module to a device under test. In case of inappropriate insertion

losses, the end connector of this patch cord can be easily cleaned by the user.

Nevertheless, if the optical port needs to be cleaned,

Remove the protective cap

Insert a lint-free stick dipped in isopropyl alcohol and gently wipe the

receptacle

Dry using a dry lint-free stick.

Table des matières

Autres manuels Id Quantique Instrument de mesure

Id Quantique

Id Quantique ID Qube Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur

Id Quantique id300 Manuel du propriétaire

Manuels Instrument de mesure populaires d'autres marques
