ICP DAS USA MSM-508 Manuel utilisateur
Release No. : 0804-V1
TM
Managed Switch Console Manual
Industrial Managed Ethernet Switch
Version 1.1
This document applied to models of
MSM-508,MSM-508FC/FCS/FT
Copyright
©
ICP DAS Co., Ltd., All Rights Reserved.
Release No. : 0804-V1
CONTENTS
1
CONTENTS 2
2
Managed Switch 1
3
RS-232 & Telnet Console Operation 1
1.
Console Connection........................................................................................2
2.
Console Command.........................................................................................4
▓? [COMMAND] 4
▓REBOOT／RESET 4
▓DEFAULT 5
▓IP 5
▓MASK 6
▓GATEWAY 6
▓MAC 6
▓NETID [id number] 7
▓LMASK [mask value] 8
▓CMASK [mask value] 9
▓SMASK [mask value] 9
▓LVALUE 10
▓CMASK 10
▓SMASK 11
▓HMIVALUE [value1] [value2] 11
▓RTIME [time] 12
▓FTIME [time] 13
▓MTIME [time] 13
▓HTIME [time] 14
▓ COM1 [baud rate][data bit][parity][stop bit] 15
▓ COM2 [baud rate][data bit][parity][stop bit] 16
▓ RING [pair][enable|disable] 16
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 1
Console Connection
Console Command
Managed Switch
RS-232 & Telnet Console Operation
ICPDAS Managed Switch provides three access
methods, RS-232, Telnet and HTTP, to configure
the Switch functions. This Manual will guide you
how to use the RS-232 and Telnet to access
Managed Switch console.
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 2
1. Console Connection
RS-232 Connection
ICPDAS RS Series Switch is shipped with a 9-pin Female D-sub & RJ-45 cable
(CA-090510)，please use this cable to connect Switch’s RS232 port with PC’s COM port.
You can connect to Switch console by using windows Terminal Emulator,
Baud Rate : 115200
Data Bits : 8
Parity : none
Stop Bit : 1
Otherwise, you can download our free Console Emulator from RS Series Switch download
page:
http://www.icpdas.com/products/Switch/industrial/software.htm
Telnet Connection
Before using telnet to access console, please mask sure the PC host and Managed Switch are
on the same subnet.
Factory default:
IPAddress : 192.168.255.1
Gateway : 192.168.0.1
Mask : 255.255.0.0
Otherwise, you have to change the network setting through the RS-232 connection.
STEP 1
Click windows [Start]
[Run]
Type the Telnet command and switch’s IP address.
EX: telnet 192.168.255.1
STEP 2
If connection succeeds, the login prompt will appear.
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 3
By factory default setting, both the account and password are Admin.
Only one telnet connection is accepted at the same time.
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 4
2. Console Command
▓
▓▓
▓? [COMMAND]
Description
Both “help” and “?” display a list of available commands, if parameter is not specified.
The [command] parameter is used to see detail information for a specific command
Parameters
Parameter
Description
command
Please provide the name of the command that you want detail information about.
Example
▓
▓▓
▓REBOOT／
／／
／RESET
Description
The reset command will initiate Ring Switch a self-restart. All current setting values remain
intact.
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 5
▓
▓▓

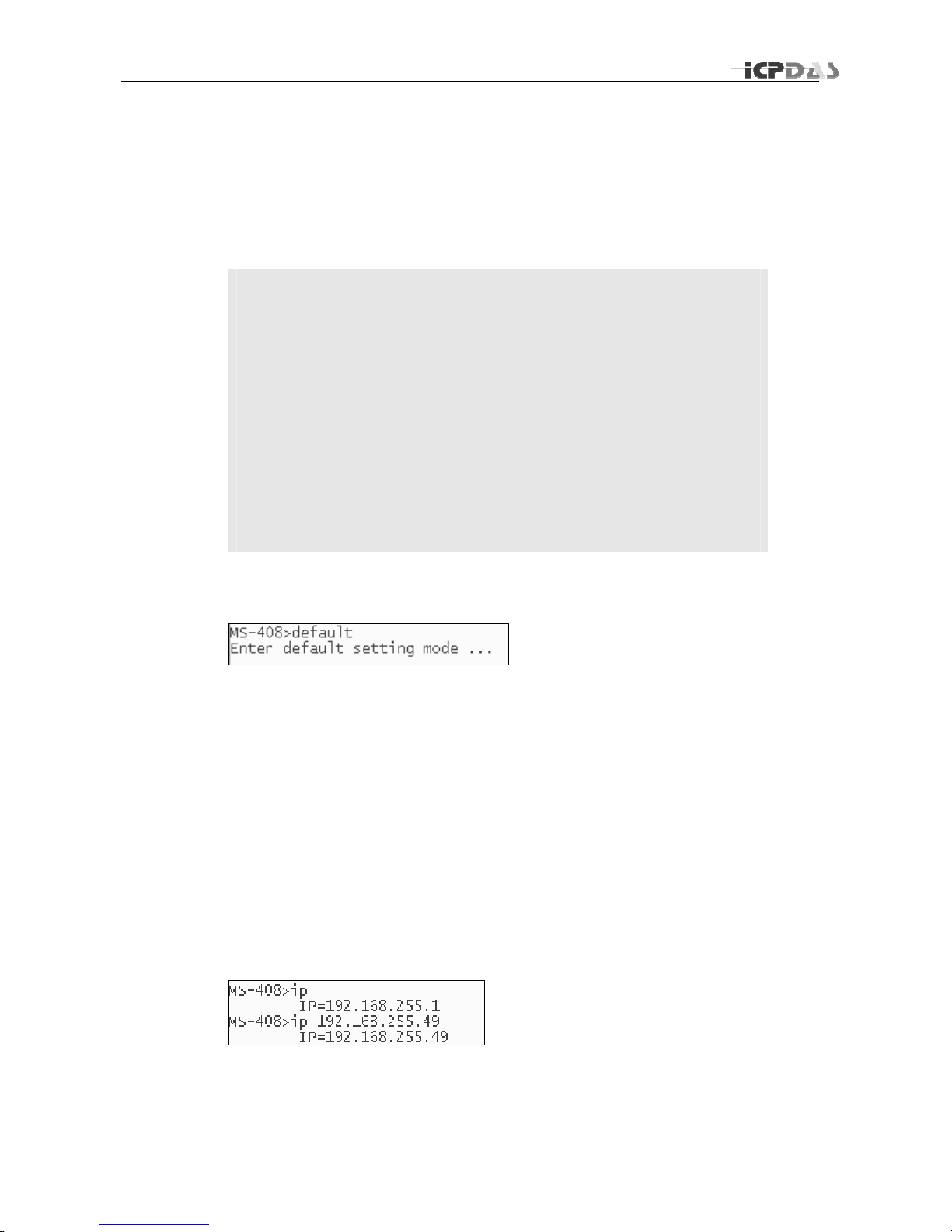

▓DEFAULT
Description
The default command will restore all settings to factory default values.
Current factory default values are as follow:
COM1:baudrate 115200,8bit,none patity check, 1 stopbit
COM2:baudrate 115200,8bit,none patity check, 1 stopbit
link mask:0
communication mask:0x1f
status mask:0x3
netid:1
mac: factory-set unique MAC address
ip:192.168.255.1
mask:255.255.255.0
Example
▓
▓▓
▓IP
Description
If no IP address is specified, the “ip” command will display current IP address. To assign an
IP address for TCP/IP, please input IP address in the form of “ip1.ip2.ip3.ip4” (each field
contains a value in the range 0 – 255).
Example
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 6
▓
▓▓
▓MASK
Description
If no mask address is specified, the “mask” command will display current mask address.
To assign a mask address for TCP/IP, please input mask address in the form of
“m1.m2.m3.m4” (each field contains a value in the range 0 – 255).
Example
▓
▓▓
▓GATEWAY
Description
If no gateway IP address is specified, the “gateway” command will display current gateway
address. Note that if there exits a check sum error, an error message will alert. To assign a
gateway address for TCP/IP, please input gateway IP address in the form of
“ip1.ip2.ip3.ip4” (each field contains a value in the range 0 – 255).
Example
▓
▓▓
▓MAC
Description
If no MAC address is specified, the “mac” command will display current MAC address. To
assign a MAC address for Ethernet, please input MAC address in the form of
“e1:e2:e3:e4:e5:e6”.
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 7

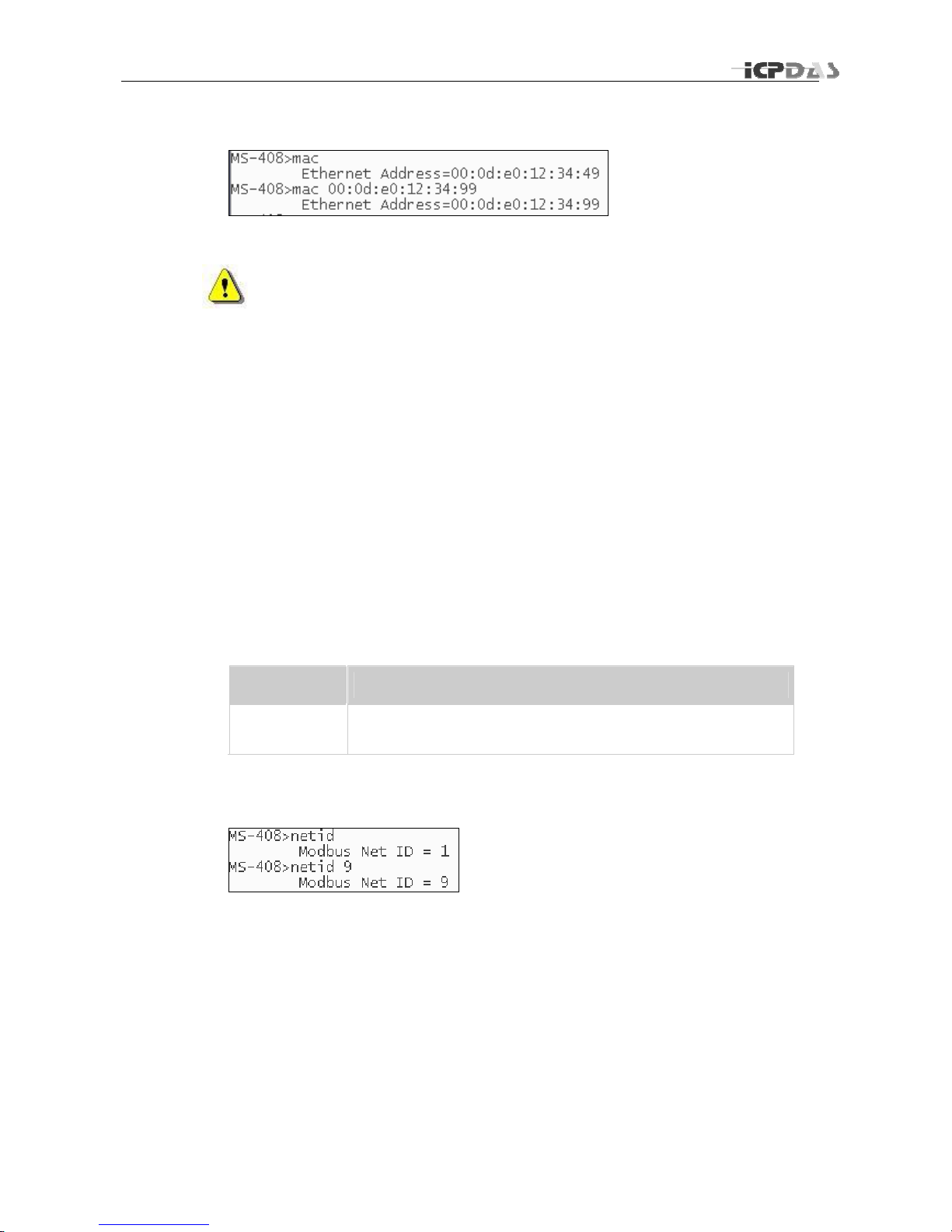

Example
Each Switch is shipped from the factory with a unique MAC address, and the value is
labeled on the Switch case. DO NOT change this address unless you have a good
reason to do so.
▓
▓▓
▓NETID [id number]
Description
If Net ID of Modbus is not specified, the “netid” command will display current ID number of
Modbus. The command parameter [id number] is used to assign a specific ID number for
Modbus Net ID.
Parameters
Parameter Description
id number Provides the ID number that you want to set up for Modbus Net ID.
Example
Industrial Redundant Ring Switch – Managed Switch Console Manual
Release No. : 0804-V1 8
▓
▓▓

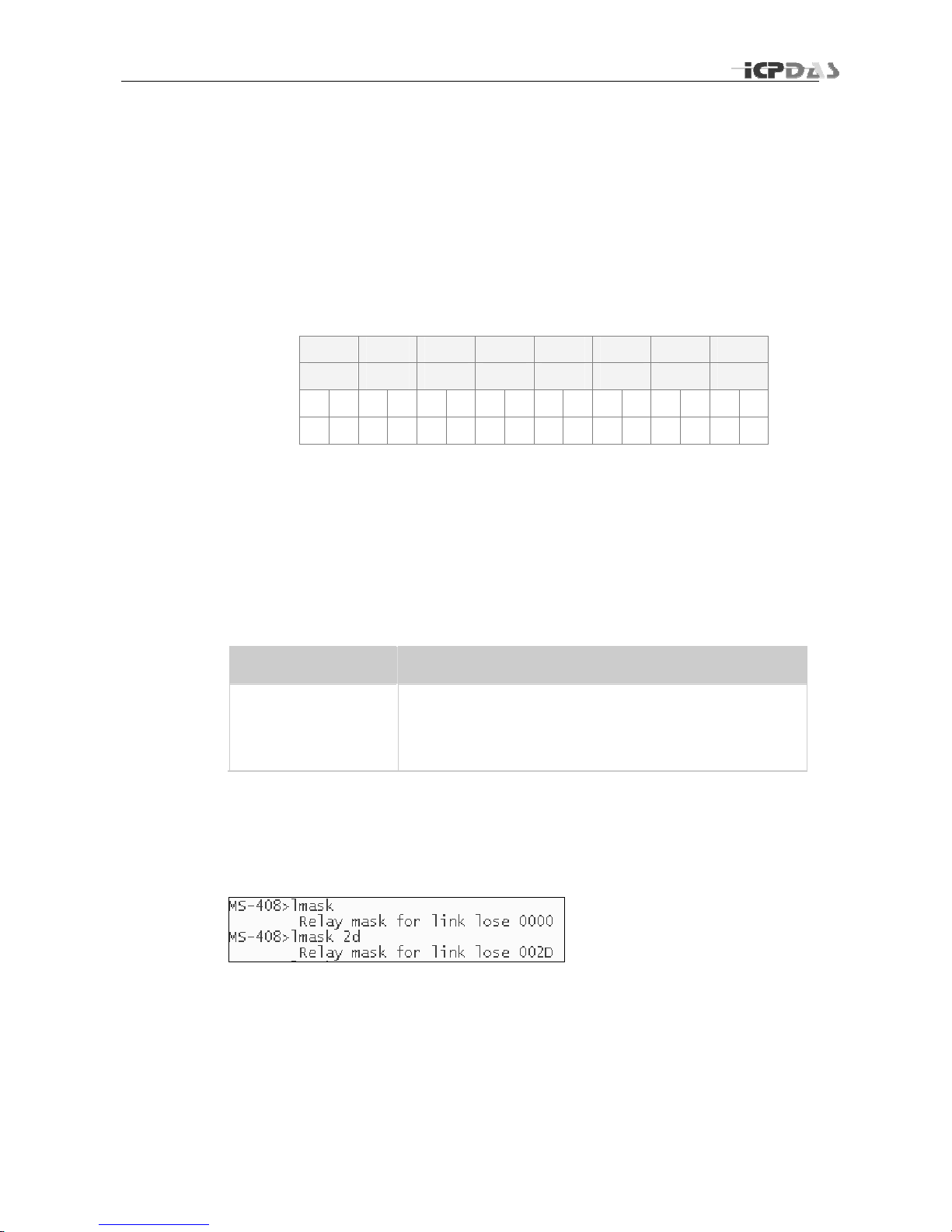

▓LMASK [mask value]
Description
This command enables you to configure relay output activation status when there is link
loss occurring on port(s). The ports are corresponding to the 8 mask bits, bit 0 corresponds
to port 1, etc.
TABLE 1: Bits mapping Table
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Port 8
Port 7
Port 6
Port 5
Port 4
Port 3
Port 2
Port 1
1 on
1 on
1 on
1 on
1 on
1 on
1 on
1 on
0 off
0 off
0 off
0 off
0 off
0 off
0 off
0 off
If the mask bit of that port(s) is specified by being set up as 1, when there is a link loss
occurring on that port(s), relay output will be activated. The mask value is in hexadecimal
format that represents the 8 bits corresponding binary numbers, it can be either in the form
of initiating “0X” plus a suffix of the hexadecimal number or eliminating “0X”; simply the
hexadecimal number itself. If a mask value is not specified, the “lmask” command will
display previous assigned mask value.
Parameters
Parameter Description
mask value Provides the mask value that you want to specify to configure
status of relay when link loss occurs
Example
lmask 0x2d
Set Relay active if link lose on Port 1, 3, 4, or Port 6.
