tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

tM-AD8

8-channel Isolated Analog Voltage Input

Module

Quick Start Guide

Product Website:

http://www.icpdas-usa.com/tm_ad8.html

http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

The tM-AD8 is an analog input module that includes 8 single-ended analog input

channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0

~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V). It provides a high overvoltage protection of 120

VDC. The sampling rate of the tM-AD8 is adjustable and is available in either fast or

normal mode and It also provides 4 KV ESD protection as well as 2500 Vrms intra-

module isolation.

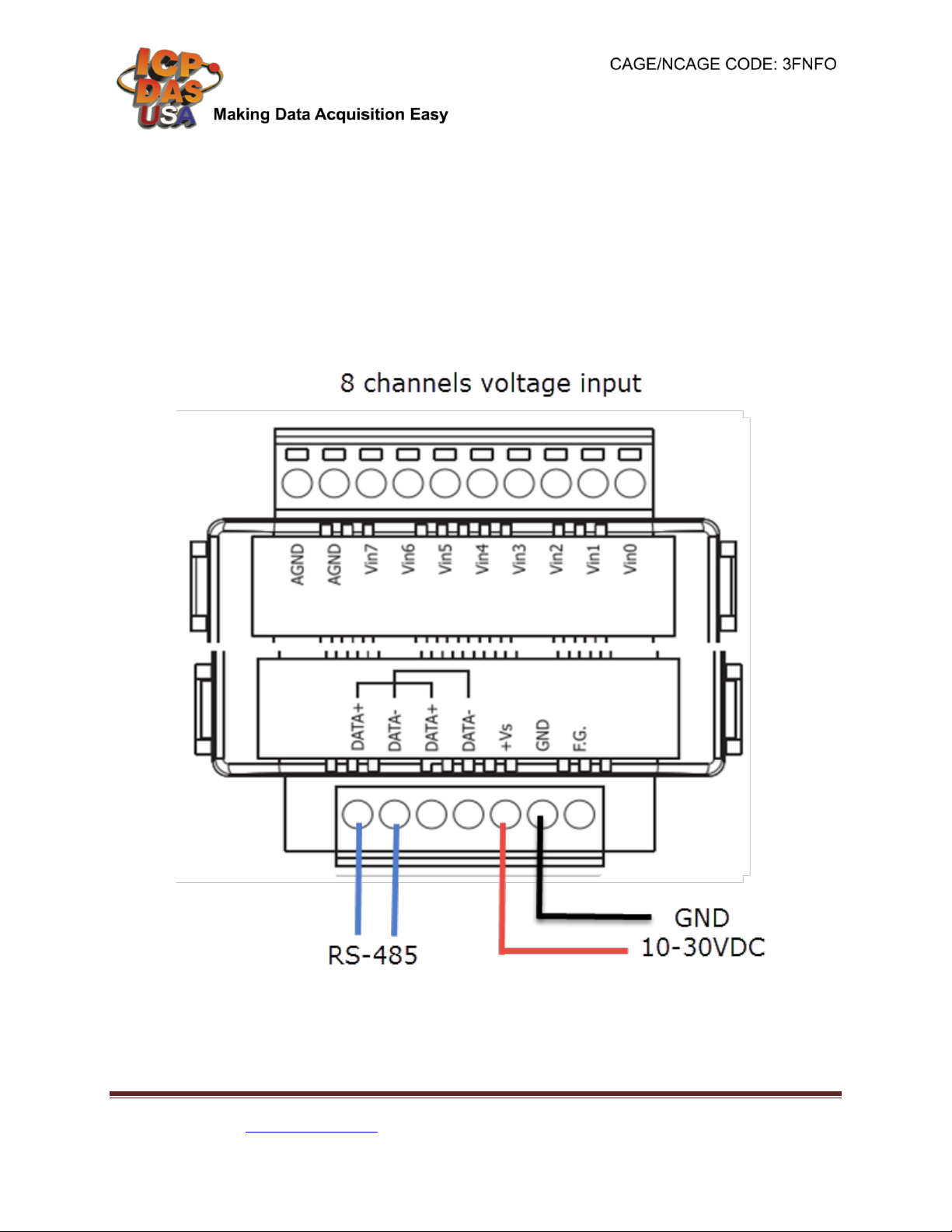

2. Terminal Assignment

tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

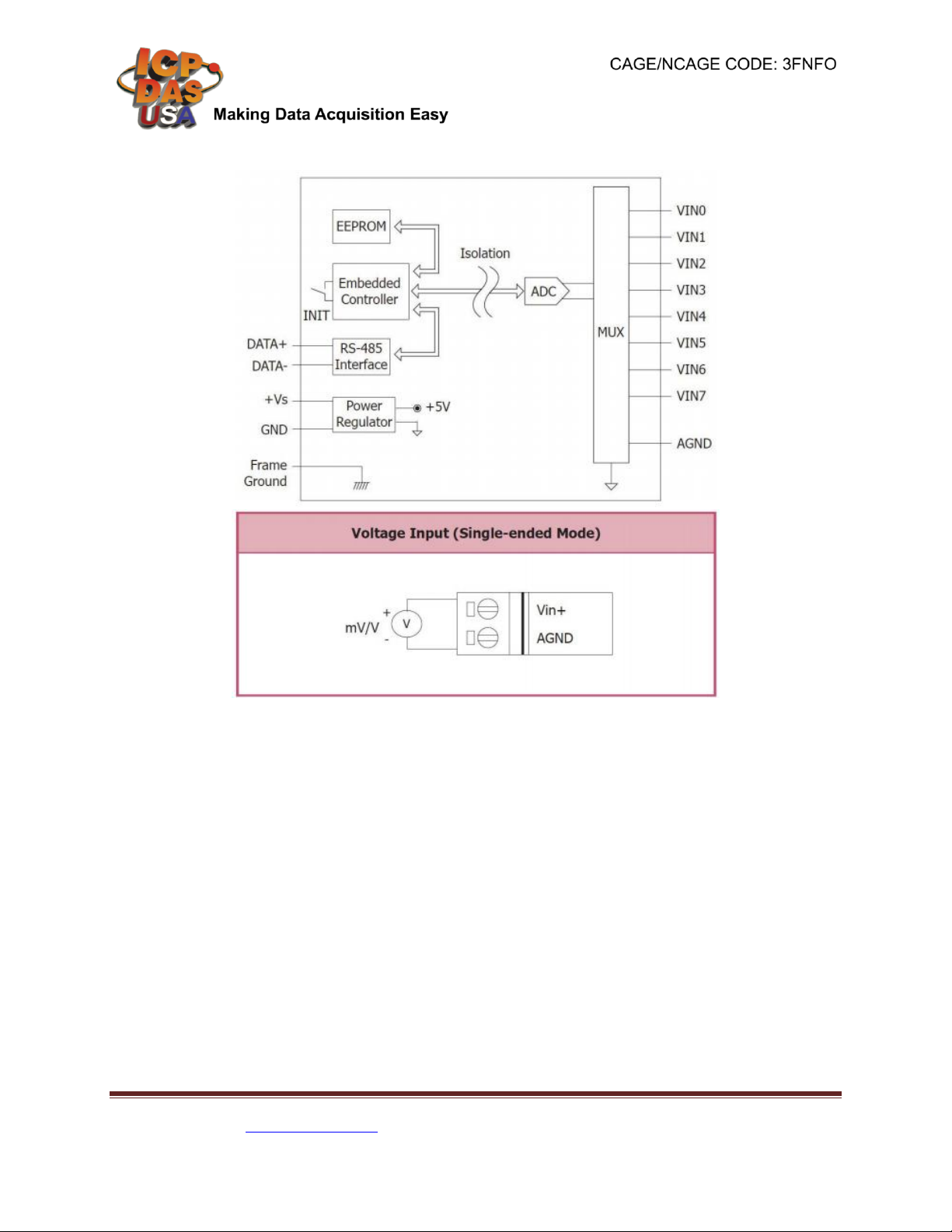

3. Block/ Wiring Diagram

Use 26-12 AWG wire for signal connections.

Strip the wire to a length of 7±0.5mm.

Use a crimp terminal for wiring.

Avoid high-voltage cables and power equipment as much as possible.

For RS-485 communication, use insulated and twisted pair 24 AWG wire, e.g.

Belden 9841.

4. Default Settings

Default settings for the tM AD modules are as follows:

。Protocol: Modbus RTU

。Module Address: 01

。Analog Input Type: type code 08, -10V to 10V

。Baud Rate: 9600 bps

tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. Configuration

To install the module, follow the steps below:

1. Connect the analog voltage input.

2. Connect the module to the RS-485 network using the DATA+ and DATA- terminals.

3. Connect the module to the power supply using the +Vs and GND terminals. Note that

the voltage supplied should be in the range of +10 to +30V DC.

tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

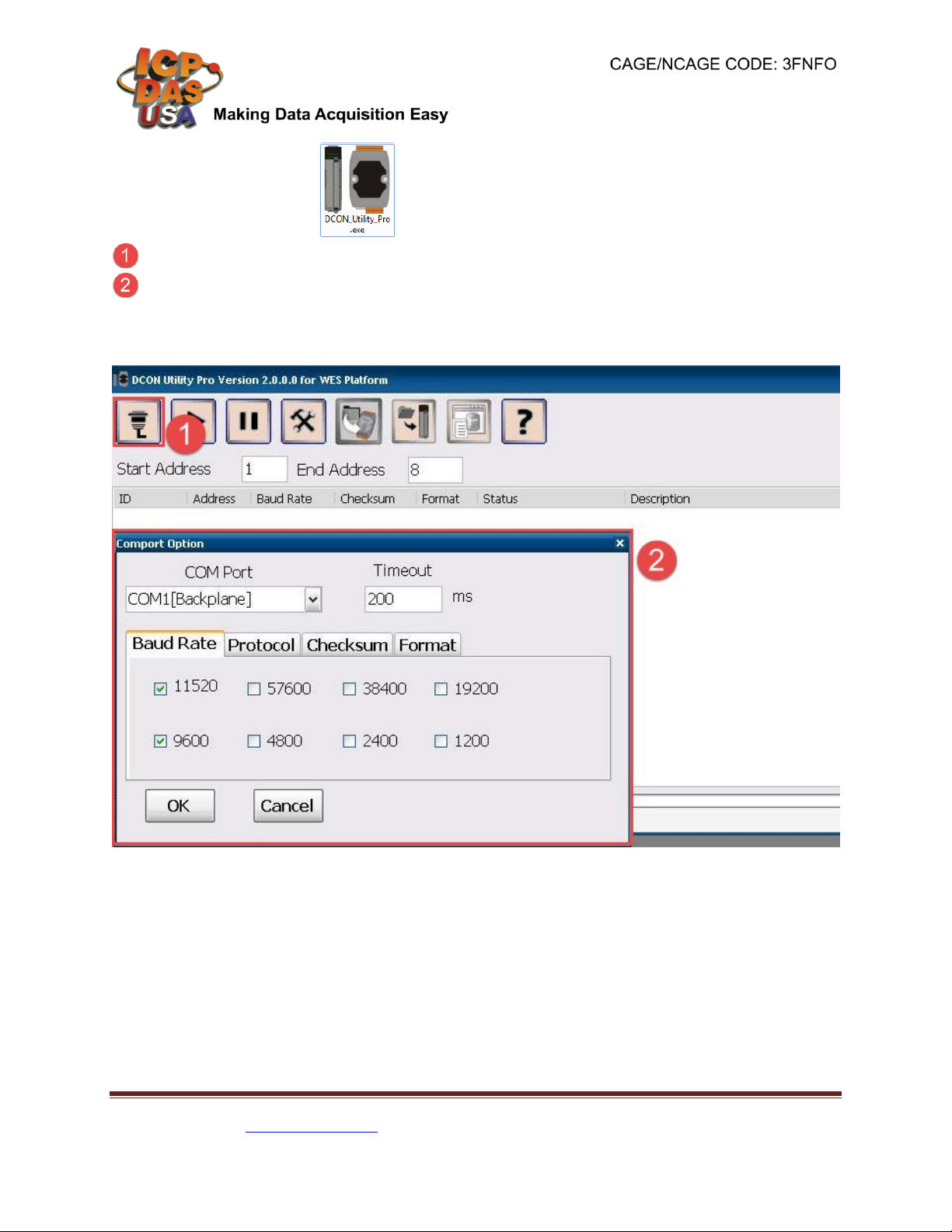

4. Open DCON utility pro

click on COM port(first icon).

It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to

search module. The default settings for the module can be found in Section 3. Click OK

after selecting the COM port setting.

tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

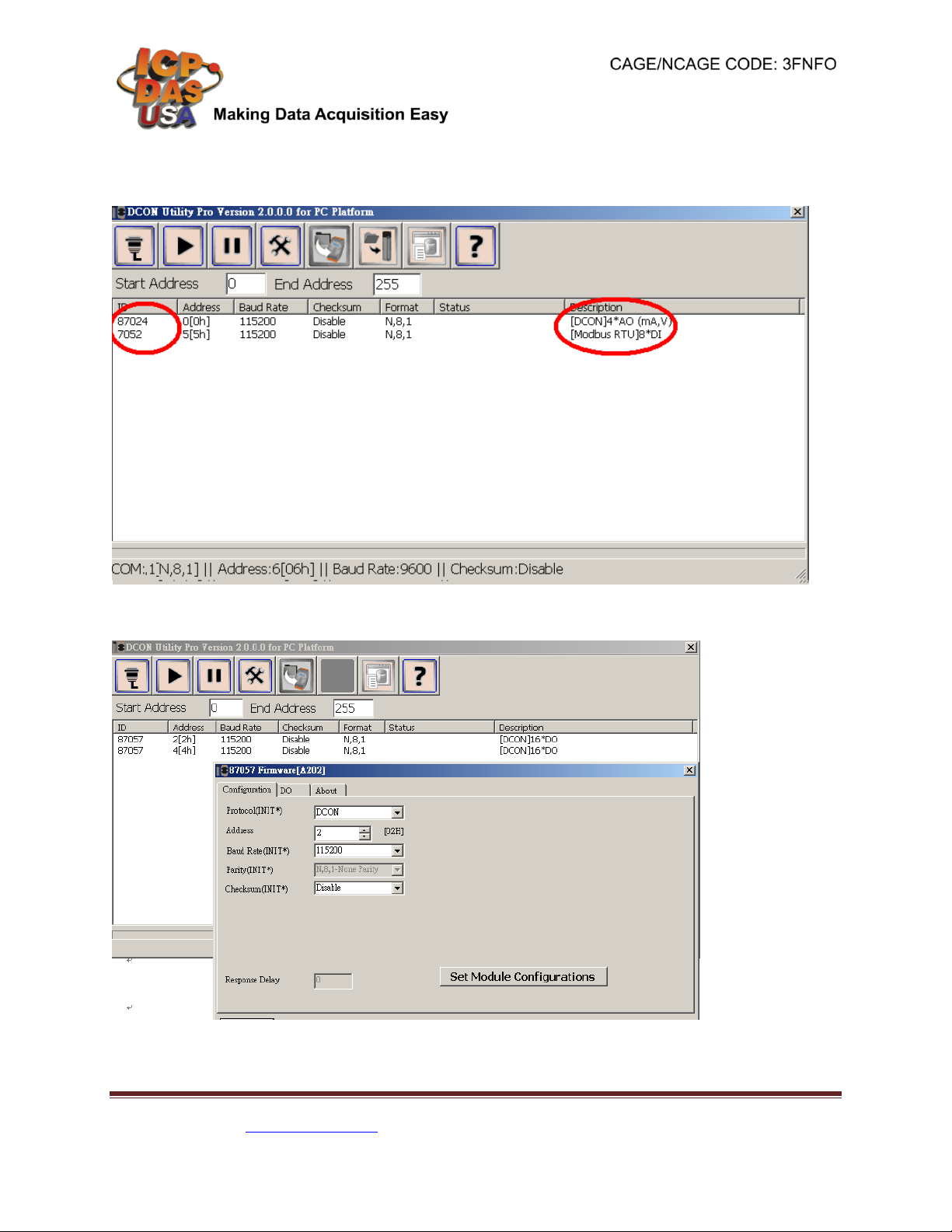

5. DCON utility pro will search for the selected COM port according the setting

previously set. DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS

and the others modules.

6. Configuration I/O module setting on PC

tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

7. The Modbus RTU communication protocol is the default protocol of the tM series.

The communication Baud Rates for the Modbus RTU protocol can be in the range of

1200 bps to 115200 bps

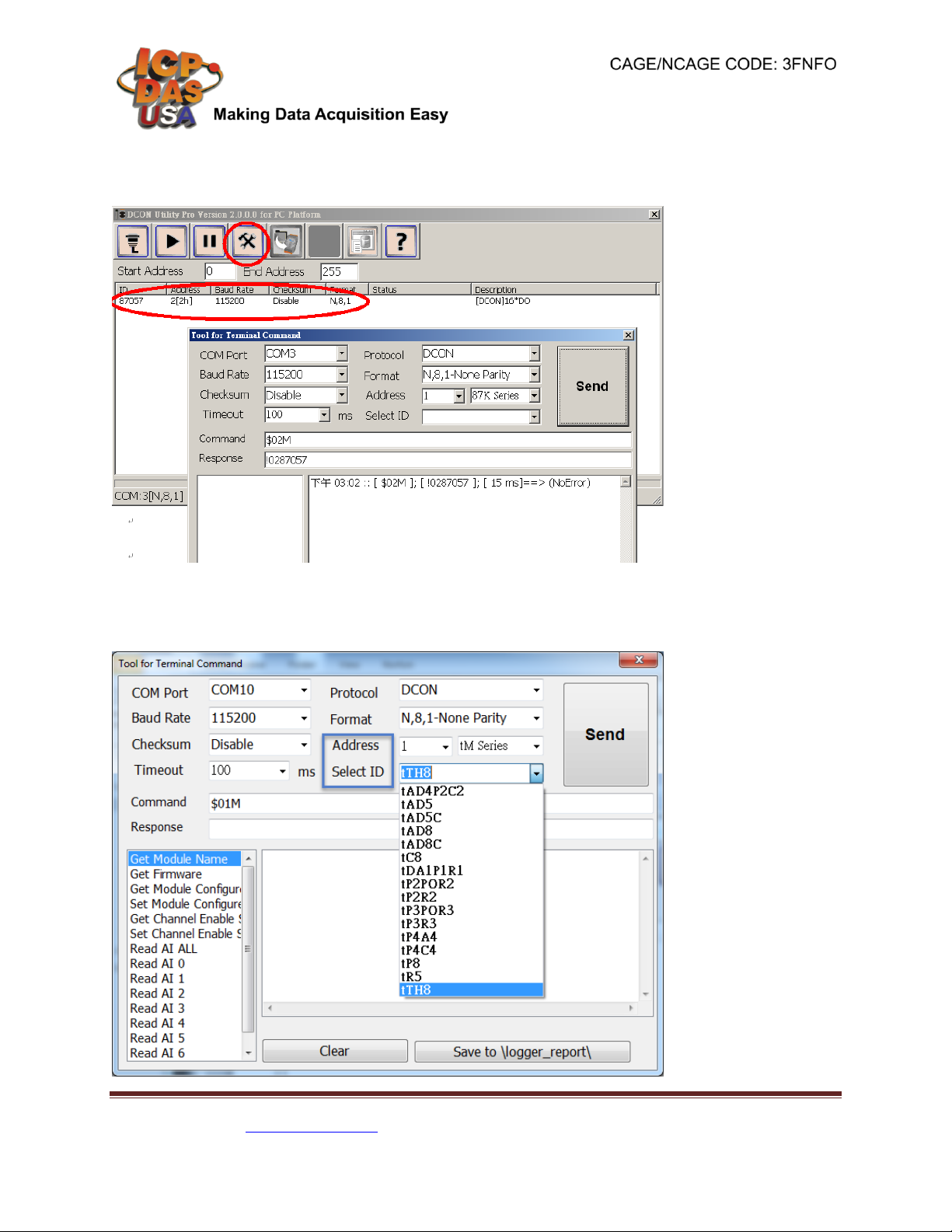

8. If user doesn’t know command, user can select Address and ID, it will show some

refer commands as below. User can select necessary command to test or debug

modules.
