Quick Start

For LP-9x21

English/ October 2016/ Version 1.1

What’s in the shipping

package?

The package includes the following items:

Quick Start

A microSD card and a

micro SD/SD ada

ter Software CD

LP-9x21 (This Document)

RJ-45 Waterproof M3x6L Screw*8 44 mm DIN-Rail Screw Driver

Assembly Clip * 2 2.4 mm

Preparations for devices

1. Power Supply: +10 ~ +30 VDC. (Ex: DP-665)

Ethernet Hub. (Ex: NS-205)

3. Make sure your PC has workable serial port and network settings.

LP-9x21 Quick Start

Hardware Introduction

LP-9821

LP-9421

LP-9221

LP-9x21 Quick Start

Console/Ethernet

Connection

Console

1. Connect both the LP-9x2x and your computer through the

“Console” or “LAN 1/2”. User can choose the terminal software (ex

Putty or others) to connect the LP-x2x.

2. If user chose the COM1 (“Console”), user can set the baud rate

“115200” to connect the device.

Fig 4-1 Console Connection

LP-9x21 Quick Start

3. If user used the LAN 1/2, user can refer to below default network

configuration, then using the terminal software (ex Putty or others)

to connect the LP-9000.

IP 192.168.0.1

LAN1 Netmask 255.255.255.0

IP 192.168.0.2

LAN2

Netmask 255.255.255.0

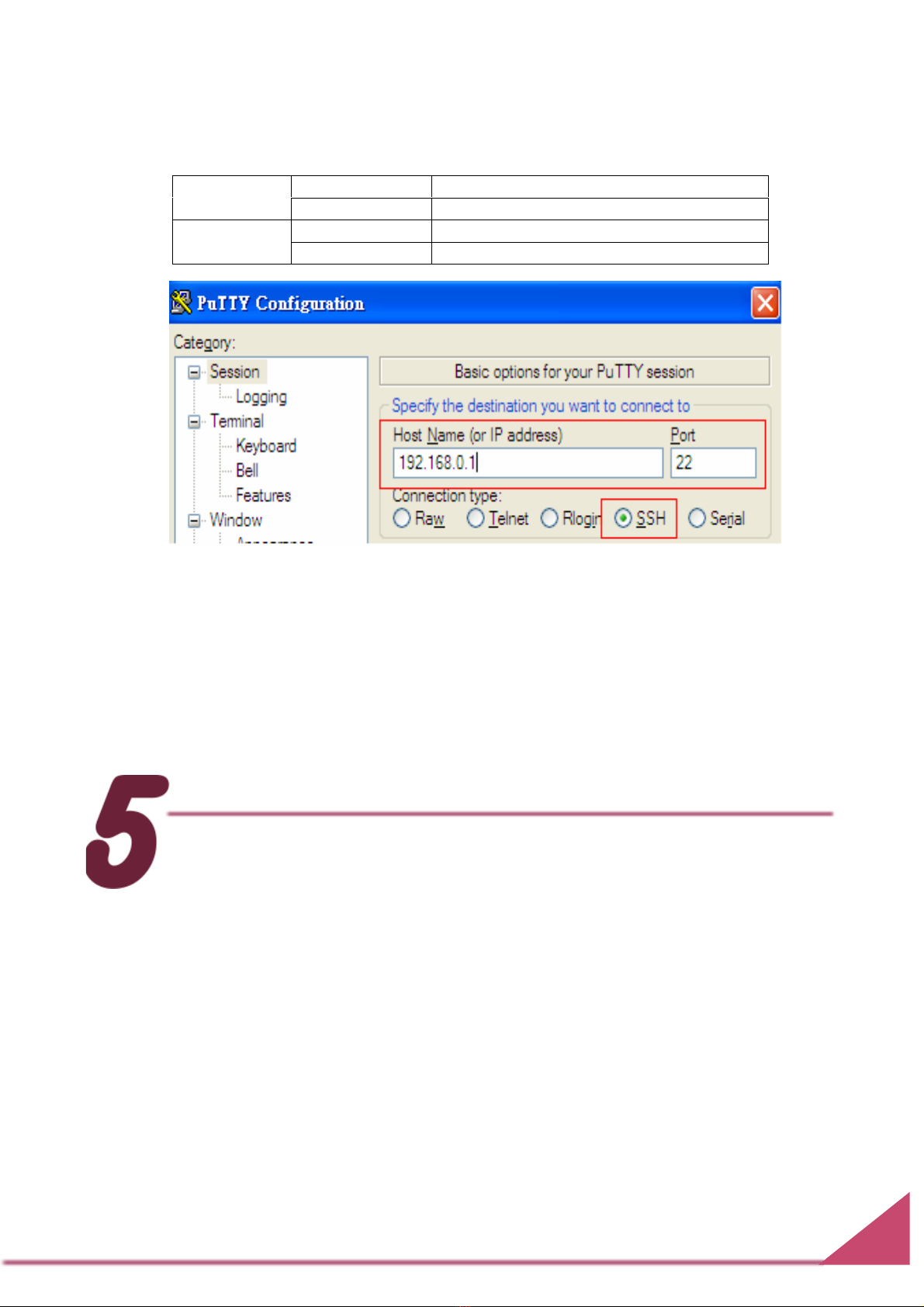

Fig 4-2 SSH Connection

4. After user connect to the LP-9000, user can input default ID “root”

and password “icpdas” to login.

Network Configuration

1. After user follow step 4 “Console/Ethernet Connection” to connect to

the device bash terminal, user can change the default network

setting.

2. If user want to change the network configuration, user can use the

linux command “vi” to modify the configuration file

“/etc/network/interfaces”.

LP-9x21 Quick Start

3. Using the ‘#’ to mark the default configuration. Please refer to the

Fig 5-1:

Fig 5-1 network configuration

4. After user save the file and reboot device, user can use the new

network configuration to connect to the LP-9x2x.

Application Support

1. Web Server

The web server daemon “apache2” has been built in the LP-9x2x

and it will be started automatically at boot time.

LP-9x21 Quick Start

2. Software Package Manager

The “apt-get” utility is a package manager used to download and

install packages from local package repositories or ones located in

the Internet.

3. XFCE GUI Desktop

LP-9x2x provides the XFCE package, after user type “root” to login,

the local terminal would execute the XFCE Desktop.

Product Related Information

LinPAC-9000 Product Page:

http://www.icpdas.com/root/product/solutions/pac/linpac/linpac-9000_introduction.html

LinPAC-9x2x Document Download:

http://ftp.icpdas.com/pub/cd/linpac/napdos/lp-9x2x/user_manual/

LinPAC-9x2x Software Download:

http://ftp.icpdas.com/pub/cd/linpac/napdos/lp-9x2x/sdk/

NS-205 and DP-665 Product Page (optional):

http://www.icpdas.com/products/Switch/industrial/ns-205.htm

http://www.icpdas.com/products/Accessories/power_supply/dp-665.htm

ICP DAS Web Site: http://www.icpdas.com
