ICP DAS USA Compact Embedded Controller LinPAC-8x41 Instructions d'utilisation

LinPAC-8x41

Compact Embedded Controller

Hardware User’s Manual

REV 1.0.0.0

2008/8/25

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 1

Warranty

All products manufactured by ICP DAS are warranted against defective

materials for a period of one year from the date of delivery to the original

purchaser.

Warning

ICP DAS assumes no liability for damages consequent to the use of this

product. ICP DAS reserves the right to change this manual at any time without

notice. The information furnished by ICP DAS is believed to be accurate and

reliable. However, no responsibility is assumed by ICP DAS for its use, nor for any

infringements of patents or other rights of third parties resulting from its use.

Trademark

The names used for identification only maybe registered trademarks of their

respective companies.

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 2

Table of Contents

1. INTRODUCTION ................................................................................4

1.1 PACKAGE LIST....................................................................................................................4

1.2 LINPAC-8X41 SERIES .........................................................................................................5

1.3 CONTENTS OF CD AND MICRO SD MEMORY CARD...................................................................6

2. HARDWARE INFORMATION............................................................7

2.1 FRONT VIEW OF THE LINPAC-8X41.......................................................................................7

2.2 SPECIFICATIONS...................................................................................................................8

3. APPLICATIONS...............................................................................10

4. QUICK START .................................................................................11

5. MECHANICAL INFORMATION .......................................................12

5.1 DIMENSIONS .......................................................................................................................12

5.2 DIMENSIONS RAIL MOUNTING...............................................................................................12

5.3 WALL MOUNTING ................................................................................................................13

6. TECHNICAL SUPPORT...................................................................13

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 3

1. Introduction

1.1 Package List

Package List：

In addition to this manual, the package includes the following items:

zOne set of LinPAC-8x41 hardware

zOne Micro SD Memory card for storing system files

zOne hardware user’s manual (this manual)

zOne software utility CD with Software User’s Manual included

Note：

If any of these items are missing or damaged, contact the local distributors for

more information. Save the shipping materials and cartons in case you want to

ship in the future.

Ordering Information

Call your distributor for details.

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 4

1.2 LinPAC-8x41 Series

The LinPAC-8000 is the flagship compact embedded controller manufactured

by ICPDAS. Its leading technology gives you all of the best features of both

traditional PLCs and Linux capable PCs. The LinPAC-8000 system is powered by

Linux and brings in the Linux programming style and skill into the world of PC-

based PLC. Application developers can develop their own programs directly into C

or Java language by using the LinPAC-8000 SDK, and then download them into

the LinPAC-8000 for application and use.

The LinPAC-8x41 model type is ruled as LP-8x41, as shown in the above

figure. The Second number shows the slot numbers coming with the main

controller unit. Currently, we provide three types of 0、1、4 and 8 slots. The last

number demonstrates the application platform. 1 stands as the Master controller

and it means that the user needs to design the application program by themselves.

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 5

1.3 Contents of CD and Micro SD memory card

CD :

LinPAC-8000 SDK

LinPAC-8000 OS Image

Contents of Micro SD card

Source code of demo programs

Software User’s Manual

Micro SD memory card (default is 1 GB):

LinPAC-8x41 System files

Demo programs

References are given in the Software User’s Manual bundled CD

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 6

2. Hardware Information

The LinPAC-8000 Embedded Controller is competitive with Industrial PCs in

performance, and is lower in price. The system provides VGA and USB

keyboard/mouse for local visualization and management. User control programs

and data can be saved in persistent storage via Micro SD memory card and USB

interfaces. Furthermore, it has communication capabilities via the built-in Ethernet

and RS 232/485 interfaces

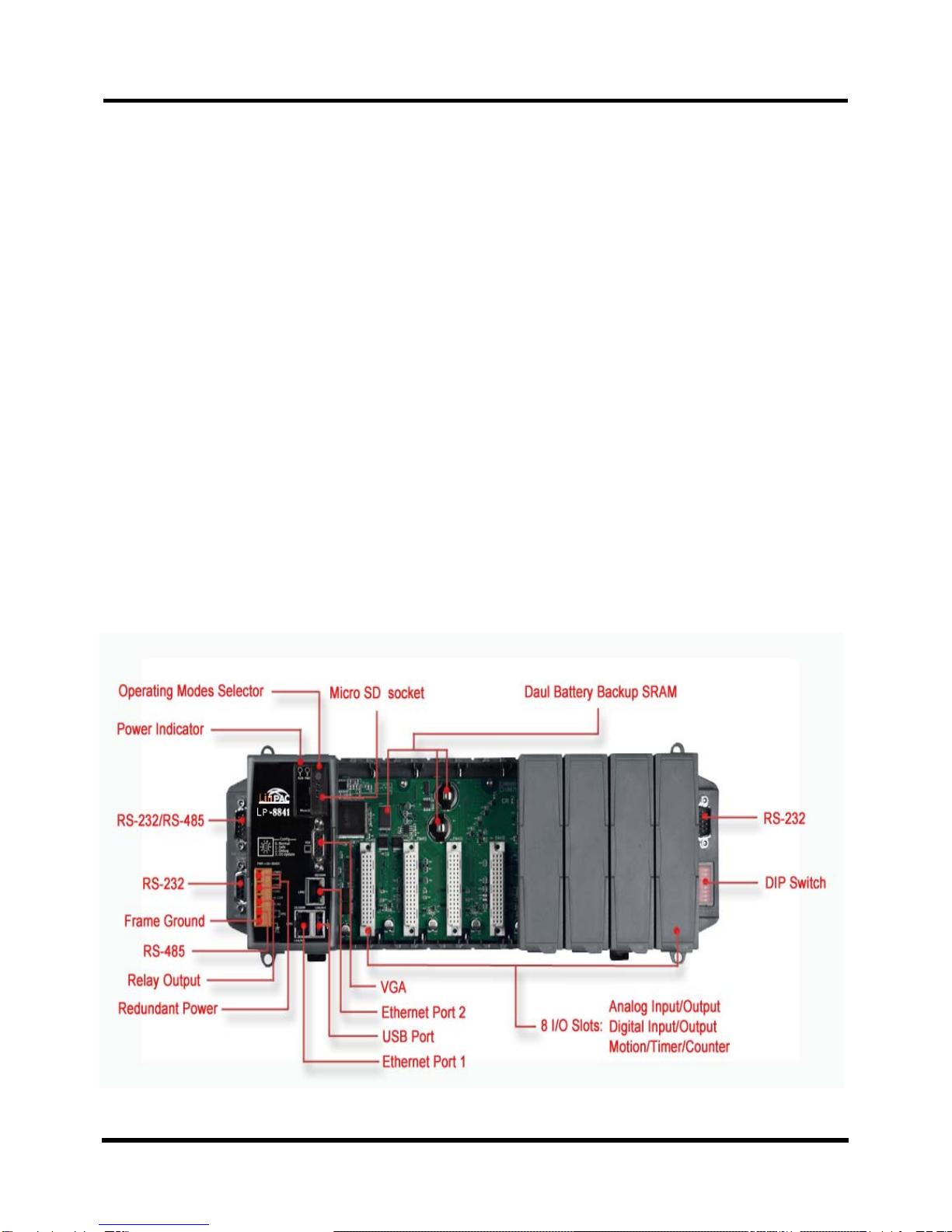

2.1 Front View of the LinPAC-8x41

The following figure demonstrates the hardware system in the LinPAC-8x41. It

includes the main controller with HMI, serial communication and I/O expansion

interface.

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 7

2.2 Specifications

System Software

OS Linux 2.6.19

Embedded service Web Server, FTP Server, Telnet Server, SSH Server

SDK provided Standard LinPAC SDK for Windows and Linux by GNU C language

Communication Interface

CPU PXA270 or compatible (32-bit and 520MHz)

SDRAM 128MB

Dual Battery Backup

SRAM 512K bytes (for 5 years data retain)

Flash 48MB

Expansion Flash Memory Micro SD socket with 1GB flash card

RTC (real time clock) Provide seconds, minutes, hours, date of the month; month, year, valid up from 1980

to 2079

64-bit Hardware Serial

Number

Yes

Dual Watchdog Timer Yes

Programmable LED

indicator 1

Rotary Switch Yes (0~9)

DIP Switch Yes (8 bits); (for LP-8441 and LP-8841 only)

Connectivity

VGA 1 (800x600 resolution)

Ethernet Port RJ45*2

10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX, LED indicator)

USB 1.1 (host) 1

COM 0 Internal communication with the 87K modules in slots

COM 1 RS-232 (to update firmware) (RXD, TXD, and GND); Non-isolation

COM 2 RS-485 (D2+, D2-; self-tuner ASIC inside); 3000VDC isolation

COM 3 RS-232/RS-485 (RXD, TXD, CTS, RTS and GND for RS-232, Data+ and Data- for

RS-485); Non-isolation;

COM 4 RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 8

I/O expansion slots

Slot numbers LP-8441: 4 Slots; LP-8841: 8 Slots

Dimensions

W x D x H (mm) LP-8441: 230 x 132 x 98; LP-8841: 354 x 132 x 98

Operating Environment

Operating Temperature -25°C to +75°C

Storage Temperature -40°C to +85°C

Humidity 5 ~ 95%,non-condensing

Power

Input Range +10V ~ +30V

Isolation 1KV

Redundant Power Inputs Yes

LP-8441: 1.1A, 5V supply to CPU and backplane; 4.9A, 5V supply to expansion

slots, total 30W

Capacity

LP-8841: 1.2A, 5V supply to CPU and backplane; 4.8A, 5V supply to expansion

slots, total 30W

Consumption LP-8441: 9.1W (0.38A@24V); LP-8841: 9.6W (0.4A@24V)

LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 9

3. Applications

The following figure diagrams the general application area and structure of the

LinPAC-8x41. Com3/Com4 is the standard RS-232 interface, which can be

connected via the modem or to the Com0 in the LP-8x41 Controller. Com2/Com3

is the RS-485 interface, which can be applied to control the ICPDAS DCON serial

modules such as the I-7000, I-8000 and I-87K. The FRnet system is an optional

control interface.
