INSTRUCTION MANUAL

iF3022T/S

VHF TRANSCEIVERS

The photo shows the 10-key

version VHF transceiver.

iF4022T/S

UHF TRANSCEIVERS

PRECAUTIONS

RCAUTION! NEVER hold the transceiver so that the

antenna is very close to, or touching exposed parts of the

body, especially the face or eyes, while transmitting. The

transceiver will perform best if the microphone is 5 to 10 cm

away from the lips and the transceiver is vertical.

RCAUTION! NEVER operate the transceiver with a

headset or other audio accessories at high volume levels.

RCAUTION! NEVER short the terminals of the bat-

tery pack.

DO NOT push [PTT] when not actually desiring to trans-

mit.

AVOID using or placing the transceiver in direct sunlight or

in areas with temperatures below –25°C or above +55°C.

The basic operations, transmission and reception of the trans-

ceiver are guaranteed within the speciﬁed operating temper-

ature range. However, the LCD display may not be operate

correctly, or show an indication in the case of long hours of

operation, or after being placed in extremely cold areas.

WORD DEFINITION

RWARNING Personal injury, ﬁre hazard or electric shock

may occur.

CAUTION Equipment damage may occur.

NOTE If disregarded, inconvenience only. No risk

of personal injury, ﬁre or electric shock.

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This

instruction manual contains important operating instructions

for the IC-F3022T/S VHF TRANSCEIVERS and the IC-

F4022T/S UHF TRANSCEIVERS.

IMPORTANT

Icom, Icom Inc. and the logo are registered trademarks of Icom

Incorporated (Japan) in the United States, the United Kingdom, Germany,

France, Spain, Russia and/or other countries.

EXPLICIT DEFINITIONS

DO NOT modify the transceiver for any reason.

KEEP the transceiver from the heavy rain, and Never

immerse it in the water. The transceiver construction is water

resistant, not waterproof.

The use of non-Icom battery packs/chargers may impair

transceiver performance and invalidate the warranty.

iii

IMPORTANT ........................................................................ i

EXPLICIT DEFINITIONS ..................................................... i

PRECAUTIONS ................................................................... i

TABLE OF CONTENTS ...................................................... iii

1 ACCESSORIES ......................................................... 1–3

■Supplied accessories ................................................. 1

■Accessory attachments .............................................. 1

2 PANEL DESCRIPTION ............................................. 4–9

■Front panel ................................................................. 4

■Function display ......................................................... 6

■Programmable function keys ..................................... 7

3 BASIC OPERATION ............................................. 10–15

■Turning power ON .................................................... 10

■Channel selection ..................................................... 11

■Call procedure........................................................... 11

■Receiving and transmitting........................................ 12

■User set mode........................................................... 14

■Emergency transmission .......................................... 15

■Scrambler function .................................................... 15

■Stun function ............................................................ 15

■Priority A channel selection ...................................... 15

4 BATTERY CHARGING .......................................... 16–20

■Caution ..................................................................... 16

■Optional battery chargers ......................................... 18

5 BATTERY CASE ......................................................... 21

■Optional battery case (BP-240) ................................ 21

6 OPTIONAL SWIVEL BELT CLIP .......................... 22–23

■MB-93 contents ........................................................ 22

■Attaching .................................................................. 22

■Detaching ................................................................. 23

7 OPTIONS ............................................................... 24–25

8 DOC ....................................................................... 26–27

TABLE OF CONTENTS

ACCESSORIES

■Supplied accessories ■Accessory attachments

DFlexible antenna

Connect the supplied ﬂexible antenna

to the antenna connector.

CAUTION!

• NEVER HOLD the antenna when

carrying the transceiver.

• Transmitting without an antenna

may damage the transceiver.

Flexible antenna Battery pack Belt clip

Unit cover

(double-sided tape)*

Jack cover

(with screws)

*Use the unit cover as a spare. Ask your dealer for details.

1ACCESSORIES

ïBattery pack

To attach the battery pack:

Slide the battery pack in the direction of the arrow (q), then

lock it with the battery release button.

• Slide the battery pack until the battery release button makes a ‘click’

sound.

To release the battery pack:

Slide the battery release button in the direction of the arrow

(w) as shown below. The battery pack is then released.

NEVER release or attach the battery pack when the trans-

ceiver is wet or soiled. This may result water or dust get-

ting into the transceiver/battery pack and may result in the

transceiver being damaged.

DBelt clip

To attach the belt clip:

qRelease the battery pack if it is attached.

wSlide the belt clip in the direction of the arrow until the belt

clip is locked and makes a ‘click’ sound.

To detach the belt clip:

qRelease the battery pack if it is attached.

wPinch the clip (q), and slide the belt clip in the direction of

the arrow (w).

Battery release button

ACCESSORIES

ïJack cover

Attach the jack cover when the optional speaker-microphone

or headset is not used.

To attach the jack cover:

qAttach the jack cover to the [MIC/SP] jack.

wTighten the screws.

CAUTION!

• Attach the jack cover when the optional speaker-micro-

phone or headset is not used.

• Use the supplied screws only.

To detach the jack cover:

qUnscrew the screws using a phillips screwdriver.

wDetach the jack cover for the speaker-microphone or

headset connection.

[MIC/SP] jack

Jack cover

2PANEL DESCRIPTION

■Front panel

qANTENNA CONNECTOR

Connects the supplied antenna.

wDEALER-PROGRAMMABLE KEY [Emer]

Desired function can be programmed by your dealer.

(p. 7)

eDEALER-PROGRAMMABLE KEY [Side1]

Desired function can be programmed by your dealer.

(p. 7)

rPTT SWITCH [PTT]

Push and hold to transmit; release to receive.

tDEALER-PROGRAMMABLE KEYS [Side2]/[Side3]

Desired functions can be programmed independently by

your dealer. (p. 7)

y10-KEYPAD (Depending on version)

The keypad allows you to enter digits to:

• Select memory channels

• Select tone channels

• Select DTMF codes (during transmit)

• Set TX codes

• Start up with the password

uDEALER-PROGRAMMABLE KEYS [P0] to [P3]

Desired functions can be programmed independently by

your dealer. (p. 7)

iFUNCTION DISPLAY (p. 6)

Displays a variety of information such as an operating

channel number/name, 5-tone code, DTMF numbers,

selected function, etc.

Microphone

Speaker

PANEL DESCRIPTION

oEXTERNAL MICROPHONE/SPEAKER JACK

Connect an optional speaker-microphone or headset.

NOTE: Connect or disconnect the optional equipment

after the transceiver is turned OFF.

!0 VOLUME CONTROL [VOL]

Rotate to turn the power ON/OFF and adjusts the audio

level.

Jack cover

NOTE: Attach the jack

cover when the optional

equipment is not used.

See (p. 3) for details.

2PANEL DESCRIPTION

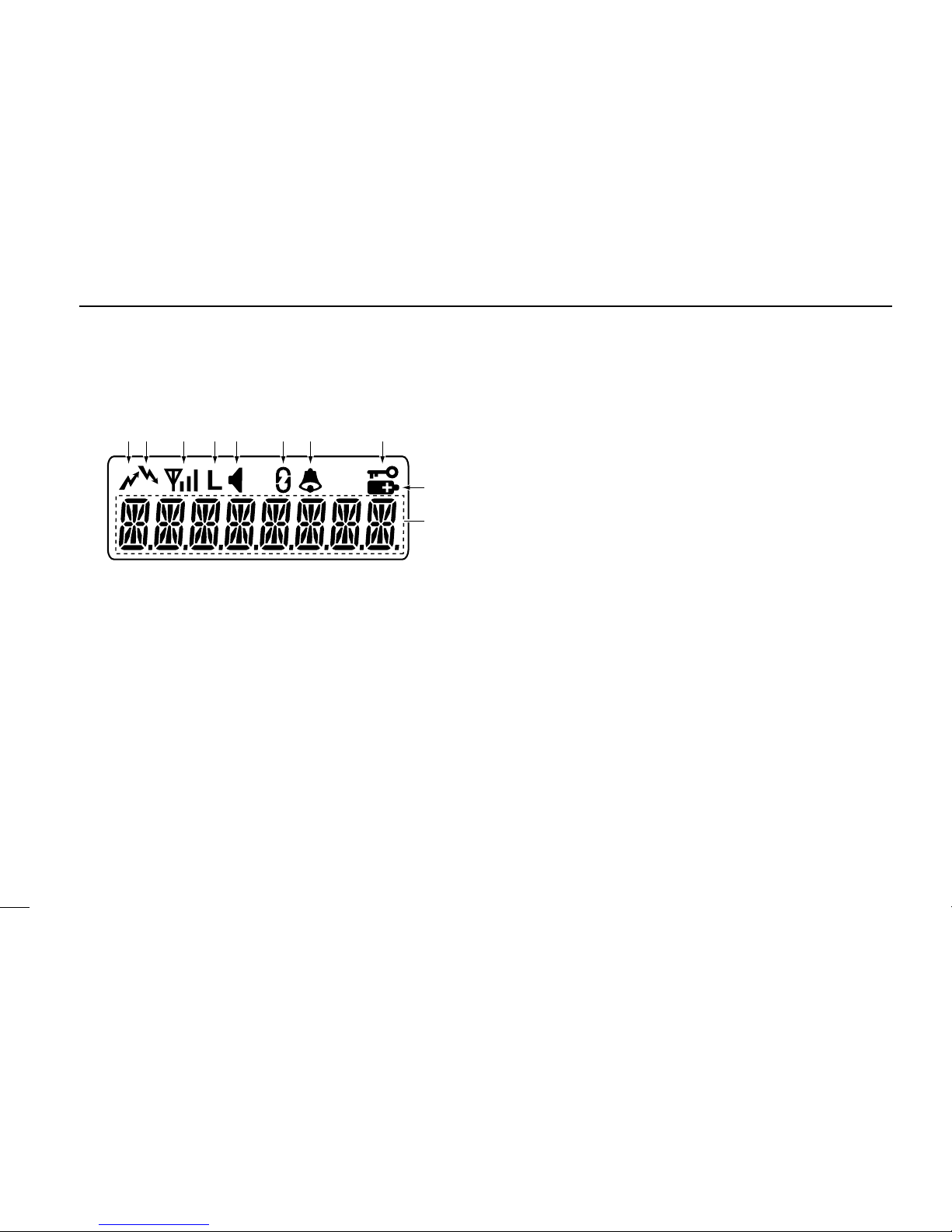

■Function display

qTRANSMIT INDICATOR

Appears while transmitting.

wBUSY INDICATOR

Appears while the channel is busy.

eSIGNAL STRENGTH INDICATOR

Indicates relative signal strength level.

rLOW POWER INDICATOR

Appears when low output power is selected.

• When the battery power decreases to a specified level, low

power is selected automatically.

tAUDIBLE INDICATOR

➥Appears when the channel is in the ‘audible’ (unmute)

condition.

➥Appears when the speciﬁed 5-tone code is received.

ySCRAMBLER INDICATOR

Appears when the voice scrambler function is activated.

uBELL INDICATOR

Appears/blinks when the speciﬁc 5-tone code is received,

according to the pre-programming.

iKEY LOCK INDICATOR

Appears during the key lock function is ON.

oBATTERY INDICATOR

Appears or blinks when the battery power decreases to a

speciﬁed level.

!0 ALPHANUMERIC DISPLAY

Displays an operating channel number, channel name, Set

mode contents, DTMF code, etc.

yq iutrew
