INSTRUCTION MANUAL

The photo shows the 10-key

version UHF transceiver.

UHF dPMR HANDHELD TRANSCEIVER

iF4162DT

iF4162DS

VHF dPMR HANDHELD TRANSCEIVER

iF3162DT

iF3162DS

IMPORTANT

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL — This

instruction manual contains important operating instruc-

tions for the IC-F3162DT/DS VHF dPMR HANDHELD

TRANSCEIVERS, IC-F4162DT/DS UHF dPMR HANDHELD

TRANSCEIVERS.

• This instruction manual includes some functions which

are usable only when they are pre-programmed by your

dealer. Ask your dealer for details.

• See the operating guide for details of BIIS (Binary Inter-

change of Information and Signaling) and dPMR (dig-

ital Private Mobile Radio) system operations. Ask your

dealer for details.

EXPLICIT DEFENITIONS

WORD DEFINITION

RDANGER! Personal death, serious injury or an explo-

sion may occur.

RWARNING! Personal injury, fire hazard or electric

shock may occur.

CAUTION Equipment damage may occur.

NOTE

If disregarded, inconvenience only. No risk

of personal injury, ﬁre or electric shock.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-

porated (Japan) in Japan, the United States, the United Kingdom, Germany,

France, Spain, Russia and/or other countries.

All other products or brands are registered trademarks or trademarks of their

respective holders.

RDANGER! NEVER short the terminals of the bat-

tery pack.

RDANGER! Use and charge only speciﬁed Icom battery

packs with Icom radios or Icom chargers. Only Icom battery

packs are tested and approved for use with Icom radios or

charged with Icom chargers. Using third-party or counterfeit

battery packs or chargers may cause smoke, ﬁre, or cause

the battery to burst.

RWARNING! NEVER hold the transceiver so that

the antenna is very close to, or touching exposed parts of

the body, especially the face or eyes, while transmitting. The

transceiver will perform best if the microphone is 5 to 10 cm

away from the lips and the transceiver is vertical.

RWARNING! NEVER operate the transceiver with

a headset or other audio accessories at high volume levels.

Hearing experts advise against continuous high volume op-

eration. If you experience a ringing in your ears, reduce the

volume level or discontinue use.

RWARNING! NEVER operate the transceiver while

driving a vehicle. Safe driving requires your full attention—

anything less may result in an accident.

CAUTION: MAKE SURE the ﬂexible antenna and

battery pack are securely attached to the transceiver, and that

the antenna and battery pack are dry before attachment.

Exposing the inside of the transceiver to water will result in

serious damage to the transceiver.

DO NOT operate the transceiver near unshielded electri-

cal blasting caps or in an explosive atmosphere.

DO NOT push [PTT] when not actually intending to transmit.

DO NOT use or place the transceiver in direct sunlight or in

areas with temperatures below –25°C or above +55°C.

The basic operations, transmission and reception of the trans-

ceiver are guaranteed within the speciﬁed operating tempera-

ture range. However, the LCD display may not be operate

correctly, or show an indication in the case of long hours of

operation, or after being placed in extremely cold areas.

DO NOT modify the transceiver. The transceiver warranty

does not cover any problems caused by unauthorized modi-

ﬁcation.

DO NOT use harsh solvents such as benzine or alcohol

when cleaning, as they will damage the transceiver surfaces.

PRECAUTIONS

iii

VOICE CODING TECHNOLOGY

The AMBE+2™ voice coding Technology embodied in this

product is protected by intellectual property rights including

patent rights, copyrights and trade secrets of Digital Voice

Systems, Inc. This voice coding Technology is licensed sole-

ly for use within this Communications Equipment. The user

of this Technology is explicitly prohibited from attempting to

extract, remove, decompile, reverse engineer, or disassem-

ble the Object Code, or in any other way convert the Object

Code into a human-readable form. U.S. Patent Nos.

#5,870,405, #5,826,222, #5,754,974, #5,701,390,

#5,715,365, #5,649,050, #5,630,011, #5,581,656,

#5,517,511, #5,491,772, #5,247,579, #5,226,084 and

#5,195,166.

BE CAREFUL! The transceiver will become hot when

operating it continuously for long periods of time.

KEEP the transceiver away from the heavy rain, and never

immerse it in the water. The transceiver meets IP55* require-

ments for dust-protection and water jet resistance.

However, once the transceiver has been dropped, dust-pro-

tection and water jet resistance cannot be guaranteed due

to the fact that the transceiver may be cracked, or the water-

proof seal damaged, etc.

* Only when the supplied battery pack, ﬂexible antenna and connec-

tor cover are attached.

Even when the transceiver power is OFF, a slight current still

ﬂows in the circuits. Remove the battery pack or batteries from

the transceiver when not using it for a long time. Otherwise,

the installed battery pack or batteries will become exhausted,

and will need to be recharged or replaced.

MAKE SURE to turn the transceiver power OFF before

connecting the supplied/optional equipment.

PRECAUTIONS

TABLE OF CONTENTS

IMPORTANT .......................................................................... i

EXPLICIT DEFENITIONS ..................................................... i

PRECAUTIONS.................................................................... ii

VOICE CODING TECHNOLOGY ........................................ iii

TABLE OF CONTENTS....................................................... iv

1 ACCESSORIES ...........................................................1–3

 ■ Supplied accessories ...................................................1

 ■ Accessory attachments ................................................1

2 PANEL DESCRIPTION..............................................4–10

 ■ Front panel ...................................................................4

 ■ Function display ...........................................................5

 ■ Programmable function keys........................................7

3 BASIC OPERATION................................................11–18

 ■ Turning power ON ......................................................11

 ■ Channel selection.......................................................12

 ■ Call procedure............................................................13

 ■ Receiving and transmitting.........................................13

 ■ User Set mode ...........................................................16

 ■ Scrambler function .....................................................16

 ■ Stun function ..............................................................16

 ■ Emergency transmission............................................17

 ■ Man Down Emergency Call........................................17

 ■ Automatic Key Lock function ......................................18

 ■ Priority A channel selection........................................18

4 BATTERY CHARGING ............................................19–23

 ■ Caution.......................................................................19

 ■ Optional battery chargers...........................................21

5 BATTERY CASE............................................................24

 ■ Optional battery case (BP-240)..................................24

6 SWIVEL BELT CLIP ................................................25–26

 ■ MB-93 contents ..........................................................25

 ■ To attach.....................................................................25

 ■ To detach....................................................................26

7 SPEAKER MICROPHONE............................................27

 ■ Optional HM-169/HM-170GP description...................27

 ■ To attach.....................................................................27

8 OPTIONS.................................................................28–32

 ■ About VS-1SC v o x /p t t c a s e ......................................31

9 COUNTRY CODE LIST .................................................33

1ACCESSORIES

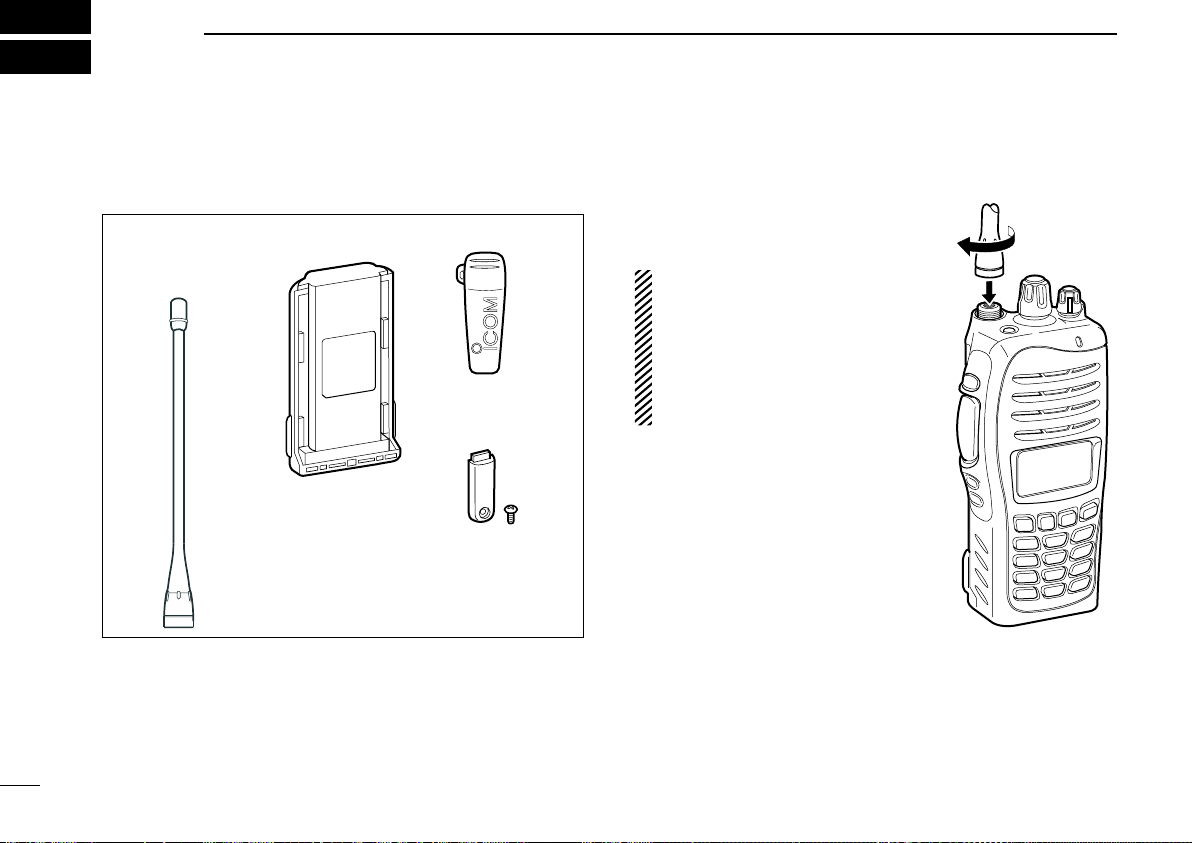

■Supplied accessories

The following accessories are supplied.

Battery pack Belt clip

Connector cover

(with screw)

Flexible antenna

(This illustration is

for the UHF type.)

■Accessory attachments

DFlexible antenna

Connect the supplied ﬂexible antenna

to the antenna connector.

CAUTION:

• NEVER carry the transceiver by

holding only the antenna.

• DO NOT connect the anntena

other than listed on page 30.

• Transmitting without an antenna

may damage the transceiver.

ACCESSORIES

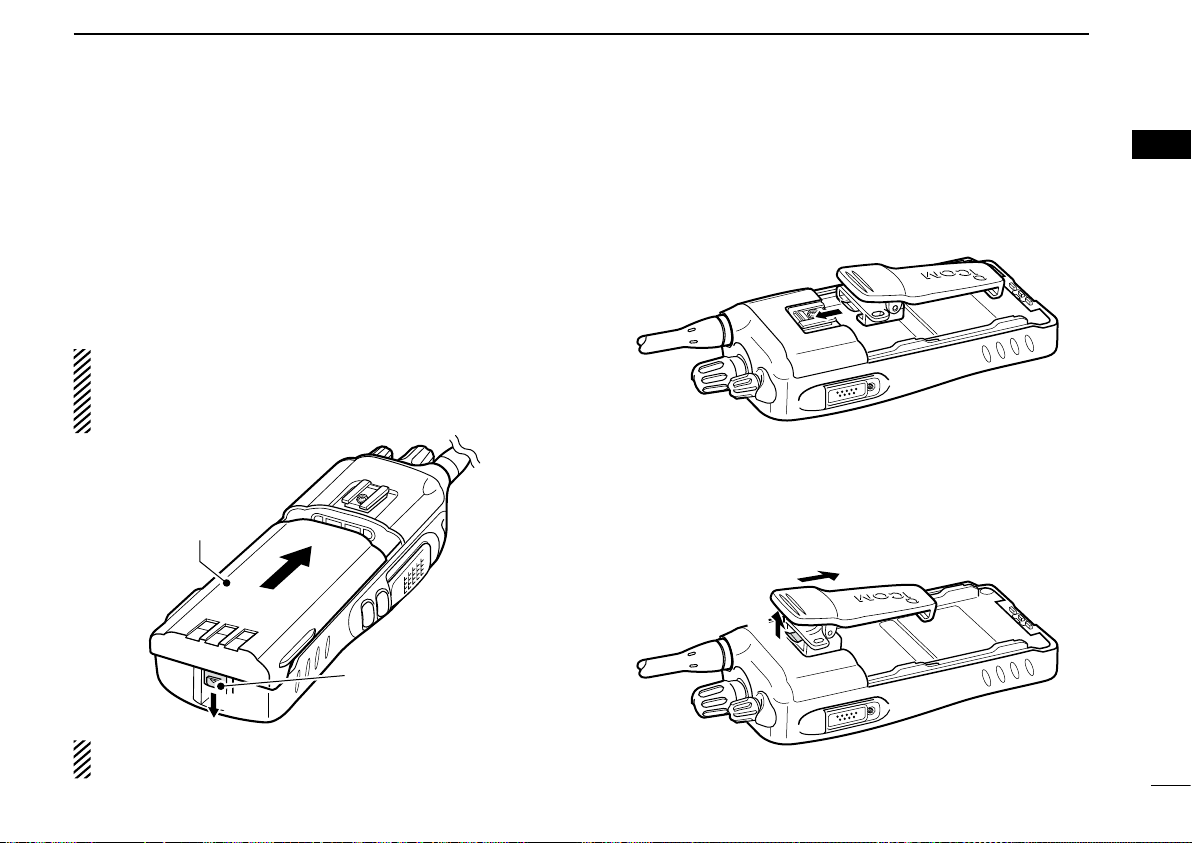

DBattery pack

To attach the battery pack:

Slide the battery pack on the back of the transceiver in the direc-

tion of the arrow (q), then lock it with the battery release button.

• Slide the battery pack until the battery release button makes a ‘click’

sound.

To remove the battery pack:

Slide the battery release button in the direction of the arrow

(w) as shown below. The battery pack can be removed.

NEVER remove or attach the battery pack when the trans-

ceiver is wet or soiled. This may result water or dust get-

ting into the transceiver/battery pack and may result in the

transceiver being damaged.

Battery release

button

Battery pack

NOTE: Keep the battery pack terminals clean. It’s a good

idea to occasionally clean them.

DBelt clip

To attach the belt clip:

qRemove the battery pack if it is attached.

wSlide the belt clip in the direction of the arrow, until the belt

clip is locked and makes a ‘click’ sound.

To remove the belt clip:

qRemove the battery pack if it is attached.

w Pinch the clip (q), and slide the belt clip in the direction of

the arrow (w).

1ACCESSORIES

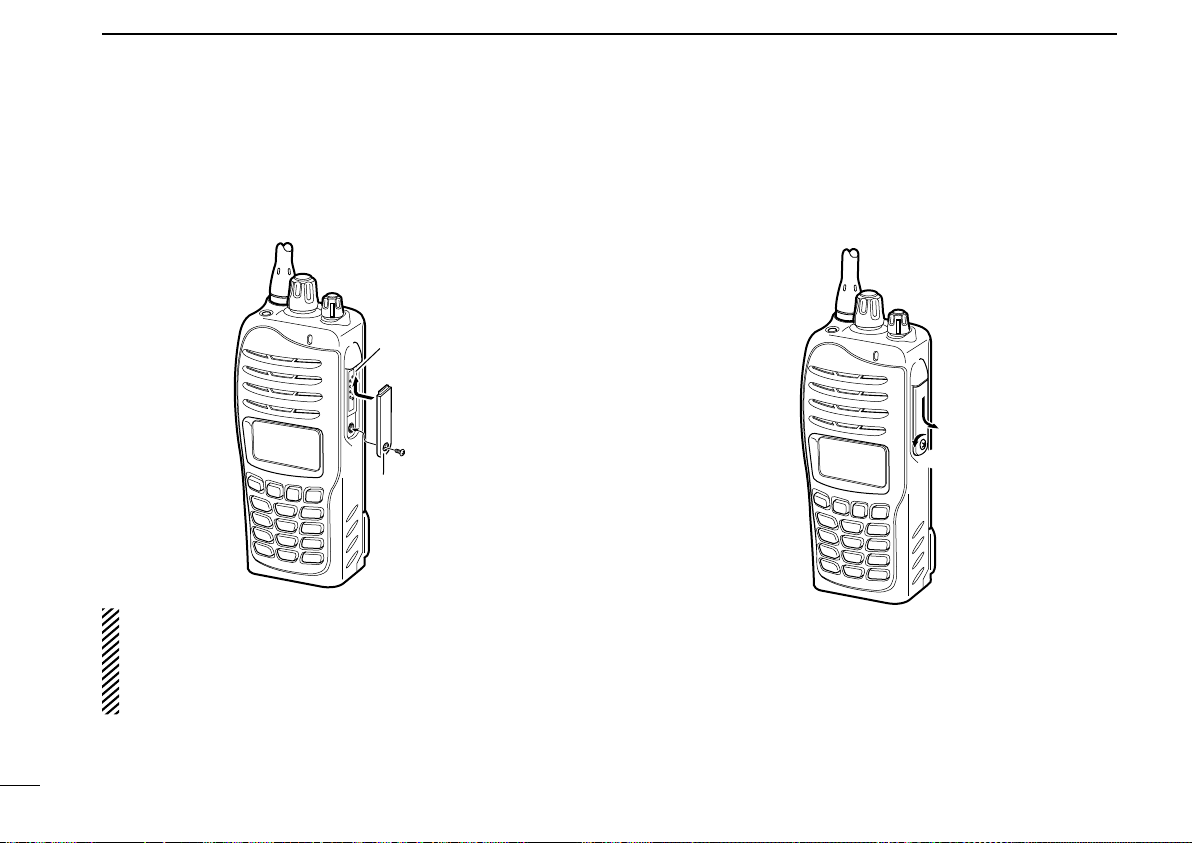

DConnector cover

To attach the connector cover:

qAttach the connector cover over the multi-connector.

wTighten the screw.

Multi-

connector

Connector

cover

CAUTION:

When optional equipment is not in use, attach the con-

nector cover. Otherwise the terminals of the multi-connec-

tor may be shorted by a metal object, or become rusty by

water intrusion. This could damage the transceiver.

To detach the connector cover:

qRemove the screw using a phillips screwdriver.

wDetach the connector cover for the optional equipment

connector.

PANEL DESCRIPTION

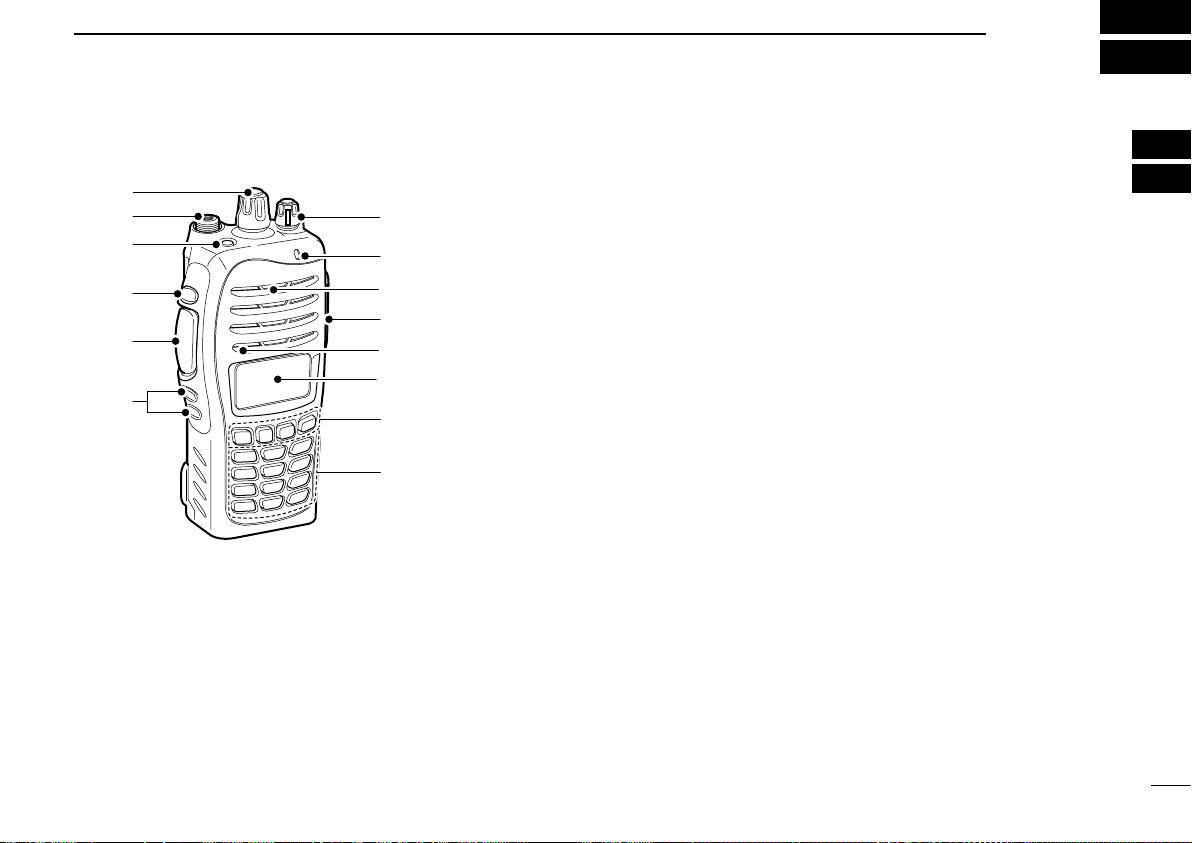

■Front panel

Microphone

Speaker

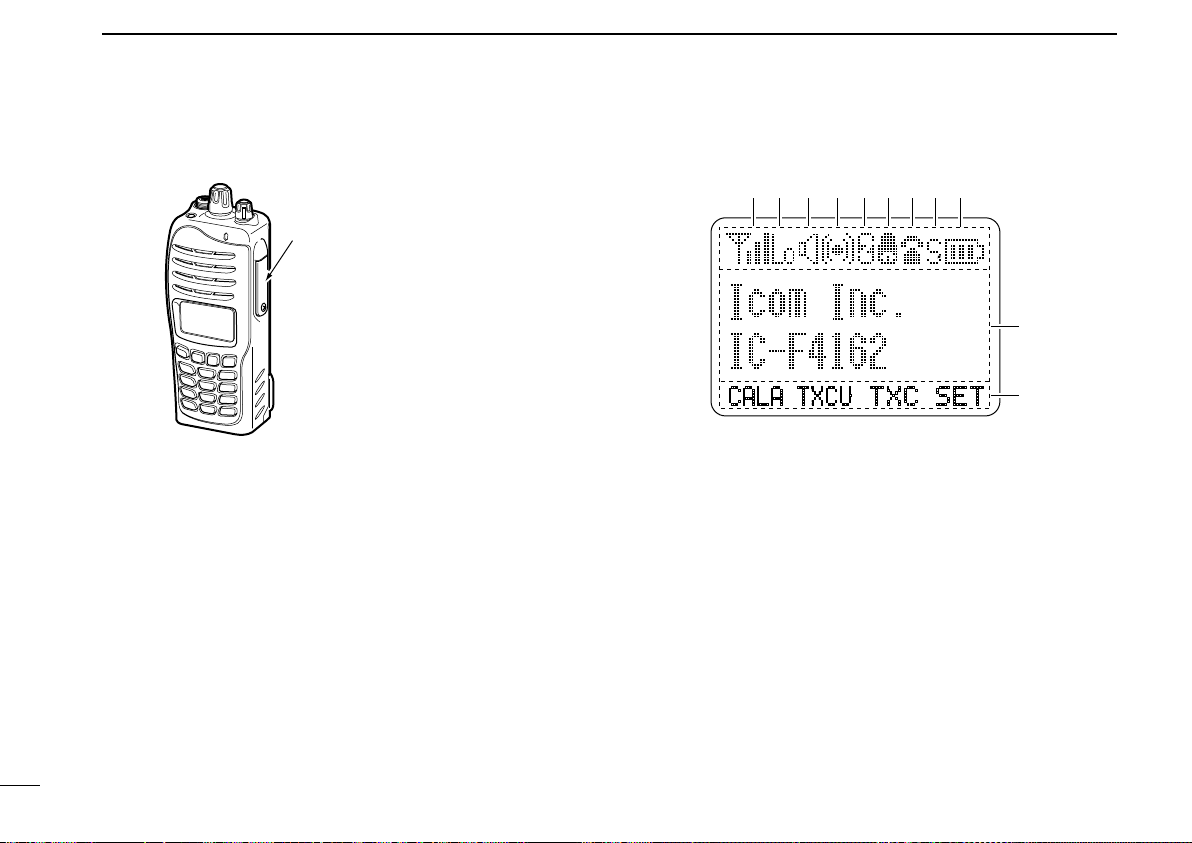

Function display (p. 5)

qROTARY SELECTOR

Rotate to select the preprogrammed memory channels or

the operating zone. (Depending on the pre-programmed

settings.)

• Depending on the pre-programmed settings, selecting channel 1

using the rotary selector starts a scan. (Rotary Selector Home

function)

wANTENNA CONNECTOR

Connects the supplied antenna. (p. 1)

eDEALER-PROGRAMMABLE KEY [EMR]

Required functions can be programmed by your dealer.

(p. 6)

rDEALER-PROGRAMMABLE KEY [Side1]

Required functions can be programmed by your dealer.

(p. 6)

tPTT SWITCH [PTT]

Hold down to transmit; release to receive.

yDEALER-PROGRAMMABLE KEYS [Side2]/[Side3]

Required functions can be programmed independently by

your dealer. (p. 6)

u10-KEYPAD (Depending on versions.)

The keypad allows you to enter digits to;

• Select memory channels.

• Select TX code channels.

• Select DTMF codes (during transmit).

• Set TX codes.

• Input the password.

iDEALER-PROGRAMMABLE KEYS [P0] to [P3]

Required functions can be programmed independently by

your dealer. (p. 6)

oMULTI-CONNECTOR

Connect an optional equipment.

Connector cover

NOTE: Attach the connec-

tor cover when optional

equipment is not used.

See page 3 for details.

!0 BUSY/TRANSMIT INDICATOR

 ➥Lights green while receiving a signal, or when the

squelch is open.

 ➥Lights red while transmitting.

!1 VOLUME CONTROL [VOL]

➥Rotate to turn the power ON or OFF.

➥Rotate to adjust the audio output level.

■Function display

SET

CALA TXCU

TXC

q t iuyrew

qSIGNAL STRENGTH ICON

Shows relative receive signal strength level.

wLOW POWER ICON

Appears when low output power is selected.

eAUDIBLE ICON

➥ Appears when the channel is in the ‘Audible’ (unmute)

mode.

➥Appears when a matching signal is received.

r COMPANDER ICON

➥Appears when the Compander function is activated. In

this case, the compander icon does not show the GPS

signal acquiring status.

➥ Appears when the GPS receiver acquires the GPS sig-

nal from a satellite. In this case, the compander icon

does not show the Compander function’s status.

2PANEL DESCRIPTION

Autres manuels pour IC-F3162DT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Icom Émetteur-récepteur

Icom

Icom IC-F4100D Series Manuel utilisateur

Icom

Icom IC-F3161 Series Manuel utilisateur

Icom

Icom IC-P2A Manuel utilisateur

Icom

Icom IC-2710H Manuel utilisateur

Icom

Icom IC-718 Manuel utilisateur

Icom

Icom IC-725 Manuel utilisateur

Icom

Icom IC-F1000 series Manuel utilisateur

Icom

Icom Ic-V88 Manuel utilisateur

Icom

Icom IC-W31A Manuel utilisateur

Icom

Icom IC-M25 Manuel utilisateur

Icom

Icom IC ?2A Manuel utilisateur

Icom

Icom IC-A15S Manuel utilisateur

Icom

Icom IC-735 Manuel utilisateur

Icom

Icom IC706MK2G Manuel utilisateur

Icom

Icom IC-2330A Manuel utilisateur

Icom

Icom IC-F61M Manuel utilisateur

Icom

Icom IC-SAT100 Manuel utilisateur

Icom

Icom IC-M88 Manuel utilisateur

Icom

Icom IC-A110 Manuel utilisateur

Icom

Icom IC-F41GS Instructions de construction

Icom

Icom M-330GE Manuel utilisateur

Icom

Icom UT-133 Manuel utilisateur

Icom

Icom IC-2300H Instructions d'installation et d'utilisation

Icom

Icom IC-V82 Manuel utilisateur

Manuels Émetteur-récepteur populaires d'autres marques

Yaesu

Yaesu FT-7B Manuel utilisateur

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur
