Icom IP501M Manuel utilisateur

SERVICE

MANUAL

S-15606XZ-C1

September 2019

IP ADVANCED RADIO SYSTEM

IP501M

INTRODUCTION

This service manual describes the latest technical

information for the IP501M IP ADVANCED RADIO

SYSTEM

at the time of publication.

MODEL VERSION VERSION

NUMBER

IP501M

USA-31 #31

EXP- 41 # 41

AUS-51 #51

To upgrade quality, any electrical or mechanical parts and

internal circuits are subject to change without notice or

obligation.

SERVICE CAUTION

NEVER connect the transceiver to an AC outlet or

to a DC power supply that outputs more than the

specified voltage. This will ruin the transceiver.

DO NOT expose the transceiver to rain, snow or

liquids.

DO NOT reverse the polarity of the DC power cable

when directly connecting to the transceiver.

DO NOT apply an RF signal of more than 20 dBm

(100 mW) to the antenna connector. This could

damage the transceiver.

ORDERING PARTS

Be sure to include the following four points when

ordering replacement parts:

1. 10-digit Icom part number

2. Component name

3. Equipment model name and unit name

4. Quantity required

1130018740 RX8130CE IP501M MAIN-A UNIT 5 pieces

8930084370 3405 LENS IP501M CHASSIS-A 1 piece

Addresses are provided on the inside back cover for

your convenience.

REPAIR NOTES

1. Make sure that the problem is internal before

disassembling the transceiver.

2. DO NOT open the transceiver until the transceiver

is disconnected from its power source.

3. DO NOT keep power ON for a long time when the

transceiver is defective.

4. READ the instructions of the test equipment

thoroughly before connecting it to the transceiver.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the

United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.

TRANSCEIVER

IP501M

MICROPHONE

HM-241

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTIONS

SECTION 4 OPTIONAL CABLE INSTALLATION

SECTION 5 VERIFICATION PROCEDURE

5 -1 PREPA R ATIO N ……………………………………………………………………………………… 5-1

5-2 LTE TRANSCEIVER ………………………………………………………………………………… 5-3

5-3 AUDIO SYSTEM …………………………………………………………………………………… 5-4

5-4 BLUETOOTH UNIT ………………………………………………………………………………… 5-4

5-5 GENERAL …………………………………………………………………………………………… 5-5

SECTION 6 PARTS LIST

SECTION 7 MECHANICAL PARTS

SECTION 8 BOARD LAYOUTS

SECTION 9 BLOCK DIAGRAM

SECTION 10 VOLTAGE DIAGRAM

1-1

SECTION 1 SPECIFICATIONS

GENERAL

• Power supply voltage: 13.8 V±10% DC, 26.4 V±10% DC

• Current drain: Less than 1.2 A (Supply voltage 13.8 V DC)

Less than 0.8 A (Supply voltage 26.4 V DC)

• Operable environment: Temperature −10°C~+60°C (−14°F~140°F)

Humidity 25~85% (Without condensation)

• Dimensions (projections not included):125 (W)×156 (H)×29 (D) mm, 4.9 (W)×6.1 (H)×1.1 (D) inches

• Weight (approximate):840 g, 1.9 Ib (Without microphone)

• LAN interface: [LAN] port (RJ-45 type) ×1 (Auto MDI/MDI-X)

IEEE802.3/10BASE-T, IEEE802.3u/100BASE-TX

• User interface: Function display, LED indicator (TX/RX, MSG)

• External speaker jack 3.5 mm (⅛ in) (d) 4 Ω impedance monaural

• External device connector: [EXT I/O] port (For optional OPC-2407 D-sub 25 pin cable)

• Antenna: LTE antenna ×2 (RPSMA), GPS antenna ×1 (SMA)

• IP rate: IP54 (Only when the microphone is attached)

VOICE COMMUNICATION

• Codec: G.726

• Frequency range: 300~3400 Hz

• Audio output power: More than 4 W (External speaker 4 Ω10% distortion)

• Output impedance: External speaker 4 Ω

• Input (microphone) impedance: 600 Ω

3G (W-CDMA)

• Frequency band: [USA-31] B2, B5

[EXP- 41] B1, B8

[AUS-51] B1, B5

4G (LTE)

• Frequency band: [USA-31] B2, B4, B12

[EXP- 41] B1, B3, B7, B8, B20

[AUS-51] B1, B3, B5, B7, B8, B28

GNSS

• GPS: 1575.42 MHz±1.023 MHz

• GLONASS: 1597.5~1605.8 MHz

Bluetooth

• Frequency range: 2402~2480 MHz

All stated specifications are subject to change without notice or obligation.

VERSION CORRESPONDING MEASUREMENT STANDARD

USA-31 FCC Part 15 Class B/ICES003, FCC Part 15C, FCC Part 22, FCC Part 24, FCC Part 27, PTCRB

EXP- 41 EN 300 328, EN 303 413, EN 301 489, EN 301 908, EN 55024, EN 55032, EN 62311, EN 62368-1,

ECE Regulation No. 10

AUS-51 AS/NZS Standard

2-1

SECTION 2 INSIDE VIEWS

• FRONT-C UNIT (TOP VIEW)

• FRONT-C UNIT (BOTTOM VIEW)

LCD (DS101)[Address] (S1)

[Call History] (S2)

[FUNC] (S3)

[CLR/Lock] (S4)

FRONT PANEL

2-2

• FRONT-D UNIT (TOP VIEW)

• FRONT-D UNIT (BOTTOM VIEW)

J2 INVERTER (IC101)

INVERTER (IC101)

OVER CURRENT PROTECT SWITCH

(S2)

[MICROPHONE] (J1)

[DIAL] (S1)

FRONT PANEL

2-3

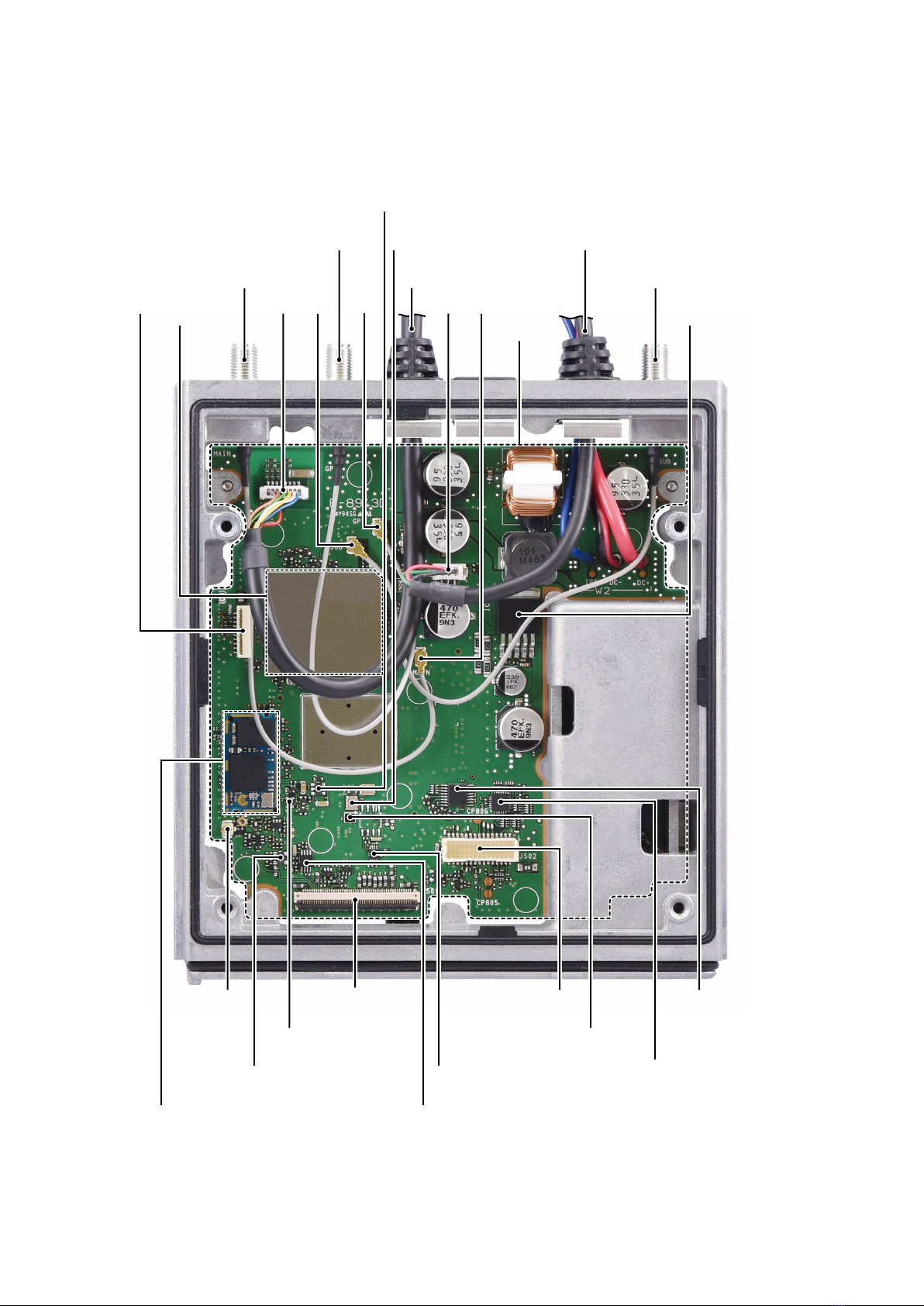

• MAIN-A UNIT (TOP VIEW)

J201J202 J503 J203J951LTE MODULE

(IC201)

DC POWER CABLE ASSEMBLY

(W2: CHASSIS UNIT)

AF POWER AMPLIFIER

(IC504)

LTE ANTENNA (SUB)

(W5: CHASSIS-A UNIT)

LTE ANTENNA (MAIN)

(W5: CHASSIS-A UNIT)

GPS ANTENNA

(W1: CHASSIS-A UNIT)

LAN CABLE

(W3: CHASSIS-A UNIT)

MAIN-A UNIT

1.8 V REGULATOR

(IC871)

J151

J501J604

3.3 V REGULATOR

(IC811)

REAL TIME CLOCK MODULE

(IC952)

RS-232

DRIVER/RECEIVER

(IC506)

EEPROM

(IC106)

I/O INTERFACE

(IC302)

LEVEL CONVERTER

(IC301)

COMPARATOR

(IC241)

Bluetooth MODULE

(IC603)

COMPARATOR

(IC753)

J502

2-4

• MAIN-A UNIT (BOTTOM VIEW)

J254 J253

ETHERNET REFERENCE CLOCK

(X951)

ETHERNET TRANSCEIVER IC

(IC951)

FLASH ROM

(IC104)

SIM SELECTOR

CIRCUIT

DC/DC ENABLE

CONTROL CIRCUIT

13.8 V DC/DC

CONVERTER CIRCUIT

POWER ON

CONTROL CIRCUIT

REVERSE CONNECT

PROTECT

(D851)

3.3 V

REGULATOR

(IC852)

3.3 V DC/DC

CONVERTER

(IC802)

3.8 V DC/DC

CONVERTER

(IC821)

5 V REGULATOR

(IC831)

8 V REGULATOR

(IC803)

9 V DC/DC

CONVERTER

(IC801)

ELECTRONIC

VOLUME

(IC703)

CODEC

(IC401)

SDRAM

(IC103)

Inside the shielded case.

SDRAM

(IC102)

Inside the shielded case.

CPU

(IC101)

Inside the shielded case.

ANALOG SWITCH

(IC752)

MAIN-A UNIT

3-1

SECTION 3 DISASSEMBLY INSTRUCTIONS

1. REMOVING THE FRONT PANEL

1) Remove the 4 screws, and then the top cover from the

chassis.

Top cover

Chassis

Screws ×4

2) Remove the 4 screws, and then the bottom cover from

the chassis.

Bottom cover

Chassis

Screws ×4

3) Lift both tabs using flat screwdrivers and pull forward on

the front panel as shown in the illustration below.

Flat screwdrivers

Chassis

Front panel

Front seal

WARNING: NEVER use your ngernail to lift the tabs.

Otherwise, you may cause injury.

BE CAREFUL: The front seal is attached between the

front panel and the chassis. If the front seal is damaged,

replace it to a new one to maintain the dustproof/

waterproof performance.

4) Disconnect the Bluetooth cable from the MAIN-A UNIT,

and the flat cable from the FRONT-D UNIT, and then

remove the front panel from the chassis.

J2J2

J604

Front panel

FRONT-D UNIT

MAIN-A UNIT

Bluetooth cable

Chassis

Flat cable

BE CAREFUL when you disconnect the Bluetooth

cable from the MAIN-A UNIT, and the at cable from the

FRONT-D UNIT. To keep from damaging them.

2. REMOVING THE MAIN-A UNIT

1) Disconnect the LAN and external speaker cables from

the MAIN-A UNIT.

J951J951

J503

MAIN-A UNIT

LAN cable

Extanal speaker cable

Chassis

2) Disconnect the main antenna, sub antenna, and GPS

antenna cables from the MAIN-A UNIT.

MAIN-A UNIT

Sub antenna cable

Main antenna cable

GPS antenna cable

Chassis

J202J202

J203

J201

3-2

2. REMOVING THE MAIN-A UNIT (CONTINUED)

3) Unsolder the 2 points of the DC power cables, and a

point of the ignition cable.

Ignition cable

DC power cables

UNSOLDER

Solder

remover

Chassis

MAIN-A UNIT

4) Remove the 7 screws, and then remove the MAIN-A

UNIT from the chassis.

Chassis

MAIN-A UNIT

Screws ×7

3. REMOVING THE FRONT-D UNIT

1) Remove the dial knob and nut from the front panel.

Front panel

Nut

Dial knob

2) Remove the 2 screws, and then remove the FRONT-D

UNIT from the front panel.

Screws ×2

FRONT-D UNIT

Front panel

4. REMOVING THE FRONT-C UNIT

Remove the 2 screws, and then remove the FRONT-C

UNIT from the front panel.

Screws ×2

FRONT-C UNIT

Front panel
