SERVICE PARTS MANUAL
ICE SERIES CUBERS
Includes 50Hz. and 3 Phase Units
MODEL - ICE0806A3-W3-R4, ICE1006A3-W3-R4
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081307-02 Date 1/09
Table Of Contents
This parts list contains the service parts available for the ICE Series icemakers listed below:
ICE0250 A4, T4 and W4, Includes 50 hz. Models
ICE0400 A3, T3 and W3, Includes 50 hz. Models
ICE0500 A3, T3, W3 and R4
ICE0606 A3, T3, W3 and R4 Includes 50 hz. Models
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Evaporator/Water System Page 4 - 5
Air Cooled and Top Discharge Page 6 - 7
Water Cooled Page 8 - 9
Remote Page 10 - 11
Control Box Page 12 - 13
Specific Compressor Components Page 13
Harvest Assist Assembly Page 14 - 15
Remote Condenser Page 16 - 17
The ICE Series Service Manual is available separately, Part number 9081270-01
ICE-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
ICE Series Service Parts Table Of Contents
This parts list contains the service parts available for the ICE Series icemakers listed below:
ICE0806 A3, W3 and R4, Includes 50 hz. Models
ICE1006 A3, W3 and R4, Includes 50 hz.and 3 Phase Models
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Evaporator/Water System Page 4 - 5
Air Cooled and Top Discharge Page 6 - 7
Water Cooled Page 8 - 9
Remote Page 10 - 11
Control Box Page 12 - 13
Specific Compressor Components Page 13
Harvest Assist Assembly Page 14 - 15
Remote Condenser Page 16 - 17
The ICE Series Service Manual is available separately, Part number 9081270-01
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
ICE Series Service Parts Cabinet Assembly
Page 2
ICE Service Parts Exterior Panels
Item
No. ICE0805 ICE0806 ICE1005 ICE1006 ICE1007 Description
1 2031511-02S 2031511-02S 2031511-02S 2031511-02S 2031511-02S Front Panel
9051562-03 9051562-03 9051562-03 9051562-03 9051562-03 Front Panel End Cap, Right Hand
9051562-04 9051562-04 9051562-04 9051562-04 9051562-04 Front Panel End Cap, Left Hand
2 9031098-04 9031098-04 9031098-04 9031098-04 9031098-04 Front Panel Screws
3 9031141-01 9031141-01 9031141-01 9031141-01 9031141-01 Plastic Nut
4 2101428-02 2101428-02 2101428-02 2101428-02 2101428-02 Right Hand Side Panel-Air Cooled Only
5 9051565-04 9051565-04 9051565-04 9051565-04 9051565-04 Right Hand Side Panel-Water and Remote Only
6 2101425-01S 2101425-01S 2101425-01S 2101425-01S 2101425-01S Top Panel
7 3012724-01 3012724-01 3012724-01 3012724-01 3012724-01 Rear Brace
8 9051565-04 9051565-04 9051565-04 9051565-04 9051565-04 Left Hand Side Panel
9 3021740-01 3021740-01 3021740-01 3021740-01 3021740-01 Rear Panel
10 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Rear Panel Screws
11 3012905-01 3012905-01 3012905-01 3012905-01 3012905-01 Control Box Top Cover
12 3012891-01 3012891-01 3012891-01 3012891-01 3012891-01 Control Box Side Cover
13 3012931-01 N/
A
3012931-01 N/
A
N/
A
Machine Compartment Cover
Model Number
Page 3
ICE Series Service Parts Evaporator/Water System
Page 4
ICE Series Service Parts Evaporator/Water System
Item Model Number
No. ICE0805 ICE0806 ICE1005 ICE1006 ICE1007 Description
12051239-81 2051239-81 2051239-81 2051239-81 2051239-81 Evaporator Full Cube
12051239-82 2051239-82 2051239-82 2051239-82 2051239-82 Evaporator Half Cube
22041338-01 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube
39031122-01 9031122-01 9031122-01 9031122-01 9031122-01 Thumb Screw
49031004-19 9031004-19 9031004-19 9031004-19 9031004-19 Rubber Washer
5N/A N/A N/A N/A N/A Curtain Stopper
69051170-03 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Mounting Panel Right Side
79051135-04 9051135-04 9051135-04 9051135-04 9051135-04 Evaporator Water Return
89051170-04 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Mounting Panel Left Side
99051135-05 9051135-05 9051135-05 9051135-05 9051135-05 Evaporator Spillway
10 9051154-12 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain
11 9051537-01 9051537-01 9051537-01 9051537-01 9051537-01 Water Return Trough
12 9031046-24 9031046-24 9031046-24 9031046-24 9031046-24 Water Return Trough Screw
13 9131111-01 9131111-01 9131111-01 9131111-01 9131111-01 Float
14 9131026-02 9131026-02 9131026-02 9131026-02 9131026-02 Caplug (Float Deflector)
15 9161079-03 9161079-03 9161079-03 9161079-03 9161079-03 Water Pump
16 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
17 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
18 9051472-01 9051472-01 9051472-01 9051472-01 9051472-01 Water Pump Tube
19 3032898-26 3032898-26 3032898-26 3032898-26 3032898-26 Water Float Tubing (26 Inches required)
20 9091083-01 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
21 9091074-01 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter
22 9041086-02 9041086-02 9041086-02 9041086-02 9041086-02 Purge Valve
23 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
24 3051222-18 3051222-18 3051222-18 3051222-18 3051222-18 Purge Drain Hose
25 9021010-03 9021010-03 9021010-03 9021010-03 9021010-03 Clamp
26 9091140-01 9091140-01 9091140-01 9091140-01 9091140-01 Purge Drain Fitting
Page 5

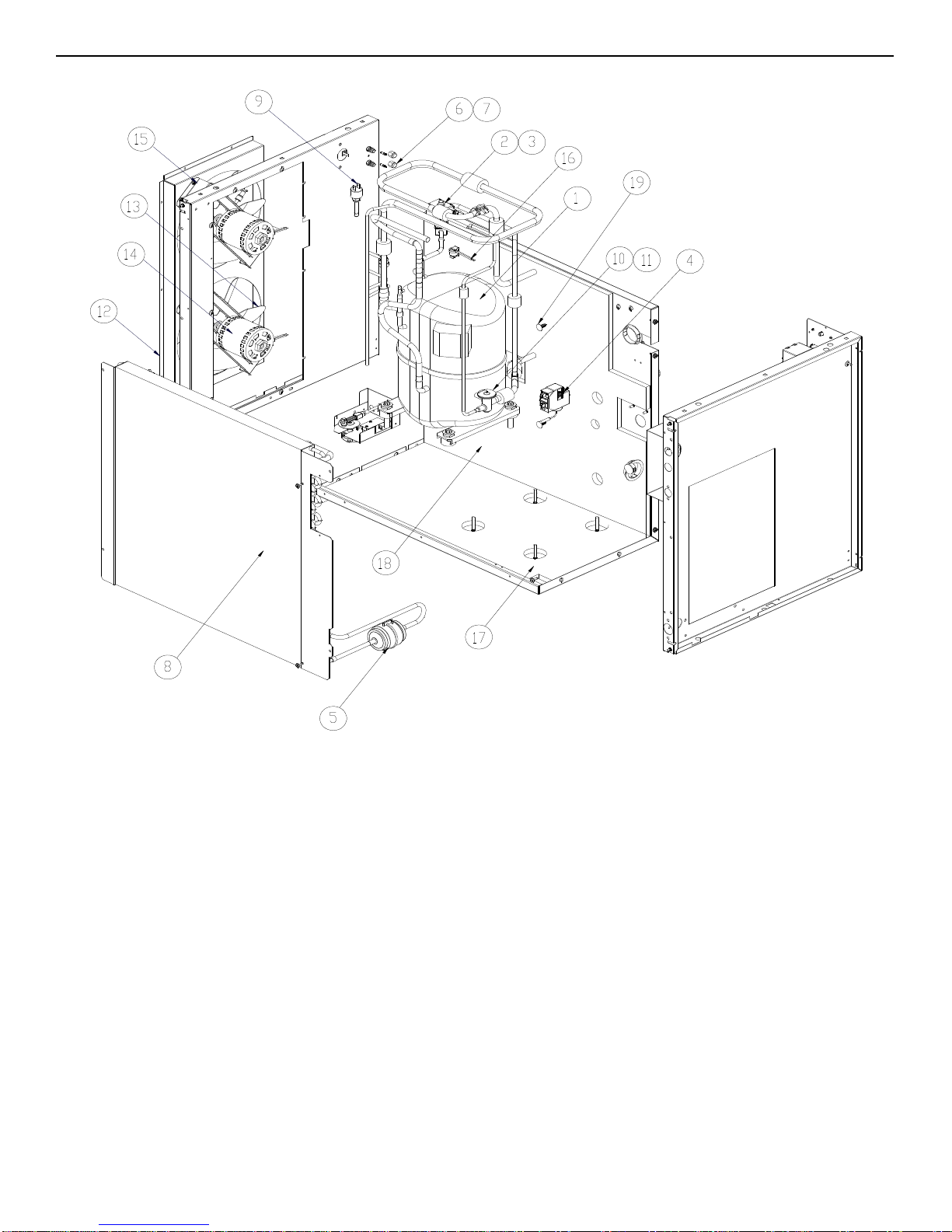

ICE Series Service Parts Air Cooled
Page 6
ICE Series Service Parts Air Cooled
Item Model Number
No. ICE0805 ICE0806 ICE1005 ICE1006 ICE1007 Description
19181107-12 9181106-11 9181090-12 9181107-11 9181107-13 Compressor Kit
29151123-02 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
39151123-04 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
49041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control
59151004-04 9151004-04 9151004-04 9151004-04 9151004-04 Filter Drier
69091086-02 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core
79091086-03 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap
89141122-01 9141122-01 9141122-01 9141122-01 9141122-01 Condenser
99041096-01 9041096-01 9041096-01 9041096-01 9041096-01 Fan Control
10 9151147-01 9151147-01 9151147-01 9151147-01 9151147-01 Expansion Valve
11 9131465-01 9131465-01 9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
12 3012742-01 3012742-01 3012741-01 3012741-01 3012741-01 Fan Shroud
13 9131383-01 9131332-02 9131383-01 9131333-01 9131333-01 Fan Blade
14 9161078-02 9161089-03 9161078-02 9161089-03 9161089-03 Fan Motor
15 2021612-01 3012527-01 2021612-01 3012527-01 3012527-01 Fan Motor Bracket
16 9041098-01 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
17 9131353-02 9131353-02 9131353-02 9131353-02 9131353-02 Insulation Panel Bottom
18 9131456-01 9131456-01 9131456-01 9131456-01 9131456-01 Insulation Panel Top Divider
19 9031154-01 9031154-01 9031154-01 9031154-01 9031154-01 Insulation Clip
Note: The ICE800 series has 1 fan motor, the ICE1000 series has 2 fan motors.
Page 7
ICE Series Service Parts Water Cooled
Page 8
