Ice-O-Matic HISU056BR Manuel utilisateur

HISUBR/UBR/UBR

SELFCONTAINEDCUBEICEMAKER

HISUBR/UBR/UBRSELFCONTAINEDCUBEICEMAKER

Ice. Pure and Simple

Ice Maker Warranty

Every Ice-O-Matic ice maker is backed by a warranty

that provides both parts and laborcoverage.

• Three years Parts and Labor.

Space-Saving Solutions

• Front air discharge design for compact spaces.

• Low profile design for perfect under counter fit.

• Easy front access to ice.

Options & Accessories

Model Description

KADA ADA floor mount kit for 15" HIS self-contained ice machine

KADA ADA floor mount kit for 20" HIS self-contained ice machine

Ice Form

CUBE

FULLCUBEDIMENSIONS

W x D x H (in.) ⁄ x ⁄ x ⁄

W x D x H (mm) 22 x 22 x 22

Produced specifically for the Brazilian market, these machines

include INMETRO approved electrical and water inlet

connections.

HISUBR HISUBR HISUBR

With its horizontal evaporator, the HIS line of ice machines

provides crystal clear ice every time. And with its compact

design the HIS ice machine is sized to ﬁt most anywhere

and yet stylish enough to show oﬀ to your customers.

Features

• Produces up to 45.4 kg of ice per day

• Stores up to 23.1 kg of ice

• Elegant euro styling

• Space saving design

• Easy open, self-storing bin door

• Large bin opening for easy access to ice

• Simple control panel for easy adjustments

• Low profile 81 cm installation with available kit

• Front air intake & discharge for undercounter installation

• Ice scoop included

• Inmetro approved cordset and water inlet included

Rev: 09/13

Part: 0996

11100 E. 45th Avenue • Denver, CO 80239 • Phone: 1. 866. PURE. ICE • Fax: 303. 371. 6296 • www.iceomatic.com

Ice. Pure and Simple

HISUBR/UBR/UBRSELFCONTAINEDCUBEICEMAKER

HISUBR/UBR/UBR

SELFCONTAINEDCUBEICEMAKER

Speciﬁcations

Air Cooled

A. Ice maker water in ⁄" FPT. B. Bin and ice maker drain, ⁄" FPT. C Electrical cord.

95.4cm

37.56in

42.5cm

16.75in

81.1cm

31.94in

AIR

INLET

AIR

OUTLET

48.3cm

19.00in

68.9cm

27.13in

15.2cm

6.00in

10.2cm

4.00in

MINIMUM

UTILITY

CLEARANCE

50.8cm

20.00in

60.1cm

23.67in

POWER CORD

POTABLE

WATER INLET

1/4" OD. PLASTIC

TUBING (5ft)

DRAIN

3/4" FPT

32cm

12.60in

14.6cm

5.75in

7cm

2.75in

8.2cm

3.23in

5.1cm

2.00in

TBD

95.4cm

37.56in

42.5cm

16.75in

81.1cm

31.94in

AIR

INLET

AIR

OUTLET

48.3cm

19.00in

68.9cm

27.13in

15.2cm

6.00in

10.2cm

4.00in

MINIMUM

UTILITY

CLEARANCE

50.8cm

20.00in

60.1cm

23.67in

POWER CORD

POTABLE

WATER INLET

1/4" OD. PLASTIC

TUBING (5ft)

DRAIN

3/4" FPT

32cm

12.60in

14.6cm

5.75in

7cm

2.75in

8.2cm

3.23in

5.1cm

2.00in

TBD

NOTES:

Approx. Shipping Weight lbs (kg): All models 95 (43.1)

Refrigerant Type: RA

Included Items: Cord Set, Water inlet hose Inmetro approved, Ice scoop, 6" legs

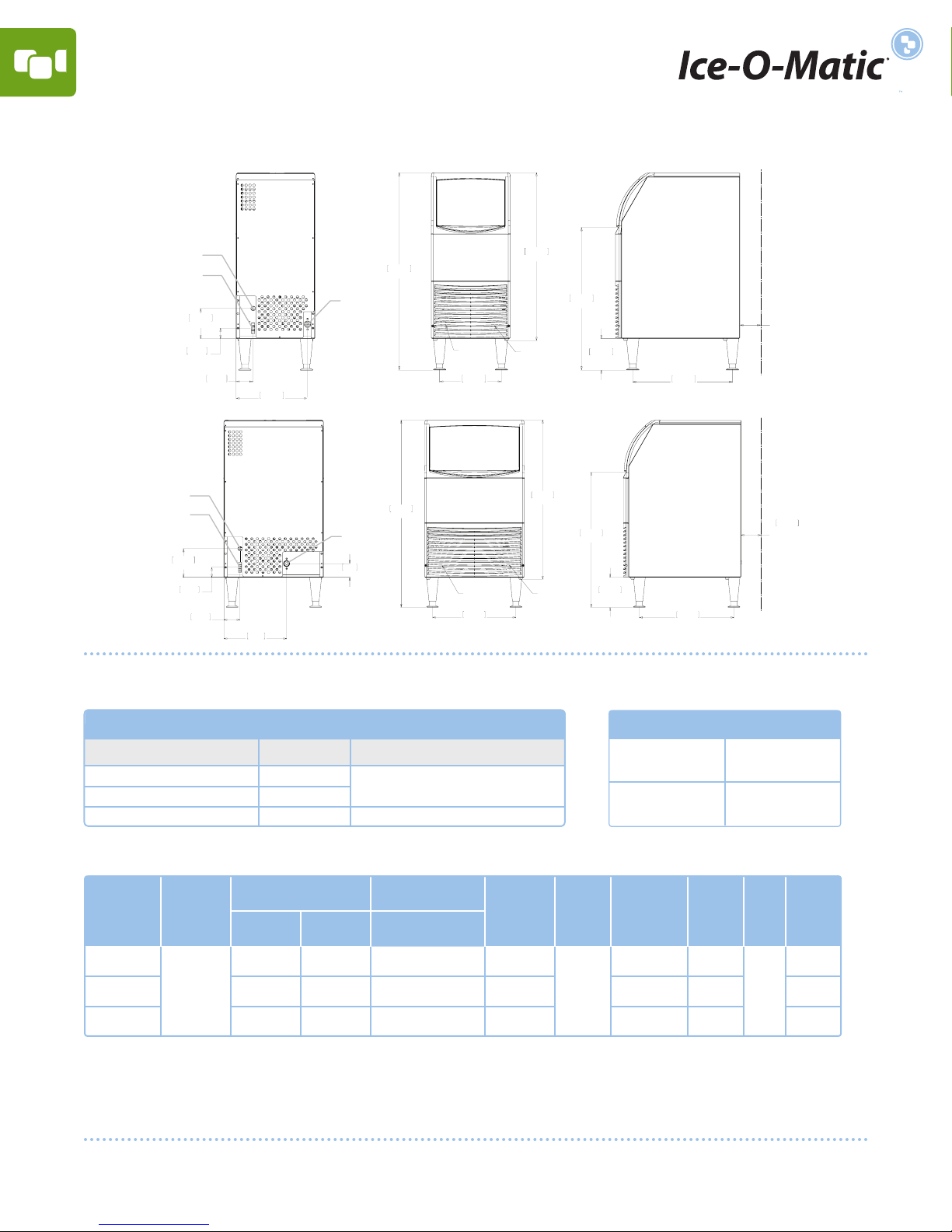

Back, Front & Side View

**BTUH is calculated 0°F Evaporator, 100°F Condensing, and 33 PSIG.

Operating Requirements

MAXIMUM

60 Hz

Ambient Temp. Range Air 50˚F (10˚C)

100˚F (38˚C)

Water Temp. 40˚F (4.5˚C)

Water Pressure 15 PSIG (1.03 BAR) 80 PSIG (5.5 BAR)

MINIMUM

Model Number Cond. Unit

Ice Production

per 24hrs

Water Usage

gallons per 100 lbs of Ice

90°F air/70°F water kWH Used

per 100 lbs

of ice @ 90°F

air/70°F water

Number

of Wires

Voltage

Characteristics

Min. Circuit

Ampacity

Fuse

Size

Approx.

BTUs

per hour**

70°F air/

50°F water

lbs (kg)

90°F air/

70°F water

lbs (kg) Potable

HISUFABR

Air

60 (27.2) 38 (17.2) 41 (155.2) 12

Inmetro

cord

connected

220/60 1.8

1500

HISUFABR 80 (36.3) 58 (26.3) 30 (113.6) 11 220/60 3.2 2300

HISUFABR 100 (45.4) 80 (36.3) 35 (132.5) 10 220/60 3.4 4100

MODEL

Dimensions

HISUBRHISU 381 x 602 x 810.3

HISUBR 508 x 602 x 810.3

WXDXHMM

95.4cm

37.6in

81.1cm

31.9in

29.8cm

11.8in

AIR

OUTLET

AIR

INLET

48.3cm

19.0in

68.9cm

27.1in

15.2cm

6.0in

10.2cm

MINIMUM

UTILITY

CLEARANCE

60.3cm

23.7in

38.1cm

15.0in

34.5cm

13.6in

14.6cm

TBD

5.8in

5.1cm

2.0in

8.2cm

3.2in

DRAIN

3/4" FPT

POTABLE

WATER INLET

1/4" OD. PLASTIC

TUBING (5ft)

POWER CORD

95.4cm

37.6in

81.1cm

31.9in

29.8cm

11.8in

AIR

OUTLET

AIR

INLET

48.3cm

19.0in

68.9cm

27.1in

15.2cm

6.0in

10.2cm

MINIMUM

UTILITY

CLEARANCE

60.3cm

23.7in

38.1cm

15.0in

34.5cm

13.6in

14.6cm

TBD

5.8in

5.1cm

2.0in

8.2cm

3.2in

DRAIN

3/4" FPT

POTABLE

WATER INLET

1/4" OD. PLASTIC

TUBING (5ft)

POWER CORD

HISUBR

HISUBR

HISUBR
