SERVICE PARTS MANUAL
22 INCH WIDE ICE SERIES CUBERS
MODEL-ICE0320A3/W3 and ICE0520A3/W3
Includes 50Hz. Units
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081356-01 Date 12/06
SERVICE PARTS MANUAL
22 INCH WIDE ICE SERIES CUBERS
MODEL-ICE0320, ICE0520
Includes 50Hz. Units
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081297-01 PD04/02 Rev1/05
ICE0320/0520 Service Parts
This parts list contains the service parts available for the ICE0320A3/W3 and ICE0520A3/W3 icemakers.
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Exterior Page 2
ICE0320/ICE0520 Air Cooled Page 3
ICE0320/ICE0520 Water Cooled Page 4
Evaporator Page 5
Control Box Page 6
Fan Assemblies Page 7
Harvest Assist Components Page 8
Water Pump/Float Page 9
ICE-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
ICE0320/0520 Series Service Parts Exterior Panels
Item Stainless Steel Panels
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 2031490-01 2031490-01 2031490-01 2031490-01 Front Panel
2 3021831-01 3021831-01 3021831-01 3021831-01 Right Hand Side Panel-Air Cooled Only
3021862-01 3021862-01 3021862-01 3021862-01 Right Hand Side Panel-Water Cooled Only
3 3021847-01 3021847-01 3021847-01 3021847-01 Top Panel
4 2101330-01 2101330-01 2101330-01 2101330-01 Left Hand Side Panel
5 9031098-03 9031098-03 9031098-03 9031098-03 Front Panel Screw
6 9031046-01 9031046-01 9031046-01 9031046-01 Side Panel Screw
7 3021838-01 3021838-01 3021838-01 3021838-01 Rear Cover Panel
Item Plastic Panels
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 2031465-12 2031465-12 2031465-12 2031465-12 Front Panel (Plastic)
2 3021831-01 3021831-01 3021831-01 3021831-01 Right Hand Side Panel-Air Cooled Only
3021862-01 3021862-01 3021862-01 3021862-01 Right Hand Side Panel-Water Cooled Only
3 3051237-01 3051237-01 3051237-01 3051237-01 Top Panel (Plastic)
9031098-02 9031098-02 9031098-02 9031098-02 Top Panel Screw
4 2101330-01 2101330-01 2101330-01 2101330-01 Left Hand Side Panel
5 9031098-02 9031098-02 9031098-02 9031098-02 Front Panel Screw
6 9031046-01 9031046-01 9031046-01 9031046-01 Side Panel Screw
7 3021838-01 3021838-01 3021838-01 3021838-01 Rear Cover Panel
Model Number
Model Number
Page 2
ICE0320/0520 Series Service Parts Air Cooled
Item
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 9181121-11 9181122-11 9181121-11 9181127-11 Compressor Kit-- See page 6 for Compressor Components
2 9151004-02 9151004-02 9151004-02 9151004-02 Filter Drier
3 9151134-04 9151134-04 9151134-01 9151134-01 Expansion Valve
4 9151123-01 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body
5 9151123-03 9151123-04 9151123-03 9151123-04 Hot Gas Valve Coil
6 9101124-02 9101124-02 9101124-02 9101124-02 Bin Switch
7 3012965-01 3012965-01 3012965-01 3012965-01 Side Brace
8 3012924-01 3012924-01 3012924-01 3012924-01 Ice Deflector
9 2021652-01 2021652-01 2021652-01 2021652-01 Front Frame panel
10 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap
11 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core
12 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
13 9031161-01 9031161-01 9031161-01 9031161-01 Nylon Wing Nut
14 3012974-01 3012974-01 3012974-01 3012974-01 Control Box Cover
15 9051478-01 9051478-01 9051478-01 9051478-01 Water Pan
16 9041086-04 9041086-05 9041086-04 9041086-05 Purge Valve
17 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
18 9041096-01 9041096-01 9041096-01 9041096-01 Fan Cycle Control
Model Number
Page 3
ICE0320/0520 Series Service Parts Water Cooled
Item
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 9181121-11 N/A 9181121-11 N/A Compressor Kit-- See page 6 for Compressor Components
2 9151004-02 N/A 9151004-02 N/A Filter Drier
3 9151134-04 N/A 9151134-01 N/A Expansion Valve
4 9151123-01 N/A 9151123-01 N/A Hot Gas Valve Body
5 9151123-03 N/A 9151123-03 N/A Hot Gas Valve Coil
6 9101124-02 N/A 9101124-02 N/A Bin Switch
7 3012965-01 N/A 3012965-01 N/A Side Brace
8 3012924-01 N/A 3012924-01 N/A Ice Deflector
9 2021652-01 N/A 2021652-01 N/A Front Frame panel
10 9091086-03 N/A 9091086-03 N/A Service Valve Cap
11 9091086-02 N/A 9091086-02 N/A Service Valve Core
12 9041098-01 N/A 9041098-01 N/A High Temperature Safety Control
13 9031161-01 N/A 9031161-01 N/A Nylon Wing Nut
14 3012974-01 N/A 3012974-01 N/A Control Box Cover
15 9051478-01 N/A 9051478-01 N/A Water Pan
16 9041086-04 N/A 9041086-04 N/A Purge Valve
17 9041091-01 N/A 9041091-01 N/A High Pressure Control
18 9141121-01 N/A 9141121-01 N/A Water Cooled Condenser
19 9041059-01 N/A 9041059-01 N/A Water Regulating Valve
Model Number
Page 4
ICE0320/0520 Series Service Parts Evaporator
Item
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 2051222-01 2051222-01 2051232-01 2051232-01 Evaporator-Full Cube
1 2051222-02 2051222-02 2051232-02 2051232-02 Evaporator-Half Cube
3 2101387-01 2101387-01 2101355-04 2101355-04 Curtain
4 2041338-02 2041338-02 2041338-02 2041338-02 Water Distribution Tube
5 9031122-01 9031122-01 9031122-01 9031122-01 Thumb Screw
6 9031004-19 9031004-19 9031004-19 9031004-19 Washer
7 3012747-01 3012747-01 N/A N/A Curtain Stopper Clip
8 9131413-01 9131413-01 9131413-01 9131413-01 Insulation
9 2021651-01 2021651-01 2021651-01 2021651-01 Divider Panel
10 9051135-05 9051135-05 9051135-05 9051135-05 Evaporator Spillway
11 9051136-08 9051136-08 9051136-06 9051136-06 Evaporator Right Side Mounting Panel
12 9051136-07 9051136-07 9161136-05 9161136-05 Evaporator Left Side Mounting Panel
13 9051135-04 9051135-04 9051135-04 9051135-04 Evaporator Water Return
Model Number
Page 5
ICE0320/0520 Series Service Parts Control Box
Item
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 9101083-01 9101083-01 9101083-01 9101083-01 Relay Socket
2 9101084-01 9101084-02 9101084-01 9101084-02 Relay
3 9101037-01 9101037-01 9101037-01 9101037-01 Terminal Board
4 9101195-01 9101195-01 9101195-01 9101195-01 On-Off Wash Switch
5 9101139-03 9101139-03 9101139-03 9101139-03 Purge Switch
6 9181003-09 9181003-40 9181003-09 9181003-45 Start Capacitor
7 9181004-27 9181010-26 9181004-27 9181010-30 Compressor Relay
8 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control
9 9101148-01 9101148-01 9101148-01 9101148-01 Timer
10 9101002-07 9101002-06 9101002-07 9101002-06 Contactor
11 N/A 9181009-08 N/A 9181009-08 Run Capacitor
12 9041098-01 9041098-01 9041098-01 9041098-01 High Temp Safety (Not Shown)
13 9101218-11 9101218-11 9101218-11 9101218-11 Water Pump Cord (Not Shown)
ICE0320 ICE0325 ICE0520 ICE0525
9181121-01 9181122-01 9181121-01 9181127-01 Compressor
9181003-39 9181003-40 9181003-39 9181003-45 Start Capacitor
N/A 9181009-08 N/A 9181009-08 Run Capacitor
9181004-27 9181010-26 9181004-27 9181010-30 Relay
9181005-37 9181005-39 9181005-37 9181005-44 Overload
Specific Compressor Components
Model Number
Page 6
ICE0320/0520 Series Service Parts Fan Assemblies
Item
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 9141118-01 9141118-01 9141118-01 9141118-01 Air Condenser
2 3013111-01 3013111-01 2021613-01 2021613-01 Fan Shroud
3 9131225-01 9131384-04 9131384-04 9131384-04 Fan Blade
4 3013059-01 3013252-01 3013252-01 3013252-01 Fan Motor Bracket
5 9161089-02 9161078-02 9161112-01 9161078-02 Fan Motor
6 9091119-01 9091119-01 9091119-01 9091119-01 Drain Fitting
7 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter
8 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
Model Number
ICE
03
2
0
/
03
2
5
ICE
05
2
0
/
05
2
5
Page 7

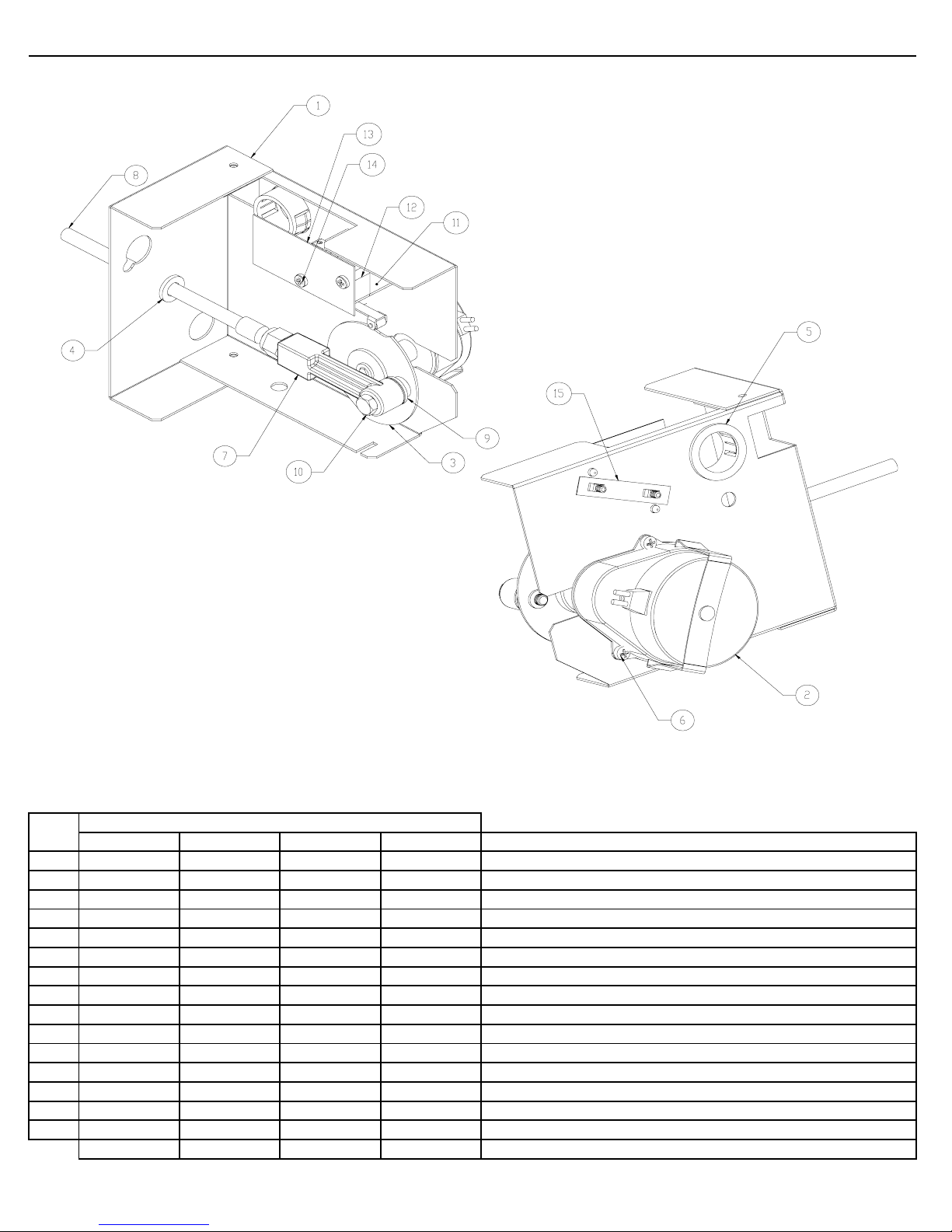

ICE0320/0520 Series Service Parts Harvest Assist
Item
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 3013170-01 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor
2 9161030-01 9161031-01 9161030-01 9161031-01 Gear Motor
3 9131190-01 9131190-01 9131190-01 9131190-01 Clutch Assembly 180 Degree
4 9051001-13 9051001-13 9051001-13 9051001-13 Snap Bushing
5 9051001-03 9051001-03 9051001-03 9051001-03 Snap Bushing
6 9031019-08 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Fillister Head Screw
7 9051057-01 9051057-01 9051057-01 9051057-01 Connecting Rod
8 9021102-01 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 9031003-03 Plain Flat Washer
10 9031119-01 9031119-01 9031119-01 9031119-01 Shoulder Screw
11 9051519-01 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch
12 9101160-01 9101160-01 9101160-01 9101160-01 Cam Switch
13 3051145-02 3051145-02 3051145-02 3051145-02 Insulator, Switch
14 9031008-44 9031008-44 9031008-44 9031008-44 Pan Head Machine Screw
15 9031120-01 9031120-01 9031120-01 9031120-01 Speed Nut Plate
2061962-01S 2061962-02S 2061962-01S 2061962-02S Complete Assembly
Model Number
Page 8
