IK210 User Manual V1.0
1
IK210 GPS Tracker
User Manual V1.0
Preface
Congratulations on choosing the icar GPS IK210 Asset GPS tracker. This manual shows
how to easily program and setup the tracker for best results. Make sure to read this manual
carefully before using this product, so as to avoid delays or confusion with it’s operation.
Please note that specifications and instructions are subject to change without notice to
facilitate product improvement. Updates and changes will be integrated into the latest release.
The manufacturer assumes no responsibility for any errors or omissions in outdated
documents.
IK210 User Manual V1.0
2
1. Overview
IK210 is a Asset GPS tracker.
2. Features
Real-timing tracking
GPS+WiFi Positioning
History record check
Geo-Fence alarm
Low battery alarm
Power saving mode
PC & Mobile App tracking
Mini Hidden
IP65 Water resistant
Remove Alarm
One way communication
3. Applications
Luggage tracking
Container tracking
Logistics tracking
4. Specifications
Item
Specifications
Dimension
75*57*31.5mm
Weight
102g
Charger
DC 5V/1A
Backup battery
3.7V 10000mAh
Power consumption
40mA standby current
Working temperature
-20°C to 65°C
Item
Specifications
Cellular Bands
GSM: 850/900/1800/1900Mhz
Positioning
GPS, AGPS, LBS
Tracking Sensitivity
-162 dBm
IK210 User Manual V1.0
3
Sensor
Accelerometer
LED
RED/GREEN/BLUE
SIM Card interface
Micro SIM
Waterproof
IP67
5. IK210 interface
6. In the box
1* IK210 GPS Tracker
1* Quick Start Guide
1* Screw Driver
1* Charge Cable
7. Installation
7.1 SIM Card installation
Get ready a Micro Sim Card that support GSM&GPRS with 30MB data per month
Open the top housing
Insert Sim card to sim card slot correctly
Devices would turn on autoly (green led will blinking).
After that the device will be ready.
7.2 LED Indications
Flash
Fix
Off
Green Light
GSM/GPRS conversation start
No GPRS signal
Power off or in sleep mode
Blue Light
GPS location successful
No GPRS signal
Power off or in sleep mode
Red Light
charging
Full battery or charged full
IK210 User Manual V1.0
4
8. SMS Commands List
Function
Command Format
Reply
for example
APN
apn+123456+space+content
apn ok
apn123456 cmnet
apnuser+123456+space+content
apnuser ok
apnpasswd+123456+space+content
apnpasswd ok
admin
number
admin123456+space+admin phone number
admin ok
admin123456 186********
Domain
SZCS,123456,DOMAIN=a.icargps.net:7700
Domain ok
SZCS,123456,DOMAIN=a.icargp
s.net:7700
upload
frequency
Upload123456 time(unit/s)
OK
Upload123456 10
Monitor
Monitor123456
monitor OK
Monitor123456
Position
where
Google map Link
where
Restart Devic
e
RST
Device would restart i
mmediately
RST
Check
Param1
details of device
Param1
Status
Status
Status of device
Status
Back to facto
ry
Format
OK
Format
9. App & PC Tracking platform
9.1 App install & Login
Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to
download the Mobile APP;
IK210 User Manual V1.0
5

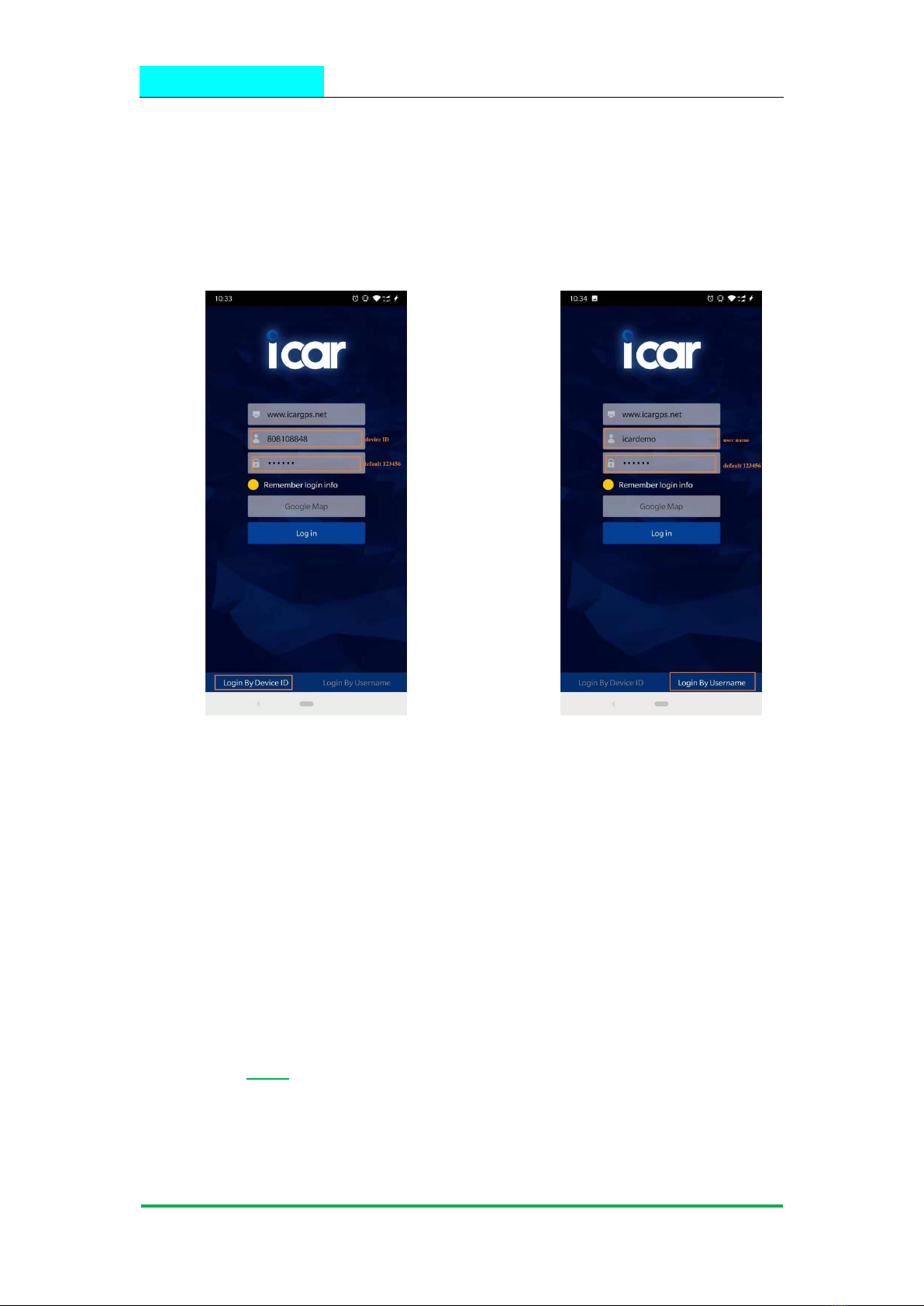

Choose the” Login by Device No.,
Input your device’s ID number and password(default is 123456) to login.
Choose the” Login by User name.,
Input your user name and password(default is 123456) to login.
9.2 PC login
Web: www.icargps.net, Choose “ID No.”
Input your device’s ID number and password(default is 123456) to log in
IK210 User Manual V1.0
7
Q：The device can not obtain location information?
A：Place the unit at the open area to test.
Q：How to choose SIM card?
A: the SIM card must support GSM&GPRS，and ensure t
hat the card has enough currency and credit.
Q: How to use in the foreign countries?
A：please set the APN before use，please edit the text “A
PN123456 CMNET “ and send it to the SIM card of the d
evice，CMNET is Chinese operator’s APN, Replace the corr
esponding APN when use in other countries, APN details,
please consult your local SIM card carrier.
