IBM Power System IC922 (9183-22X)

Quick Install Guide

IBM

This 2021-04-12 edition applies to IBM® Power Systems servers that contain the POWER9™ processor and to all

associated models.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with

IBM Corp.

IBM Power® System IC922 (9183-22X) Quick Install

Guide

Read all precautions and instructions before you start working on the system and its parts.

Use normal electrostatic discharge (ESD) procedures when working on the system and parts. IBM

recommends wearing gloves and an ESD wrist strap to avoid possible damage to the equipment.

The information about the 9183-22X system is available online in the IBM Knowledge Center: http://

www.ibm.com/support/knowledgecenter/9183-22X

2 IBM Power System IC922 (9183-22X) Quick Install Guide

Parts

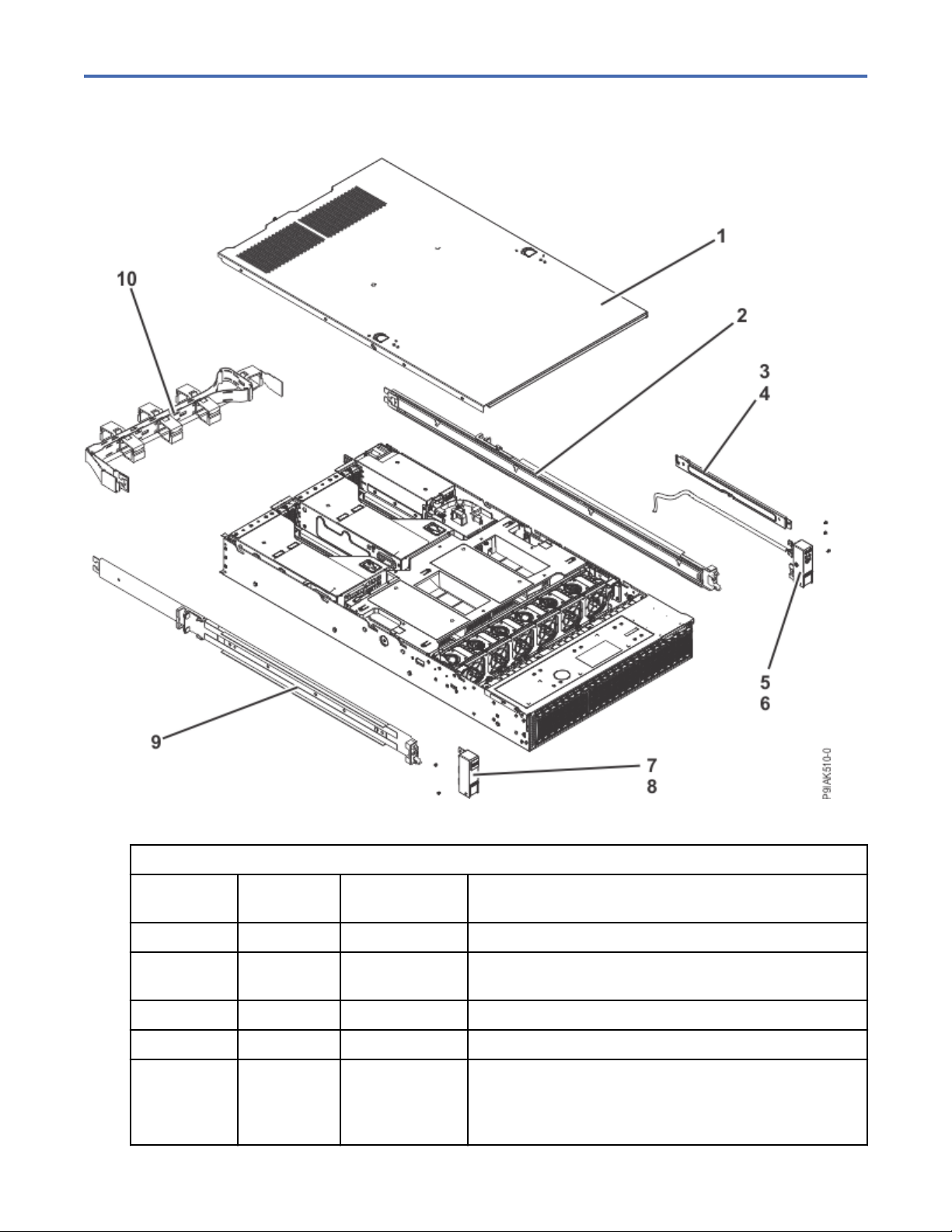

Figure 1. Rack nal assembly

Table 1. Rack nal assembly part numbers

Index

number

Part number Units per

assembly

Description

1 1 Top access-cover assembly

2 01EM868 1 Slide rail kit - contains left and right slide rails and

attaching screws

3 1 Side channel

4 2 Screws

5 01EM895 1 Power switch and cables kit (includes power switch,

power switch cable, USB cable, left Electronic

Industries Association (EIA) bracket and right EIA

bracket)

Table 1. Rack nal assembly part numbers (continued)

Index

number

Part number Units per

assembly

Description

6 2 Screws

7 01EM895 1 Left EIA bracket

8 2 Screws

9 01EM868 1 Slide rail kit - contains left and right slide rails and

attaching screws

10 01EM869 1 Cable management arm assembly

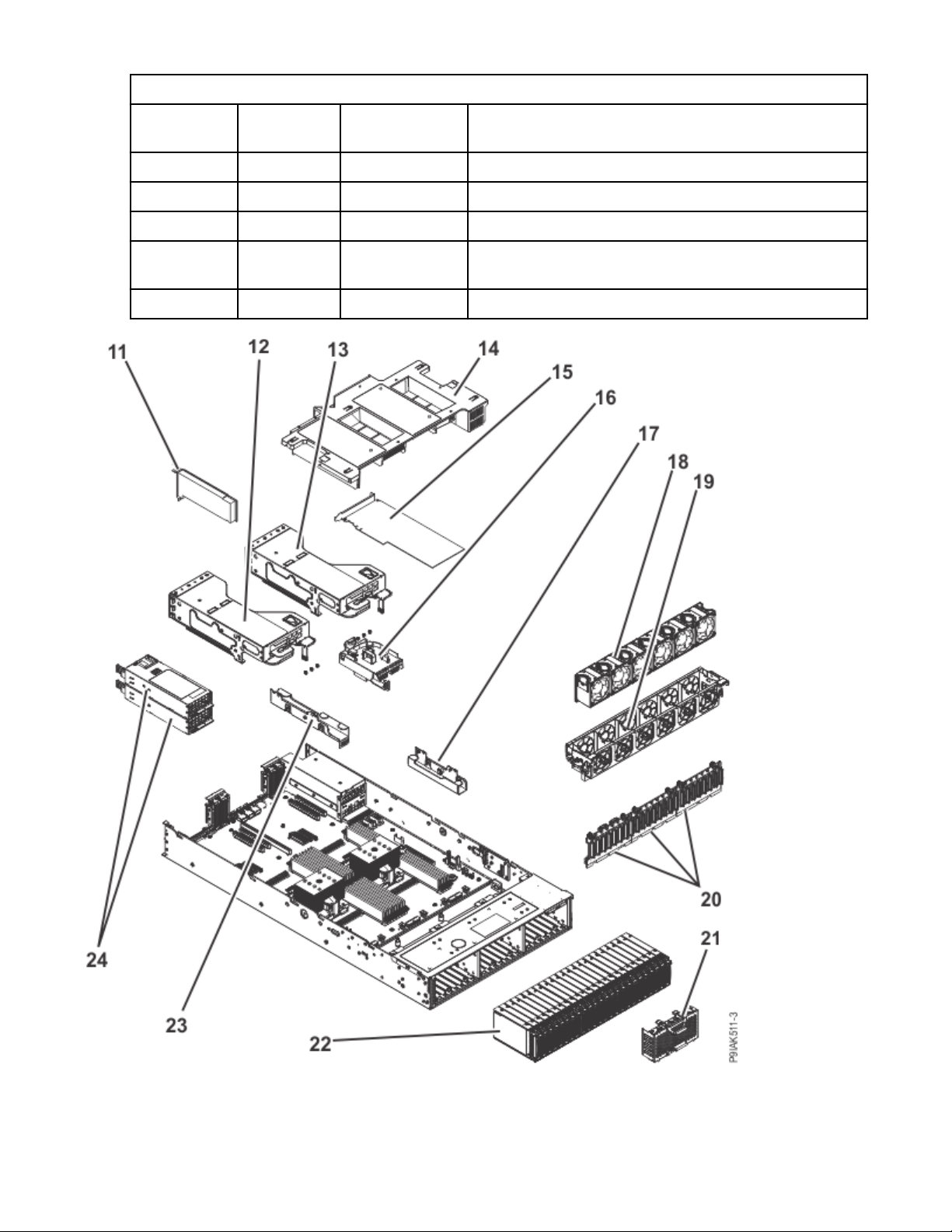

Figure 2. System parts

4 IBM Power System IC922 (9183-22X) Quick Install Guide

Table 2. System parts

Index number Part number Units per

assembly

Description

11 0-4 PCI adapters. Use the feature type of the adapter to nd

the FRU number in PCIe adapter information by feature

type for the 9183-22X system.

12 01EM888 1 PCIe riser (riser 1 for PCIe adapter slots 8, 9, and 10)

Note: For more information about riser locations, see

9183-22X locations.

13 01EM906 1 PCIe riser (riser 0 for PCIe adapter slots 3, 4, and 5)

Note: For more information about riser locations, see

9183-22X locations.

14 01EM841 1 Air baffle

15 0-6 PCI adapters. Use the feature type of the adapter to nd

the FRU number in PCIe adapter information by feature

type for the 9183-22X system.

16 01EM892 1 Power distribution board

17 01EM899 1 Cable holder (left)

18 01EM839 6 Fan

19 01EM838 1 Fan cage assembly

20 01EM891 0-3 SAS and SATA drive backplane (each supports 8 SAS or

SATA drives)

21 01EM852 0-3 8-bay ller for drives

22 01EM843 0-24 Drive holder (carrier and ller)

22 01LU995 0-24 600 GB SAS disk drive

22 01LU996 0-24 1.2 TB SAS disk drive

22 01LU997 0-24 2.4 TB SAS disk drive

22 02YC527 0-24 240 GB SATA solid-state drive

22 02YC528 0-24 960 GB SATA solid-state drive

22 02YC529 0-24 1.92 TB SATA solid-state drive

22 02YC530 0-24 3.84 TB SATA solid-state drive

22 02YC531 0-24 3.84 TB SAS solid-state drive

23 01EM900 1 Cable holder (right)

24 01EM867 2 Power supply

Parts 5

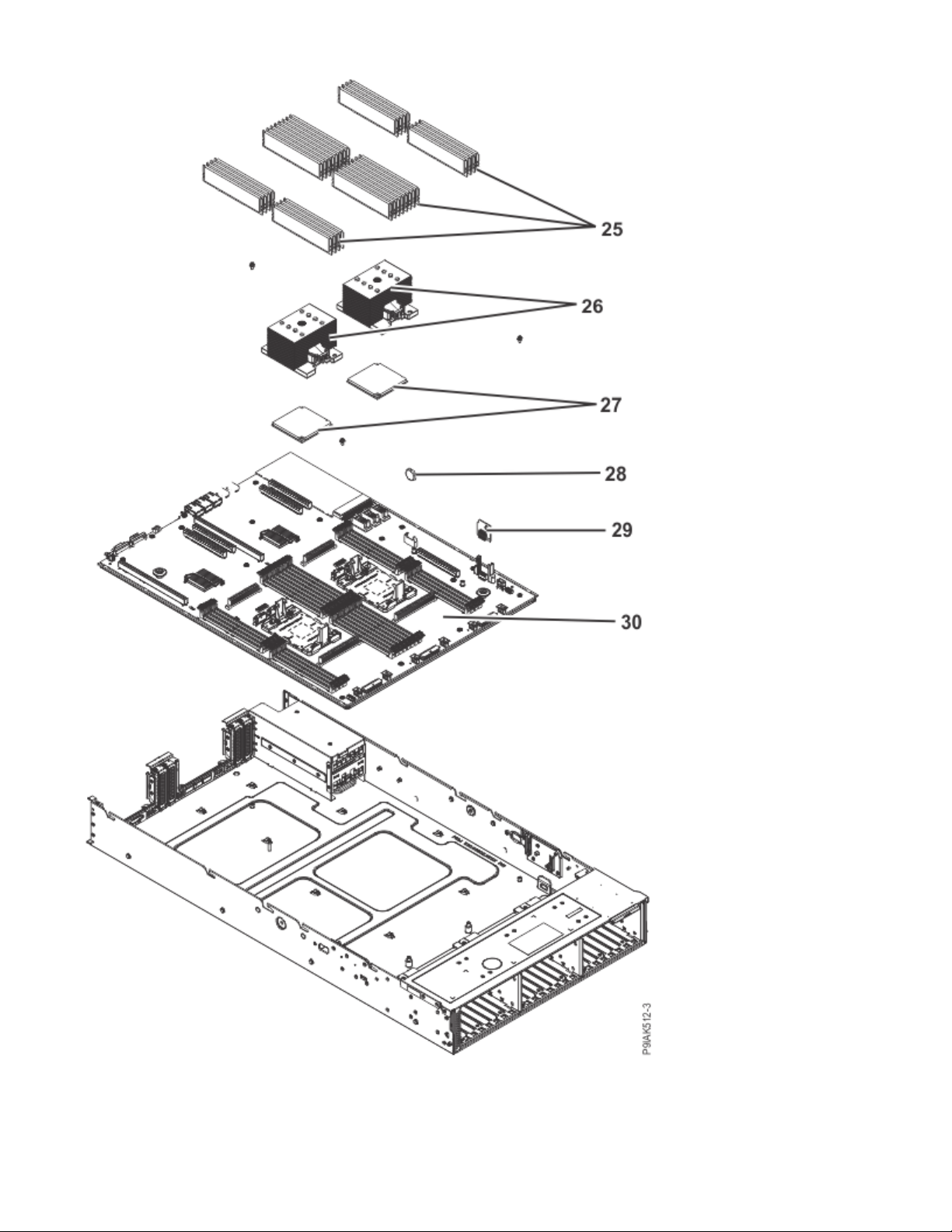

Figure 3. Additional system parts

6 IBM Power System IC922 (9183-22X) Quick Install Guide

Table 3. Additional system parts

Index

number

Part number Units per

assembly

Description

25 78P4197 4, 8, 12, 16, 24, or

16 GB, 2666 Mbps DDR4 RDIMM

25 78P4198 4, 8, 12, 16, 24, or

32 GB, 2666 Mbps DDR4 RDIMM

25 78P4199 4, 8, 12, 16, 24, or

64 GB, 2666 Mbps DDR4 RDIMM

26 01EM317 2 System processor heat sink kit (includes heat sink and

TIM)

27 01EM896 2 12 core 3.8 GHz system processor module kit (includes

system processor module, processor tray, 4 mm hex

driver, module replacement tool, air pump, TIM)

27 01EM897 2 16 core 4.0 GHz system processor module kit (includes

system processor module, processor tray, 4 mm hex

driver, module replacement tool, air pump, TIM)

27 01EM898 2 20 core 3.8 GHz system processor module kit (includes

system processor module, processor tray, 4 mm hex

driver, module replacement tool, air pump, TIM)

28 00RY544 1 Time-of-day battery (CR2032)

29 00VK865 1 Trusted platform module

30 01EM894 1 System backplane kit (includes system backplane on a

sheet, module removal tool, 4 mm hex key, air pump,

TIM, tweezers, CPU socket covers)

Table 4. Miscellaneous system parts

Description Part number Units per assembly

External USB DVD drive 01LU635 1

Parts 7
