IBM ThinkPad i Series Manuel utilisateur

ThinkPad Enhanced Drive

Adapter for Ultrabay 2000

User’s Guide



ThinkPad Enhanced Drive

Adapter for Ultrabay 2000

User’s Guide



ATTENTION

Refer to the documentation that comes with your computer before installing the

product.

Before using this information and the product it supports, be sure to read the

information under Appendix A, “Service and Support,” Appendix B, “IBM

Statement of Limited Warranty - Z125-4753-07 - 11/2002,” and Appendix C,

“Notices.”

NOTE

Be sure to keep your proof of purchase, because it might be required for warranty

services.

First Edition (October 2003)

US Government Users Restricted Rights – Use, duplication or disclosure restricted by

GSA ADP Schedule Contract with IBM Corp.

Contents

About the ThinkPad Enhanced Drive Adapter for Ultrabay 2000 . . . 1-1

Product description . . . . . . . . . . . . . . . . . . . 1-1

Registering your option . . . . . . . . . . . . . . . . . . 1-1

Installing the enhanced drive adapter . . . . . . . . . . . . . 1-2

Uninstalling the enhanced drive adapter . . . . . . . . . . . . 1-3

Appendix A. Service and Support . . . . . . . . . . . . . . A-1

Online technical support . . . . . . . . . . . . . . . . . A-1

Telephone technical support . . . . . . . . . . . . . . . . A-1

Appendix B. IBM Statement of Limited Warranty - Z125-4753-07 -

11/2002 . . . . . . . . . . . . . . . . . . . . . . B-1

Part 2 - Country-unique Terms . . . . . . . . . . . . . . . B-5

Part 3 - Warranty Information . . . . . . . . . . . . . . . B-19

Appendix C. Notices . . . . . . . . . . . . . . . . . . C-1

Trademarks . . . . . . . . . . . . . . . . . . . . . . C-2

Electronic emission notices . . . . . . . . . . . . . . . . . C-2

Federal Communications Commission (FCC) statement . . . . . . C-2

iv ThinkPad Enhanced Drive Adapter for Ultrabay 2000: User’s Guide

About the ThinkPad Enhanced Drive Adapter for

Ultrabay 2000

This user’s guide provides information on registering, installing, and

uninstalling the ThinkPad

Enhanced Drive Adapter for Ultrabay

™

2000.

Product description

The ThinkPad Enhanced Drive Adapter for Ultrabay 2000 (hereafter called the

enhanced drive adapter) enables you to use an Ultrabay Enhanced drive with a

computer that has an Ultrabay 2000 bay.

The option kit includes:

v This user’s guide

v ThinkPad Enhanced Drive Adapter for Ultrabay 2000 (shown below)

Registering your option

Thank you for purchasing this IBM

product. Please take a few moments to

better serve you in the future. Your feedback is valuable to us in developing

products and services that are important to you, as well as in developing better

ways to communicate with you. Register your option on the IBM Web site at

http://www.ibm.com/pc/register/

IBM will send you information and updates on your registered product unless

you indicate on the Web site questionnaire that you do not want to receive

further information.

Installing the enhanced drive adapter

To install the enhanced drive adapter in the Ultrabay 2000 bay of your

computer, complete the following procedure:

1. Lay the drive upside down on a flat surface.

2. Hold the adapter upside down and line it up with the drive so that the

mini connectors on the drive and adapter align, as shown in Figure 1-1.

3. Carefully slide the adaptor connector into the drive, while ensuring that the

short leg of the adapter interlocks with the side of the drive, as shown in

Figure 1-2.

4. Tighten the side screw Aclockwise until the long adapter leg is snug

against the drive. See Figure 1-3.

Figure 1-1. Aligning the connectors

Figure 1-2. Sliding connector into drive

1-2 ThinkPad Enhanced Drive Adapter for Ultrabay 2000: User’s Guide

Note: The adapter screws are knurled to assist with installing the adapter

by hand. A small screwdriver may be required to fully seat the

screws for installation.

Note: It is important to fully seat the side screw to prevent the drive from

becoming wedged in the bay.

5. Tighten the back screw Bclockwise until the adapter is snug against the

drive. See Figure 1-3.

Notes:

1. To install an Ultrabay enhanced slim drive in an Ultrabay 2000 bay, insert it

into the enhanced drive adapter first. Then you can install the enhanced

drive adapter in either of the following places:

v In the Ultrabay 2000 of a qualified ThinkPad computer, except a

ThinkPad T40 or T50 Series computer. To obtain a list of qualified

computers, visit the Web site at

http://www.ibm.com/support, and search under ″Enhanced Drive

Adapter.″

v In the Ultrabay 2000 of a ThinkPad Dock II.

2. To install a device into the Ultrabay 2000 bay of your ThinkPad computer,

or to remove it, refer to Access IBM, the on-board help system for the

computer.

Uninstalling the enhanced drive adapter

To uninstall the enhanced drive adapter, complete the following procedure:

1. Loosen the screws, shown in Figure 1-3, by turning them counterclockwise.

Note: The adapter screws are knurled to assist with uninstalling the

adapter by hand. A small screwdriver may be required to loosen the

screws.

Figure 1-3. Adapter screws

About the ThinkPad Enhanced Drive Adapter for Ultrabay 2000 1-3

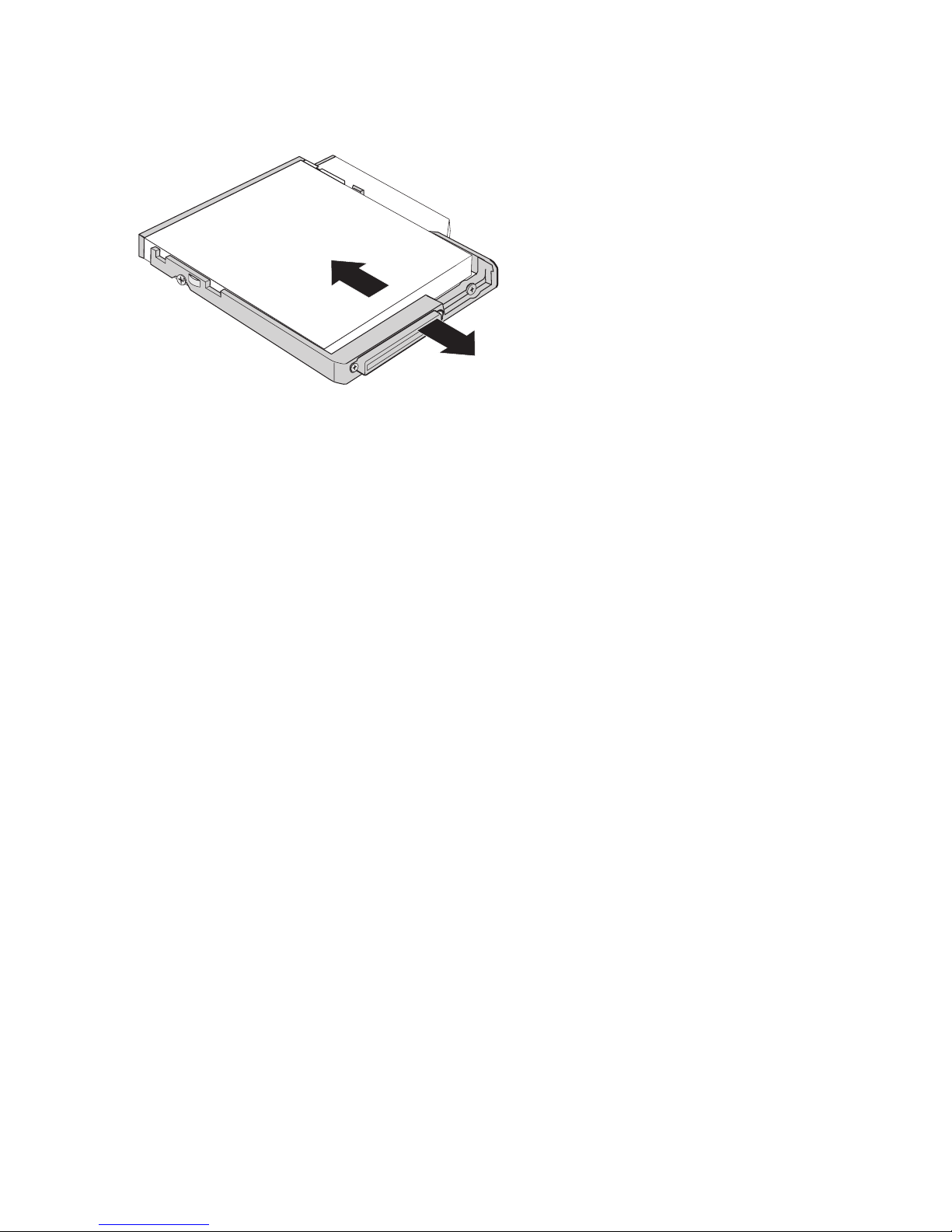

2. Gently pull the adapter and drive apart, as shown in Figure 1-4.

Figure 1-4. Removing the adapter from the drive

1-4 ThinkPad Enhanced Drive Adapter for Ultrabay 2000: User’s Guide
