Parts
a Base
b Floor pads x 4
c Base beam
d V-grips x 3
e Stanchion
f Stanchion sleeve
g Stanchion extender
h Long bolt with nut
i Safety latch
j Seatpost holder
Tools Required
3 mm Allen key
5 mm Allen key
10 mm wrench
k Height adjustment knob
l Short bolts with washers x 6
m Long bolts x 4
n Wheel anchor strap
o Square nuts x 4
Warning
For rear wheel use only. Use stand only on a flat, stable surface. Stand is designed to support a bike only–do not sit on bike while in
the stand. Use stand in a place where it is unlikely to cause obstruction, be knocked or bumped, or interfered with by young children.
警告(繁體中文) 1、本產品僅供後輪使用。2、本產品垂直使用時，無法使用帶有泥除的自行車使用。3、僅供在平坦、穩定的表面上使用本產品。
4、本產品僅限放置自行車，放置後請您不要坐在自行車上。5、請在不會造成阻礙或碰撞的地方使用本產品。6、請注意不要讓年幼的兒童去靠近。
www.ibera.info
USER MANUAL

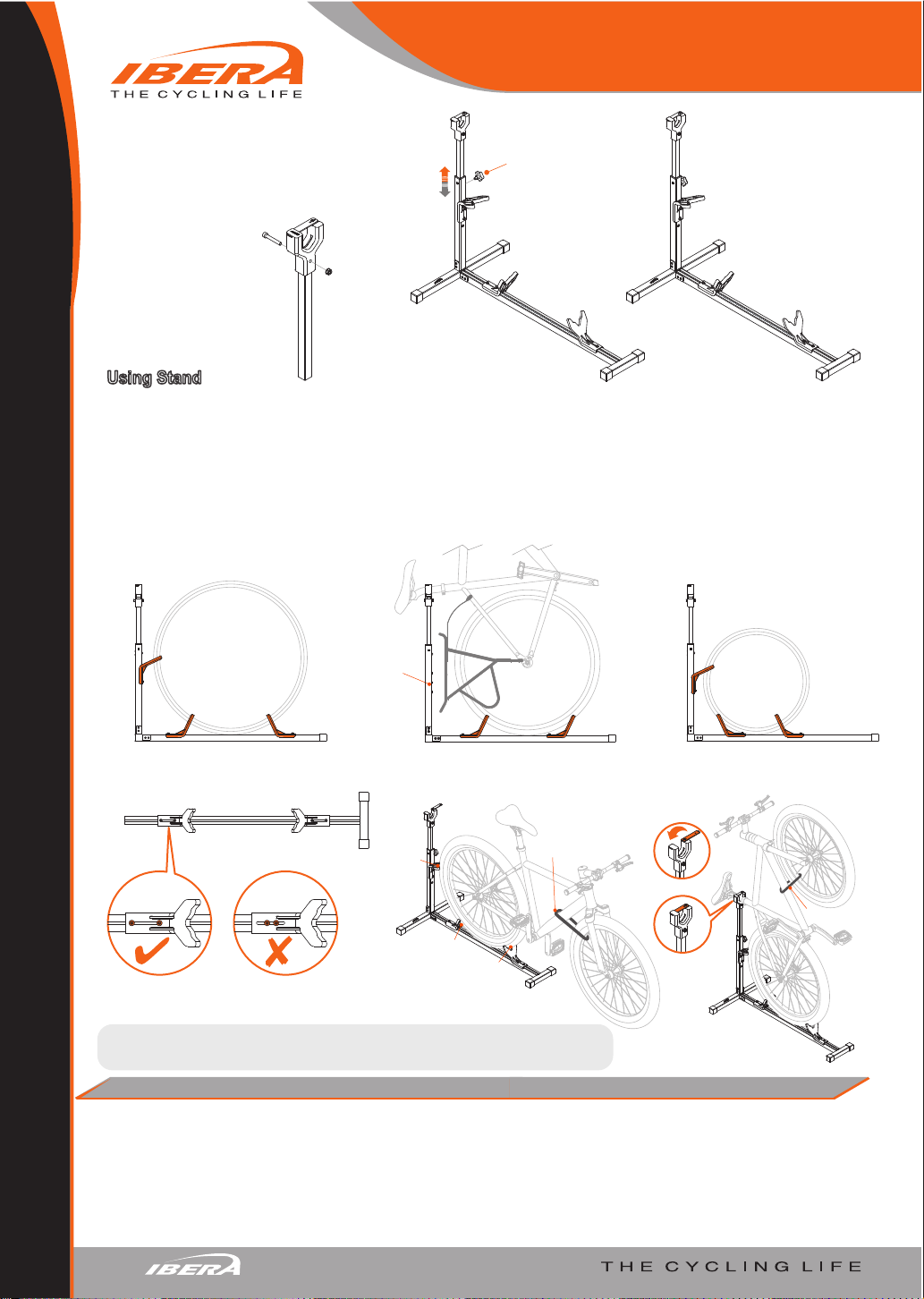

Two-way Bike StandTwo-way Bike Stand
For horizontal or vertical bicycle storage.
Max. Load 30 kg / 66 lb. (最大載重30 kg)
Compatibility
Wheel Size: Small: 20"; Large: 24" – 29".
Tyre Width: 2.3–6.6 cm (0.9–2.6")
Max. Seatpost Diameter: 25.4 – 35 mm
Not suitable for bikes with mudguards in
vertical mode.
2.3 – 6.6 cm (0.9 – 2.6")
Tyre width
Front
Rear
Upper hole
Centre hole Centre hole
Lower hole
fig. 5
a
k
m
l
j
i
h
b
c
e
f
g
For large bikes (24 – 29'' wheels) with rear carrier
Place one V-grip near front of base, angled forward over first pair of nuts. Screw two
short bolts into nuts, but do not tighten as further adjustment will be necessary.
Repeat this with other V-grip, again with it angled forward (fig. 3b).
For small bikes (20'' wheels)
Place one V-grip near front of base, angled rearward over first pair of nuts. Screw two
short bolts into nuts, but do not tighten as further adjustment will be necessary. Repeat
this with other V-grip, again with it angled rearward (fig. 3c).
3. Attach V-grips (x 2) to base. Select one of the options below:
For large bikes (24 – 29'' wheels)
Place one V-grip near front of base, angled rearward over first
pair of nuts. Screw two short bolts into nuts, but do not tighten
as further adjustment will be necessary. Repeat this with other
V-grip, this time with it angled forward (fig. 3a).
4. Attach base beam, logo facing upwards to base by inserting end of base into base beam bracket,
matching bolt holes on both. Screw two long bolts into holes on bracket side that is flat, tighten (fig. 4).
5. Press stanchion sleeve into top of stanchion, matching arch on sleeve with square and round bolt holes on stanchion (fig. 5).
6. Attach third V-grip to stanchion–for large or small bikes only (do not attach if you are using a large bike with a rear carrier).
For large
bikes
Place V-grip, angled upward over the upper and centre bolt holes, screw in remaining two short bolts, tighten (fig. 6a).
For small
bikes
Place V-grip, angled upward over the centre and lower bolt holes, screw in remaining two short bolts, tighten (fig. 6b).
7. Attach stanchion to base beam by inserting its bottom end into the vertical bracket–V-grip facing frontward, matching the bolt holes
on both. Screw two long bolts into holes on bracket side that is flat, tighten (fig. 7).
1. Attach floor pads to base and base beam (fig. 1).
2. Insert square nuts–flat side up–into base slot. Slide two nuts
toward front of base, leaving remaining two nuts near rear (fig. 2).
Assemble StandAssemble Stand
Instructions
fig. 4
V-grip positioning for
large bikes with rear carrier
fig. 3b
For large bikes
fig. 6a
For small bikes
fig. 6b
V-grip positioning
for small bikes
fig. 3c
n
o
d
fig. 1 fig. 2
fig. 7
V-grip positioning
for large bikes
fig. 3a
Arch
Square & round
bolt holes
