i3 International Di721 Manuel utilisateur
Di721/Do721-series
User Guide
(Di721, Di721B, Di721R, Di721RB, Di721P, Di721RP, Di721BP, Di721RBP
Do721, Do721R, Do721P, Do721RP)
CONTENTS
1. Warnings and operation notes................................3
2. Unpacking................................................................5
3. Installation..............................................................6
4. Configuration...................................................12
5. OSD Settings.........................................................15
6. Specifications..............................................20
Before attempting to connect or operate this product, read these instructions carefully.
Save this manual for future use.
2
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
Di721/Do721-series Camera Quick Start Guide
COPYRIGHT ©2012 by i³ International, Inc. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including but not limited to, photocopying,
recording, or by any information storage or retrieval system, without the prior
written permission of the copyright owner and the publisher.
Di721/Do721-series is a registered trademark of i³ International Inc.
Disclaimer
This quick start guide is provided as is, without warranty of any kind, expressed or
implied, including but not limited to performance, merchantability, or fitness for any
particular purpose. Neither i³ International Inc. nor its dealers or distributors shall be
liable to any person or entity with respect to any liability, loss, or damage, caused or
alleged to have been caused directly or indirectly by this information.
Furthermore, i³ International Inc. reserves the right to revise this publication, and to
make changes to the content at any time, without notice.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Address:
i³ International Inc.
780 Birchmount Road, Unit 16
Scarborough, ON M1K 5H4
Canada
Contact us:
Tech Support: 1.877.877.7241
Web Site: www.i3international.com
Table of Contents
1. Warnings and operation notes
2. Unpacking
3. Installation
4. Configuration
5. OSD Settings
6. Specifications
3Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
1. Warnings and operation notes
Thank you for purchasing i³ Di721/Do721-series camera.
If the system needs to be modified or repaired, contact a certified i³ International
Dealer/Installer. When serviced by unauthorized technician, the system warranty
will be voided. Should you have any problems or questions regarding our products,
contact your local i³ International Dealer/Installer.
1.1 Precautions
Installation and serving should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain
your warranty.
When installing your Di721/Do721 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below 10° Celsius or 14° Fahrenheit and above 50° Celsius or
122° Fahrenheit.
Note: Do721-series models will operature in temperatures of up to -40° Celsius
(-40° Fahrenheit) as long as the initial installation had been carried out in the
temperatures of above -10° Celsius (14° Fahrenheit).
WARNING! The use of CSA certified/ UL Listed Class 2 power
adapter is required to ensure compliance.
WARNING! To reduce the risk of fire or electric shock, do not
expose the product to rain or moisture.
4
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
1.2 Power Supply
Ensure the supplied voltage meets the power consumption requirements of this
camera before powering the camera on. Incorrect voltage may cause irreparable
damage to the video camera and will effectively void the camera warranty.
1.3 Cleaning
• For maximum optical clarity, the camera or lens must remain clean. Use a soft,
dry cloth to remove finger prints and dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened
with a small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finish.
1.4 Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT
disassembles the camera. Refer servicing to qualified personnel only.
5Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
2. Unpacking
Before You Begin Please read this guide carefully before you install the
dome camera. Keep this guide for future reference.
Check that the items received match those listed on the order form and packing slip.
The dome camera packing box includes, in addition to this manual:
1. Flat Head Screw (Tapping Type) x4
2. Plastic Anchor x4
3. Flat Head Screw (Machine Type 26L) x3
(Di-series only).
4. Security Tort wrench x1
5. O-rings x4 (Do-series only).
6. 2nd video monitor output cable x1
7. Rubber gasket x1 (Do-series only).
8. Guide Pattern sticker x1
9. Flush Mount template (the box lining) x1
10. Fully Assembled Camera x1
If any parts are missing or damaged, contact the dealer you purchased the camera
from.
1 2 3 4
5
Lens Direction
Note: Mounting surface material
determines screw type. Refer to manual.
GUIDE PATTERN
8
1 2 3 4 5
6
7
6
M
9
6
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
3. Installation
The dome camera is ideal for indoor installation in commercial and residential
environment. With 3-axis mount support, it provides flexible installation on a ceiling
or wall even at an angle. The dome camera is a fully integrated enclosure with
camera and lens.
Note: The six holes on top of the Do-series models are not drilled all the way through
for moisture control and the rubber corks are replaced with metal caps with rubber
washers.
3.1 Dimensions
137mm
130mm
63mm
84mm
63mm
Figure 3.1 Camera Parts
8
a
b
7Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
Figure 3-1
1. Conduit holes used for surface run power/video connector
a. Side conduit hole (1/2”).
When using outdoors, sealant must be used to maintain the IP67 status.
b. Top conduit hole (3/4”) (can also be used for pendant mount).
When using outdoors, sealant must be used to maintain the IP67 status.
2. Bottom case
3. Camera Base
4. Dome cover
5. Focus lever
6. Zoom lever
7. Video output connector
8. 24 VAC / 12 VDC power input connector (red +, black -)
3.2 Routine Maintenance
• The dome cover is an optical part. Use a soft and dry cloth to remove any
fingerprints and dust.
• Clean the camera housing with a soft and dry cloth. For more stubborn marks,
use a cloth dampened with a small quantity of neutral detergent, then wipe dry.
3.3 Disassembling the Camera
Before you mount and adjust the camera, follow these steps to disassemble the
camera.
1. Use a Security Torq Screwdriver to remove the dome cover.
Figure 3.2 Disassembling the camera
8
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
1. Bottom case
2. Camera base
3. Tilt adjustment bracket
4. Inner liner
(Not present on Di721R/
Do721R model series)
5. Dome cover
6. Anti drop hook
3.4 Connecting the wiring
Follow Figure 3.1 to connect the video output connector 7, connect the power input
connector 8 (24VAC/12VDC).
Figure 3.3 Disassembling the camera
2. Loosen the 3 screws on camera base (#2).
CAUTION! For DC power supply use, ensure electrical polarity is
correct to avoid malfunction and/or camera damage.
CAUTION! Do not use volatile solvents such as alcohol, benzene
or thinners, as they may damage the surface finish.
3.5 Mounting the Camera
The following section explains how to install either a (1) surface mount or (2) flush
mount. Select the mount appropriate to your application.
9Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
3.5.1 Surface mount
1. Attach the Guide Pattern Sticker to the wall or ceiling.
2. Drill two holes on the mounting surface and insert the plastic anchors (#1) into
the holes.
3. Do-series only: Complete drilling 2 holes on the base of the camera to match the
2 holes drilled on the mounting surface.
(Recommendation: Surface conduit should point down to create a drip-loop.)
4. Do-series only: Remove the protective film from the black rubber gasket and
adhere to the base of the outdoor model cameras.
5. Secure the bottom case to the wall or ceiling with the Flat Head Screws
(tapping type) (#2).
For your convenience, the holes on the outdoor housing are started but not
drilled all the way through for moisture control.
Note: Depending on the material of your mounting surface, you may require
different screws and anchors than those supplied.
1. Plastic Anchors
2. Flat Head Screws
(Tapping Type)
Note: outdoor
screws come with
O-rings included.
Note: The Do-series
cameras come with a
large rubber gasket to
provide the seal between
the mounting surface and
the camera base.

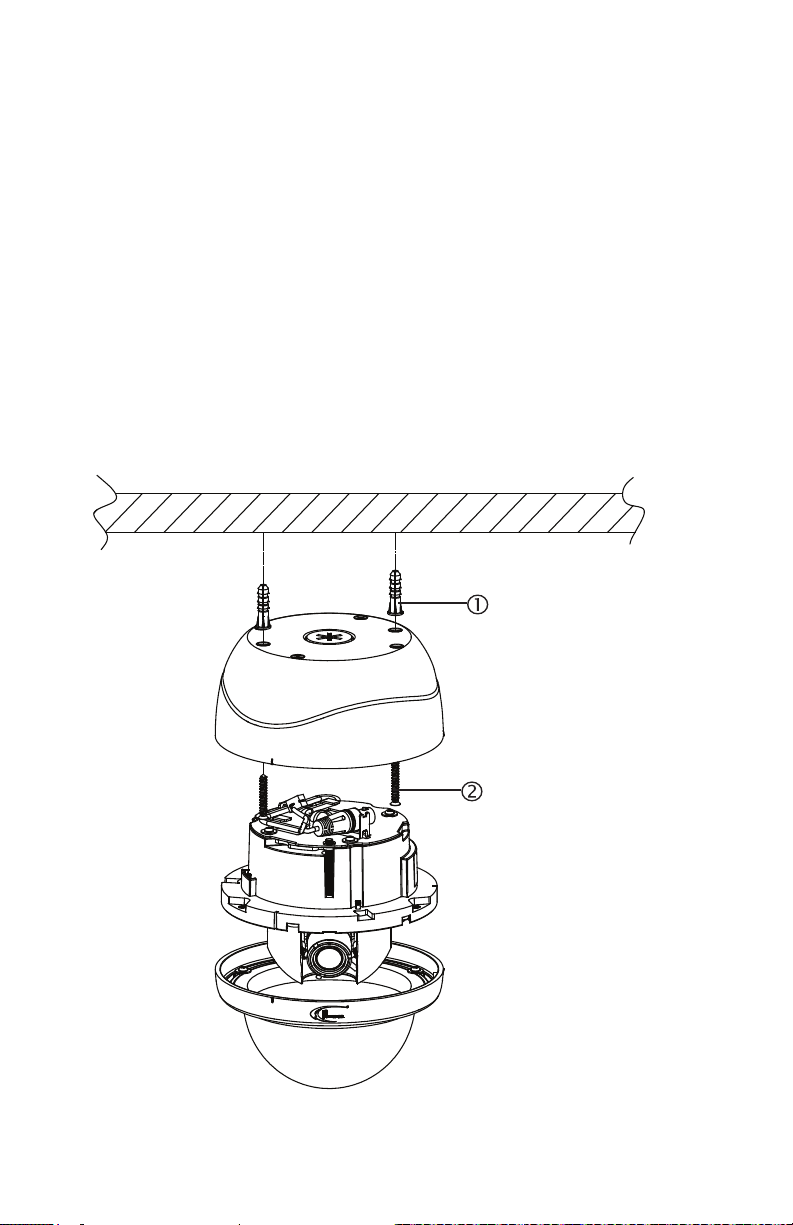

Figure 3.4 Camera Surface Mounting
10
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
3.5.2 Flush mount (Indoor installations only)
1. Prepare the mounting surface.
Use the Mounting Template (#6 on unpacking list on page 5) to cut a hole into
the mounting surface.
2. Remove the bottom case of the camera. (Refer to Figure 3.2 on page 7)
3. Insert camera into the hole
4. Turn screws (1) clockwise to adjust the wing tabs. Tighten the tabs securely
against the surface.
1. Wing Tab Adjustment Screws
(2 silver screws)
2. Wing Tabs
Figure 3.5 Camera Flush Mounting
