10.4” True FLAT LCD Monitor (USB Interface)

MODEL: KKF1040B

i-Tech Company LLC

TOLL FREE: (888) 483-2418

EMAIL: info@itechlcd.com

WEB: www.iTechLCD.com



(

)

Itwillcausemalfunctionifthe monitor is operating with incorrect power voltage. Do

not exposure this unit in the rain or moisture environment to reduce the risk of fire or electric shock.

Contents

I. FCC Warning Statement.............................................................................................2

II. Introduction..................................................................................................................3

Features...............................................................................................................................................................3

Unpacking the monitor.......................................................................................................................................3

III. Installation....................................................................................................................4

I/O placement .....................................................................................................................................................4

Control Buttons ..................................................................................................................................................4

Touch Driver installation....................................................................................................................................5

IV. Installation Guide.........................................................................................................7

V. Troubleshooting .........................................................................................................15

VI. Mechanical dimension...............................................................................................17

VII. Product General Specification..................................................................................18

Warning!

I. FCC Warning Statement

WARNING

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Notice:

(1) An Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent

interference to the nearby radio and television reception. It is essential that only the supplied power

cords are used.

(2) Use only shielded cables to connect I/O devices to this equipment.

(3) Changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

1 2

II. Introduction

The 10.4" True Flat Monitor is color TFT LCD monitors, with compact and ecological design.

The power consumption is only 2.5W with LED backlight.

Features

-Optimal display resolution 800 * 600

-No ventilation hole design

-Light weight, only 800g physically for 10.4" True Flat Monitor.

-VESA 75 * 75 mm wall mount standard

-Integrate with resistive touch

Unpacking the monitor

-Put the monitor on a clean surface; make sure the box in upright position.

-Remove packing materials from inside of box.

Check accessory

Please make sure the entire accessories are included:

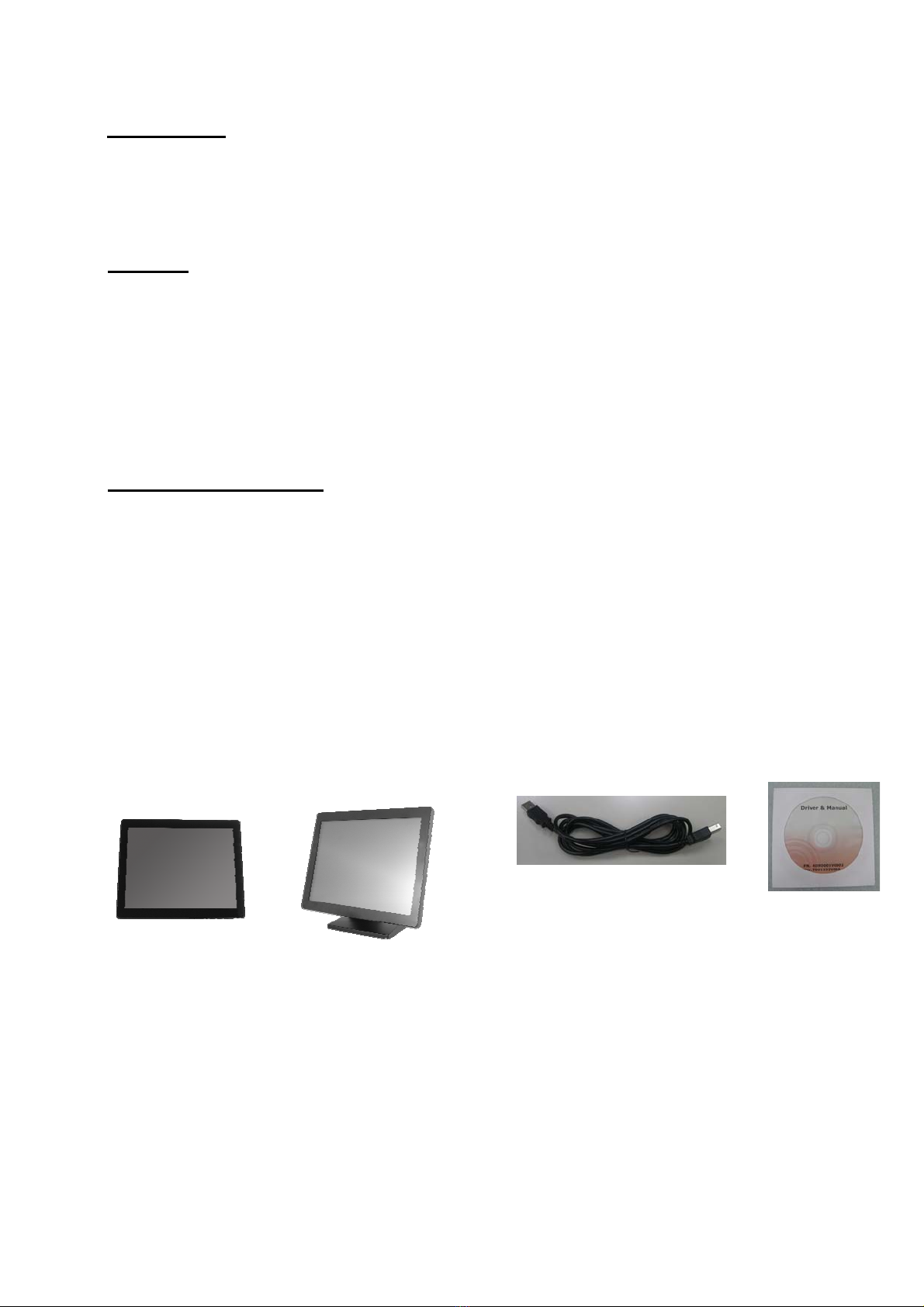

1. LCD Monitor

2. USB Cable (for Touch model *2 )

3. Driver CD

III. Installation

I/O placement

Control Buttons

▲ UP / ▼DOWN key：When adjustment item is selected, the two keys are defined to

decrease or increase the value of brightness.

PC USB Monitor

USB Cable

Touch Driver installation （for Touch model ）only

1. Double click “setup.exe” from driver menu 2. Click “next” from welcome window

3. Click “next” from choose destination location window 4. Click “next” from ready to install the program

5.Click“next”fromsetuptype 6.Click“finish”whensetupcompleted

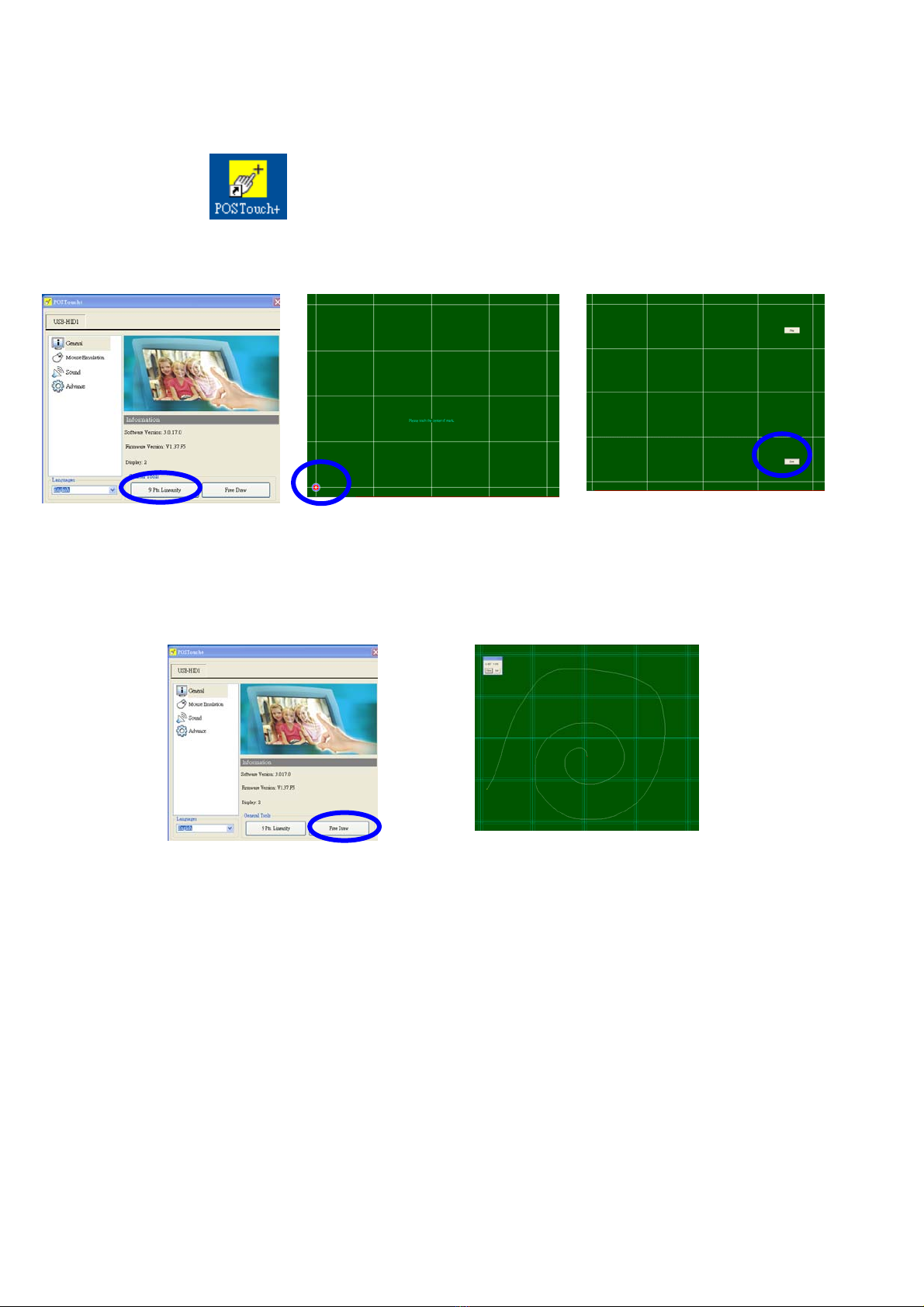

Calibration procedures:

1. Double click “POS Touch+” icon to run calibration function

2. Follow 9 points linearity calibration procedures and save the data

3. Follow free draw calibration

4. Exit calibration menu

5. Reboot PC

IV. Installation Guide

PC requirements

USB Monitor software can be used on PCs, from Netbooks, Notebooks/Laptops to Desktops. The driver

will run on processors ranging from Atom N270 based PCs, basic single Core CPUs, and of course the

latest Dual, Quad Core and Core i3/i5/i7 CPUs.

The performance of the software is dependent upon the processing power available, as well as the

Operating system in use. More capable systems offer higher performance.

DisplayLink software is available for PCs running one of the following Windows Operating Systems:

Windows 7 (32-bit or 64-bit)

Windows Vista with Service Pack 1 or 2 (32-bit or 64-bit)

Windows XP Home or Professional (including Tablet edition) with Service Pack 2 or 3

Windows 2000 with Service Pack 4

Note: 64-bit editions of XP are not supported. No Windows Server editions are supported. Mac OS X

support can be found at http://www.displaylink.com/mac

Recommended typical system requirements are:

Windows 7 / Windows Vista

For Windows 7, the Windows Experience Index (WEI) is a useful measure of hardware level. The

WEI is accessible from Computer > Properties, or from Control Panel > System.

The recommended typical hardware requirements for the PC are:

WEI score of at least 3 in the ‘Graphics; Desktop performance for Windows Aero’ category.

Overall WEI score of at least 3 as recommended by Microsoft.

At least one USB 2.0 port.

30 MB of free disk space.

Computer screen for use with the DisplayLink device, if it is not integrated.

Network access for software downloads, or access to a CD-ROM drive.

If the PC specification is below this, performance will be lower (or CPU loading higher than acceptable).

Windows XP/2000

For 1-2 monitors, business usage, productivity target. This may not provide full frame rate

DVD playback at full screen.

o1.2 GHz Single Core CPU

o512 MB RAM

For 3 monitors where 1 could run DVD video while also targeting productivity and business

apps. Will support only 1 video of DVD resolution at full screen:

o1.6 GHz Single Core CPU

o1 GB RAM

For 6 screens where 1 screen can run full screen DVD video:

o1.8 GHz Core Duo

o1 GB RAM

At least one USB 2.0 port

30 MB of free disk space

Computer Screen for use with the the DisplayLink device, if it is not integrated

Network Access for software downloads, or access to a CD-ROM drive

Graphics Card Support (Windows Vista/Windows 7)

On Windows Vista and Windows 7, DisplayLink software interacts closely with the primary graphics

card. DisplayLink support and test a single graphics card (GPU) installed in a PC. All major GPU

vendors Intel, AMD, NVidia and VIA are supported.

Issues may be found with PCs with multiple graphics cards, or other graphics card combinations, and

DisplayLink software. The following documents the combinations of testing and known

configuration support.

Vista/Windows 7 on version 5.2

Switchable Graphics (AMD/Intel)

Untested on Vista may be used at user’s own risk

On Windows 7 unsupported

Hybrid Graphics / Hybrid SLi / Hybrid Crossfire

Unsupported

SLi machine in SLi mode:

Untested on Vista may be used at user’s own risk

On Windows 7 unsupported

SLi machine in non-SLi mode (i.e. with 2 or more identical GPUs):

Unsupported

Crossfire

Unsupported

Other machines with 2 GPUs where only 1 is active at once – reboot needed to switch

Supported

Graphics Card Support (Windows 2000/XP)

All graphics cards are supported on Windows 2000/XP.

Supported Languages

The following languages are supported in version 5.2, on all supported operating systems:

Arabic

Bahasa Indonesian

Bulgarian

Chinese (Traditional)

Chinese (Simplified)

Croatian

Czech

Danish

Dutch

English

Finnish

French

Greek

German

Hungarian

Italian

Japanese

Korean

Norwegian

Polish

Portuguese

Russian

Slovak

Slovenian

Spanish

Swedish

Turkish

For unsupported languages the default language is English.
