SPECIFICATION:

LCD Panel 23.8"

Resolution 3840x2160

Brightness LED-300nits

Signal Input VGA+2*HDMI signal input ports, with M12 metal type connector Handmade cables

with heat-shrinkable PE tubing on display end

*** Note: Only HDMI1 supports 3840x2160@60Hz, other inputs (VGA & HDMI2) support

FHD@60Hz***

Touch Projected Capacitive Touch, USB interface

Color Black

Temperature Working Temp(0~50°C), Storage Temp(-10~60°C)

Mounting VESA 100x100 mm (Extra Mounting-BK with Damper)

Power 12 & 28VDC input with Terminal Block [ MIL-STD-704E ]

MIL Specs EMI / EMC: MIL-STD-461E Airborne application

Vibration / Shock: MIL-STD-810

Chassis LCD Display for Airborne application LCD Panel, 23.8"-

3840x2160, LED-300nits VGA+2*HDMI signal input ports, with M12

metal type connector Handmade cables with heat-shrinkable PE

tubing on display end Projected Capacitive Touch, USB interface

Model: EMCMW2380-4K-PCAP-V1

i-Tech Company LLC

TOLL FREE: (888) 483

2418 • EMAIL

inf[email protected]om

• WEB:

www.iTechLCD.com

FEATURES:

 Modular mechanism design provides flexible product configuration and easy maintenance.

 Optional to built-in touch screen for interactive application.

 Available with auto-brightness sensor offers application in day and night.

 VGA connector with optional AV,SV,AV-Looping

 Complete custom design/solution for OEM customers

MILITARY CHASSIS LCD DISPLAY

Power Input: 12VDC to 28VDC, 30 Watts

HDMI 1: 3840x2160@60Hz

HDMI 2: 1920x1080@60Hz

VGA: 1920x1080@60Hz

USB: USB interface of PCAP touch (2 points)

MILITARY CHASSIS LCD DISPLAY

MECHANICAL DRAWING:

LCD OPTIONS:

LED Backlight Options

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.

VIDEO Input Options:

For Video inputs options:

DVI, DVI+HDMI, SVideo+AV, SVideo+AV+DVI, AV+Looping, DVI+AV+Looping, HD-SDI, BNC(PAL/NTSC)

Optical Bonding Options

- Optical Bonding provides the best reduction of ambient light washout of any commercially

available enhancement technology.

- Optical Bonding has a lower cost than most other competing technologies.

- Optical Bonding offers superior ruggedization, enhancing the display durability under vibration,

shock and other environmental extremes.

RS-232 Remote Control Options

Remote Control Protocol: Command Code to set system

9-36V DC Input Options

iTech offers a selection of DC input from 9V to 36V

Light Sensor and Motion Sensor Options

iTech LCD offers Light and Motion Sensor

Privacy Filter

Front Glass Options:

- Anti Reflective AR Glass 3mm

- Anti Reflective AR Glass 6mm Vandal-Resistance

- Anti Reflective AR Glass 8mm Vandal-Resistance

- Anti Glare AG Glass 3mm

MILITARY CHASSIS LCD DISPLAY

i-Tech Company LLC

TOLL FREE: (888) 483

2418 • EMAIL

inf[email protected]om

• WEB:

www.iTechLCD.com

1. Main Menu :

If push the “ MENU” key the screen will appear this main menu page, you can use the

“UP” or“ADJ. +” AND “Down” or “ADJ. –“ key ( Shown in Pic1 ) to select the function you

need.

The end of this page will be shown the working resolution and frequency.

a. Display Mode

Press the and buttons to move between options.As you move from one icon to another,

the option name is highlighted.

Choose the Display Mode for 1P , 2P

Display Mode

1/2P Right Left

1/2P Up down

PIP

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

OSD MANUAL

b. Display Function

Display Rotate, Set to rotate the OSD menu

OSD Rotated: OFF / 90 / 270

c. Picture

b-1 Backlight

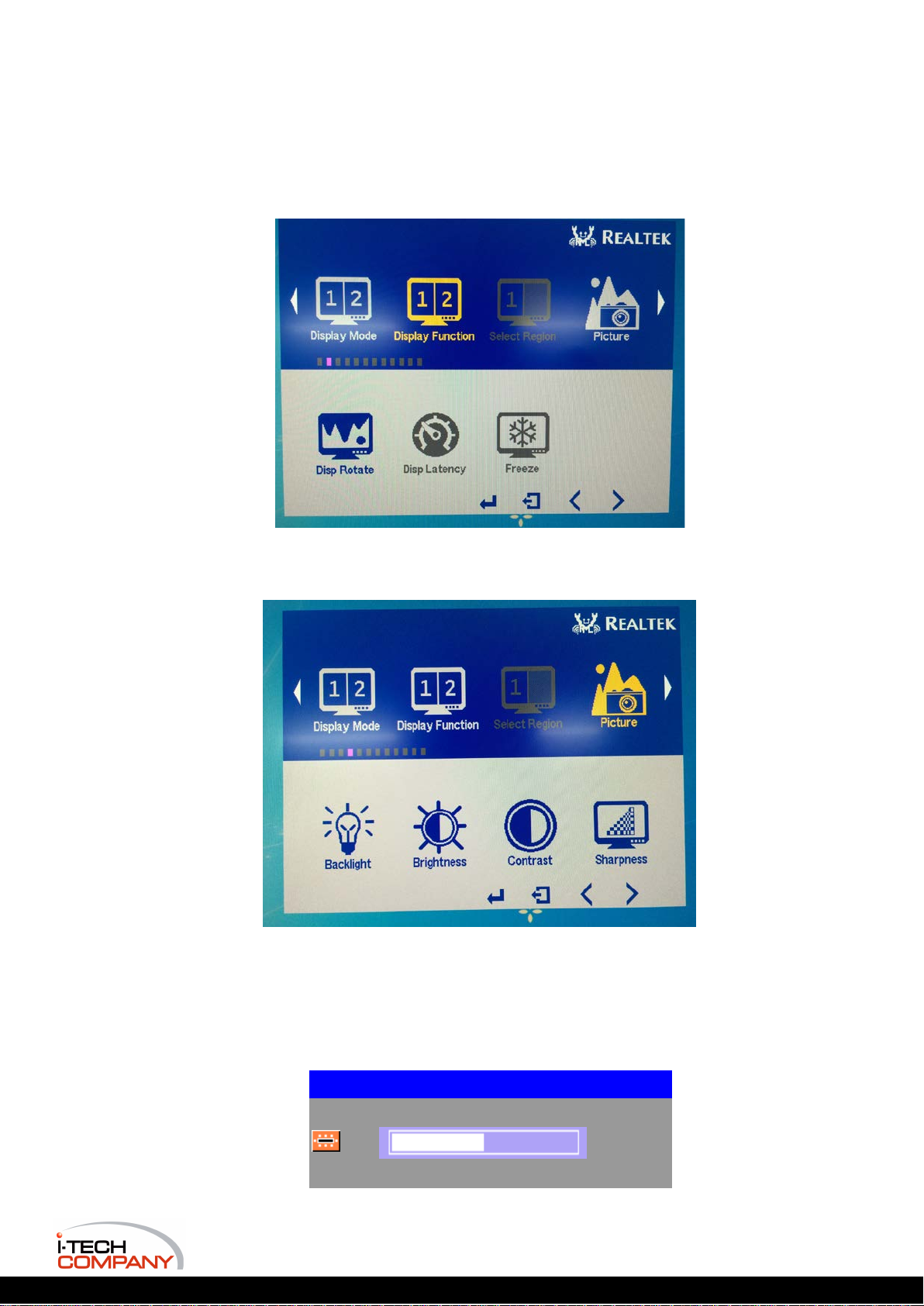

If select BackLight function, you can push ADJ+ orADJ- key to increase or

decrease backlight current of the inverter.

BackLight

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

c-2. Brightness

If select Brightness function, you can push ADJ+ or ADJ- key to increase or decrease

offset setting.

c-3.Contrast

Adjusts the image CONTRAST in relationship to the background. Press“< ” or “>” to

adjust.

c-4. Sharpness

Adjusts the crispness of the image. Press“< ” or “>”to adjust.

Brightness

Contrast

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

d. Analog

Select Screen Setting function , that will into the sub-page to adjust display’s

function of the picture.

d-1. Auto Adjust

Select this function on OSD MAIN MENU and push the MENU key.

In this function, that will be activated the auto adjusting for the picture.

Auto Adjust

d-2. H-Position

If select H Position function, you can pushADJ+ orADJ- key to shift to Right or Left of

the picture.

H-Position

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

d-3. V-Position

If select V Position function, you can push ADJ+ or ADJ- key to shift to Up or Down of

the picture.

d-4. Clock

If select Clock function,you can push ADJ+ or ADJ- key to increase or decrease video

H Size of the picture.

e. Color

e-1. Panel Uniformity: Uniform the brightness and colour temperature was across the

screen, as well as identify any leakage from the backlight in dark lighting conditions.

e-2. Gamma: GAMMA SELECTION Select a display gamma value for best picture quality.

e-3. Temperature:Adjusts the color temperature of the entire screen.A low color

temperature will make the screen reddish. Ahigh color temperature will make the screen

bluish.

V-Position

Clock

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

f. Advance

If your monitor does not operate normally or cannot be turned on, please check the

following troubleshooting questions. Remember also to check any other connected

electronic device, such as DVD or Blu-ray player to pinpoint the problem.

f-1. Aspect Ratio: Adjust theAspect Ratio settings in the SETUP menu or press the

ASPECT button on the remote control. Pictures appear in wrong ratio

g. Signel Input source

Use the Input Source menu to select between different video inputs that are be

connected to your monitor.

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

i-Tech Test Report Page 1

Test Report

Customer: ElectroWing Technologies Pvt. Ltd.

Customer PO No: EWT/PO-027/2019-2020

i-Tech Sales Order No: 108965

Part No: ECH1040XWT-TR x 3 pcs and EWT-EMCMW2380-4K-PCAP-V1 x 1 pcs

Burn in Test

Testing Program: checkit (4 hours)

Serial No.

Burn Test

S/N # 8119110000329-108965 to 8119110000331-108965

√

S/N# 8119110000328-108965

√

Tested by: _________________ Date: _________________

Approved by: ______________ Date: _________________

i-Tech Company LLC.

42978 Osgood Road. Fremont CA 94539

Tel:1-888-483-2418 / (510) 226-9226

Fax: (510) 372-2736

Email: sales@i-techcompany.com

Website: www.itechlcd.com

Alan Chung

Felipe Briones

12/19/2019

12/18/2019
