I-Tech BDPW3D1730 Manuel utilisateur

User Manual

Model: BDPW3D1730

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com Modified: 10-06-21

２

Specifications

Model No BDPW3D1730

Construction Rugged Aluminum Construction with shock absorbing rubber corners

Display 3x 17.3" LCD Monitor, 1920x 1080 resolution

nti-

eflection tempered strengthen glass

VGA 3* AD conversion board support DisplayPort, VGA and HDMI outputs

for 3 screens

Power Supply Built-in 60W, 90~264 VAC power supply

Connector Each screen offers DisplayPort, VGA and HDMI connectors

Speaker Built-in amplified 2x 3W speakers

Dimension 444x 310x 158.4D mm (W x H x D)

Weight 10 kgs

Environmental Factors

Operating Non-Operating

Temperature 0°C~50°C -20°C~60°C

Relative Humidity 10%~90% 10%~95%

Approval CE, FCC, RoHS

Modified: 10-06-21

３

Accessory Kit SKD

Qty

BDPW3D1730 Portable Computer Chassis 1

User’s Manual 1

Power Cord 1

Locking bracket 2

DP-to-DP cable or VGA-to-VGA cable or HDMI-to-HDMI cable Total: 3

2x Locking brackets DisplayPort to DisplayPort cable

Standard Accessory Kits

Modified: 10-06-21

４

Version: 2018.04

Features:

●All-in-one design multi-screen portable solution

●Built-in 3x 17.3”, 1920x 1080 LCD display, with anti-reflection tempered glass

●BDPW3D1730 integrates with BPCW3D1730 to transform to 6-screen or 9-screen portable computer

●Creates a stretched desktop with a max. resolution of 5760x 1080 (3x 1920x 1080)

●Open an application on each display or span one across 3-screens

●Built-in 60W power supply

1.0 Introduction

An BDPW3D1730 integrates into

BPCW3D1730 to transform to 6-

screens

2* BDPW3D1730 integrate into

BPCW3D1730 to transform to 9-

screens

Modified: 10-06-21

５

.0 Getting Started

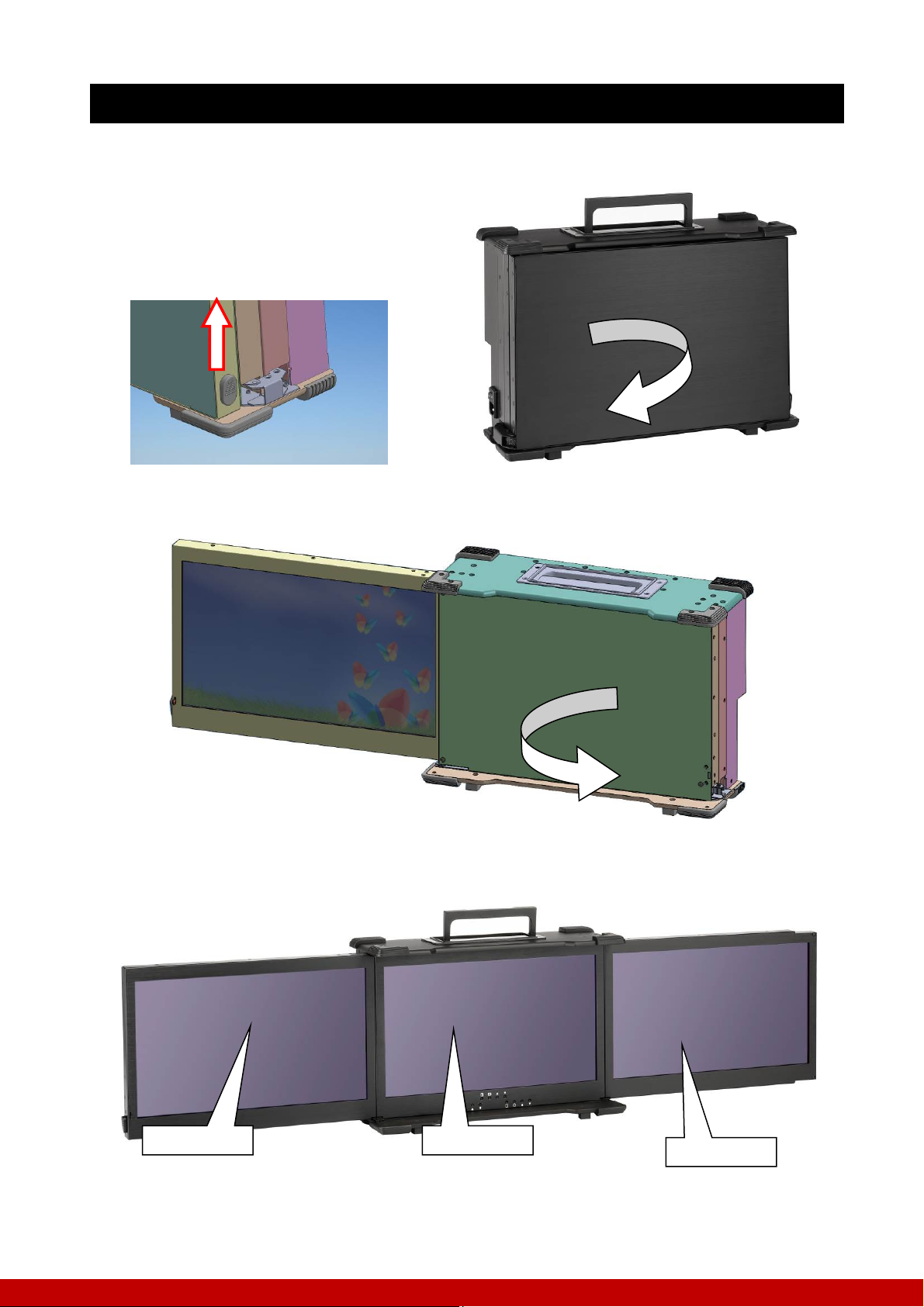

1. Lift the lever on the bottom right of the outer LCD to release lock and open the first LCD

panel from the main unit by swinging the LCD fixture toward the left

2. Open the second LCD from the main unit by swinging the LCD fixture toward the right

3. Once both the left and right LCD are opened. You will be able to view 3 LCD in full view.

2.0 Operation

LCD 1 LCD 2 LCD 3

Modified: 10-06-21

６

4. Integrate BDPW3D1730 to BPCW3D1730 model by 2x locking brackets

5. You also can integrate another BDPW3D1730 to become 9-screens

2x locking brackets

Modified: 10-06-21

７

6. There are DisplayPort/ VGA/ HDMI connectors in the back of BDPW3D1730 for 3-screens.

7. Connect the DisplayPort/ VGA/ HDMI cable to graphic card

Left LCDMiddle LCDRight LCD

Modified: 10-06-21

８

8. Connect the power cable outlet into the power supply unit in the main chassis and switch the

power button to turn on the BDPW3D1730

9. Front panel button control allows you to adjust the LCD via OSD. Each individual LCD has its

own set of OSD control.

Insert Power Cord

Switch to Power On

LCD OSD MANUALLCD OSD MANUALLCD OSD MANUAL

Modified: 10-06-21
