Hyundai U90 Manuel utilisateur

P/N : 97E9500322

1. Precautions 2

2. Items 4

Setting up the LCD monitor 5

Plug & Play 5

Warm-up Time 5

3. How to use the Function Key 6

4. Adjusting The Monitor 7

Adjusting brightness 7

Adjusting color 7

Adjusting the horizontal & vertical 7

Adjusting OSD 7

Adjusting others 8

Adjusting MWE (Media Windows Enhancement) 8

5. Appendix 9

Display Modes and frequency 9

Power Save 9

6. Troubleshooting 10

Contents

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a

Class B digital device pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates uses and can radiate

radio frequency energy and if not installed and used in accordance with the

instructions may cause harmful interference to radio communications.

However there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or

television reception with can be determined by turning the equipment off

and on the user is encouraged to try to correct the interference by one

more of the following measures :

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

-Only shielded interface cable should be used.

Finally any changes or modifications to the equipment by the user not

expressly approved by the grantee or manufacturer could void the users

authority to operate such equipment.

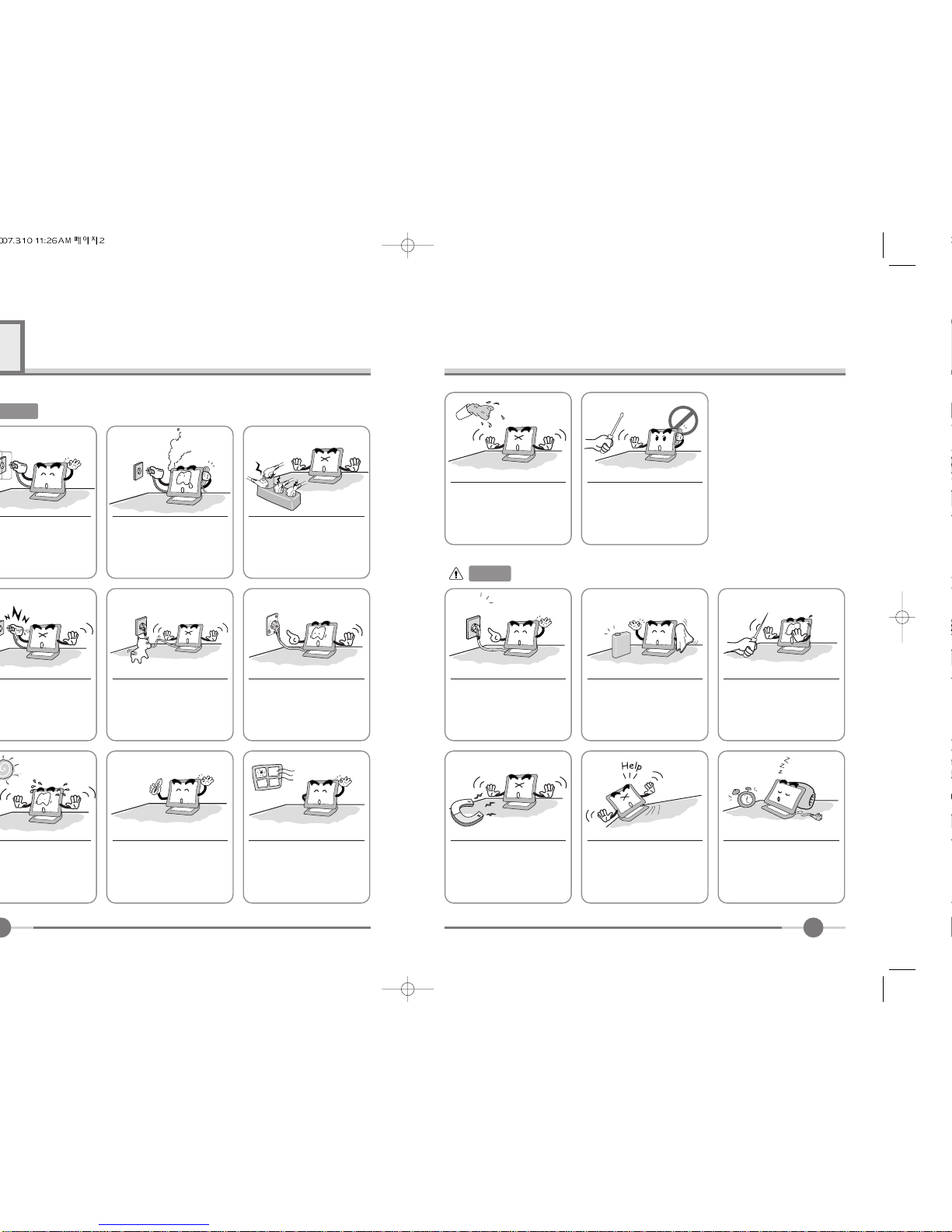

Precautions

AC outlet

Power cord

Warning :

The following information will help you avoid the risk of electric shock serious injury and death.

Plug the power cord into a

properly grounded outlet.

There is the risk of electric

shock.

Do not unplug from the outlet

by pulling the power cord or

when your hands are wet.

There is the risk of electric

shock and fire.

Do not allow any object or liq-

uid to enter inside the monitor.

There is the risk of electric

shock fire or damage to the

monitor.

Do not bend the power cord

excessively or place heavy objects

on it. Keep children and pets away

from the power cord as they may

damage the power cord. There is

the risk of electric shock and fire.

Do not use a damaged power

cord or plug. Make sure the

plug fits snugly into the outlet.

There is the risk of electric

shock or fire.

Do not expose the monitor to

the direct sun light.

Keep the monitor away from high

temperature humidity and dust.

■Operating environment

=0~35degrees Celsius

■Operating environment

=30~80relative humidity.

Do not block the fan louvers.

There is the risk of fire or dam-

age to the monitor.

220V

Use a proper voltage/current

level indicated

Do not clean the LCD with

abrasive chemicals.

There is the risk of damage to

the LCD.

Do not scratch and damage

the LCD with sharp objects.

Keep the monitor away from

objects and electrical appli-

ances that may generate elec-

tromagnetic fields.

Place the monitor on a flat sta-

ble surface. The monitor may

fall and there is the risk of

damage or injury

Unplug the power cord when

the monitor is not in use for a

prolonged period of time.

If you hear a noise or smell

smoke from the computer or

adaptor unplug the power cord

immediately and call the service

center. There is the risk of elec-

tric shock or fire.

Do not overload an electrical

outlet with too many devices.

There is the risk of fire.

Do not attempt to disassemble

fix or modify the monitor.

There is the risk of electric

shock or fire.

Caution :

The following information will help you avoid the risk of minor or moderate injury or damage to the monitor.

Items

Please make sure the following items are included with your monitor.

If any items are missing contact your dealer.

Also we’d like to ask you to use our ‘D-Sub’ cable all the time otherwise we are not in a

position to be responsible for all the matters caused by that.

Notice

When the condition of the screen is not good please press the button " AUTO".

(This function may cause some noises on the screen according to VGA Cards)

Notice

Setting up the LCD monitor

Power

DVI (Option)

SPK IN

SPK OUT

Power Cord

15-pin D-Sub Signal Cable

DVI-D Cable*1 (Option)

Audio Cable*2

External Speaker Cable*2

No. Cable connectionsName

All LCD monitors need time to become thermally stable whenever you turn on the

monitor after letting the monitor be turned off for a couple of hours. Therefore to

achieve more accurate adjustments for parameters allow the LCD monitor to be

warmed up for at least 30 minutes before making any screen adjustments.

Warm-up Time

The adoption of the new VESA Plug and Play solution eliminates complicated and time

consuming setup. It allows you to install your monitor in a Plug and Play compatible sys-

tem without the usual hassles and confusion. Your PC system can easily identify and

configure itself for use with your display. This monitor automatically tells the PC system

its Extended Display Identification Data (EDID) using Display Data Channel (DDC) pro-

tocols so the PC system can automatically configure itself to use the flat panel display.

Plug & Play

*1 : For DVI Model Only. *2 : For Audio Model Only.

*1 : For DVI Model Only.

*2 : For Audio Model Only.

*2*1

LCD Monitor

Power Cord

24pin DVI Cable(Option) Audio Cable

15-pin D-Sub Cable User Manual

Stand ※

Push the hook until

hanging

Kensington Security Slot

: This monitor offers you the opportunity to secure your monitor using a Kensington-type secu-

rity device. Kensington lock is not included. Refer to your locking device documentation for

installation instructions.

(Kensington-type security slot location is on the back of the monitor.)

How to use the Function Key

Adjusting The Monitor

●BRIGHTNESS : Changes the overall light intensity of the images being displayed.

●CONTRAST :

Changes the ratio of light intensity between the brightest white and darkest black.

●GAMMA : Ajusting Gamma. (BRIGHTNESS CONTRAST GAMMA can be changed only at

normal mode on the fuction of MWE)

Ad usting brightness

Ad usting colors

Color ad ustment needs to be only for Analog mode.

●COLOR TEMP : There are user bluish and reddish modes.

In case user has to set up "RED" "GREEN" "BLUE" in person please select

user mode.

●RED GREEN BLUE : You can adjust red green and blue values that you want.

Ad usting the horizontal & vertical

●H POSITION : Moves to the Left/Right

●V POSITION : Moves to the Top/Bottom

●PHASE : When image is not clear you can use clock/phase menu.

●CLOCK : When image is not clear you can use clock/phase menu.

*1 : For Analog Mode Only.

Ad usting OSD

●LANGUAGE : Select language in OSD menu.

●OSD H POSI : Moves the OSD menu to the horizontal direction.

●OSD V POSI : Moves the OSD menu to the vertical direction.

●OSD TIMER : Shows the OSD TIME displays from 5 to 60sec.

SEL/AUTO

/MWE

/VOL

1. First click : The OSD main menu appears.

2. Second click : The OSD menu disappears.

Select Key : Select a command function.

Auto Key : This will optimize image quality automatically.

Up Key :

1. Move the on-screen highlighted comand item to the previous one.

2. Increase the current option value.

VOL Key : You can adjust the volume.

Down Key :

1. Move the on-screen highlighted comand item to the next one.

2. Decrease the current option value.

MWE Key : You can manually adjust the screen to your environ-

ment on the computer.

Power On/Off toggle button.

*1 : For Analog Mode Only. *2 : For Audio Model Only.

Most of the graphic cards are OK but some of them are not compatible with the

monitor once in a while which causes some noises on the screen. In this case

you can select "Auto Adjust" to solve this matter immediately.

Notice

8 9

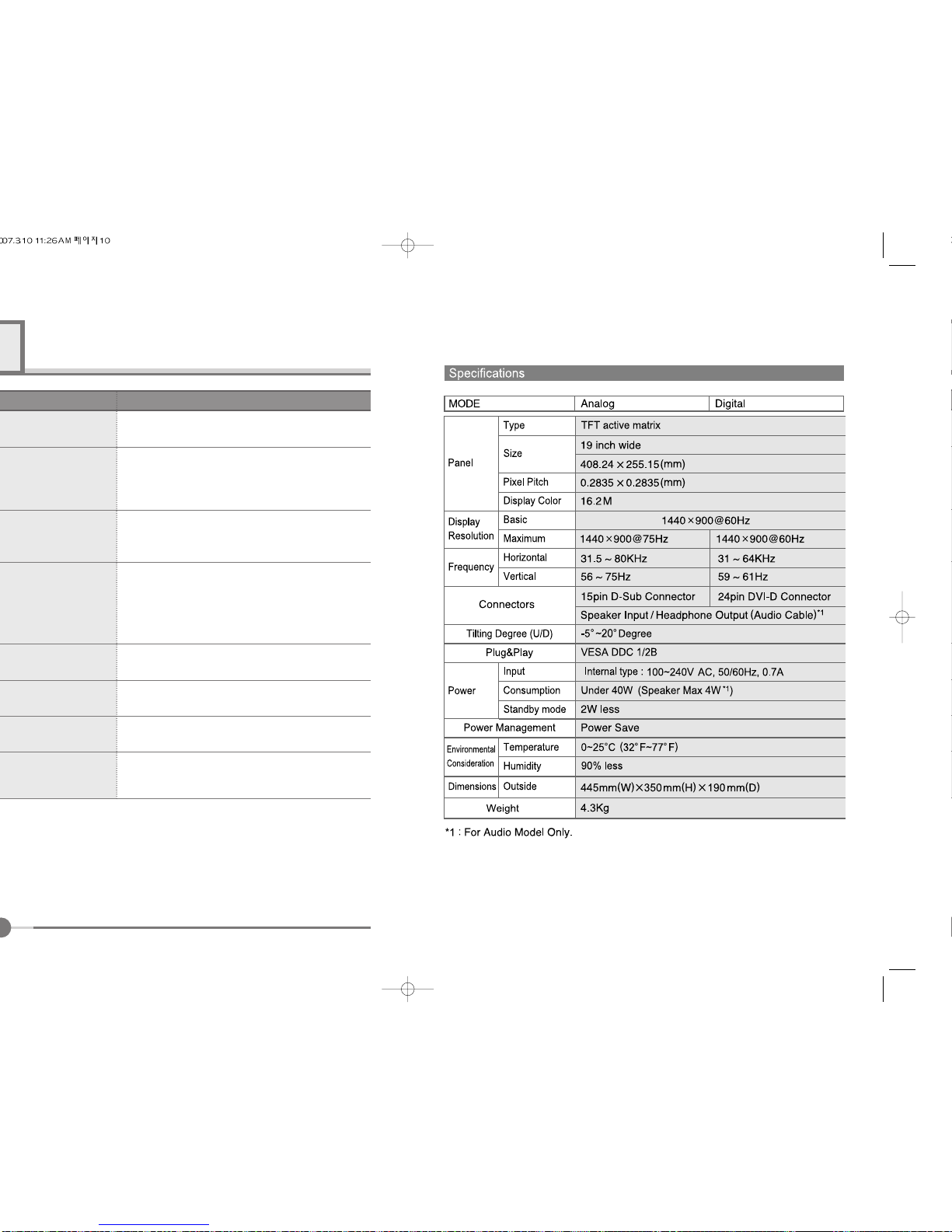

Appendix

Display Modes and frequency

This monitor has a built-in power management system called PowerSave. This system

saves energy by switching your monitor into a low-power mode when it has not been

used for a certain amount of time. The monitor automatically returns to normalopera-

tion when you press a key on the keyboard. For energy conservation turn your

monitor OFF when it is not needed or when leaving it unattended for long periods.

Power Save

Ad usting others

●BRIGHTQUEST : You can select the function of MWE on the OSD menu.

●ANALOG : You can change Analog mode manually.

(If you didn’t select any mode it will go back to the original mode.)

●DIGITAL : You can change Digital mode manually.

(If you didn’t select any mode it will go back to the original mode.)

●RECALL : Discards current setting and replaced all parameters with the factory default values.

●AUTO COLOR : Automatic adjust color(white level) for various input sources white level.

*1 : For DVI Model Only.

Ad usting MWE (Media Windows Enhancement)

This is the function ad usting its colors and brightness that are suitable for the

user’s system.

When you press MWE button, you can get into the following picture.

●TEXT : Documents

●INTERNET : Internet

●ENTERTAIN : Movies Video games.

●NORMAL : Normal

The first set-up was done when the goods are released from the factory. After fin-

ishing the first set-up Please press Auto and optimize the screen.

Notice

Mode Resolution

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

Pixel Clock

Frequency(MHz)

Sync

Polarity(H/V)

OFF

Under 40W

Less than 2W

Within2 sec

Blue

Flickering (Blue)

State Power

consumption

Recovery

Time LED Color

Trou leshooting

What you see

Ensure that the power cord is firmly connected and the LCD

monitor is on.

“VIDEO MODE NOT

SUPPORTED” message

“NO SIGNAL” message

Screen is blank and power indictor

is off

�Check the maximum resolution and the frequency of the

video adaptor.

�Compare these values with the data in the Display Modes

Timing Chart.

�Ensure that the signal cable is firmly connected to the PC

or video sources.

�Ensure that the PC or video sources are turned on.

The image is too light or too dark �Adjust the Brightness and Contrast.

�Refer to the Brightness/Contrast

The image color is not good

�Adjust the Color

�Refer to the Color

Image is not centered on the

screen �Executes “Auto Adjustment”.

The power lamp flickers.

�The monitor is using its power management system.

�Move the computer’s mouse or press a key on the key-

board.

Image is not stable and may

appear to vibrate

�Check that the display resolution and frequency from your

PC or video board is an available mode for your monitor.

On your computer check : Control Panel Display Settings

�Note : Your monitor supports multiscan display functions

within the following frequency domain:

Suggested Actions

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hyundai Moniteur

Hyundai

Hyundai L22C0FLC0 Manuel utilisateur

Hyundai

Hyundai W220S Manuel utilisateur

Hyundai

Hyundai PD421 Manuel utilisateur

Hyundai

Hyundai L22C0E081 Manuel utilisateur

Hyundai

Hyundai L19T Manuel utilisateur

Hyundai

Hyundai ImageQuest L17T Manuel d'utilisation

Hyundai

Hyundai LCD Monitor U90D Manuel de service

Hyundai

Hyundai ImageQuest Q19 Manuel utilisateur

Hyundai

Hyundai L17C0D080 Manuel utilisateur

Hyundai

Hyundai P276L Manuel utilisateur

Hyundai

Hyundai L19C0D080 Manuel utilisateur

Hyundai

Hyundai ImageQuest LM1510A Manuel utilisateur

Hyundai

Hyundai W220D Manuel utilisateur

Hyundai

Hyundai Smartboard A S65UCAI Manuel utilisateur

Hyundai

Hyundai ImageQuest L50A Manuel d'utilisation

Hyundai

Hyundai ImageQuest F771 Manuel utilisateur

Hyundai

Hyundai ImageQuest L501 Manuel utilisateur

Hyundai

Hyundai W220S Manuel utilisateur

Hyundai

Hyundai LCD Monitor U70D Manuel utilisateur

Hyundai

Hyundai P240W Manuel utilisateur

Hyundai

Hyundai L24COF080 Manuel utilisateur

Hyundai

Hyundai 21FOM Series Manuel utilisateur

Hyundai

Hyundai ImageQuest L72S Manuel utilisateur

Hyundai

Hyundai K224W Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
