Hytronik HBIR29/SV/RH Guide rapide

1. Technical Speciﬁcations

Installation and Instruction Manual

3. Installation

Mechanical Structure & Dimensions

HBIR29/SV/RH

PIR Standalone Motion Sensor with Mesh

One DALI Channel Output

Subject to change without notice.

Protocol

4 dBm

2.4 GHz - 2.483 GHz

Operation frequency

Transmission power

Range (Typical indoor)

10~30m

Stand-by power

Operating voltage

0.65W (Empty load)

220~240VAC 50/60Hz

Switched power

Warming-up

I guaranteed:44mA

I max: 80mA

Certiﬁcation CE

360

Ta:-20

OC~+50OC

PIR detection

Sensor principle

Detection angle

Operation temperature

IP20IP rating

Mesh

EN300328, EN301489-1,

EN301489-17, EN62479,

EN55015, EN61547,

EN60669-1, EN60669-2-1,

EN62493

Standard compliance

Detection range (Max.)*

HBIR29/SV/RH

Installation height：20m (forklift)

12m (person)

Detection range (Ø)：40m

2. Download the App

APP Store

Download on the

The access to Silvair apps

mobile app: Silvair on the App Store

web app: platform.silvair.com

HBIR29/SV/RH-20230831-A0

1. Ceiling (drill hole φ66~68mm)

2. Carefully prise off the cable clamps.

3. Make connections to the pluggable terminal blocks.

4. Insert plug connectors and secure using the provided cable clamps, then clip

terminal covers to the base.

5. Fit detection blind (if required) and desired lens.

6. Clip fascia to body.

7. Bend back springs and insert into ceiling.

* Install lens as required

* Install blind as required

A B

Ø 66~68mm

Subject to change without notice.

Wiring Diagram

220~240VAC

DA DA

L N

LED

LED Driver

– +

The device HBIR29/SV/RH can be reset by placing a strong magnet (e.g. N38 neodymium magnet, d=10mm*h=4mm) near the sensor lens for 5 seconds. Once the factory reset is done successfully, the luminaire

ﬂashes and then permanent on, then the device is being able to be re-commissioned by SILVAIR app.

4.Mesh Factory Reset

HBIR29/SV/RH Provisioned

MESH package received 30ms ON

30ms ON

HBIR29/SV/RH Unprovisioned

Factory reset

15ms ON

Status LED blinking Sequence

100ms ON

Factory reset (initial burst)

500ms ONAttention (from network)

300ms OFF

2,000ms OFF

500ms ON 1,000ms OFF

1,000ms OFF

50ms OFF

500ms OFF

5.To Reprovision

Place a strong magnet on the site of the Reset/Hall effect sensor (see diagram 4 below). To trigger the reset the magnet must be held in position for 5 seconds.

Diagram Status LED

Flashes rapidly when unprovisioned.

Flashes slowly when provisioned

Module/Antenna placement

Note: When change the lens part of HBIR29/SV/RH, please kindly make sure that the lens ﬁts the right location,

where the “Reset dot” and “BLE dot”matches with the physical location on the PCB.

Reset zone

Magnet to be replaced

for reprovisioning

Wire Preparation

Pluggable screw terminal. It is recommended to make

connections to the terminal before ﬁtting to the sensor.

0.75 - 2.5mm

7-8mm

HBIR29/SV/RH-20230831-A0

1. 200 metres (total) max. for 1mm² CSA (Ta = 50℃)

2. 300 metres (total) max. for 1.5mm² CSA (Ta = 50℃)

HBIR29/SV/RH-20230831-A0

Subject to change without notice.

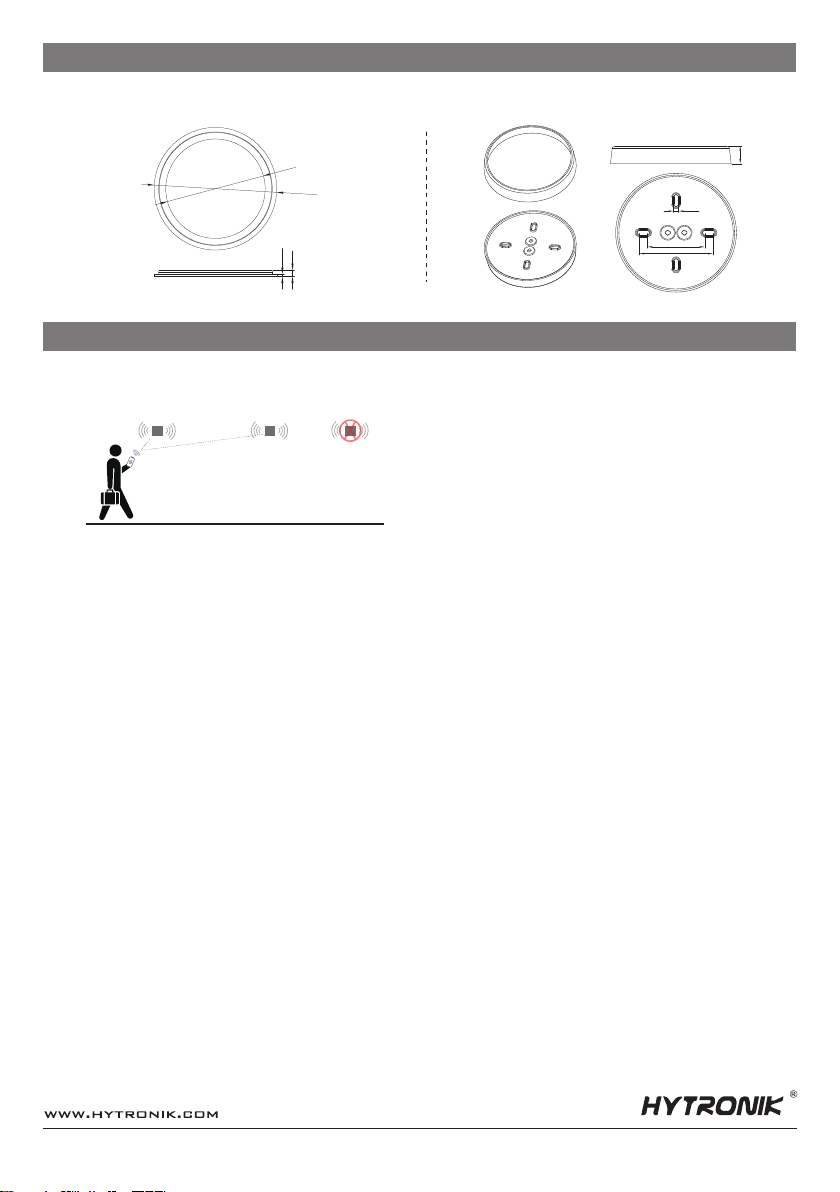

Big silicon water-proof gasket dimension(size:mm)

4.2

48.2

61.8

15.2

Small silicon water-proof gasket dimension(size:mm)

Ø 76.5

Ø 62

1.5

Big and small silicon gasket used to make IP54 degree protection when HBIR29/SV/RH series device mounted into HA03 housing for ceiling mount

Placement Guide and Typical Range

Smart Phone to Device Range

6-10m ＞10m

The smart device with the App installed will have a typical range

of 10m, but varies from device to device. During commissioning,

the installer will need to be in range of the devices when searching

for devices to add to the network.

Once the devices have been added to the network via the App,

the devices will start communicating within the wireless mesh.

This means that once the network is complete, all devices are

accessible from the smart device when in a 20m range of a

single point.

HBIR29/SV/RH-20230831-A0

Subject to change without notice.

6. Detection Pattern & Optional Accessories

7. Additional Information / Documents

1.Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation

2.Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Partnership

3.Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy

Radial (B)

Tangential (A)

10m

Mount height

14m

15m

13m

12m

11m

max 907m

(Ø = 34m)

max 962m

(Ø = 35m)

max 1075m

(Ø = 37m)

max 660m

(Ø = 29m)

max 346m

(Ø = 21m)

max 1256m

(Ø = 40m)

max 154m

(Ø = 14m)

max 177m

(Ø = 15m)

max 177m

(Ø = 15m)

max 154m

(Ø = 14m)

max 113m

(Ø = 12m)

max 113m

(Ø = 12m)

HBIR29/SV/RH: Reinforced high-bay lens detection pattern for forklift @ Ta = 20ºC

(Recommended ceiling mount installation height 10m-15m)

HBIR29/SV/RH (Reinforced High-bay with 3-Pyro)

A: Tangential movement

Tangential: max. 40m

h = max.20m

insensitive sensitive

B: Radial movement

Radial: max. 15m

h = max.20m

insensitive sensitive

Tangential: max. 30m

h = max.12m

Radial: max. 4m

h = max.12m

Radial (B)

Tangential (A)

2.5m

Mount height

11m

12m

10m

6m max 154m

(Ø = 14m)

max 38m

(Ø = 7m)

max 314m

(Ø = 20m)

max 531m

(Ø = 26m)

max 615m

(Ø = 28m)

max 707m

(Ø = 30m)

max 7m

(Ø = 3m)

max 7m

(Ø = 3m)

max 7m

(Ø = 3m)

max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

A: Tangential movement B: Radial movement

HBIR29/SV/RH: Reinforced high-bay lens detection pattern for single person @ Ta = 20OC

(Recommended ceiling mount installation height 2.5m-12m)

insensitive sensitive insensitive sensitive

Optional Accessory --- Ceiling/Surface Mount Box: HA03

Ø 94

20m max 707m2 (Ø = 30m) max 113m2 (Ø = 12m)

4.2

48.2

61.8
