1. Product Overview

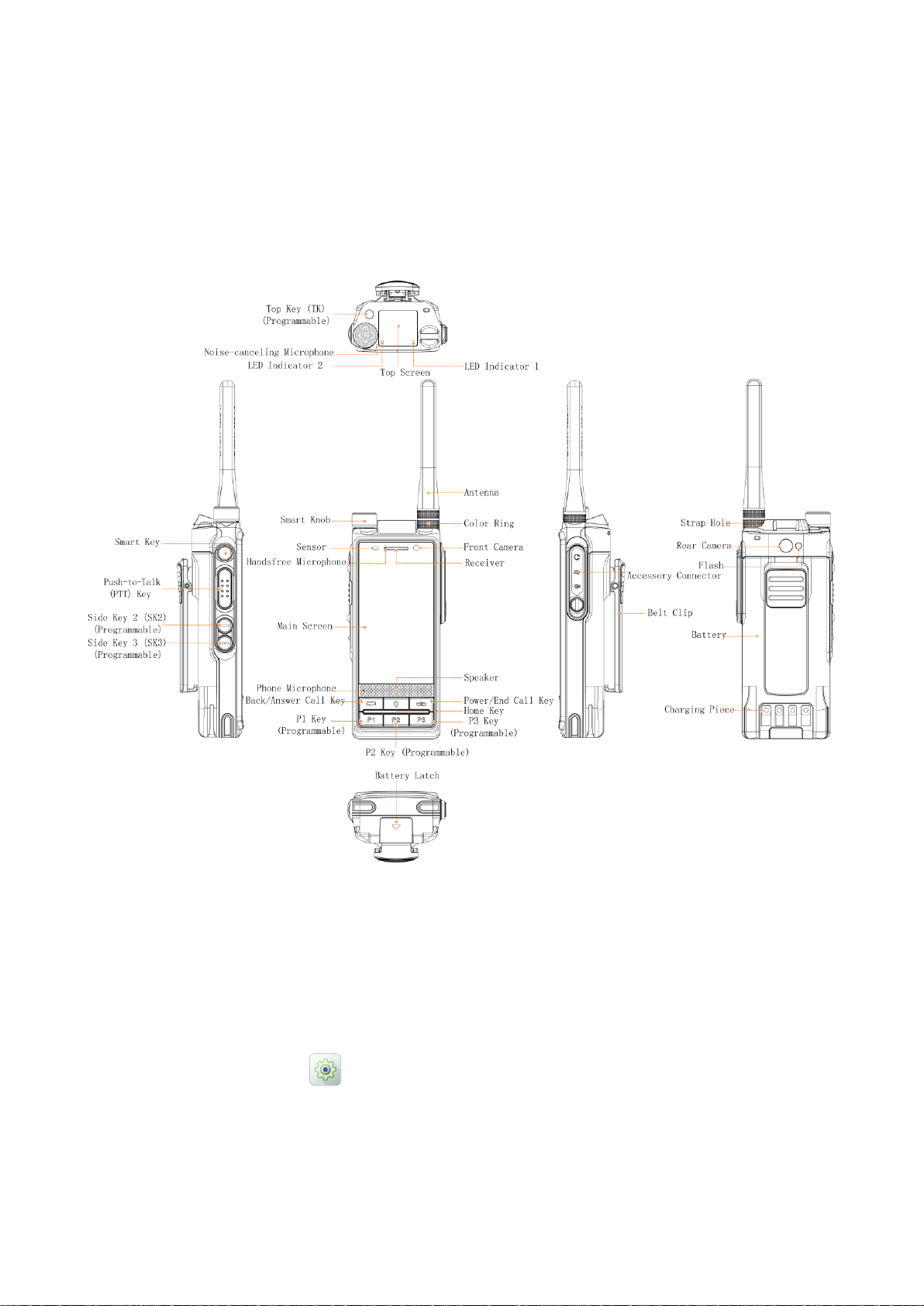

1.1 Product Layout

1.2 Programmable Keys

For enhanced convenience, the product provides the programmable keys including SK2, SK3, TK, P1,

P2, and P3. The TK is programmed with Emergency feature by default (short press: Emergency On;

long press: Emergency Off).

To set up other shortcuts, tap , and then go to Settings > Programmable keys.

2. Before Use

2.1 Attaching the Antenna

Do not hold the terminal by the antenna and swing it. This may affect the antenna performance and

shorten the life span of the antenna.

1. (Optional) Place the color ring (for identification purpose) on the antenna connector.

2. Put the antenna on the antenna connector.

3. Rotate the antenna clockwise till hand tight.

2.2 Installing the Cards

1．Open the card slot cover on the top of the battery compartment.

2．Insert the micro-SD cards and nano-SIM cards into the corresponding slots.

3．Put the card slot cover back in place.

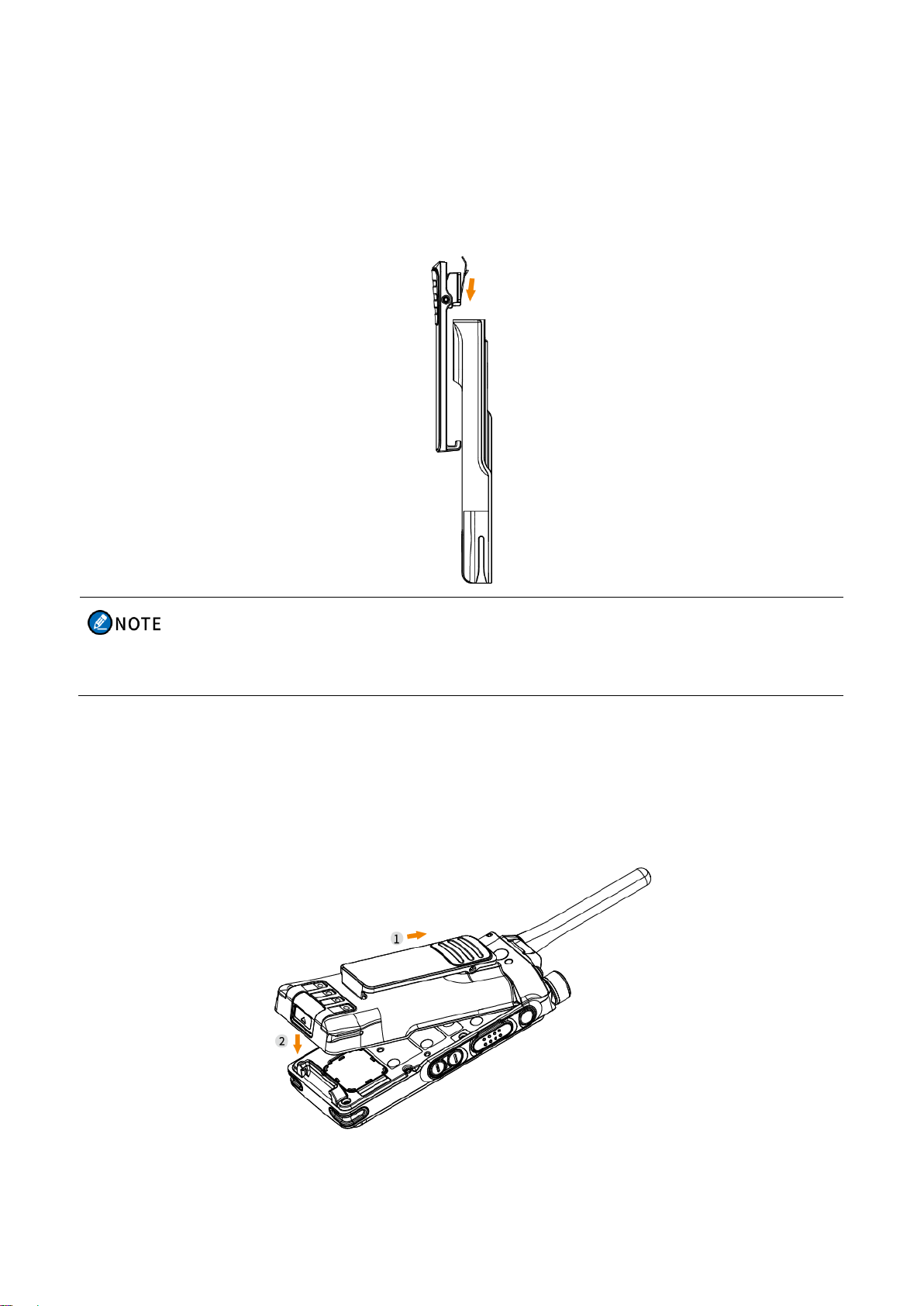

2.3 Attaching the Belt Clip

1. Align the rails on the belt clip with the grooves on the battery.

2. Press the belt clip downwards into place.

To remove the belt clip, press and hold the spring when sliding the belt clip out of the grooves on

the battery.

2.4 Attaching the Battery

1. Slide the battery into the slot.

2. Press the battery latch until it is fully fitted into the terminal.

2.5 Charging the Battery

Use the approved charger to charge the battery.

Read the Safety Information Booklet before charging.

The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery

shipment regulation approved by International Air Transport Association (IATA).

Before initial use, fully charge the battery to ensure optimum performance. You can charge the terminal

with battery attached or charge the battery alone.

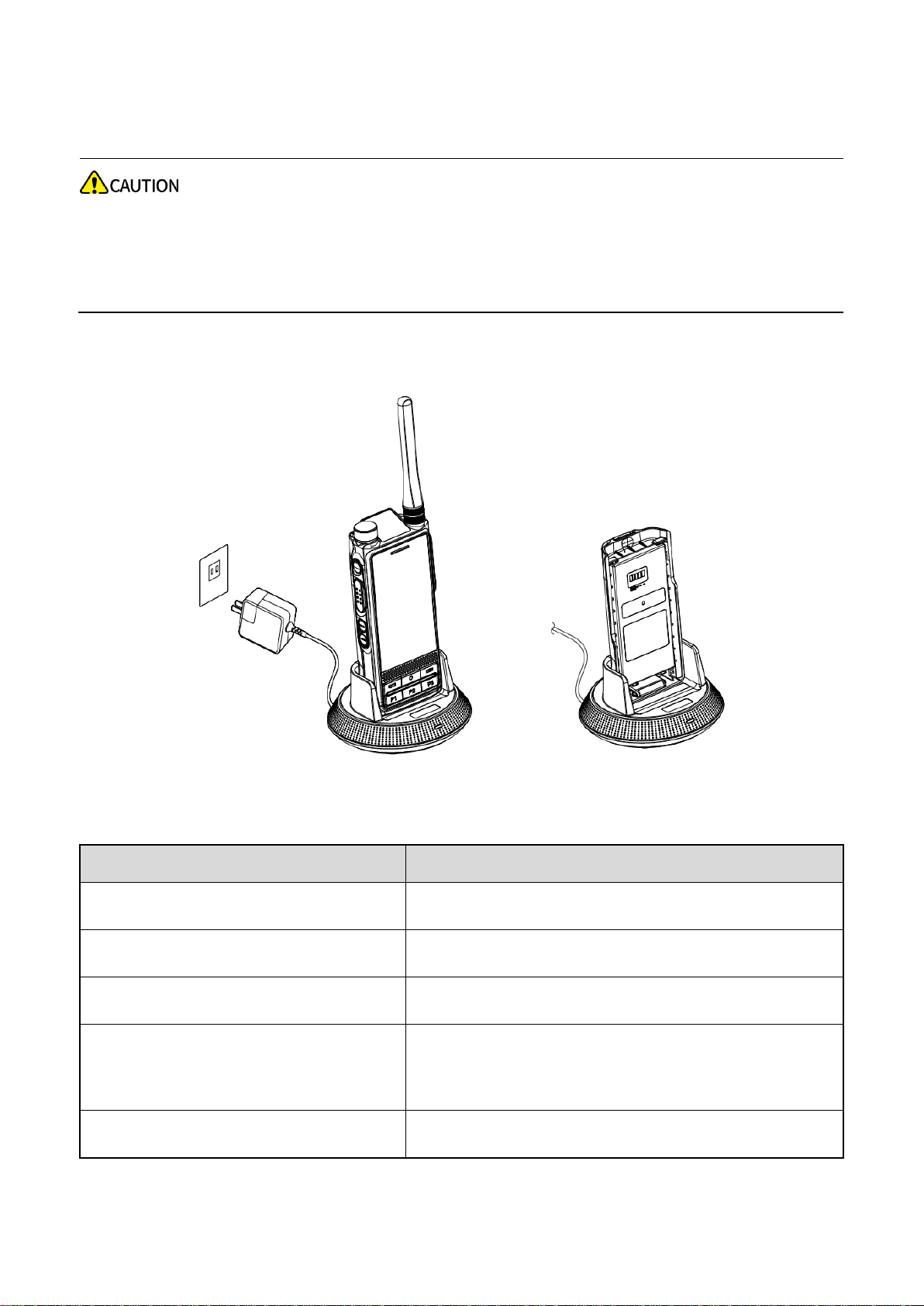

To determine the charging status, check the LED indicator on the charger according to the following

table:

LED Indicator

Charging Status

Flashes red slowly

No battery inserted.

Flashes orange slowly

Waiting to charge.

Glows red

Charging.

Glows green

≥90% (terminal with battery).

≥95% (standalone battery).

Flashes red rapidly

Battery fault.

3. Basic Operations

3.1 Turning the Terminal On or Off

To turn the terminal on, press and hold the Power/End Call key until the splash screen appears.

To turn the terminal off, do as follows:

1. Press and hold the Power/End Call key until the power-off selection screen appears.

2. Tap Power Off, and then tap OK.

3.2 Adjusting the Volume

To adjust the volume, directly rotate the Smart Knob.

When in a call or enabling an alarm, you can rotate the Smart Knob to adjust the call volume or alarm

volume.

When playing music, video or recorded files, you can rotate the Smart Knob to adjust the media volume.

3.3 Selecting Talk groups

1. Press the Smart Knob. Then the terminal prompts on the display.

2. Rotate the knob to select the required talk group.

If you do not operate the Smart Knob within 5s or if you press it again within 5s, the terminal

returns to the volume control state automatically.

3.4 Understanding the Screens

3.4.1 Main Screen and Top Screen

The screens may be damaged or broken if they are hit or scraped by sharp or hard objects.

All care must be taken to protect the screens.

3.4.2 Status Indications

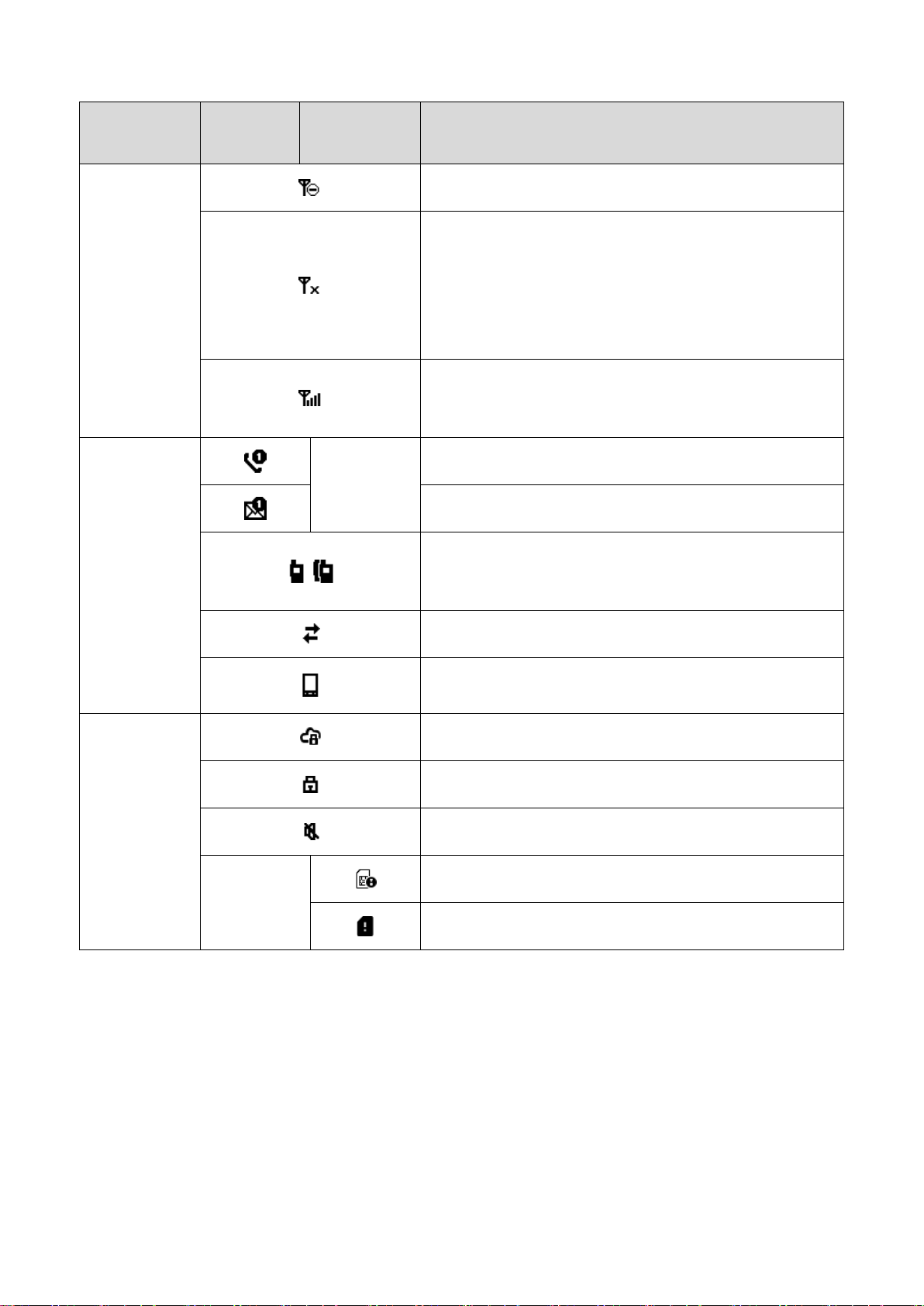

3.4.2.1 LCD Icons

Type

Top

Screen

Main Screen

Terminal Status

Network and

signal

3G/4G cellular network is available.

The terminal is connected to the WLAN network.

The number of bars indicates the signal strength of the

BB network.

Type

Top

Screen

Main Screen

Terminal Status

The NB network is turned off.

In direct mode (DMO): The terminal is in standby

state.

In trunking mode(TMO): The terminal detects no

signal.

The number of bars indicates the signal strength of the

NB network.

Call and data

services

The digit indicates the number of missed calls.

The digit indicates the number of unread messages.

An individual/group call is in progress over the NB

network.

A duplex call is in progress.

A phone call is in progress over the BB network.

Others

The End-to-End Encryption (E2EE) feature is enabled.

The terminal enables all the encryption features.

The terminal operates in silent mode.

No SIM card is detected.

An error occurs to the SD card.

For details on other LCD icons, refer to the User Manual.

3.4.2.2 LED Indications

LED Indicator 1

LED Indicator

Terminal Status

Flashes green rapidly

The terminal is being turned on.

Flashes orange slowly

The terminal is registering in TMO.

Flashes green slowly

The terminal is standby after registering.

Glows red

The terminal is transmitting.

Flashes orange rapidly

The calling terminal is establishing a HOOK call in TMO.

Glows green

The terminal is receiving.

The channel is busy in DMO.

Glows orange

Call hang time: No voice is being transmitted or received during a call.

Within such a period, you can press and hold the PTT key and speak.

Flashes red slowly

The terminal is under the low battery threshold. Charge or replace the

battery in time.

LED Indicator 2

LED Indicator

Terminal Status

Flashes blue

A BT device is connected.

Flashes red

There is/are unread message(s) or missed call(s).

3.4.3 Widget

The widget shows important information in words and pictures on the main screen. Widget includes NB

widget and BB widget. NB widget displays the NB services and is not editable. BB widget displays the

shortcut apps, favorite contacts, calendar, and agenda, and allows you to quick access these

applications.

To scroll the wedge page, press a widget and swipe upward, or short press the Smart Key.

To add or delete a widget, swipe to the bottom of the widget, press "Edit", and then select "Exit" after

finishing editing.

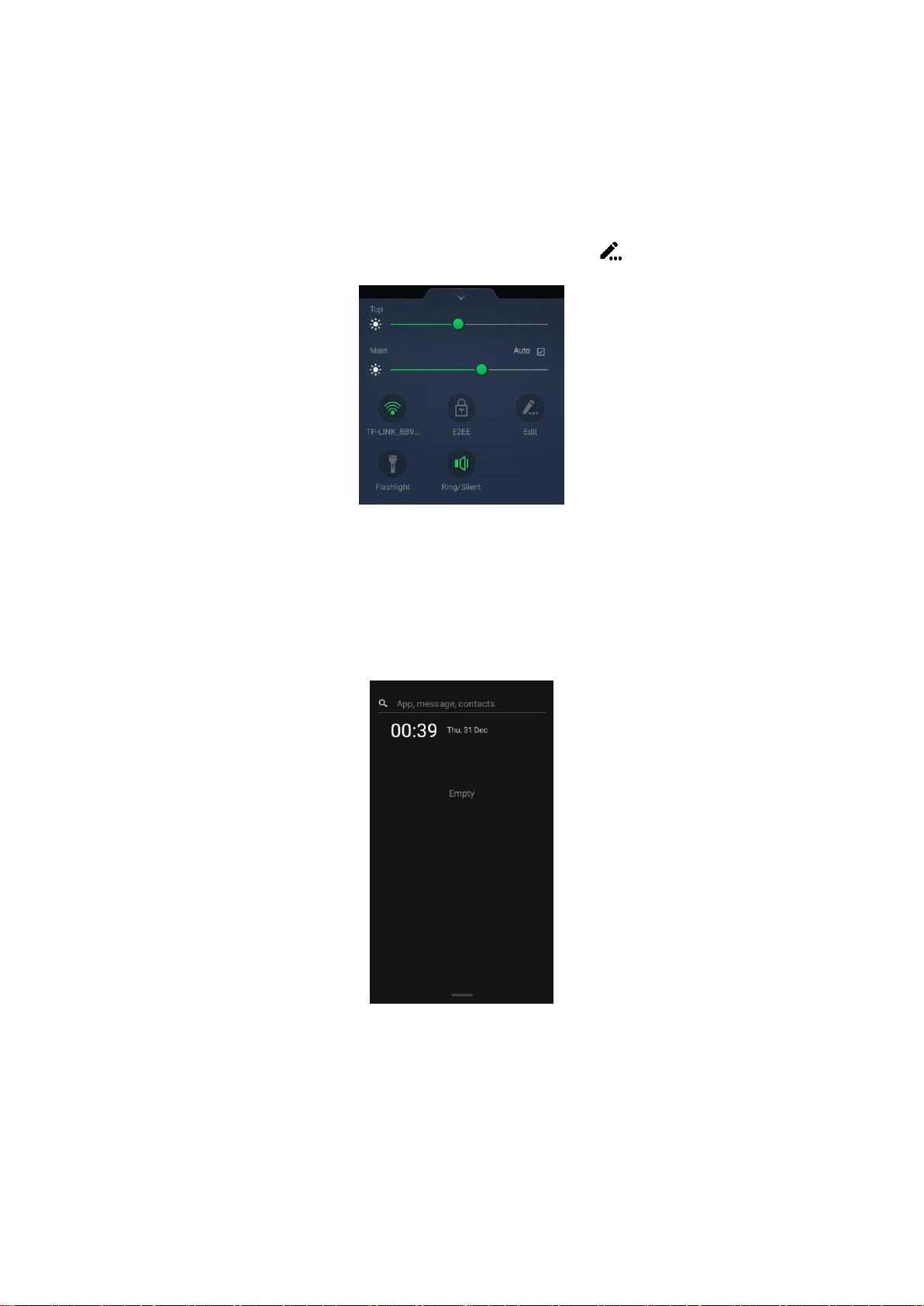

3.4.4 Control Center

The control center allows you to adjust the brightness, and turn on or off the handy features.

To access the control center, swipe up from the bottom edge of any screen.

To edit the switches of features displayed on the control center, press .

3.4.5 Notification Center

The notification center allows you to view notifications and search for apps, contacts or messages.

To view notifications, swipe down from the top edge of screen, and the tap a notification to view details.
