HYOSUNG GT250 Manuel utilisateur

hyosung.com.au

Founded in 1978 as a division of the massive Hyosung Group, Hyosung Motors & Machinery Inc. began

producing motorcycle designs under license for the South Korean market in 1979. In 1986, Hyosung

established its own research and development centre in Japan and, the following year, began mass

production of its own designs. Hyosung was the ofﬁ cial motorcycle supplier for the 1988 Summer Olympics

in Seoul.

In 2003 Hyosung Motors & Machinery Inc. was spun off from the Hyosung Group, and remained its own

corporate entity until it was recently absorbed into one of the biggest companies in South Korea – S&T

Corporation.

Accordingly, Hyosung Motors & Machinery Inc. has now been renamed as S&T Motors Co. Ltd, but the

Hyosung brand name remains unchanged.

S&T Motors Co. Ltd’s goal is simple: to become one of the major players in the global motorcycle industry.

The massive company is committed to strengthening its international competitiveness through a vigorous

research and development process.

In just 20 years, Hyosung has made a highly successful transition from producing simple, efﬁ cient bikes

for commuting into the highly competitive recreational market. It’s also expanded into developed export

markets such as Australia, Europe, America, Brazil and China.

hyosung.com.au

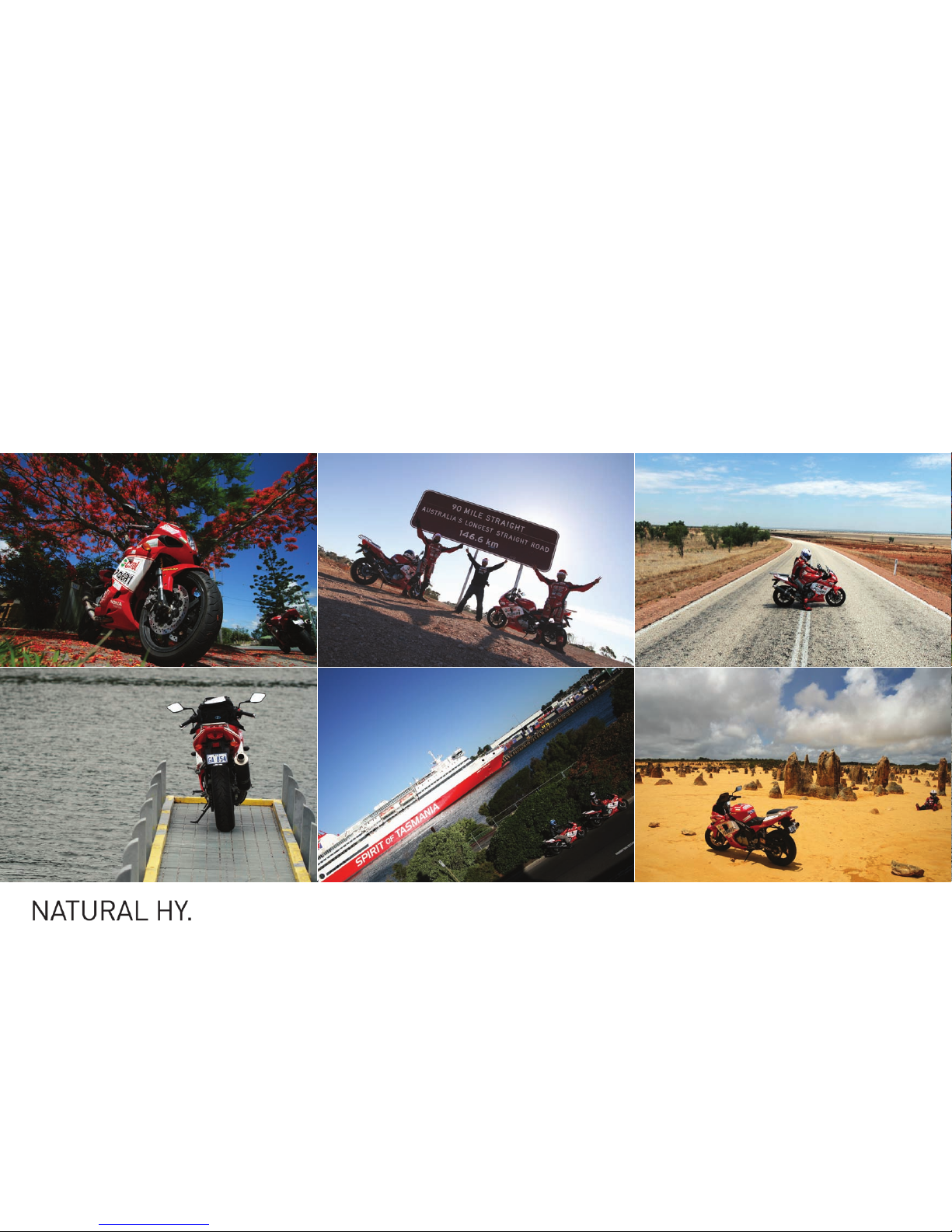

01: Hervey Bay, Queensland. 02: Bairnsdale, Victoria. 03: Crossing the Nullarbor. 04: Devonport Port, Tasmania. 05: Halls Creek, Broome, Western Australia. 06: The Pinnacles, Western Australia.

01 03 05

02 04 06

Roadtrip Australia

Three Indians. Two bikes. One van. 20,673km. 72 days. That was the equation as an intrepid bunch of Indian

youths joined forces with a pair of Hyosung GT650Ss for The Great Australian Road Trip (TGART) in late 2007

and early 2008. The team travelled anti-clockwise around Australia, with the Hyosungs performing faultlessly

in all conditions: from the cooler climes of southern Australian to the harsh extremes of the north.

Visit www.hyosung.com.au and view NEWS to read the commentary on the whole trip.

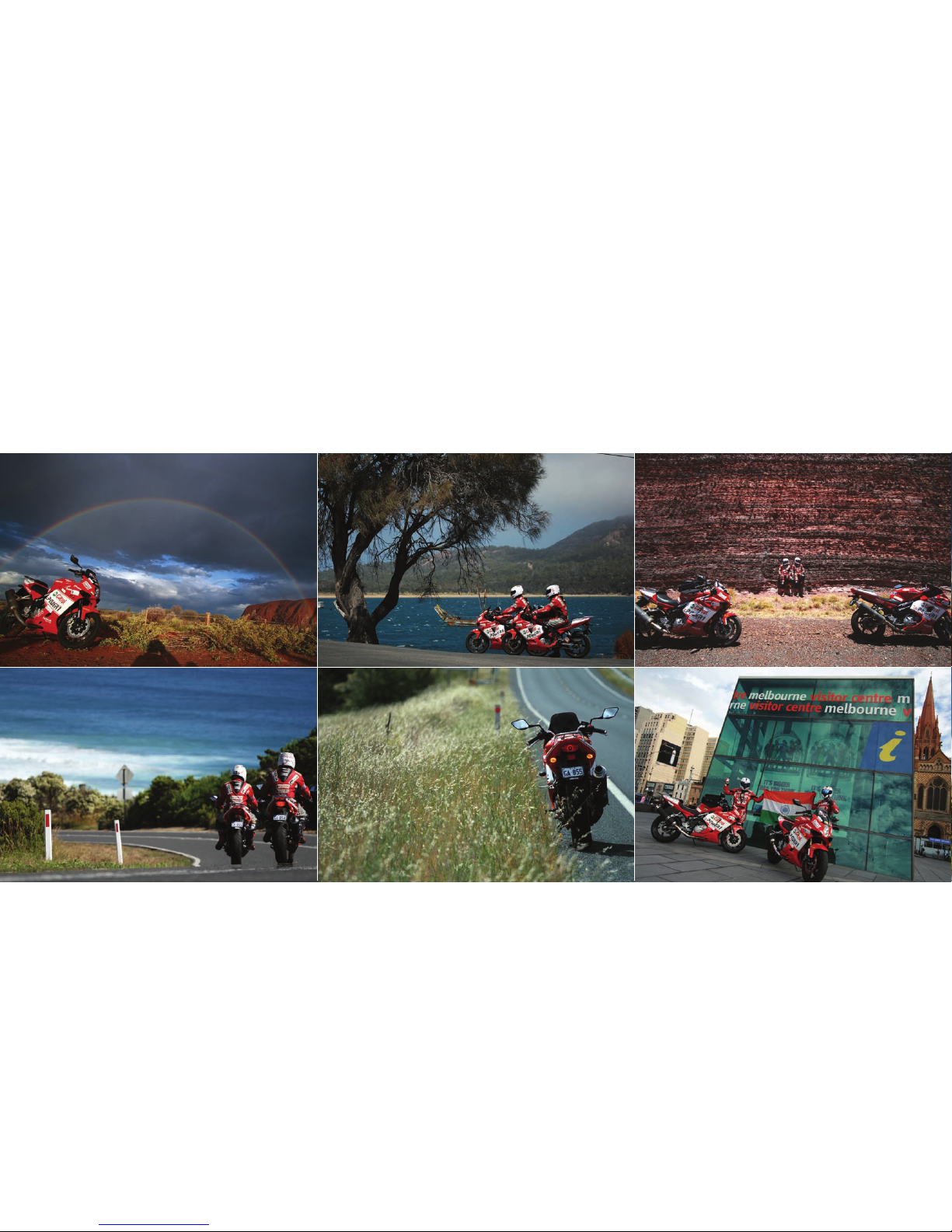

01: Hervey Bay, Queensland. 02: Bairnsdale, Victoria. 03: Crossing the Nullarbor. 04: Devonport Port, Tasmania. 05: Halls Creek, Broome, Western Australia. 06: The Pinnacles, Western Australia. 07: Uluru, Northern Territory. 08: Great Ocean Road, Victoria. 09: Coles Bay, New South Wales. 10: Devonport Port, Tasmania. 11: Port Hedland, South Australia. 12: Federation Square, Victoria.

05 07 09 11

06 08 10 12

GT250

DIMENSIONS AND DRY MASS

Overall Length (mm) . . . . . .2,095

Overall Width (mm) . . . . . . . .780

Overall Height (mm) . . . . . . .1,120

Dry Mass (kg) . . . . . . . . . . . . .153

Wheel Base (mm) . . . . . . . . .1,435

Seat Height (mm) . . . . . . . . . .790

Ground Clearance (mm) . . .175

Frame Type . . . . . . . . . . . . . . .Perimeter Double Cradle

ENGINE

Type . . . . . . . . . . . . . . . . . . . . . .75° V-twin DOHC, 4 valves per cylinder

Cooling . . . . . . . . . . . . . . . . . . .Air / Oil Cooled

Displacement (cc) . . . . . . . . .249

Bore x Stroke . . . . . . . . . . . . .57 x 48.8

Compression Ratio . . . . . . . .10.3 : 1

Max Power . . . . . . . . . . . . . . . .21kW @ 10500rpm

Max Torque . . . . . . . . . . . . . . .22Nm @ 8000rpm

Fuel System . . . . . . . . . . . . . . .Electronic Fuel Injection

Lubrication . . . . . . . . . . . . . . .Wet Sump

Starting System . . . . . . . . . . .Electric

Emissions . . . . . . . . . . . . . . . .Euro 3 compliant

TRANSMISSION

Clutch . . . . . . . . . . . . . . . . . . . .Wet Multi-Plate

Gears . . . . . . . . . . . . . . . . . . . . .Constant Mesh 5-speed

Final Drive . . . . . . . . . . . . . . . .Chain

CAPACITY

Fuel Tank (litres) . . . . . . . . . .17

CHASSIS

Front Tyre . . . . . . . . . . . . . . . .110 / 70 - 17 54H

Rear Tyre . . . . . . . . . . . . . . . . .150 / 70 - 17 69H

Front Suspension . . . . . . . . .41mm USD

Rear Suspension . . . . . . . . . .Monoshock / adjustable preload

Front Brake . . . . . . . . . . . . . . .Semi-Floating 300mm single disc with dual

piston caliper

Rear Brake . . . . . . . . . . . . . . .230mm single disc

OPTIONAL ACCESSORIES

Sports Mufﬂ er Sports Carrier

Centre Stand Kit

WARRANTY

Two-year, unlimited kilometres

FEATURES

Electronic Fuel Injection

Aggressive Styling

Upside-down Forks

Heavy Duty Tie Down Points

Digital Instrumentation

SPECIFICATIONS.

The speciﬁ cations are subject to change without notice. Images for illustration purposes only.

Signal Red Solid Black Polar White

COLOURS

LEARNER APPROVED

MOTORCYCLE SCHEME

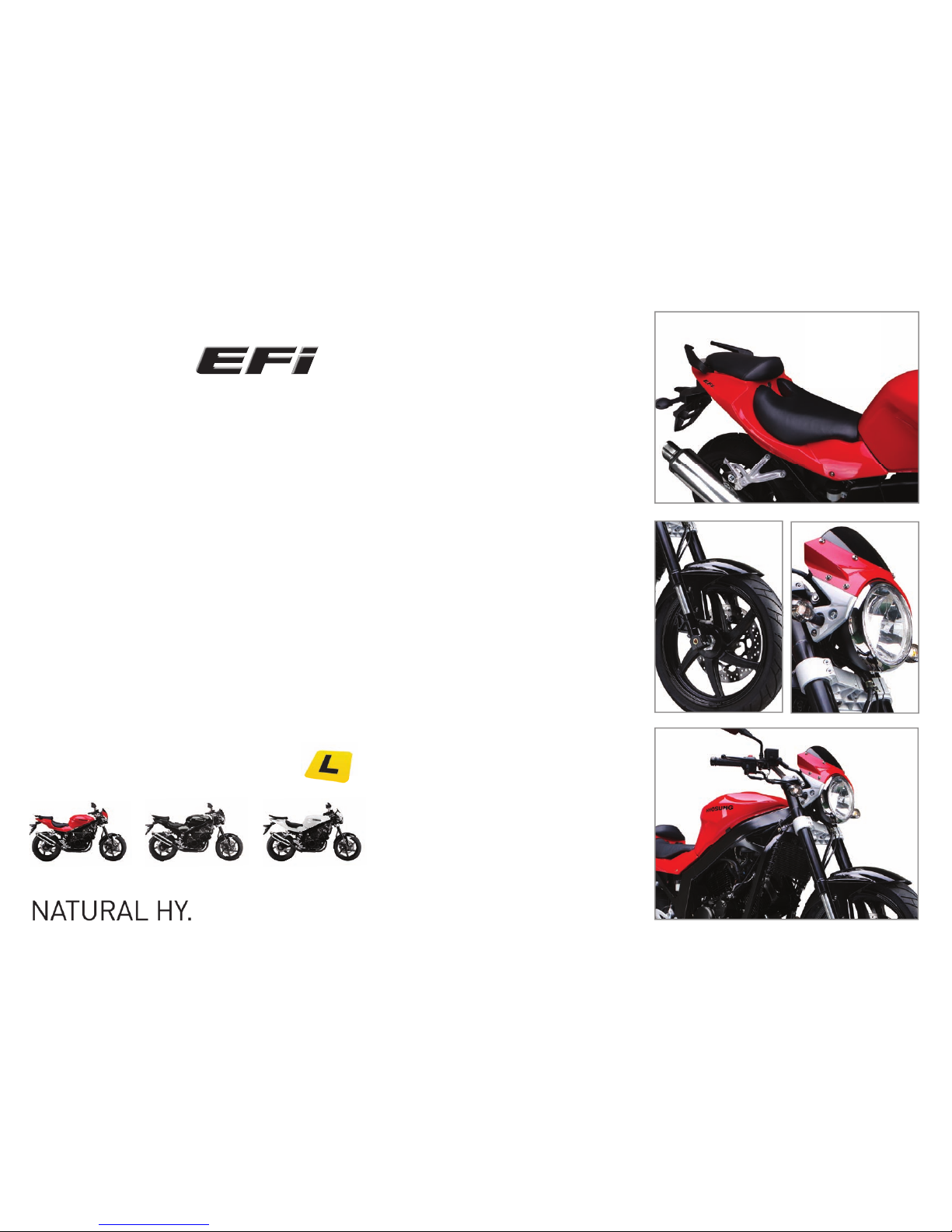

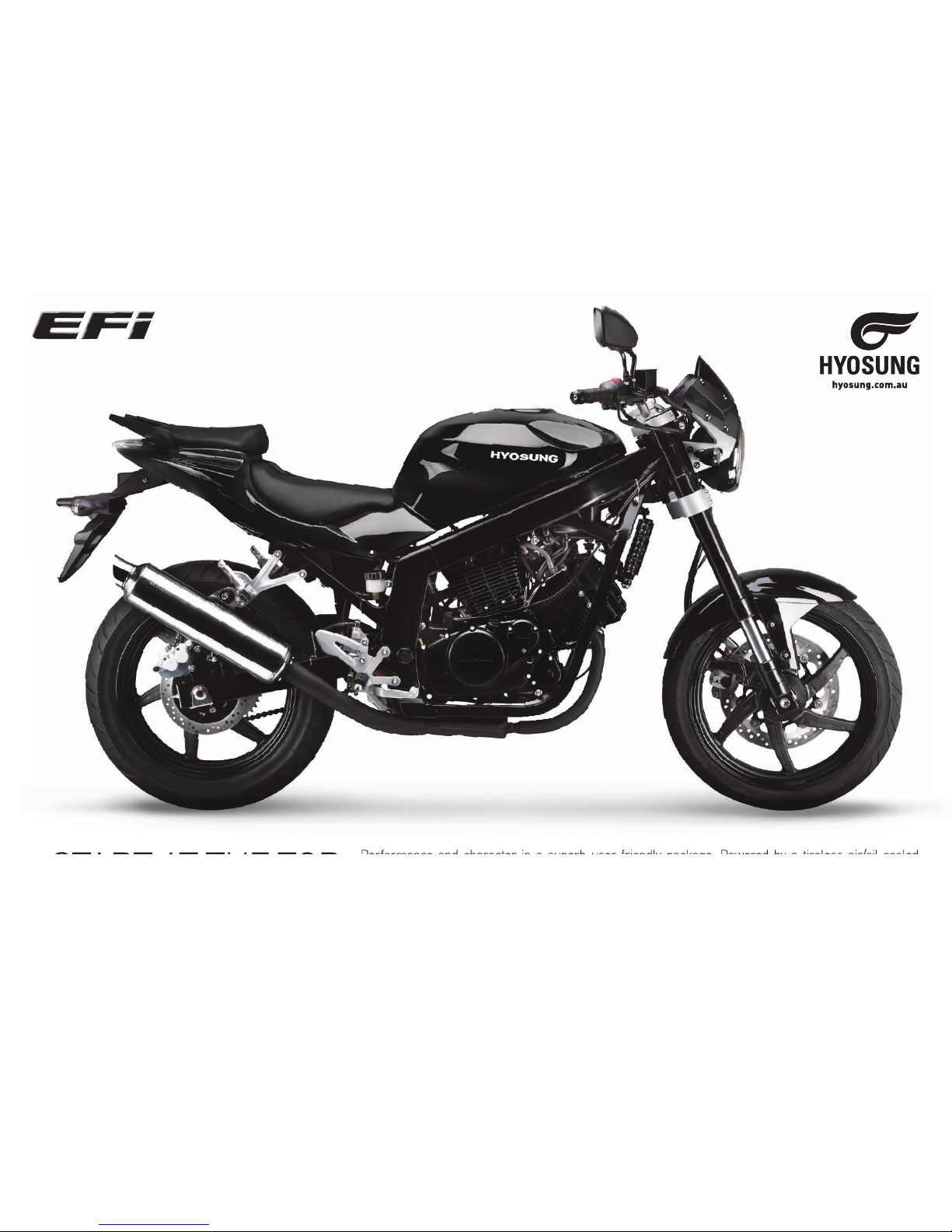

Performance and character in a superb user-friendly package. Powered by a tireless air/oil-cooled

engine, with a practical riding position that is responsive to any situation. Wide rims and upside-down

forks add visual impact and handling ﬁ nesse to this solid performer. The GT250 is now ﬁ tted with EFI for

performance, smooth running, low emissions and easy starting.

START AT THE TOP.

hyosung.com.au

Performance and character in a superb user-friendly package. Powered by a tireless air/oil-cooled

START AT THE TOP.

hyosung.com.au

GT250R

DIMENSIONS AND DRY MASS

Overall Length (mm) . . . . . .2,095

Overall Width (mm) . . . . . . . .720

Overall Height (mm) . . . . . . .1,125

Dry Mass (kg) . . . . . . . . . . . . .159

Wheel Base (mm) . . . . . . . . .1,435

Seat Height (mm) . . . . . . . . . .790

Ground Clearance (mm) . . .155

Frame Type . . . . . . . . . . . . . . .Perimeter Double Cradle

ENGINE

Type . . . . . . . . . . . . . . . . . . . . . .75° V-twin DOHC, 4 valves per cylinder

Cooling . . . . . . . . . . . . . . . . . . .Air / Oil Cooled

Displacement (cc) . . . . . . . . .249

Bore x Stroke . . . . . . . . . . . . .57 x 48.8

Compression Ratio . . . . . . . .10.3 : 1

Max Power . . . . . . . . . . . . . . . .21kW @ 10500rpm

Max Torque . . . . . . . . . . . . . . .22Nm @ 8000rpm

Fuel System . . . . . . . . . . . . . . .Electronic Fuel Injection

Lubrication . . . . . . . . . . . . . . .Wet Sump

Starting System . . . . . . . . . . .Electric

Emissions . . . . . . . . . . . . . . . .Euro 3 compliant

TRANSMISSION

Clutch . . . . . . . . . . . . . . . . . . . .Wet Multi-Plate

Gears . . . . . . . . . . . . . . . . . . . . .Constant Mesh 5-speed

Final Drive . . . . . . . . . . . . . . . .Chain

CAPACITY

Fuel Tank (litres) . . . . . . . . . .17

CHASSIS

Front Tyre . . . . . . . . . . . . . . . .110 / 70 - 17 54H

Rear Tyre . . . . . . . . . . . . . . . . .150 / 70 - 17 69H

Front Suspension . . . . . . . . .41mm USD

Rear Suspension . . . . . . . . . .Monoshock / adjustable preload

Front Brake . . . . . . . . . . . . . . .Semi-Floating 300mm twin discs with

dual piston calipers

Rear Brake . . . . . . . . . . . . . . .230mm single disc

OPTIONAL ACCESSORIES

Sports Mufﬂ er Centre Stand Kit

Sports Carrier Tinted Screen

WARRANTY

Two-year, unlimited kilometres

FEATURES

Electronic Fuel Injection

Aggressive Styling

Upside-down Forks

Heavy Duty Tie Down Points

Digital Instrumentation

SPECIFICATIONS.

The speciﬁ cations are subject to change without notice. Images for illustration purposes only.

Hot Chilli Red

COLOURS

LEARNER APPROVED

MOTORCYCLE SCHEME

Solid Black Hot Chilli Red / Solid Black Titanium Silver / Solid Black Polar White / Solid Black

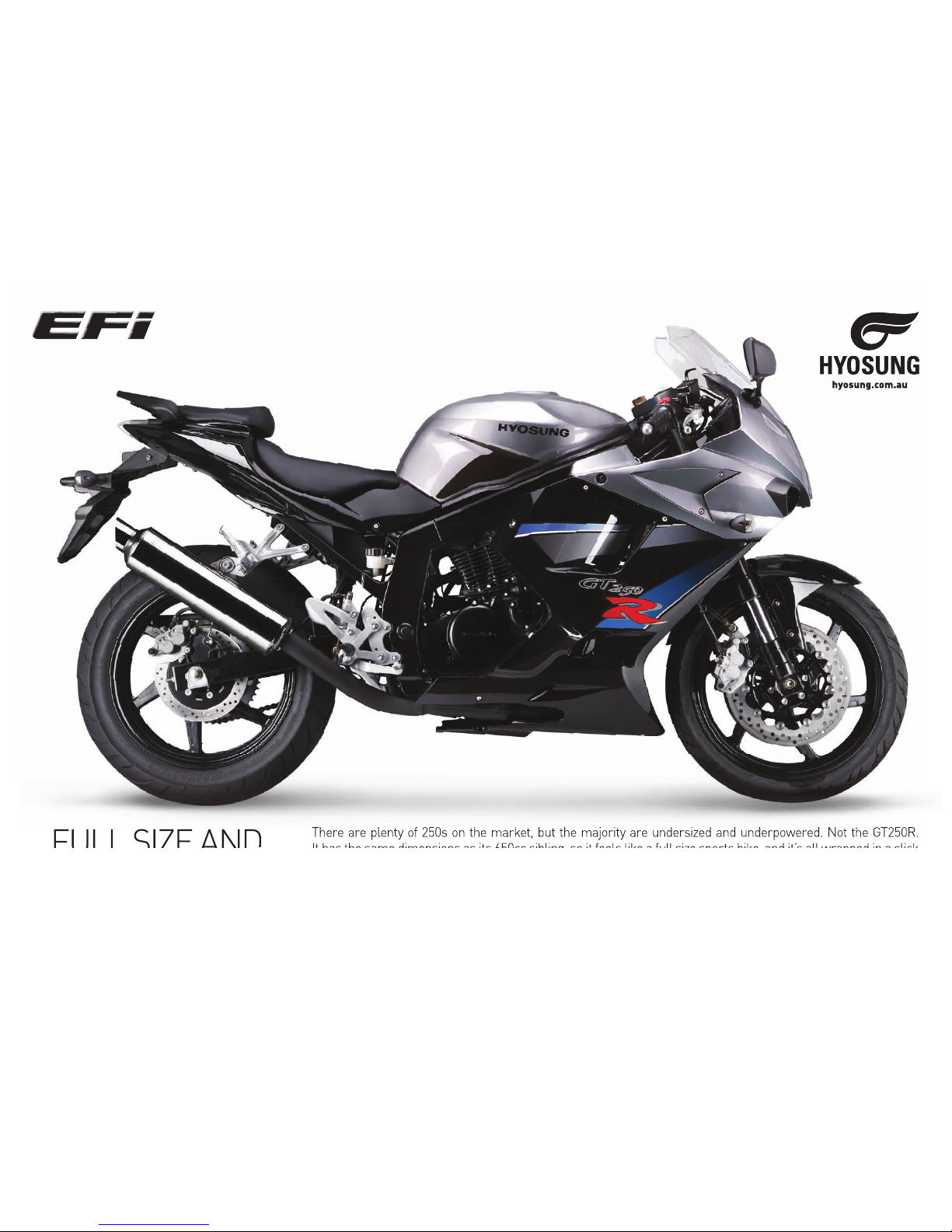

There are plenty of 250s on the market, but the majority are undersized and underpowered. Not the GT250R.

It has the same dimensions as its 650cc sibling, so it feels like a full size sports bike, and it’s all wrapped in a slick

aerodynamic fairing with racy clip-on handlebars.

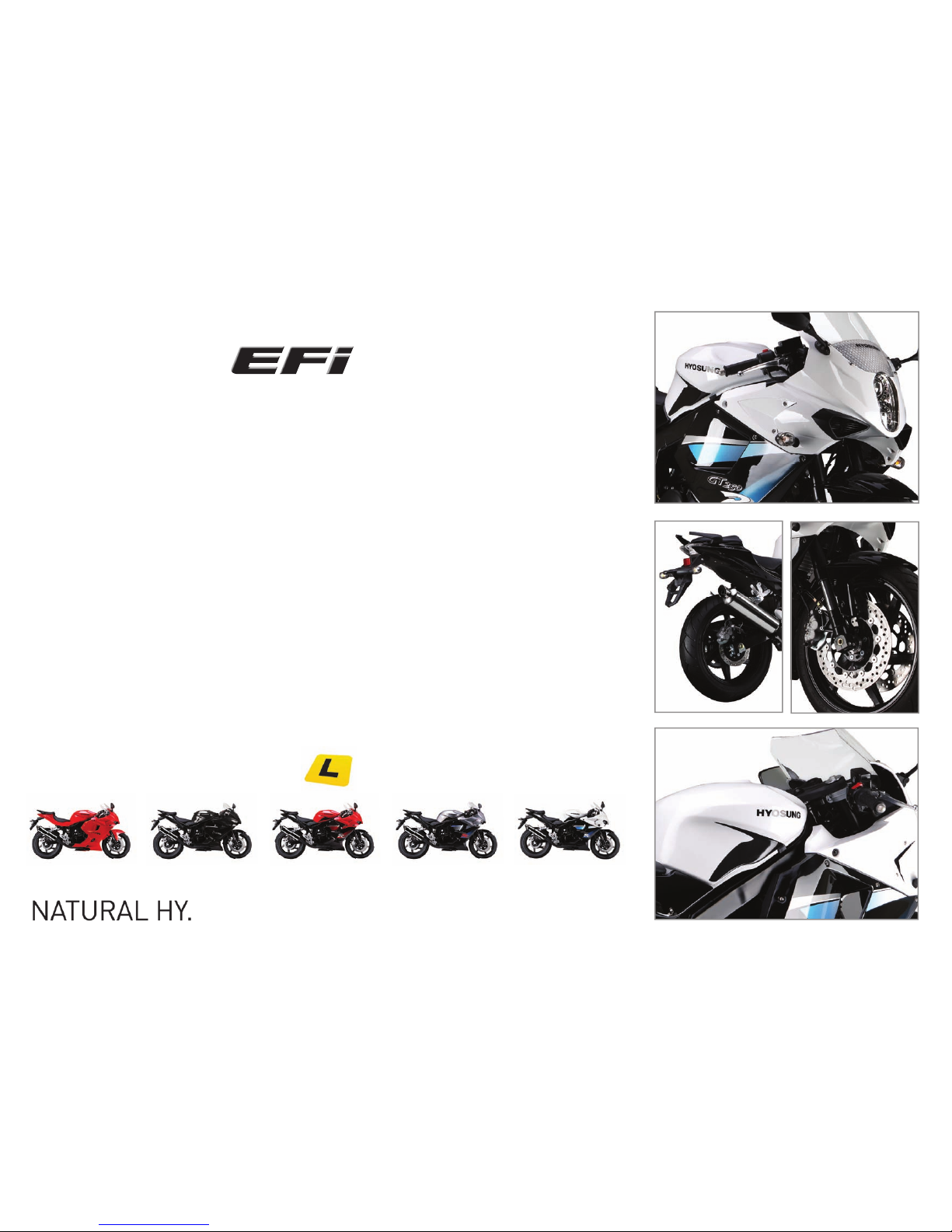

The GT250R has additional features that are simply not available on many of its challengers. Twin 300mm semi-

ﬂ oating front discs, massive 41mm upside-down forks and digital Instrumentation all combined with programmable

EFI for an unmatched performance edge in its class. Get serious about your riding from day one.

FULL SIZE AND

LEARNER LEGAL.

hyosung.com.au

There are plenty of 250s on the market, but the majority are undersized and underpowered. Not the GT250R.

It has the same dimensions as its 650cc sibling, so it feels like a full size sports bike, and it’s all wrapped in a slick

FULL SIZE AND

GT650

DIMENSIONS AND DRY MASS

Overall Length (mm) . . . . . .2,095

Overall Width (mm) . . . . . . . .780

Overall Height (mm) . . . . . . .1,090

Dry Mass (kg) . . . . . . . . . . . . .196

Wheel Base (mm) . . . . . . . . .1,435

Seat Height (mm) . . . . . . . . . .790

Ground Clearance (mm) . . .185

Frame Type . . . . . . . . . . . . . . .Dual Lateral Oval Bar

ENGINE

Type . . . . . . . . . . . . . . . . . . . . . .90° V-twin DOHC, 4 valves per cylinder

Cooling . . . . . . . . . . . . . . . . . . .Liquid Cooled

Displacement (cc) . . . . . . . . .647

Bore x Stroke . . . . . . . . . . . . .81.5 x 62

Compression Ratio . . . . . . . .11.6 : 1

Max Power . . . . . . . . . . . . . . . .59kW @ 9250rpm

Max Torque . . . . . . . . . . . . . . .67Nm @ 7250rpm

LAMS Max Power . . . . . . . . .40kW @ 8500rpm

Fuel System . . . . . . . . . . . . . . .Electronic Fuel Injection

Lubrication . . . . . . . . . . . . . . .Wet Sump

Starting System . . . . . . . . . . .Electric

Emissions . . . . . . . . . . . . . . . .Euro 3 compliant

TRANSMISSION

Clutch . . . . . . . . . . . . . . . . . . . .Wet Multi-Plate

Gears . . . . . . . . . . . . . . . . . . . . .Constant Mesh 6-speed

Final Drive . . . . . . . . . . . . . . . .Chain

CAPACITY

Fuel Tank (litres) . . . . . . . . . .17

CHASSIS

Front Tyre . . . . . . . . . . . . . . . .120 / 60ZR - 17 55W

Rear Tyre . . . . . . . . . . . . . . . . .160 / 60ZR - 17 69W

Front Suspension . . . . . . . . .41mm USD adjustable rebound

and compression

Rear Suspension . . . . . . . . . .Monoshock / adjustable preload

Front Brake . . . . . . . . . . . . . . .Semi-Floating 300mm twin discs with four

piston calipers

Rear Brake . . . . . . . . . . . . . . .230mm single disc

OPTIONAL ACCESSORIES

Sports Mufﬂ er

Sports Carrier

WARRANTY

Two-year, unlimited kilometres

FEATURES

Electronic Fuel Injection

Aggressive Styling

Upside-down Forks

Heavy Duty Tie Down Points

Digital Instrumentation

SPECIFICATIONS.

The speciﬁ cations are subject to change without notice. Images for illustration purposes only.

Solid BlackSignal Red Polar White

COLOURS

LEARNER APPROVED

MOTORCYCLE SCHEME
