Hyena LCD Compact EX Manuel utilisateur

This guideline is applicable for the Hyena e-bike system only

LCD Compact EX

Product Manual

Version 210310

This manual is intended primarily for the trained technician to install, disassemble, or maintain the e-bike.



Content
Product features 1
Product Description 1
Parts Description 1
Product Dimension 2
Technical Data 3
Function 3
Characteristic 3
Mounting Parameter 3
Connection 3
Indicator Information 4
Certification 4
Mounting 5
Tool List 5
Accessory List 5
Mounting Instructions 5
Operation 6
Operation Instructions 6
Error Code List 8
Safety Instructions 10
Important Notice 10
Moving and Storage Instructions 10
Maintenance 10
Disposal 10


HYENA E-BIKE SYSTEMS

Product features

Product Description

The Hyena LCD Compact EX features all in one function: compact size with complete info and precise digital information,

ergonomic large buttons. Supports app and service tool connection via Bluetooth.

Parts Description

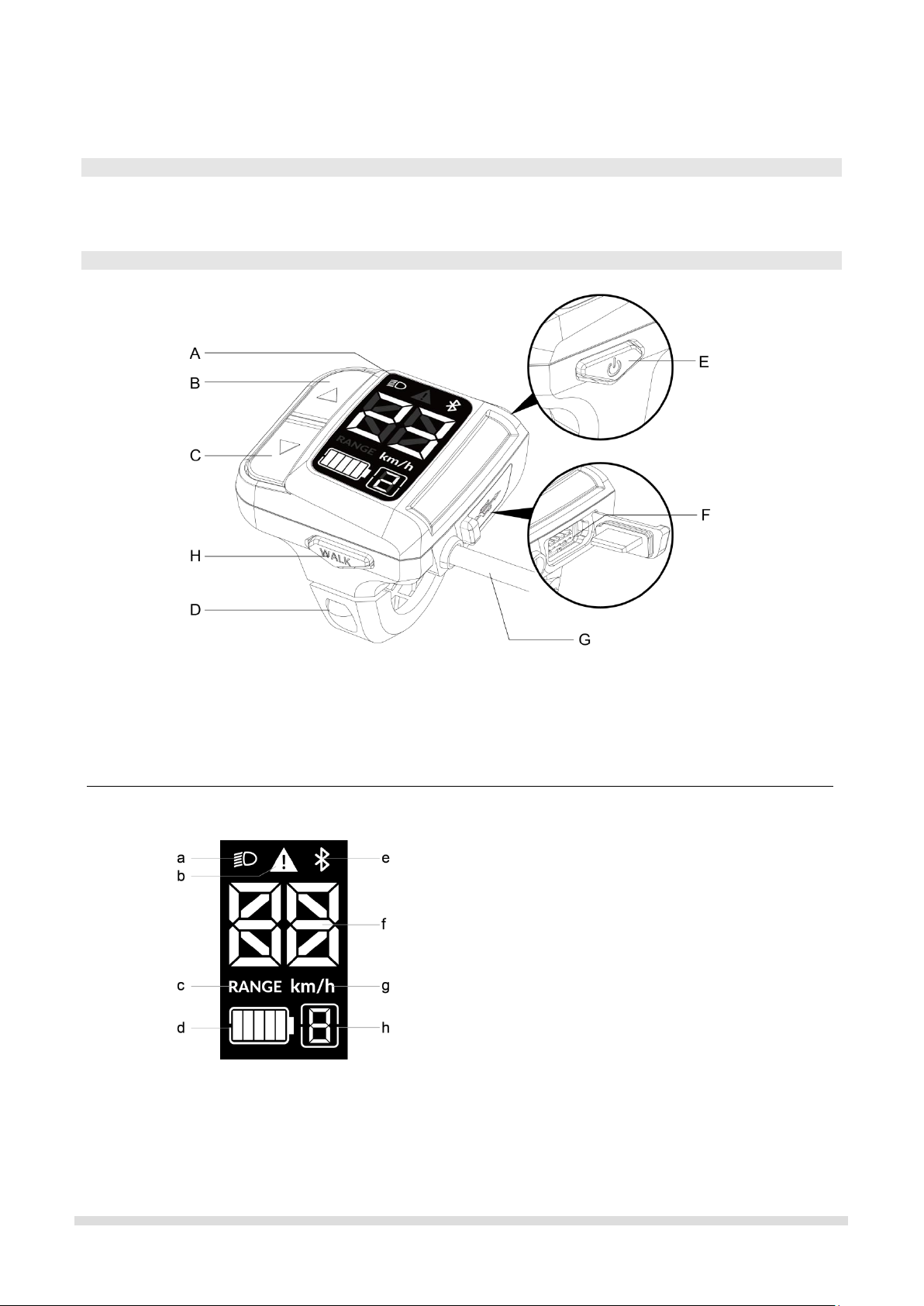

ADisplay screen

BUp & Increase support level button

CDown & Decrease support level button

DFastening screw

EPower on/off button

FUSB connection port (for diagnostic)

GCable

HWalk-assist button

DISPLAY ELEMENT

aLight

bError indicator

cDisplay information type

dBattery capacity

eBluetooth status

fSpeed/range

g Unit indicator

hSupport level

HYENA E-BIKE SYSTEMS

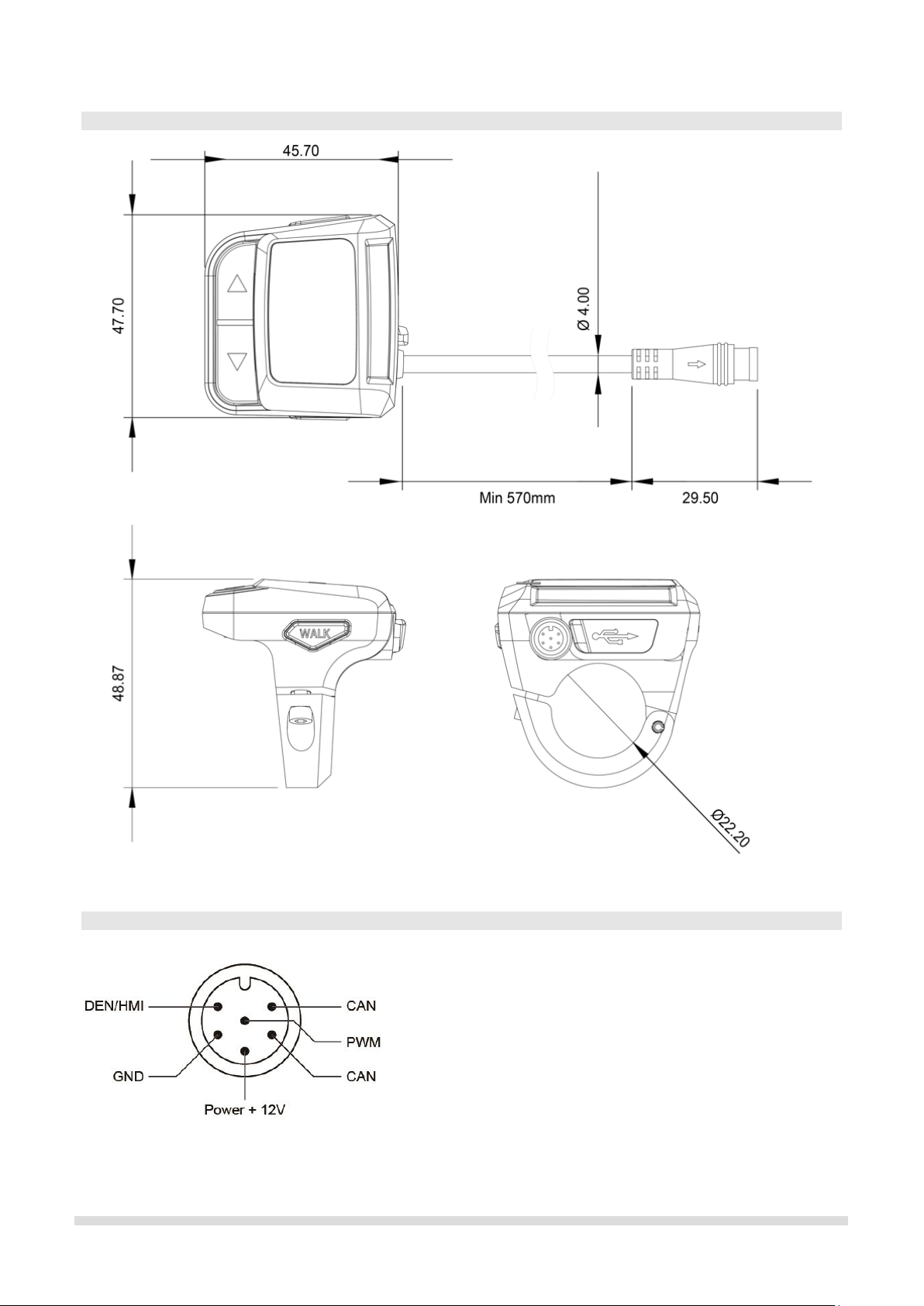

Product Dimension

Cable Pin Definition

HYENA E-BIKE SYSTEMS

Technical Data

Function

Number of button

Power/Up/Down/Walk

Turn on/off system

Power button

Switch motor support level

UP/Down button

Switch information

Short press walk-assist button

Current speed & Range

Turn on/off light

Long press Up button

Walk-assist

Long press walk-assist button

USB Charging

Max. 5V/1A

USB 2.0 TYPE A

Connection

Bluetooth / USB 3.0 / Hyena 6P

Battery wake up function

Yes

HMI/DEN

Characteristic

Protocol

CAN

Support Hyena CAN

Operating voltage

10~14V

Operating temperature

-10℃~+50℃80%RH

Storage temperature

-20℃~+60℃80%RH

Waterproof level

IPX5

Quiescent current

<1mA

Measure condition

a. System off

b. Battery, Console, Display, Driver, Motor

and Sensor are connected well.

c. Remove all smart parts.

Mounting Parameter

Dimension (mm)

L47.7, W45.7, H48.9 mm

Mounting position

Left handle bar

Clamp diameter

22.2 mm

Cable length

570 mm

Standard connector

Hyena 6P male

CM-WP408-06M

Compatible of brake

BL-T4000 / BL-M6000

BL-MT201 / BL-MT401

SHIMANO

Compatible of shifter

Do not recommend

Connection

Bluetooth connection

Bluetooth 4.2 BLE

Support to HRA (Hyena Rider Assistant ) &

HST (Hyena Service Tool)

USB connection

USB 3.0 TYPE A

Support to HST

HYENA E-BIKE SYSTEMS

Indicator Information

Current speed

0~99

Unit in 1 Km/Hour

Range

0~99

Unit in 1 KM (Battery with Hyena CAN required)

Riding support level

0~4

Battery status

5 segments

Light on indicator

Head light icon

Bluetooth status

Bluetooth icon

Error alert

Warning icon + Number

Refer error code table

Certification

EN15194:2017

Yes

BQB

Yes

Bluetooth

RoHS 2.0

Yes

HYENA E-BIKE SYSTEMS

Mounting

Tool List

Hexagon key M3

Disc hex bolts

Accessory List

Hex socket head cap

M3x0.5Px10mm

1 pcs

Mounting Instructions

• Use the proper tools during the installation or removal process.

• Fasten the hex bolt with 1.0 Nm torque value.

• Carefully install is necessary, do not strike it with any tool such as a hammer or wrenches.

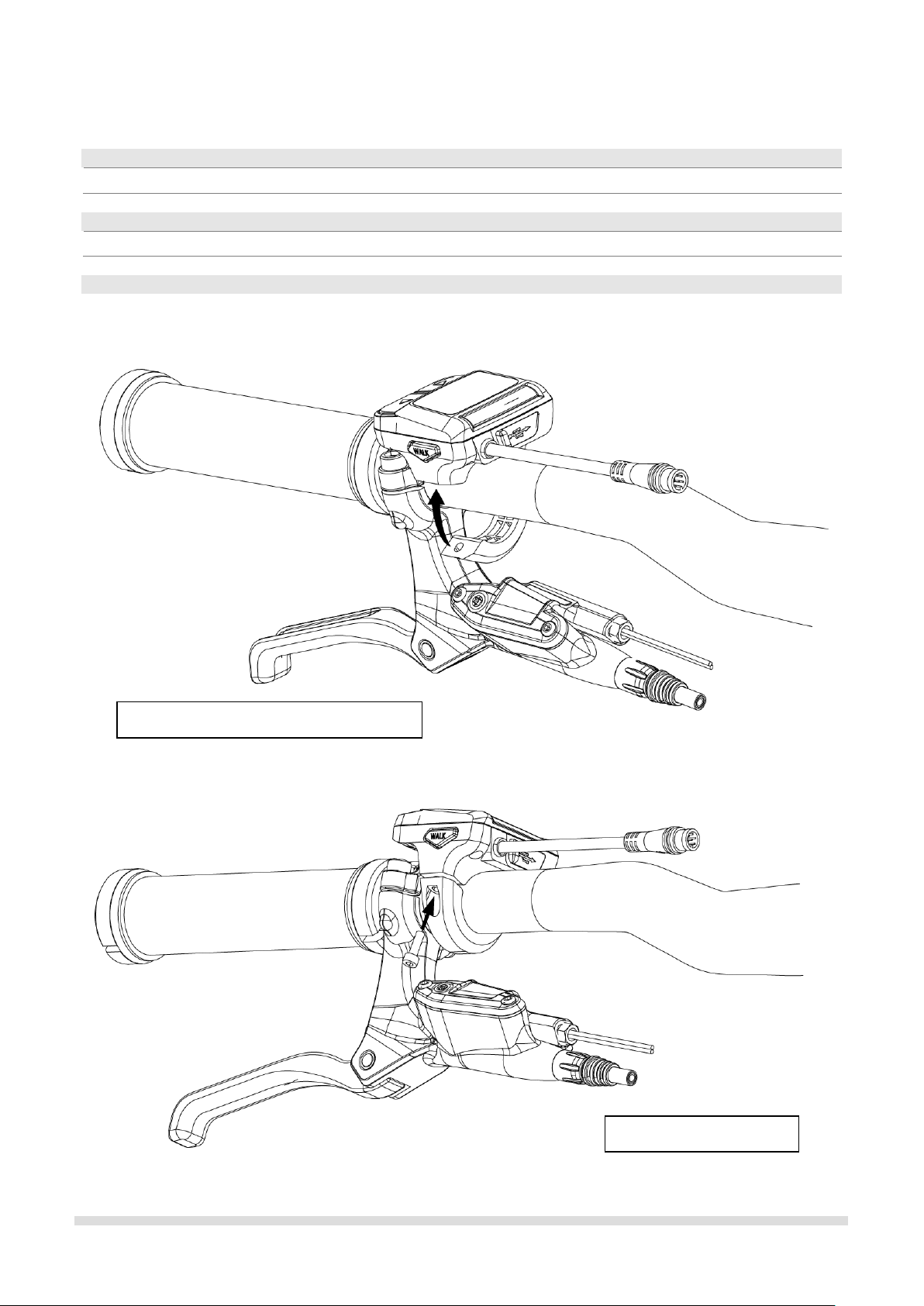

Step1: Mount the HMI hook on the handlebar

Step2: Fasten the hex bolt.

HYENA E-BIKE SYSTEMS

Operation

Caution - The e-bike system can only be activated when

the following requirements are met:

-A sufficiently charged battery is attached.

-The e-system is connected properly.

Operation Instructions

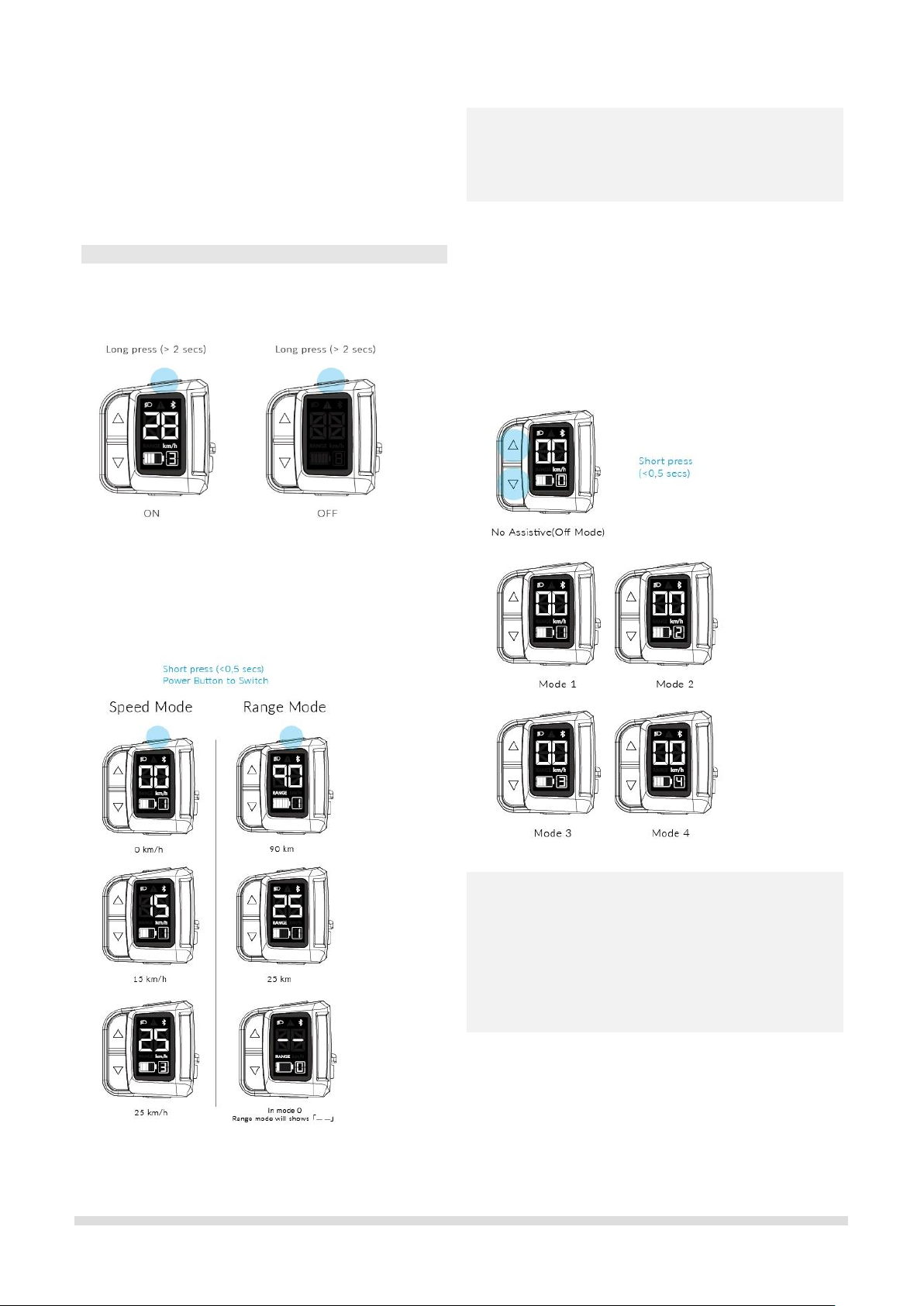

Turn on/off the e-bike system

Long press the power button to turn on/off.

Switch between speed mode/range mode

Short press the power button to switch information.

Note

-Always switch off the e-Bike system when parking the

e-Bike or before removing the battery.

Support level adjusting

Short press up/down button to adjust the support level

while you pedaling.

-Default on Off mode

-None circulation

-Automatic memory previous setting.

Note

-The system is activated as soon as you start pedaling.

-The e-Bike drive output only supports a speed below

25/45 km/h, as soon as you have reached 25/45 km/h,

e-system suspends the motor support, then automatically

reactivated when your speed is below 25/45 km/h.

HYENA E-BIKE SYSTEMS

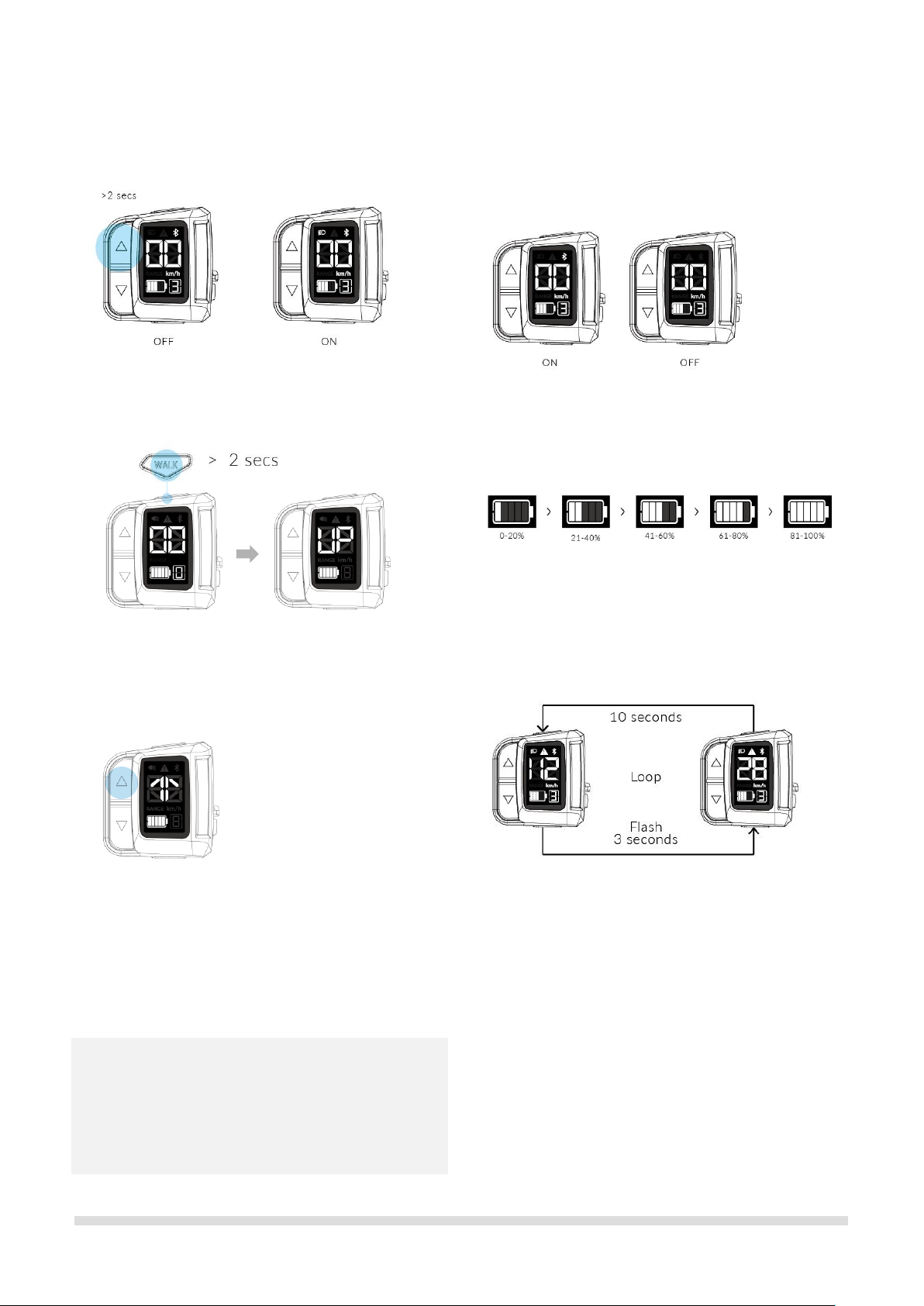

Turn on/off light

Long press up button to turn on/off light.

When e-bike equipped with front/rear lights.

Walk assistance

Long press and Hold the walk-assist button to activate the

walk assist mode. Release the button to cancel the walk

assistance.

Press and hold the up button to start the walk assist. As

long as you are holding the up button, your e-bike will be

propelled forward at a slow speed.

Release the up button to stop pushing your e-bike.

If no buttons are pressed within 5 seconds in the walk

assist mode, the system will return to general mode

automatically for safety. Or if the 'down/walk' button is

pressed in the walk assist mode, the system will also

return to the general mode.

Note

The walk assistance function must only be used when

pushing the e-Bike. Make sure you are ready and stand

steady before activating the walk assistance.

Do not activate the walk assistance when you ride on the

e-bike or if the wheels are not in contact with the ground

Bluetooth connection

Bluetooth indicator shows when connected.

Battery indicator

The icon shows the battery capacity.

Error alert

The error code shows on screen when a system error is

detected. Refer to the error code list for details.

When the number indicator returns to the general riding

info, the alert icon stays on display. All the console function

remains the same.

Suspend the error alert

Press any button to suspend the error code flashing, the

alert icon will still stay on until the system error is solved.

Walk assistance activated

Press and hold

HYENA E-BIKE SYSTEMS

Error Code List

Code

Category

Error Details

Torque sensor

Torque sensor voltage too high

Torque sensor voltage too low

Front TPMS

Front tire pressure too high

Front tire pressure too low

Front TPMS battery capacity low

Front TPMS temperature too high

IoT Box

GPS positioning failed

SIM card access failed

Database access failed

Fail to connect server

Motor

Motor hall all voltage too high

Motor hall all voltage too low

Motor hall U malfunction

Motor hall V malfunction

Motor hall W malfunction

Phase U malfunction

Phase V malfunction

Phase W malfunction

Motor temperature too high

Rear TPMS

Rear tire pressure too high

Rear tire pressure too low

Rear TPMS battery capacity low

Rear TPMS temperature too high

Speed sensor

No speed signal

No cadence signal

Accessories

Rear brake light malfunction

Horn malfunction

Tail-right turn signal malfunction

Tail-left turn signal malfunction

Head-right turn signal malfunction

Head-left turn signal malfunction

Daytime running light malfunction

Battery

Battery voltage too high

Battery voltage too low

Low battery capacity

Flat battery

Charging temperature too high

Battery cell temperature too low

Battery cell over temperature

Battery over discharged

Battery over charged

Battery over discharged error

Battery over charged error

Driver

Driver temperature too high

Battery communication fail

Pedal rotation blocked

Handle rotation blocked

Driver communication fail

High side FET of U phase malfunction

Low side FET of U phase malfunction

High side FET of V phase malfunction

Low side FET of V phase malfunction

High side FET of W phase malfunction

Low side FET of W phase malfunction

FET malfunction
