Hyena CC-02 Manuel utilisateur

Product Manual

LCD Compact EX (CC-02)

Original Instruction

Version 221124



Table of Contents
Introduction
Product Features
Product Description ..................................................................................1
Parts Description ......................................................................................1
Product Dimension ...................................................................................2
Cable Pin Definition ..................................................................................2
Technical Data
Function....................................................................................................3
Characteristic............................................................................................3
Mounting Parameter .................................................................................3
Connection................................................................................................3
Indicator Information .................................................................................4
Certification...............................................................................................4
Mounting
Tool List ....................................................................................................5
Accessory List...........................................................................................5
Mounting Instructions................................................................................5
Operation
Operation Instructions...............................................................................6
Error Code List..........................................................................................8
Safety Instructions
Important Notice .......................................................................................9
Moving and Storage Instructions ..............................................................9
Maintenance .............................................................................................9
Product Label............................................................................................9
Disposal....................................................................................................9


HYENA E-BIKE SYSTEMS

Introduction

This manual is intended primarily for the trained technician to install, disassemble, or maintain the Hyena e-bike system

only. Please read all the safety warnings and instructions carefully. Failure to follow the warnings and instructions may

result in death or severe injuries. Save this manual for future reference.

Product Features

Product Description

The Hyena LCD Compact EX (CC-02) e-bike handlebar HMI features all in one function: compact size with complete info

and precise digital information, large ergonomic buttons. In addition, support the Apps and service tool connection via

Bluetooth.

Parts Description

DISPLAY ELEMENT

Item

Description

Light indicator

Speed/range

Display information type

Battery capacity indicator

Error indicator

Bluetooth indicator

Unit indicator

Support level

Item

Description

Display screen

UP & Increase support level button

DOWN & Decrease support level button

Fastening screw

Power on/off button

USB connection port (for diagnostic)

Cable

Walk-assist button

HYENA E-BIKE SYSTEMS

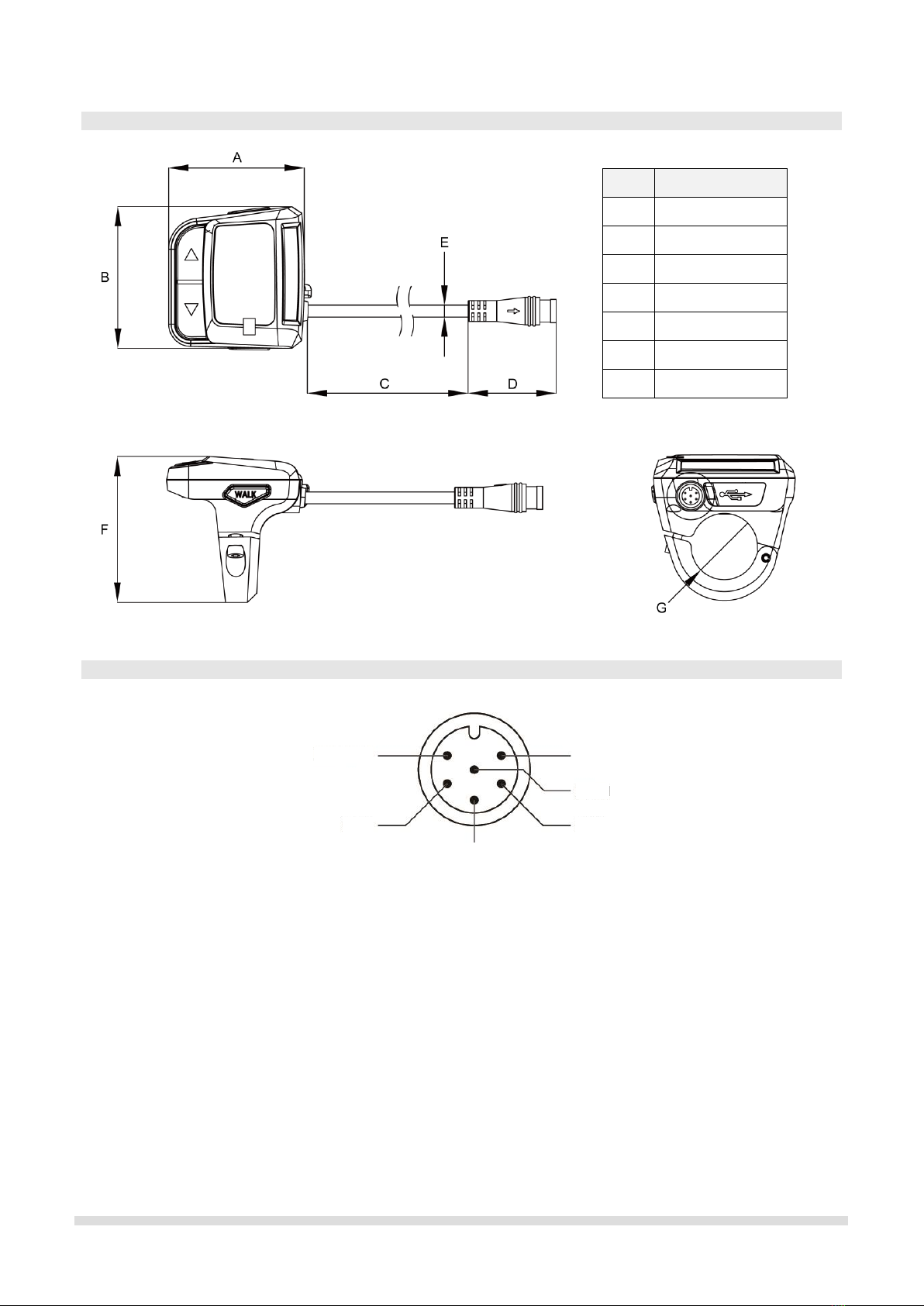

Product Dimension

Cable Pin Definition

Item

Dimension (mm)

45.7

47.7

570 or 720

29.5

Φ4.0

49.0

Φ22.2

NOTE: The connection length between

this HMI to its power supply (controller),

including extension cables, shall be

limited to under 3 meters.

VCC+

CAN H

CAN L

GND

DEN/HMI

PWM

HYENA E-BIKE SYSTEMS

Technical Data

Function

Number of button

Power/Up/Down/Walk

Turn on/off system

Power button

Switch motor support level

Up/Down button

Switch information

Short press walk-assist button

Current speed & Range

Turn on/off light

Long press Up button

Walk-assist

Refer to page 7

USB charging

Max. 5V/1A

USB 2.0 TYPE A

Connection

Bluetooth / USB 3.0 / Hyena 6P

Battery wake up function

Yes

HMI/DEN

Characteristic

Protocol

CAN

Support Hyena CAN

Rated voltage

12Vdc

Operating voltage

10 to 14Vdc

Rated current

0.6A

Quiescent current

<1mA

Measure condition

a. System off

b. Battery, HMI, Display, Controller, Motor

and Sensor are connected well.

c. Remove all smart parts.

Operating temperature

-10℃to +40℃@80%RH

Storage temperature

-20℃to +70℃@80%RH

Waterproof level

IPX5

Mounting Parameter

Dimension (mm)

L47.7, W45.7, H48.9 mm

Mounting position

Left handle bar

Clamp diameter

22.2 mm

Cable length

570/ 720 mm

40010C20A: 570mm

40010C22F: 720mm

Standard connector

Hyena 6P male

CM-WP408-06M

Compatible of brake

BL-T4000 / BL-M6000

BL-MT201 / BL-MT401

SHIMANO

Compatible of shifter

Do not recommend

Connection

Bluetooth connection

Bluetooth 4.2 BLE

Support to HRA (Hyena Rider Assistant)

rider app & HST (Hyena Service Tool)

USB connection

USB 3.0 TYPE A

Support to HST

HYENA E-BIKE SYSTEMS

Indicator Information

Current speed

0 to 99

Unit in 1 km/hour

Range

0 to 99

Unit in 1 km (Battery with Hyena CAN required)

Riding support level

0 to 4

Battery status

5 segments

Light on indicator

Head light icon

Bluetooth status

Bluetooth icon

Error alert

Warning icon & Number

Refer to error code table

Certification

EN 15194:2017

Yes

BQB

Yes

Bluetooth

RoHS 2.0

Yes

HYENA E-BIKE SYSTEMS

Mounting

Tool List

Hexagon key M3

Disc hex bolts

Accessory List

Hex socket head screw

M3x0.5Px10mm

1 pc

Mounting Instructions

• Use the proper tools during the installation or removal process.

• Fasten the hex bolt with 1.0 Nm torque value.

• Carefully install is necessary, do not strike it with any tool such as a hammer or wrenches.

Mount the HMI hook on the handlebar.

Mount and fasten the hex socket head screw with torque to 0.25 Nm (2.5 kgf/cm).

STEP

HYENA E-BIKE SYSTEMS

Operation

Caution! The e-bike system can only be activated when

the following requirements are met:

-A sufficiently charged battery is attached.

-The e-system is appropriately connected.

Operation Instructions

Turn on/off the e-bike system

Long press the power button to turn it on/off.

Switch between speed mode/range mode

Short press the power button to switch information.

NOTE

Always switch off the e-Bike system when parking

the e-Bike or before removing the battery.

Support level adjusting

Short press the UP/ DOWN button to adjust the support

level while you pedal.

-Default on Off mode

-None circulation

NOTE

-The system is activated as soon as you start

pedaling.

-The e-bike drive output only supports a speed

below 25/45 km/h, as soon as you have reached

25/45 km/h, the e-system suspends the motor

support, then automatically reactivates when your

speed is below 25/45 km/h.

HYENA E-BIKE SYSTEMS

Turn on/off light

Long press UP button to turn on/off light when e-bike

equipped with front/rear lights.

Walk assistance

Long press and hold the WALK assist button to activate

the walk assist mode.

Press and hold the UP button to start the walk assist. As

long as you are holding the up button, your e-bike will be

propelled forward at a slow speed.

Release the UP button to stop pushing your e-bike.

Suppose no buttons are pressed within 5 seconds in the

walk assist mode. In that case, system will return to

general mode automatically for safety. Or if the DOWN/

WALK assist button is pressed in the walk assist mode,

the system will also return to the general mode.

NOTE

The walk assistance function must only be used

when pushing the e-bike. Make sure you are ready

and stand steady before activating the walk

assistance.

Do NOT activate the walk assistance when you ride

on the e-bike or if the wheels are not in contact with

the ground.

Bluetooth connection

Bluetooth indicator shows when connected.

Battery indicator

The icon shows the battery capacity.

Error alert

The error code shows on the middle screen when a

system error is detected. Refer to the error code list for

details.

The alert icon stays on display when the number indicator

returns to the general riding info. All the HMI function

remains the same.

Suspend the error alert

Press any button to suspend the error code flashing; the

alert icon will stay on until the system error is solved.

Press and hold

> 2 seconds

Walk assistance is activated.

HYENA E-BIKE SYSTEMS

Error Code List

Code

Category

Error Description

Torque sensor

Torque sensor voltage too high

Battery

Charging temperature error

Torque sensor

Torque sensor voltage too low

Battery

Battery cell overvoltage

Front TPMS

Front tire pressure too high

Battery

Battery cell undervoltage

Front TPMS

Front tire pressure too high

Battery

Battery overcharge

Front TPMS

Front TPMS battery capacity low

Battery

Battery short circuit

Front TPMS

Front TPMS temperature too high

Battery

Battery overdischarge

IoT Box

Satellite positioning error

Battery

Discharging temperature error

IoT Box

SIM card error

Battery

Battery cell balancing error

IoT Box

Database error

Controller

Controller overheat

IoT Box

Fail to connect server

Controller

Battery communication error

Motor

Motor hall all voltage too high

Controller

Locked rotor (pedal assist)

Motor

Motor hall all voltage too low

Controller

Locked rotor (walk assist)

Motor

Motor signal error (U)

Controller

Controller communication error

Motor

Motor signal error (V)

Controller

Controller FET error (U)

Motor

Motor signal error (W)

Controller

Controller FET error (U)

Motor

Motor malfunction (U)

Controller

Controller FET error (V)

Motor

Motor malfunction (V)

Controller

Controller FET error (V)

Motor

Motor malfunction (W)

Controller

Controller FET error (W)

Motor

Motor overheat

Controller

Controller FET error (W)

Rear TPMS

Rear tire pressure too high

Controller

Controller FET circuit error

Rear TPMS

Rear tire pressure too low

Controller

Controller FET overcurrent (FW)

Rear TPMS

Rear TPMS battery capacity low

Controller

Controller FET overcurrent (HW)

Rear TPMS

Rear TPMS temperature too high

Controller

Controller protection unit error

Speed sensor

Speed sensor error

Throttle

Locked rotor (Throttle)

Speed sensor

Cadence sensor error

Throttle

Throttle overvoltage

Chain

Drivetrain error

Throttle

Throttle undervoltage

Rear brake light

Brake light malfunction

HMI

Button communication fail

Horn

Horn malfunction

HMI

HMI button communication error

Turn Lights

Turn signal error (RR)

100

HMI

Display panel malfunction

Turn Lights

Turn signal error (RL)

101

HMI

USB charge port error

Turn Lights

Turn signal error (FR)

112

Front light

Front light malfunction

Turn Lights

Turn signal error (FL)

113

Maintenance

Maintenance notification

Battery

Battery overvoltage

114

Bluetooth

Bluetooth error

Battery

Battery undervoltage

115

Brake sensor

Brake sensor error

Battery

Low capacity

116

Rear light

Rear light malfunction

Battery

Empty capacity

117

Light

Light short circuit

Table des matières

Autres manuels Hyena Accessoires pour vélos

Hyena

Hyena BP-B250 Manuel utilisateur

Hyena

Hyena BS-A370 Manuel utilisateur

Hyena

Hyena MRC-D350 Manuel utilisateur

Hyena

Hyena DP-A250+ Manuel utilisateur

Hyena

Hyena BS-A500 Manuel utilisateur

Hyena

Hyena CE-02 Manuel utilisateur

Hyena

Hyena MRC-B750 Manuel utilisateur

Hyena

Hyena TREK Manuel utilisateur

Hyena

Hyena BP-A350 Manuel utilisateur

Hyena

Hyena BC-A320 Manuel utilisateur

Hyena

Hyena MRC-A250 Manuel utilisateur

Hyena

Hyena MRC-D500 Manuel utilisateur

Hyena

Hyena CE-03 Manuel utilisateur

Hyena

Hyena E-Urban Series Manuel utilisateur

Hyena

Hyena LED Chip Manuel utilisateur

Hyena

Hyena MRC-B750 Manuel utilisateur

Hyena

Hyena LED Multi Manuel utilisateur

Hyena

Hyena MRC-E250 Manuel utilisateur

Hyena

Hyena E-Trekking Series Manuel utilisateur

Hyena

Hyena DC-A250+ Manuel utilisateur

Hyena

Hyena MRT-A250 Manuel utilisateur

Hyena

Hyena E-Bike System Manuel utilisateur

Hyena

Hyena ST-SQ-2 Manuel utilisateur

Hyena

Hyena DU-B250+ Manuel utilisateur

Manuels Accessoires pour vélos populaires d'autres marques

Sigma

Sigma BC 16.16 Manuel utilisateur

Playcore

Playcore Dero Setbacks Manuel utilisateur

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuel utilisateur

Cateye

Cateye RAPID X2 Manuel utilisateur

buratti meccanica

buratti meccanica Clorofilla Trail Manuel utilisateur

Shimano

Shimano SG-8R20 Mode d'emploi

BOB

BOB YAK Manuel utilisateur

APLIC

APLIC 303303/20190717TW012 Manuel utilisateur

SRAM

SRAM AXS BlipBox Manuel utilisateur

Garmin

Garmin EDGE 500 Manuel utilisateur

Shimano

Shimano FD-RX810 Manuel utilisateur

Cateye

Cateye V2C - Manuel d'instructions

KMART

KMART 43115907 Manuel utilisateur

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuel utilisateur

NVO Components

NVO Components STEM Manuel utilisateur

DAXYS

DAXYS BP188 Manuel utilisateur

XLC

XLC BV-W17 Manuel utilisateur

Deda Elementi

Deda Elementi SUPERBOX Manuel utilisateur
