Hussmann DM LOW HEIGHT Series Manuel utilisateur

Part Number:- IM-013 DATE: 29/4/16 REV: A

DM LOW HEIGHT SERIES –FRONT OPEN MULTIDECK

INSTALLATION MANUAL: IM-013

Standard remote versions

The following models are covered by this Manual

DM13

66 Glendenning Road, Glendenning NSW 2761

PO Box 42 Doonside NSW 2767

t: +61 2 8805 0400 f: +61 2 9675 2897

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 1 Hussmann

Contents

Pre-installation 2

Important Safety Instructions 2

Case services dimensions 3

Operating environment 4

Handling and transporting cases 4

Shipping damages and shortages 4

Installation 5

Positioning and levelling 5

Sealing case joins 8

Joining the cases 9

Attaching trims 11

Attaching kick plates 12

Connecting refrigerant lines 14

Installing the waste drain 15

Connecting power supply 16

Installing sensor probes 17

Mounting fixtures 18

Commissioning 19

Cleaning case 19

Starting up 19

Start-up checks 19

Decommissioning 19

Disposal 19

Operation 20

Loading Merchandise 20

Cleaning and Maintenance 20

Daily Checks 20

Cleaning 21

Important Notes 21

Cleaning Procedure 21

Six Monthly Maintenance 22

Operation Servicing 22

Troubleshooting 23

Controller troubleshooting 24

Appendixes 25

Appendix 1 Wiring diagrams 25

Appendix 2 Produce Engineering Datasheets 25

Appendix 3 Setting table 25

Appendix 4 Attaching case ends 25

Appendix 5 Risk analysis 27

Appendix 6 Electronic Expansion Valve Specification 28

Appendix 7 Controller 28

Appendix 8 Warranty 29

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 2 Hussmann

Pre installation

Important Safety Instructions

Please read the user manual carefully and store for later reference. In this document you will see these symbols with

following meanings

NOTE

Information in this manual is to be followed

in conjunction with specifications, work

practices and regulations of the customer,

installing company and relevant industry.

CAUTION

Care must be taken to avoid damage to

drainage outlets and electrical equipment

mounted under or at the rear of cases.

CAUTION

This symbol indicates electrical safety must

be concerned

WARNING

•Leave enough space to install the system. The space requirement will be instructed in “Pre-installation” section.

•Before installing the system make sure the power source is accessible to the cases array.

•All the power source has to be properly earthed.

•If any potential fail or product disconformity is investigated, please consult a qualified service technician.

•Always disconnect the power of the cases before conducting any service or maintenance.

•Keep the case out of direct sunlight, fire hazardous environment, or high moisture or humidity area.

•Fail to install the system as instructed in this manual may void Hussmann Warranty.

REFRIGERANT WARNING

•Refrigerant is not factory charged.

•Default refrigerant is shown on the product rating plate.

•Other refrigerant types are available upon request

•Ensure that during the transportation and installation the refrigerant circuit is not damaged. Please contact

Hussmann for product maintenance help.

The installation should follow AS1677.2 or other local safety requirements.

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 3 Hussmann

Case Services Dimensions

Fig (1) Service layout standard depth case

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 4 Hussmann

Operating Environment

All Hussmann Cases have been factory tested to AS1731, 25C at 60% RH. For best performance, store temperature

should be maintained at or below 24C at 50% RH, otherwise an “air ventilation kit” may be required to avoid under or rear

cabinet sweating.

To avoid condensation build-up, cases should be positioned to allow air to freely circulate around the underside and rear

of the case. Ideally, the floor will be levelled.

Cases must not be positioned in areas that may be subject to heat or air currents such as ventilation ducts, open doors or

windows, direct sunlight, electric fans or ovens, etc. Otherwise the cabinet may show poor temperature performance or the

operating life is affected.

NOTE

Refer to product MSDS for all hazardous substances used

during installation in relation to their application, PPE, first aid,

disposal and emergency management. Refer page 27 (Risk

Analysis)

For MSDS sheet contact your Hussmann Representative

Handling and Transporting cases

Case dimensions can be found in the product engineering data sheets.

(This manual is a guide only. Always refer to the latest case information available from Hussmann Customer Service)

Always ensure that the moving device is of a suitable type, and has sufficient lifting capacity for the case weight and

dimension. Always lift cases from the underside.

Refer to and follow the manual handling policies of your Company when moving cases.

CAUTION

Care must be taken to avoid damage to drainage

outlets and electrical equipment mounted under or

at the rear of cases.

Shipping Damage and Shortages

If possible, it is recommended that packaging be removed from the cases before they are moved into the store.

After removing packaging, inspect the case for any shipping damage and ensure that all case inclusions, such as trims etc

are accounted for. Immediately report any shipping damage to the carrier and inform Hussmann Customer Service of any

short supplies.

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 5 Hussmann

Installation

NOTE

Information in this manual is to be followed in conjunction

with specifications, work practices and regulations of the

customer, installing company and relevant industry.

Positioning and Levelling

Each case has a unique identification number as follows:

##### - ## - ##

Job no. Line-up no. Case sequence no.

(within line-up)

Example: 106076.42.4 identifies this case in the 4th sequence of the line 42 for the job 106076.

As well as on the packaging, the case identification number appears as a serial number on the rating plate (most commonly

located on the ceiling panel left hand end of the case) refer to Fig (3) and is printed on a decal on the rear of the case ref

Fig (4). The case sequence number is also written on a ticket on the front panel.

Fig (3) Rating Plate

Fig (4) Decal rear of case with case sequence number

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 6 Hussmann

Cases must be positioned so that line-up numbers and case sequence numbers run in succession left to right standing in

front of the cabinet.

CAUTION

Ensure the lifting capacity of the trolley, etc. is

sufficient for the case. Refer to the product

engineering data tables and Risk Analysis (page 27).

To position the cases:

1. If the plinth surface is level, position the case designated as line up number 1 and case sequence number 1 in the

required position.

2. If the plinth surface is not level, determine where the highest point of the plinth is, and position the case allocated

to this position first.

3. Adjust the case height using the adjustable feet (if fitted) or metal shims (do NOT use timber) to ensure the case

is level to within +/- 1.5mm from front to back and side to side and chassis of case is NOT twisted. Maximum

25mm adjustment.

Fig (5) Levelling feet adjustment

NOTE

It is important that all cases are level for correct case joining and operation. If

cases are not properly levelled and positioned, door misalignment will be evident,

resulting in the job needing to be redone at complete cost to the installer.

Hussmann is not liable or responsible for the cost involved in fixing

problems arising directly from the installers’ failure to follow the

requirements outlined in this manual.

DO NOT SET CASE LEVELS OFF THE PATCH END fitted to a case.

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 7 Hussmann

Fig (6) Case Levelling

Fig (7) Case twisting

Make sure case is level:

Front to Back: +/- 1.5mm

Side to Side: +/- 1.5mm

Make sure all adjusting feet, NOT just the

ones at the end of the case, are adjusted

firmly to ensure case does not sag

Make sure Chassis of

case is NOT TWISTED.

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

Page 8 Hussmann

Sealing Case Join

Before joining, all cases must be sealed to protect against water and air leakage.

To seal the joins

1. Remove the shelves and racks from the end bays, if necessary

CAUTION

Electrical cords are connected between Air Delivery

Panels and Shelves on Meat and Deli cases.

Take care if disconnecting leads to remove Shelves

when joining the cases

2. Remove the pan decks.

3. Apply a bead of sealant (approximately 10mm wide) ensure case seal correctly.

Fig (8) Case-end sealing positions

Sealant DO NOT leave any

gaps to ensure cases seal

correctly on edge of frame.

PRODUCT INSTALLATION MANUAL DM13 FRONT OPEN MULTIDECK

_________________________________________________________________________________________________________________________

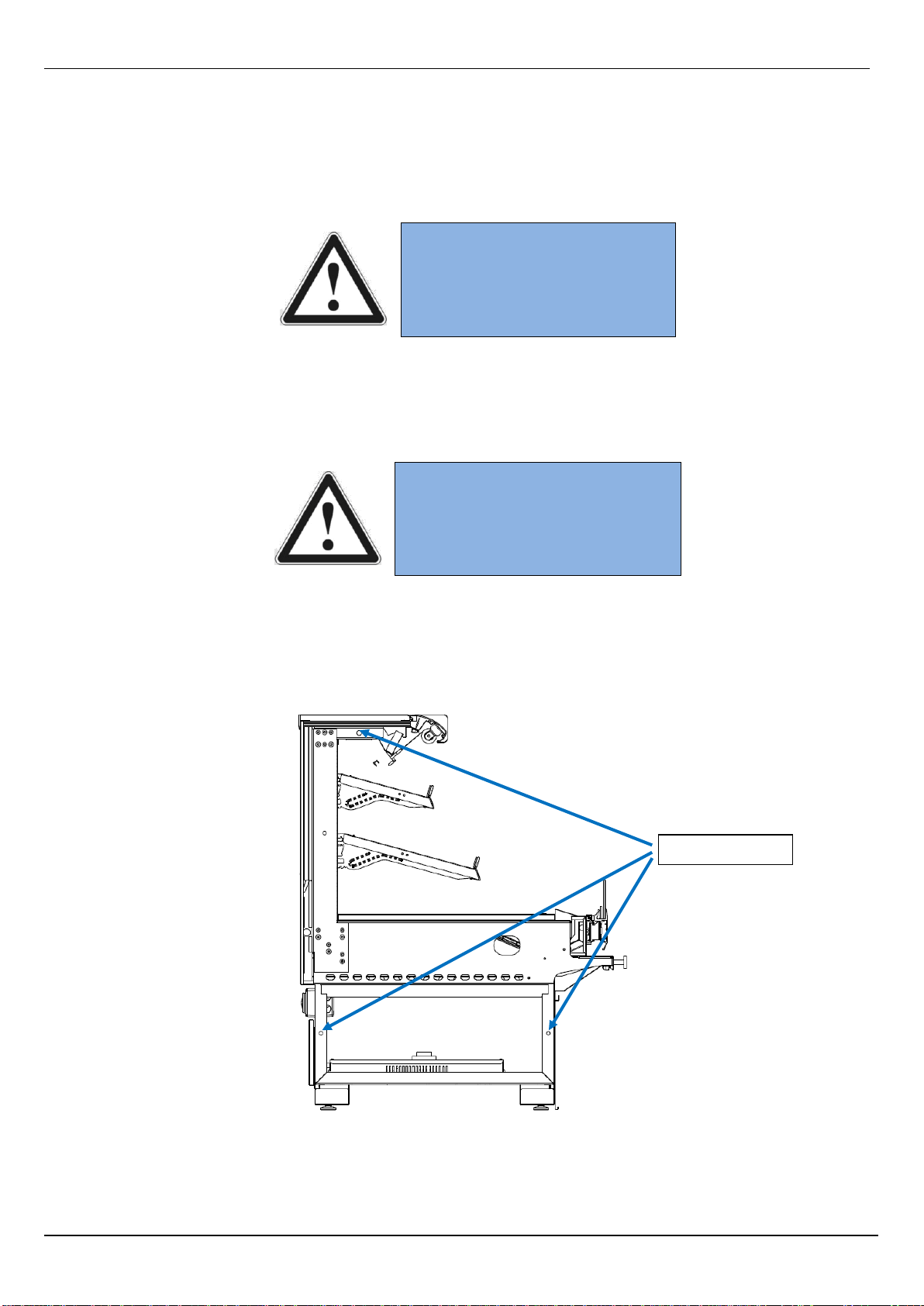

Page 9 Hussmann

Joining the Cases

Ensure cases are sealed before joining them to other cases

For instructions on attaching case ends, refer to appendix 4: attaching case ends

CAUTION

Do not walk or sit on cases.

To join the cases

1. Draw up the required case tightly against the case already in position

CAUTION

Case joining bolts should only be used,

with care, at the final pulling-up stage.

2. Ensure that the case is level, from front to back and side to side, with the existing case.

3. Insert the joining bolts, found in the blister pack, into the end holes and tighten –see Fig (9): joining hole locations

Fig (9) Joining holes location

Joining Holes
