Husqvarna HU700F Guide de configuration

447200 Rev. 3 06.13.12 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER HU700F

PRODUCT NUMBER 961 45 00-06

MFG. ID. NUMBER 96145000601

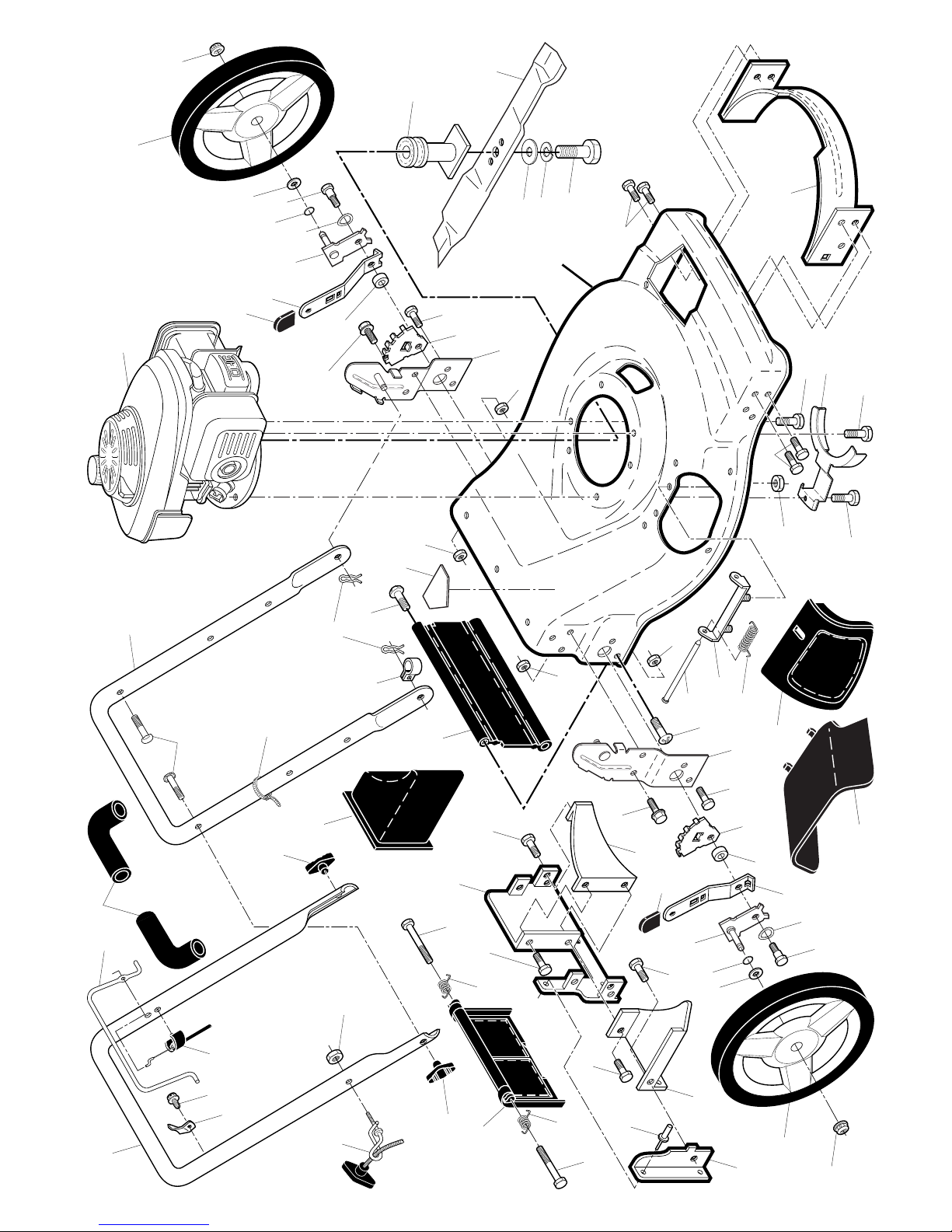

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU700F (96145000601) PRODUCT NO. 961 45 00-06

12 12

28 29

34 35

4060 42

19 18

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU700F (96145000601) PRODUCT NO. 961 45 00-06

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 42 76-58 Upper Handle

2 532 41 53-50 Cable, Operator Presence

3 532 43 00-34 Bracket, Upstop

4 532 16 66-49 Mulcher Plug

5 532 06 64-26 Wire Tie

6 532 44 50-19 Handle Knob

7 532 17 88-48 Screw, Hex Washer Head #10-16 x 5/8

8 532 44 75-82 Control Bar

9 532 40 84-92 Rear Door Assembly

10 532 12 84-15 Pop Rivet

11 532 15 00-50 Screw, Self-Tapping #10-24 x 5/8

12 817 06 04-10 Screw, Hex Hex Head, Sems 1/4-20 x 1/2

14 532 19 70-76 Back Plate

15 532 41 13-34 Side Bafﬂe

16 532 17 71-33 Discharge Bafﬂe

17 532 14 89-41 Rear Bafﬂe

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

20 532 41 31-60 Rear Skirt

21 532 40 54-21 Spring, Rear Door, LH

24 532 40 54-23 Spring, Rear Door, RH

25 532 40 91-49 Nut, Hex, Flanged

26 532 18 41-93 Bolt, Rear Door

27 532 44 81-73 Wheel & Tire Assembly, Rear

28 532 17 47-19 Bolt, Shoulder 3/8-16 x 1

29 532 40 16-30 Washer, Curved, Cylindrical

30 532 40 65-82 Axle Arm Assembly

31 532 70 10-37 Selector Knob

32 532 40 98-89 Selector Spring

33 532 19 70-29 Mulcher Door

34 532 40 16-29 Spacer

35 532 41 06-26 Wheel Adjusting Bracket

36 532 17 57-35 Hinge Bracket Assembly

37 532 42 88-67 Screw, Sems, Thread Cutting 5/16-18 x 3/4

38 532 43 94-30 Discharge Deﬂector

39 532 41 92-48 Handle Bracket Assembly, LH

40 532 41 92-51 Handle Bracket Assembly, RH

41 532 15 04-06 Screw, Hex Head, Threaded,

Rolled 3/8-16 x 1-1/8

42 532 19 30-00 Spring, Torsion

43 873 80 04-00 Nut, Hex, Nylock

44 532 44 59-61 Kit, Mower Housing (Includes

Key Numbers 14, 15 and 51)

45 532 17 56-50 Rod, Hinge

46 532 42 12-48 Blade Adapter / Pulley

47 532 40 67-13 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Helical

50 532 85 10-84 Screw, Machine, Hex Head

3/8-24 x 1-3/8 Grade 8

51 532 17 00-31 Kit, Front Bafﬂe (Includes Key Number 53)

52 532 40 47-63 Danger Decal

53 817 60 04-06 Screw, Serrated, TT 1/4-20

54 532 08 83-48 Washer, Flat

55 873 93 06-00 Nut, Hex 3/8-16

56 532 08 86-52 Hinge Screw 1/4-20 x 1-1/4

57 532 05 17-93 Hairpin Cotter

58 532 43 97-19 Lower Handle

59 532 19 15-74 Handle Bolt

60 874 76 06-12 Screw 3/8-16 x 3/4

64 - - - Engine, Honda, Model Number GCV160-

LAOS3A (order parts from Honda)

65 532 19 74-80 O-Ring

69 532 19 79-91 Clip, Cable

70 532 18 27-48 Grip, Foam (2 pieces)

71 532 43 50-59 Belt Keeper

- - 532 40 47-64 Warning Decal (not shown)

- - 532 44 59-33 Operator’s Manual, English / French

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU700F (96145000601) PRODUCT NO. 961 45 00-06

880

81 82 83

57 35

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU700F (96145000601) PRODUCT NO. 961 45 00-06

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 44 55-24 Drive Control Assembly

(Includes Cable)

6 532 18 16-98 Screw

7 532 43 27-90 Mounting Bracket, Drive Control

8 532 44 75-86 Cable, Drive Control

11 532 41 10-81 Wheel & Tire Assembly, Front

12 812 00 00-58 E-Ring

13 532 40 38-49 Pinion

14 532 18 94-03 Dust Cover

15 532 40 48-45 Pawl, Drive

16 532 06 77-25 Washer, Flat 3/8

17 532 42 18-36 Bearing Assembly, Wheel Adjuster

18 532 70 10-37 Selector Knob

25 532 43 17-11 Belt Keeper

26 532 16 34-09 Screw, Hi-Lo Thread

27 532 17 52-62 Screw, Pan Head, Self-Tapping

#10-24 x 2-3/4

28 532 19 73-70 Drive Cover

29 532 40 91-48 Locknut, Hex

32 532 44 32-62 Pulley, Drive

33 532 19 68-57 V-Belt

35 532 43 84-85 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

36 532 40 48-34 Gearcase Assembly, Complete

38 873 80 04-00 Locknut 1/4-20

40 532 40 65-58 Spring

41 532 43 84-86 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

54 532 42 56-69 Grassbag Assembly

57 532 41 19-52 Frame, Grassbag

80 532 42 11-14 Water Washout Assembly

81 532 41 97-35 Fitting, Hose, Water Washout

82 532 41 55-85 Washer, Lock, Internal Tooth

83 532 41 55-86 Locknut, Hex, with O-Ring

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION
