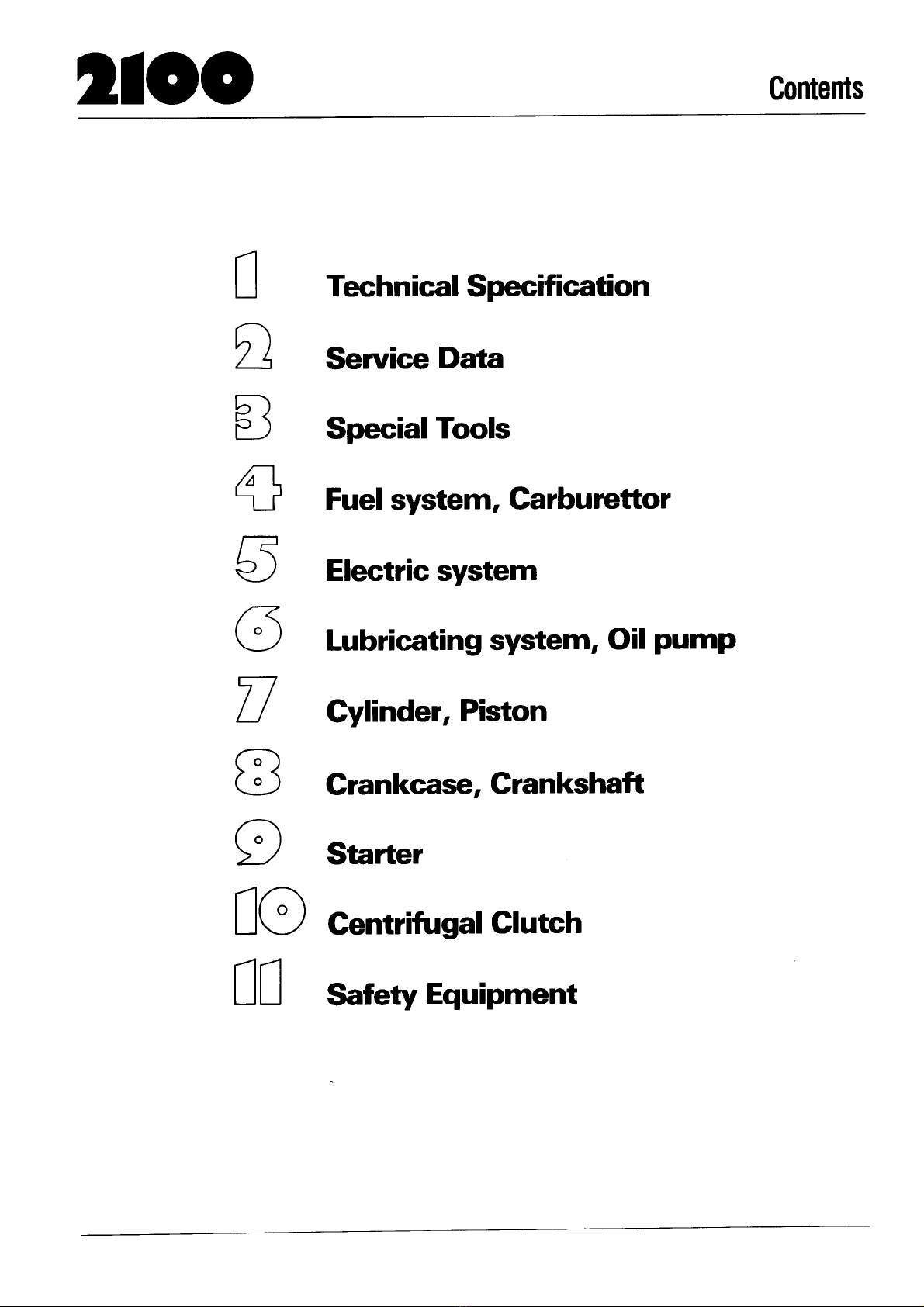

Contents

TechnicalSpecification

ServiceData

SpecialTools

Fuelsystem,Carburet&or

Electricsystem

Lubricatingsystem,Oil pump

Crankcase,

Starter

Centrifugal

Crankshaft

Clutch

SafetyEquipment

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

nloo TechnicalSpecificationn

Displacement

Bore

Stroke

Ignitionsystem

Ignitionadvance

Sparkplug

Electrodegap

Carburetor

Fueltankvolume

Oiltankvolume

Chainlubrication

Clutchdrum/sprocket

Weights

99 cm3 (6 cu in)

56.0 mm (2.20”)

40.0 mm (1.57”)

Electronic. Make SEM type GA 1.

24° before t.d.c. at 133 r/s (8,000 r/rein)

BoschWSR 8F

0.5 mm (0.020”)

Diaphragmcarburetor. Make Tillotson type HS

136C with speedgovernor0.070”.

Basicsetting:

H=1.0

L=1.2

1.0 Iitre (0.26 US gallon, 0.22 Imp gallon).

Fuel mixture 4% (1:25).

With HusqvarnaTwostroke Oil 2% (1:50).

0.65 Iitres (0.17 US gallon, 0.14 Imp gallon).

Two separatelubrication systems:

Automatic

No supply during idling. Adjustable for two different

delivery rates:

Bar 15“ 21”: Position I

Bar 21” and more: Position II

Manual

Hand-operated pump on the left sideof the rear

handle.

Standard:

7teeth, 0.404” Pitch.

Optional:

8teeth, 3/8” Pitch.

1. Weight sawbody (empty) 8.0 kg (17.6 lb)

2. Weight sawbody (empty) incl. 24”

bar and chain (Oregon 52L -76E 0.404 ’’).10.2 kg (22.5 lb)

3. Sameas2 howeverwith full tanks._ 11.4 kg (25.1 lb)

1:1

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

2100

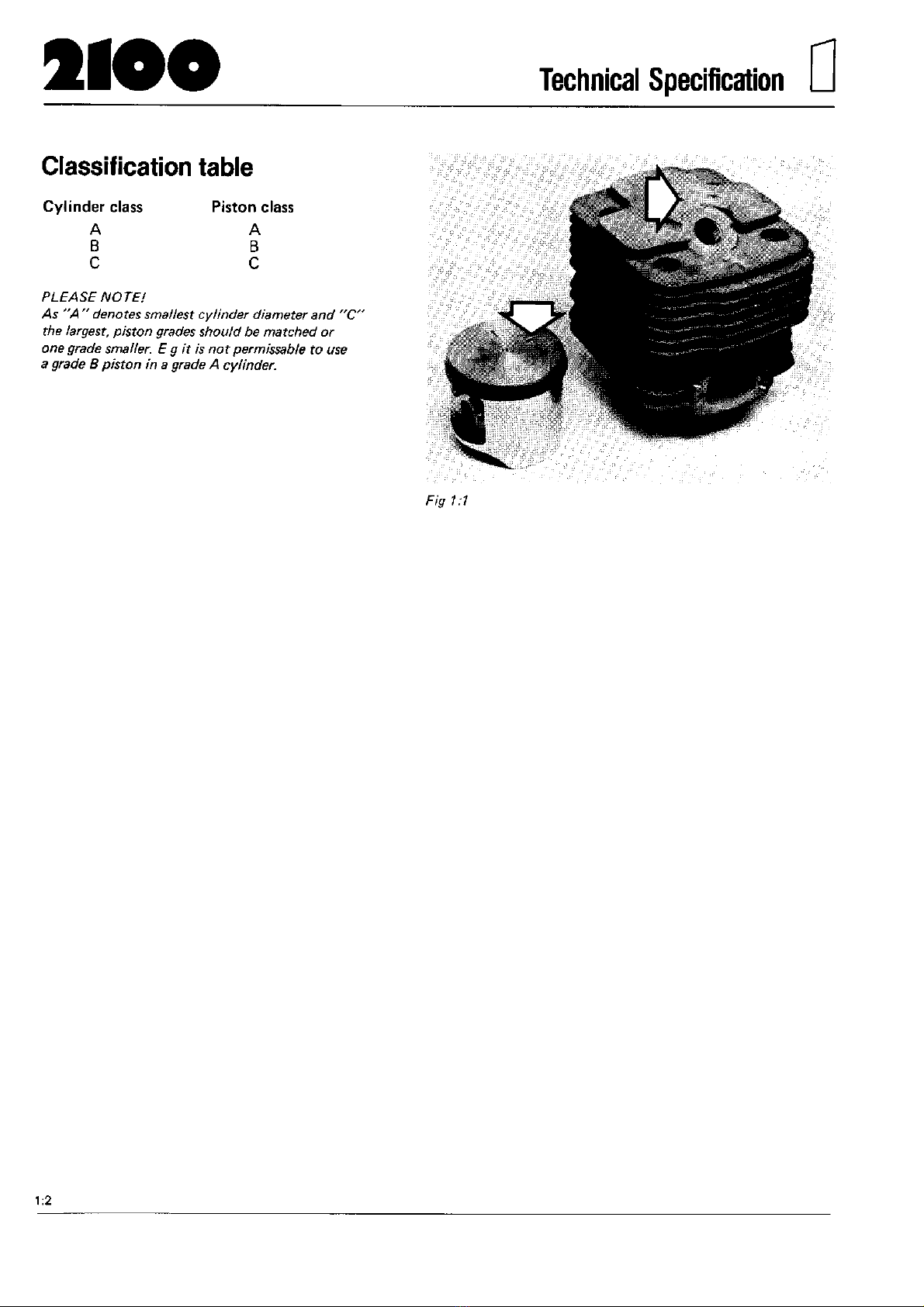

Classificationtable

Cylinder class Pistonclass

PLEASE NOTE!

As “A” denotes smallest cylinder diameter and “C”

the largest, piston grades should be matched or

one grade smaller. Egit is not permissible to use

agrade Bpiston in agrade Acylinder.

TechnicalSpecificationEl

Fig 1:1

1:2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

ServiceData !2

CrankcaseAssy

Vacuum: 0.04 MPa (0.4 kp/cm2, 5.7 psi)

Max. leakage:0.01 MPa/1 min (0.1 kp/cm2,

1.4 psi, per rein)

TooIs: 5025037-01 Vacuum gauge

5025081-01 Cover plate, exhaust port

5025047-01 Cover plate, inlet port

Fig 2:1

Pressure:0.08 MPa (0.8 kp/cm2, 11.4 psi)

Max. leakage: 0.02 MPa/30 sec(0.2 kp/cm2,

2.8 psi, per 30 see)

Tools: 5025038-01 Pressuregauge

5025081-01 Cover plate, exhaustport

5025047-01 Cover plate, inlet port

Fig 2:2

Fueltank

Pressure:0.05 MPa (0.5 kp/cm2, 7.1 psi)

Leakage: No leakagepermitted.

Tool: 5025038-01 Pressuregauge

Carburetor

Pressure:0.03 MPa (0.3 kp/cm2, 4.3 psi)

Leakage:No leakagepermitted

Tool: 5025038-01 Pressuregauge

Fig 2:3

2:1

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

Oilpump

Pressure:0.3 MPa (3 kp/cm2, 42.7 psi)

Pump capacity at 6,000 r/rein:

Pos1: approx 16-18 ml/min (0.98-1 .10 cu in/rein)

Pos2: approx 22-24 ml/min (’

Tools: 5025085-01 Oil pump

Grad. measuringglass.

.34-1.46 cu in;min)

ester

ServiceData a

Fig 2:5

Starter

Make surethat it ispossibleto turn the pulley at

least1/2 turn further when the cord ispulled

out completely.

Fig 2:6

Fuelandoil

The twostroke engineislubricated by oil mixed

with petrol in variousproportions dependingon

the type of oil used:

“Pre-mixed” oil 1:20 (5% oil)

Ordinary twostroke oil 1:25 (4% oil)

HusqvarnaTwostroke Oil 1:50 (2% oil)

Seealsothe mixing table below:

Fig 2:7

Mixing table

Mixingtable

Litres Pints

of oil of oil

0.2 0.35

0.4 0.70

1.0 1.76

Litres Petrolin Petrol in

of petrol Imp gallon USgallon

10 2.2 2.6

20 4.4 5.2

50 11.0 13.2

4% I5% I

Litres Petrolin Petrolin Litres Petrolin Petrol in

of petrol Imp gallon USgallon of petrol Imp gallon USgallon

51.1 1.3 40.8 1.0

10 2.2 2.6 I81.7 2.1

25 5.5 6.6 I20 4.4 5.2

2:2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

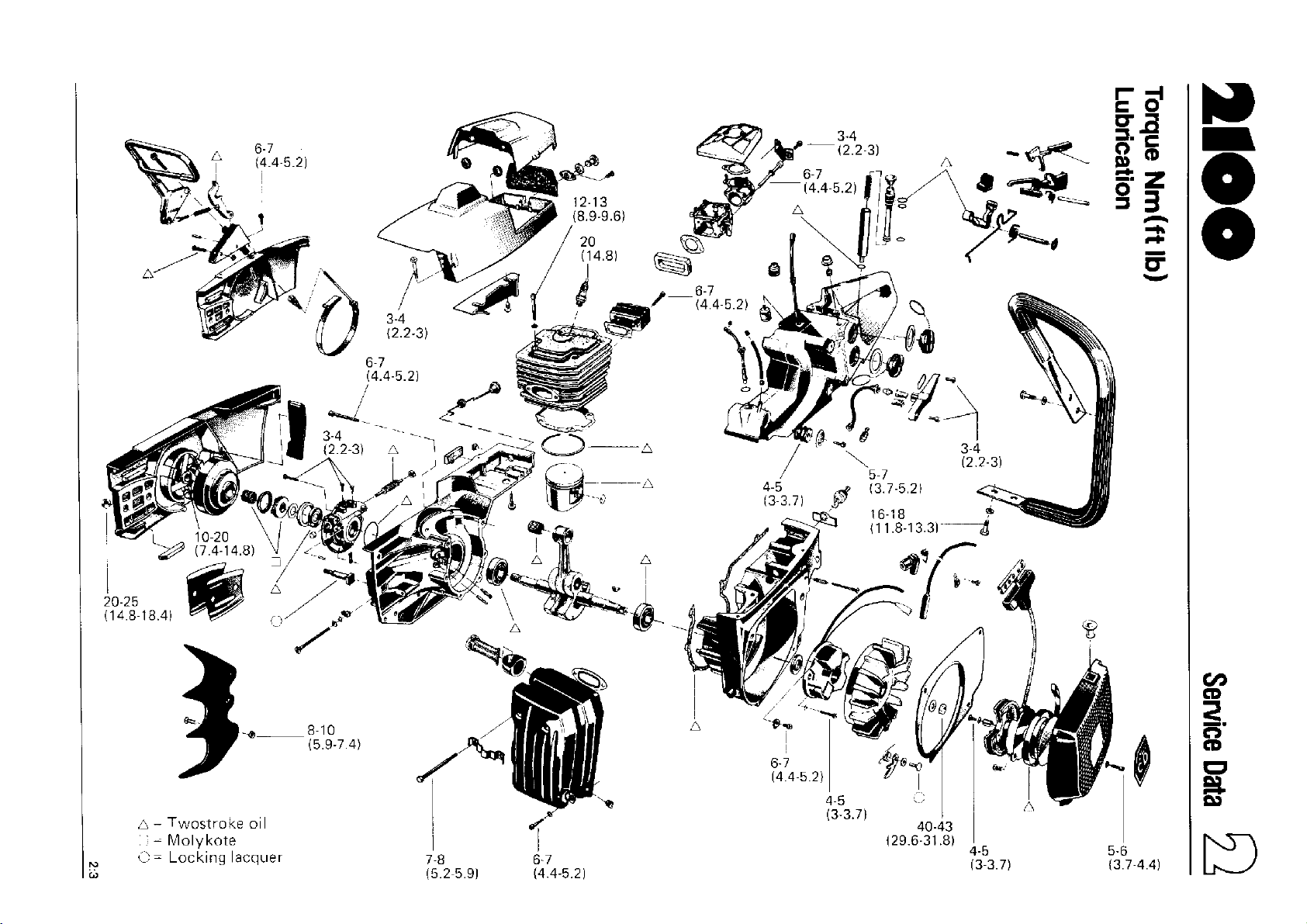

ServiceData Q

TorqueNm(ft lb)

—m m

6i-

m“

Com.

—AE

2:3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

SpecialTools El

5025006-01

Assemblingpliers

(spark plug protector)

5025007-01

Assemblingpliers

(cable grommet)

I@ 5025018-01 NV 4mm

5025019-01 NV 3mm

5025057-01 NV 3/16”

Allen key

-..~”-

2062372-11

5027002-01 B’ 2024294-45

-. 2024332-55

282 0008-~1 -. ‘2024297-55

2024333-55

5025025.01 (compl.)

5025020-01 (M5)

Stud fitting tool

5025022-01 NV 8mm

5025023-01 NV 10 mm

Socket spanner

5025024-01

Spanner,clutch centre

5025025-01

Holding bar compl.

5025026-01

Puller compl. with screw

5025030-01

Fitting tool compl. for

crankshaft

5025033-01

Pistonstop

5025036-01

Revolution counter

5025037-01

Vacuum gauge,compl.

5025038-01

Pressuregauge,compl.

5025042-01

Lithium grease250 g

(0.55 lb)

5025045-01

Distancesleeve(35 mm)

5025047-01

Cover plate, inlet port

3:1

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

SpecialTools B

45025049-01

1!s Assemblingpliers

(centrifugal clutch)

-01

for elec-

5025051-01

Cableclip pliers

5025052-01

Fitting sleevefor

sealingring

5025062-01

Fitting tool (manual

pump)

5025066-01 NV 22 mm

U-spannerfor vibration

damper

5025069-01

Fitting drift

(piston pin)

5025070-01

Pistonmounting set,

compl.

5025081-01

Coverplate, exhaustport

5025082-01

Fitting drift (sealingring)

5025083-01

Hook for oil filter

5025084-01

Electrotester

5025085-01

Oil pump tester,

compl.

5025086-01 NV 3mm

5025087-01 NV 4mm

Allen screwdriverwith

ball

3:2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

SpecialTools El

502

5025090-01

Jet-Pacsprayguncompl.

incl. retouch paint

5025091-01

Retouch paint, orange,

1/8 I

5025092-01

Pressurepack for Jet-Pac

5025101-01

Extractor (sealingring)

5025102-01

Clamping device

5025106-01

Glue, adhesive

5025107-01

Glue, epoxy

5025108-01

Loctite AA (normal locking power)

5025109-01

Loctite AAV (stronglocking power)

5025124-01

SEM electric systemtester

3:3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com
