Husky H72CH9HD Manuel utilisateur

THANK YOU

We appreciate the trust and con dence you have placed in Husky through the purchase of this chest. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Husky!

Item #

Model # H72CH9HD

USE AND CARE GUIDE

72 in. 9-Drawer Heavy Duty Tool Chest

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

8 a.m – 7 p.m., EST, Monday-Friday

9 a.m – 6 p.m., EST, Saturday

1-888-HD-HUSKY

HUSKYTOOLS.COM

Safety Information

1. Secure this product properly before moving it with a

forklift.

2. Do not alter this product in any manner. For

example, do not weld external lock bars or attach

electrical equipment.

3. When locking this chest, close

the drawers

icompletely n order for the lock bars to work properly.

Do not stand on this product. You

may fall which may cause personal injury or

Be careful when opening more than

one drawer. The product may become unstable

and tip, which may cause personal injury or

product damage.

CAUTION:

product damage.

Do not attach or mount this product

to a vehicle or mobile trailers. This may cause

personal injury or product damage. Mounting

CAUTION:

any manner will void warranty.

CAUTION: Keep the product on level surfaces.

The product may become unstable and tip if

stored or moved on an unlevel surface, which

may cause personal injury or product damage.

CAUTION:

Lock the drawers before moving

this product. The drawers could come open and

make the product unstable and tip, which may

cause personal or product damage.

CAUTION: Be careful when closing the cover.

Remove hands before the cover closes

completely to prevent personal injury.

CAUTION: Two people are needed to safely

move this unit.

CAUTION: Load unit starting with bottom

drawers. Overloading the top of the unit may

result in the product becoming unstable and

creating a tipping hazard, which may cause

personal injury or product damage.

this product to any vehicle or mobile trailers in

Table of Contents

Table of Contents..................................................2

Safety Information ...............................................2

Warranty ................................................................4

Specifications ........................................................4

Package Contents..................................................4

Hardware Included........................................................... 4

Assembly ...............................................................6

Maintenance...............................................................

..............................................................

Operation

Cordless Power Tool Battery Chargers ...............9

Replacement Parts ................................................10

NOTE : This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications.However, there

is no guarantee that interference will not occur in

a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or

more of the following measures:

□Reorient or relocate the receiving antenna.

□Increase the separation between the equipment and

receiver.

□Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

□Consult the dealer or an experienced radio/TV

technician for help.

NOTE : This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

operation.

HUSKYTOOLS.COM

3 Please contact 1-888-HD-HUSKY for further assistance.

□

Do NOT insert extension cord through hole without grommet

in place.

□

Check the insulation and plugs of extension cord before

using. Do NOT use cord if it is worn or damaged.

□

Only use a three-wire extension cord with all three prongs

intact. Never remove the round grounding prong.

□

Extension cord must be connected to a 125 Volt GFCI

protected outlet with proper ground. If GFCI outlet is not

available, use an extension cord with GFCI protection

built in.

□

□Do NOT overload extension cord.

□Remove extension cord from the hole

before moving or transporting storage chest.

□Only use an extension cord that is rated for outdoor use.

□Do NOT connect extension cord to outlet that also sup-

plies critical safety equipment with power.

4. Extension cord

5. Electrical Shock Hazard

□ Do not plug cord into outlet with wet hands.

□ Do not use this tool chest near a bathtub, a shower, or a

swimming pool.

□ Chest plugs must match the outlet.

□ Never modify the plug in any way.

□ Do not use any adapter plugs with earth (grounded) chest

power strips.

□ Unmodiﬁed plugs and matching outlets will reduce the risk

of electric shock.

□ Avoid body contact with earthed or grounded surfaces. There

is an increased risk of electric shock if your body is earthed or

grounded.

CAUTION: RISK OF ELECTRICAL SHOCK: This unit has

two power supply cords. Make sure all cords are

unplugged before any servicing or cleaning.

WARNING: Changes or modiﬁcations to this unit not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

Follow all manufacturers' Warnings and Operating

Instructions for your extension cord.

Specifications

Maximum weight per (chest drawer) 120 lbs.

Maximum product weight, including contents 1200 lbs.

NOTE: Begin product assembly close t nal

intended location of your cabinet. This product is

heavy and may be cult to move after assembly.

Warranty

The manufacturer warrants the product to be free from defects in materials and workmanship for a period of ve (5) years from date of

purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to

be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s

mishandling.

This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any way not in accordance with

the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse,

negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to

ar purpose,

consequential

or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.

Package Contents

NOTE: Hardware not shown to actual size.

HARDWARE INCLUDED

Part Description

AA 4

Quantity

Bracket Bolt

BB 4

Tapping Screw ST5.5 x 12mm

Phillips head screwdriver

ADDITIONAL TOOLS REQUIRED FOR

ASSEMBLY (Not Included)

Power drill

7/64in. drill bit

Package Contents (continued)

Part Description Quantity

Chest 1

HUSKYTOOLS.COM

5 Please contact 1-888-HD-HUSKY for further assistance.

NOTE: Chest Keys are attached to gas strut.

Bracket

C 6Plastic Feet

Installing the Chest onto the Workbench

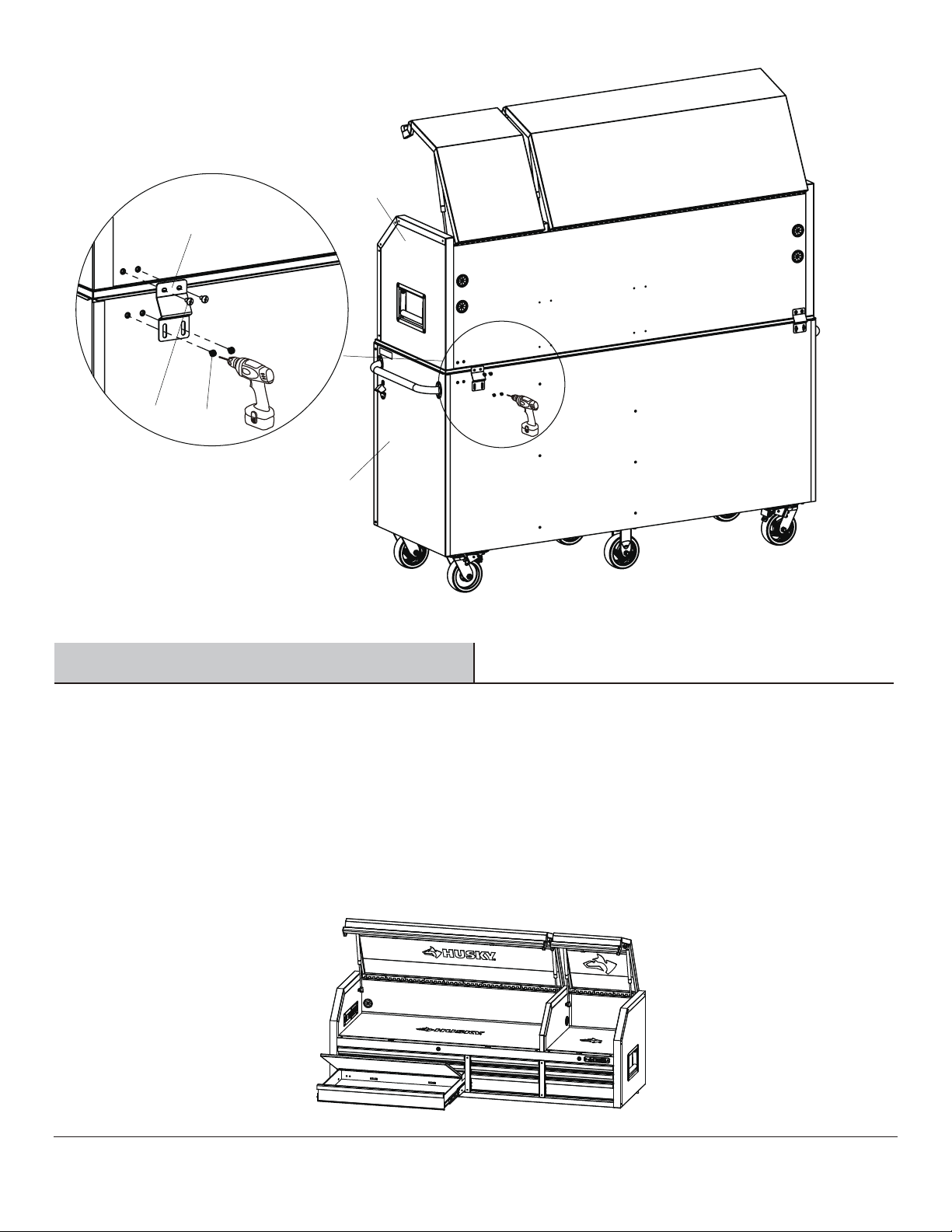

□Place the top chest (A) on top of the 72in. Mobile Workbench (sold separately) or other suitable workbench and align

the back to be ush.

□Align the Bracket (B) over the threaded holes in the Chest (A) and mark the screw hole locations in the workbench.

CAUTION: Do not over tighten the bolts.

Assembly

Model# H72MWC15DL Sku# 1003399495

Model# H72MWC15RDL Sku# 1003399496

Before installing this chest to another work surface, please refer to the Owner’s Manual for proper dimensions and loading

requirements.

The 72in. Tool Chest is designed to t on the Husky Heavy Duty 72 in. 15-Drawer Mobile Workbench:

□Attach the two brackets (B) over the holes at back of the product and secure each Bracket with 2 Bolts (AA) in the Chest

and 2 Screws (BB) in the workbench.

□Using a power drill and 7/64 in. drill bit, carefully pre-drill the 2 holes per bracket in the workbench. Be CAREFUL to

only drill through the sheet metal and not into the contents of the workbench, with a maximum drill depth of 1/2 in.

□

1Attaching Plastic Feet (Optional)

Insert the Plastic feet (C) into the 6 holes at the bottom the chest (A).

The Plastic feet (C) will help protect the surface of the workbench. There will be a small gap between the bottom of the

chest (A) and the surface of the workbench.

NOTE:

6 Plastic Feet are located in bag

found in top till.

71.6”

23”

Operation

Please contact 1-888-HD-HUSKY

HUSKYTOOLS.COM

for further assistance.

(72in. Mobile Workbench

sold separately)

□

1Work Surface Drawer

The work surface drawer is equipped with a hinged wood top and ball detents to help secure the drawer in the “open”

position.

To open and secure the work surface drawer, simply pull out the drawer completely until it locks into the ball detents

located under the drawer.

□To close the work surface drawer, push with enough force to overcome the ball detents and the drawer will then close

smoothly.

3 Re-inserting the drawers

□Extend the drawer slides.

□Insert the brackets on each side of the drawer into

the slots in the slides, being careful that they are

properly positioned.

□Once properly inserted, completely close the drawer

to set the slides in their proper positions.

Removing the drawers

□elihwrevelesaelerenoehtpuhsuP pulling down

on the other release lever.

□Pull the drawer outward until it is released from the

drawer slide.

□Fully extend the empty drawer.

Maintenance

Cordless Power Tool Battery Chargers

See Charger’s Owner’s Manual for proper use and care of charger and batteries.

Follow all Warnings and Instructions provided with your battery charger.

Place chargers and electrical connections in till.

Do NOT expose to liquid, vapor, or rain. Should

your charger become wet. Do NOT attempt to use. Unplug extension cord from supply

before handling wet charger or cords.

Only use chargers and batteries that are intact and operating properly.

Do NOT touch metal prongs when plugging charger into extension cord.

Do NOT place or attempt to charge lead acid, car type batteries in storage chest.

□

□Lu

bearing grease.

bricate the slides semi-annually with high-quality

□Periodically clean the drawer fronts, drawer trim, and other surfaces with a mild detergent and water.

□

Chargers are for use in dry locations only.

9 Please contact 1-888-HD-HUSKY

HUSKYTOOLS.COM

for further assistance.

Replacement Parts

For assistance with replacement parts please call 1-888-HD-HUSKY.

Drawer Slide 18

DLock

Key 4

Side Handle 2G

Part Description Quantity

Gas Strut(Large)

Bracket

Badge

Drawer Handle Cap(Left)

Drawer Liner(Small)

Tapping Screw

ST5.5x12mm

Outlet

Outlet Panel Cover

Rubber Grommet

Plastic Feet

Bracket Bolt

Gas Strut(Small) 2

Drawer Handle Cap(Right)

Top Mat(Large)

Top Mat(Small)

Drawer Liner(Large)

Table des matières

Autres manuels Husky Rangement des outils

Husky

Husky H46MWC9BOXD Manuel utilisateur

Husky

Husky HOTC6212B11S Manuel utilisateur

Husky

Husky H52CH6HDV3WHT Manuel utilisateur

Husky

Husky HOTC5209B21M Manuel utilisateur

Husky

Husky H5TR2LEC Manuel utilisateur

Husky

Husky H60JSB Manuel utilisateur

Husky

Husky HOME2801B12 Manuel utilisateur

Husky

Husky HOWT72XDB12/22 Manuel utilisateur

Husky

Husky HOTC9624BB1M Manuel utilisateur

Husky

Husky WSH72FWB Manuel utilisateur

Husky

Husky H4TR2R Manuel utilisateur

Husky

Husky HOTC5623BL2S Manuel utilisateur

Husky

Husky HOTC6214B11MYS Manuel utilisateur

Husky

Husky HOEC5210B12M Manuel utilisateur

Husky

Husky H52CH6TR9HD Manuel utilisateur

Husky

Husky H72MWC10BLK-SC Manuel utilisateur

Husky

Husky HOTC4116B23S Manuel utilisateur

Husky

Husky TSA4524 Manuel utilisateur

Husky

Husky H52CH6TR9 Manuel utilisateur

Husky

Husky HOTC5618BD1S Manuel utilisateur

Husky

Husky H4116CHTRP Manuel utilisateur

Husky

Husky H346CH Manuel utilisateur

Husky

Husky G2802B-US Manuel utilisateur

Husky

Husky H4CH1R Manuel utilisateur

Manuels Rangement des outils populaires d'autres marques

Ryobi

Ryobi RWB03 Manuel utilisateur

Scheppach

Scheppach ts 2100 Manuel utilisateur

Cornwell Tools

Cornwell Tools CTB360AKBK Manuel utilisateur

DIVERSIFIED WOODCRAFTS

DIVERSIFIED WOODCRAFTS SHAIN GSB-6024 Manuel utilisateur

Cassese

Cassese CS200 CART Manuel utilisateur

Kendall Howard

Kendall Howard ESDW-9630-1000 Manuel utilisateur

Lista

Lista Align Instructions de montage

Workzone

Workzone 99609 Manuel utilisateur

Stanley

Stanley STST83800-1 Manuel utilisateur

Homak

Homak PROFESSIONAL Series Manuel du système

Perel

Perel ROLLER SHUTTER STORAGE CABINET Manuel utilisateur

BGS technic

BGS technic 4107 Manuel utilisateur

Clarke

Clarke CWB1250 Manuel utilisateur

Ryobi

Ryobi RWB02 Manuel utilisateur

Sealey

Sealey PTB66004 Manuel utilisateur

General International

General International Excalibur 40-100 Manuel de la liste des pièces

Newpo

Newpo Light Duty Workbench Manuel de la liste des pièces

Kobalt

Kobalt 0827415 Manuel utilisateur
