Husky AISLE SHIELD Manuel utilisateur

AISLE SHIELD

INSTALLATION INSTRUCTIONS

6146 DENVER INDUSTRIAL PARK RD DENVER NC 28037

1-800-438-5629

www.h skyrackandwire.com 1

INSTALLATION OF OFFSET MOUNT

AISLE SHIELD

STEP 1: EYE BOLT ASSEMBLY

STEP 1: EYE BOLT ASSEMBLYSTEP 1: EYE BOLT ASSEMBLY

STEP 1: EYE BOLT ASSEMBLY

HARDWARE REQUIRED:

FOR 4’ AND 5’ TALL PANELS SIX (6) EYE BOLTS

ARE REQUIRED PER PANEL.

FOR 3’ TALL PANELS FOUR (4) EYE BOLTS ARE

REQUIRED PER PANEL.

•

TAKE ONE OF EACH EYE BOLT, 3 8” REGULAR

NUT, 3 8” PLAIN WASHER, 3 8” LOCK

TAKE ONE OF EACH EYE BOLT, 3 8” REGULAR

NUT, 3 8” PLAIN WASHER, 3 8” LOCK

WASHER AND 3 8” NYLOK NUT.

•INSERT REGULAR NUT, PLAIN WASHER, LOCK

WASHER AND NYLOCK NUT RESPECTIVLEY IN

THAT ORDER AS SHOWN IN THE EYEBOLT

PICTURE TO THE LEFT.

•MEASURE DESIRED OFFSET DISTANCE USING

TAPE MEASURE. MEASURE FROM BOTTOM

OF THE LOCK WASHER TO CENTER OF THE

EYE BOLT. USE WRENCH TO TURN THE

NYLOCK NUT TO ACHIEVE DESIRED OFFSET.

OFFSET

INSTALLATION OF OFFSET MOUNT

AISLE SHIELD

STEP 2: ATTACH PANEL TO THE RACK

STEP 2: ATTACH PANEL TO THE RACKSTEP 2: ATTACH PANEL TO THE RACK

STEP 2: ATTACH PANEL TO THE RACK

•AS SHOWN IN THE PICTURE, INSERT ALL EYE

BOLTS ONTO THE PANEL AT THE JUNCTION OF

THE UPPER CURVE OF THE REINFORCING FLUTE

AND THE UPPERMOST OF THE THREE WIRES.

THE EYEBOLT MUST SIT UNDERNEATH THE

HORIZONTAL WIRE, AND THE GAP IN THE EYE

BOLT MUST FACE OUTWARD FROM THE PANEL.

•WITH ONE PERSON ON EACH END OF THE

PANEL, LIFT THE PANEL TO ATTACH TO THE RACK

POST.

PANEL, LIFT THE PANEL TO ATTACH TO THE RACK

POST.

•INSERT THE TOP EYE BOLTS IN THE DESIRED

HOLES ON THE RACK POST. KEEPING THE LOCK

WASHER AND NYLOCK NUT INSIDE OF THE RACK

POST.

•HAND TIGHTEN THE REGULAR NUT FROM THE

OUTSIDE, AGAINST THE RACK POST.

•COMPLETE ASSEMBLY OF ALL EYE BOLTS TO THE

RACK POST.

•ONCE ALL EYE BOLTS ARE ATTACHED, TIGHTEN

THE NUTS USING A WRENCH.

INSTALLATION OF FLUSH MOUNT AISLE

SHIELD

STEP 1: ATTACH FLAT BRACKETS TO THE PANEL

STEP 1: ATTACH FLAT BRACKETS TO THE PANELSTEP 1: ATTACH FLAT BRACKETS TO THE PANEL

STEP 1: ATTACH FLAT BRACKETS TO THE PANEL

•MATERIAL REQUIRED:

FOR 4’ AND 5’ TALL PANELS SIX (6) SETS OF

HARDWARE IS REQUIRED PER PANEL.

FOR 3’ TALL PANELS FOUR (4) SETS OF

HARDWARE IS REQUIRED PER PANEL.

–FLAT BRACKET 1 ¾” WIDE X 5 ½” LONG

WITH TWO HOLES

–

SLOTTED BACK

UP PLATE

FLAT BRACKET

–

SLOTTED BACK

UP PLATE

–¼” X ¾” HEX HEAD BOLT & ¼” NUT

–3 8” X 2” CARRAIGE BOLT & 3 8” NUT

–1” SPACER

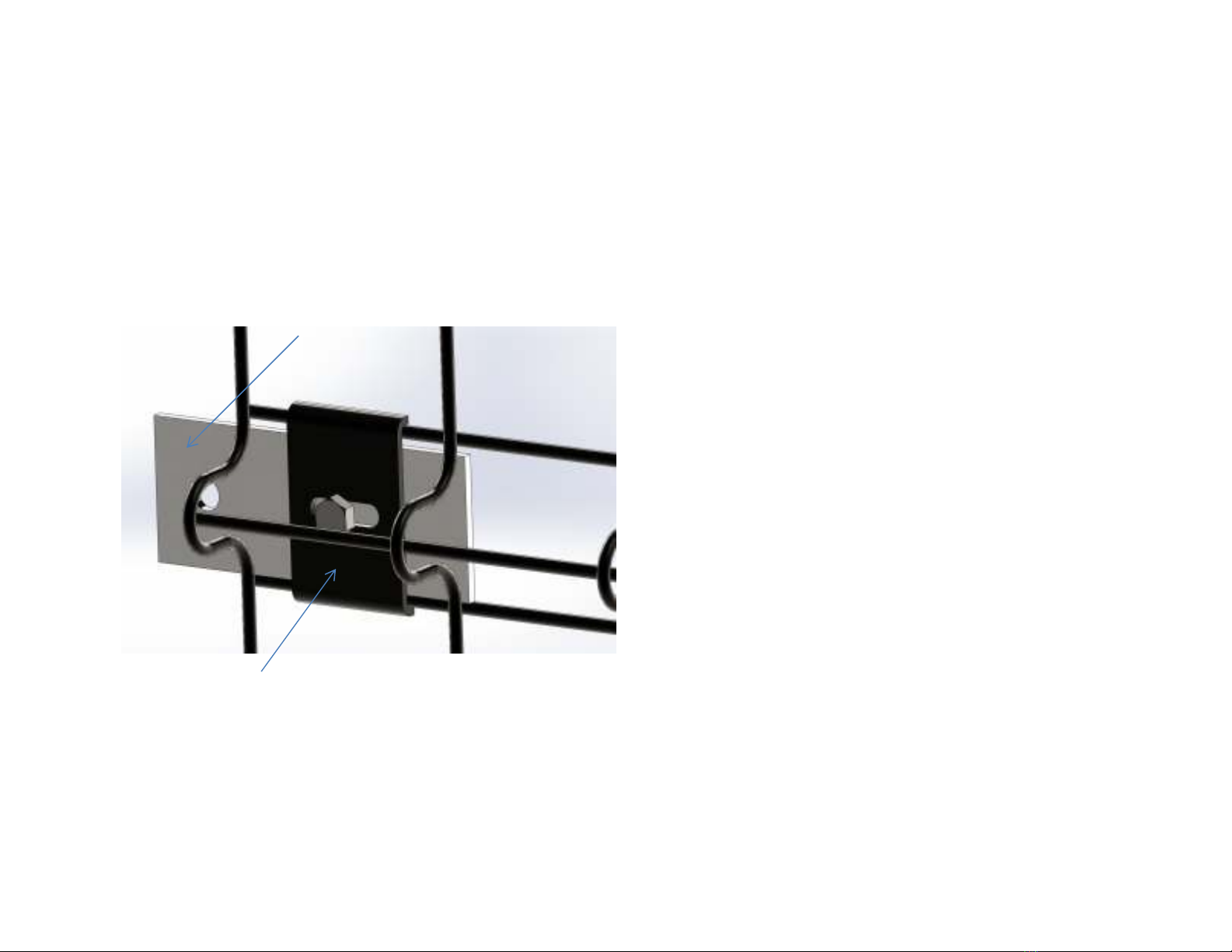

•AS SHOWN IN THE PICTURE, ATTACH THE FLAT

BRACKET TO THE PANEL USING BACK-UP PLATE

AND ¼” BOLT AND NUT

•ATTACH ALL PROVIDED FLAT BRACKETS TO THE

PANEL AT THE REINFORCING FLUTES OF THE

PANEL.

BACK UP PLATE

INSTALLATION OF FLUSH MOUNT AISLE

SHIELD

STEP 2: ATTACH PANEL TO THE RACK

STEP 2: ATTACH PANEL TO THE RACKSTEP 2: ATTACH PANEL TO THE RACK

STEP 2: ATTACH PANEL TO THE RACK

•ATTACH THE 3 8” CARRIAGE BOLT TO THE

OTHER END OF THE FLAT BRACKET. USE 1”

PLASTIC SPACER BETWEEN THE BRACKET AND

RACK POST.

•ATTACH 3 8” BOLTS TO ALL OF THE FLAT

BRACKETS PROVIDED.

•WITH ONE PERSON ON EACH END OF THE

PANEL, LIFT THE PANEL TO ATTACH TO THE RACK

1” SPACER

PANEL, LIFT THE PANEL TO ATTACH TO THE RACK

POST.

•INSERT THE HEAD OF THE BOLT THROUGH THE

UPRIGHT POST HOLE.

•TIGHTEN THE 3 8” NUT USING A WRENCH.

INSTALLATION OF EXTENDED AISLE SHIELD

STEP 1: ATTACH ANGLE BRACKET AND FLAT BAR

STEP 1: ATTACH ANGLE BRACKET AND FLAT BARSTEP 1: ATTACH ANGLE BRACKET AND FLAT BAR

STEP 1: ATTACH ANGLE BRACKET AND FLAT BAR

ANGLE

BRACKET

FLAT BAR

ATTACH ANGLE BRACKETS TO THE AISLE SHIELD

PANEL AT THE TOP REINFORCING FLUTES ON EACH

SIDE USING ¼” BOLT AND NUT AS SHOWN IN THE

ABOVE PICTURE. DO THIS FOR BOTH SIDES OF THE

PANEL.

ATTACH FLAT BARS TO THE ANGLE BRACKETS ON

EACH SIDE USING 3 8” BOLT AND NUT AS SHOWN

IN THE PICTURE ABOVE.

INSTALLATION OF EXTENDED AISLE

SHIELD

STEP 2: ATTACH FLAT BAR TO THE RACK POST

STEP 2: ATTACH FLAT BAR TO THE RACK POSTSTEP 2: ATTACH FLAT BAR TO THE RACK POST

STEP 2: ATTACH FLAT BAR TO THE RACK POST

•ATTACH THE OTHER END OF THE FLAT BAR TO

THE RACK POST USING 3 8” BOLT AND NUT.

•NOTE: FOR FLUSH MOUNT RACK GUARD, THE

FLAT BAR IS ATTACHED TO THE POST THAT IS

AWAY FROM THE AISLE SHIELD PANEL. FOR

OFFSET MOUNT AISLE SHIELD, THE FLAT BAR IS

ATTACHED TO THE NEAREST POST TO THE AISLE

SHIELD PANEL.

B13 8
