HUSKIE TOOLS, INC.

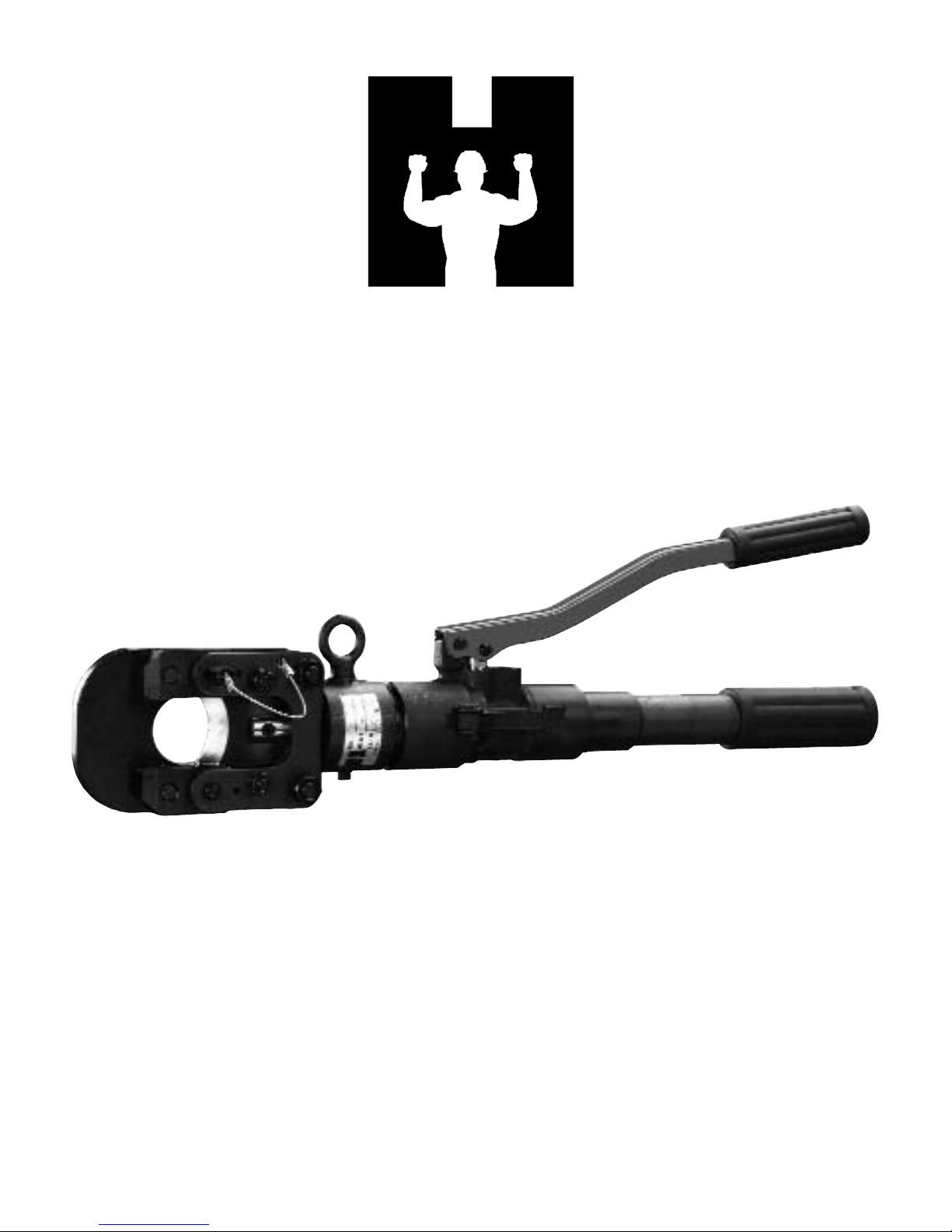

Operating Instruction Manual

For S-40B Hydraulic Cutters

With Parts List

http://www.huskietools.com [email protected]1

GENERAL INFORMATION GUIDE FOR S-40B CUTTER

The following steps are guidelines for safe operation of the Huskie cutters. Please take the time to review them

as these are helpful hints that have been accumulated over the years.

1. Stay within the maximum cutting limits of each tool as listed on page 5.

2. Try to keep the cutter head clean. When cleaning, use a spray lubricant to avoid a build up of dirt and sand

which will damage the cutter head.

3. Stop pumping when the blade reaches the extreme end of its advance. If the material being cut (usually wire

rope or soft cables) seems to be cut but does not break free of the tool, this indicates that the blade is jammed

on a small piece of cable. Refer to “troubleshooting” on page three to free the blade.

4. All Huskie tools require proper care. Occasional cleaning and degreasing in solvent, and sharpening blade

and cutter head, will keep these tools operating without problems.

5. The most common problem encountered is blade breakage. Ninety-nine percent of all breakage occurs

because the cutter head is not securely latched before cutting. If the latch is not secured, the blade will

push open the cutter head and damage both the body head and blade. This causes the outside ear of the blade

to break on an angle. In some cases the whole cutter head may crack in half. Cutting material that is not speci-

fied may also cause blade damage. In time these blades will fatigue and crack and must then be replaced.

6. There may be a residue of oil present on new tools when they are removed from the original shipping con-

tainer. This is to protect the tool from corrosion during shipment and storage, and should not be considered

defective. The tool can be cleaned with a spray degreaser or soapy water.

7. If tool is jammed, avoid beating directly on the tool with a hammer, especially avoid flattening the piston

cylinder. Use a hammer in conjunction with a block of wood or soft material to free the blade.

8. All tools can be reconditioned and overhauled. Call factory and obtain an RGA # for returning tools.

http://www.huskietools.com [email protected]2

9. If the cutters are used under water, wash them down and lubricate after each use. This whole operation takes

less than five minutes. It may be helpful to paint new tools with a light color, corrosion resistant paint.

10. Always return tools to their carrying bag to protect them from sand and dirt. Extra bags can be purchased.

11. Always carry a spare blade, preferably attached to the carrying bag.

12. Use clear hydraulic fluid MV-32 available from your dealer or HTI.

13. When cutting, keep area clear of spectators as hardened metals may fly apart when severed.

14. Always cut the material at a 90 degree angle to the blade. Any other angle may cause the blade and head

shear to fracture. See illustration below.

GENERAL INFORMATION GUIDE FOR S-40B CUTTERS

http://www.huskietools.com [email protected]3

TROUBLESHOOTING GUIDE

1. Problem: Small wire strands or pieces of cable or debris get jammed between the cutter head and blade,

not allowing the blade to retract.

Solution: A) Hold release lever down while tapping on the ram with a block of wood and a hammer. If

this does not work or tool continues to hang up, proceed to step “B”.

B) Remove blade screw and release the ram. Then disassemble cutter head and remove burrs from both

blade and head shear, using a flat grinding stone on the rolled edge. Do not sharpen like a knife – leave

cutting edge flat! See illustration on page 2.

2. Problem: Blade is advanced under pressure with no load and the release lever seems to be stuck.

Solution: A) Use both hands to depress lever using body weight and the ground or other strong surface

for support. If this does not work, proceed to step “B”.

B) Lay tool flat on the ground or other strong surface and hit release lever with a block of wood and a

hammer to release pressure.

3. Problem: Tool will not advance when handle is pumped.

Solution: A) Remove body handle and check oil reservoir for proper fluid level. The oil should be to the

top of the reservoir when the cap is removed. Be sure the tool is fully retracted before removing cap.

B) After storing for a long period of time, or occasionally when the tool is new, a check ball may be stuck

not allowing it to advance. Invert the tool and rap the cutter head sharply on the ground. Do this several

times, then pump handle to advance the blade.

http://www.huskietools.com [email protected]4

OPERATING INSTRUCTIONS FOR ALL “S”

SERIES HYDRAULIC CUTTERS

1. Before cutting, make sure the material being cut is within the proper cutting capacity of the tool being used.

2. Open cutter head by lifting latch or removing lock pin, depending on the model being used.

3. Insert material between cutter head and blade and secure latch. It is important that you check the latch for

proper engagement before continuing with the cut. Failure to secure the latch can result in severe tool dam-

age and personal injury.

4. Align the material at a 90 degree angle to the blade. This will ensure a proper cut with minimal distortion. If

the material is cut at any other angle, severe blade damage may occur. Refer to diagram on page two for proper

alignment.

5. Proceed by pumping handle to advance blade. Once blade has made contact with the material, check align-

ment once again for proper angle. Continue to pump handle and cut material.

6. Once the cut is made, the release lever on the side of the tool body can be depressed to retract the blade. On

the model S-85 cutter, the pump handle must be rotated 90 degrees clockwise and then closed to depress release

pin located under the handle.

7. These cutters do not have a by-pass cartridge like our compression tools, so they should be released once the

cut is made and not continued to be advanced. If the tool is advanced under pressure with no load, it is difficult

to release the blade. Refer to the troubleshooting on page three if this condition occurs.

8. Always wear eye protection and any other specified safety equipment when cutting. Be sure surrounding area

is clear, as hardened metals may fly apart when severed.

9. For EHS guy wire or bridge strand, use models S-24CC or S-32CC only! The use of any other S-series

cutter will result in severe blade damage and may cause personal injury.

10. Model S-85 cutter is designed for use on non-ferrous metals only! Do not cut steel or severe tool damage and

personal injury may occur.

http://www.huskietools.com [email protected]5

S SERIES SPECIFICATIONS

MODEL:

OUTPUT:

WEIGHT:

LENGTH:

S-16

4.4 ton

6 lbs.

15”L

S-20

4.4 ton

6 lbs.

15”L

S-24

7.8 ton

9 lbs.

17”L

S-32

19.8 ton

21 lbs.

27”L

S-40B

6.3 ton

12 lbs.

23”L

S-55

13.0 ton

17 lbs.

24”L

S-85

2.7 ton

15 lbs.

26”L

S-24CC

7.8 tpm

9 lbs.

17”L

S-32CC

19.8 ton

23 lbs.

27”L

Wire Ropes 16mm

5/8”

20mm

3/4”

22mm

7/8”

32mm

1-1/4”

20mm

3/4”

26mm

1”

Do not cut Do not cut Do not cut

Soft Steel Bolts 16mm

5/8”

17mm

11/16”

22mm

7/8”

32mm

1-1/4”

20mm

3/4”

32mm

1-1/4”

Do not cut 16mm

5/8

16mm

5/8”

Rebar, ground, &

anchor rod

13mm

1/2”

16mm

5/8”

16mm

5/8”

22mm

7/8”

16mm

5/8”

20mm

3/4”

Do not cut 16mm

5/8

16mm

5/8”

CU & AL wire 16mm

5/8”

20mm

3/4”

22mm

7/8

32mm

1-1/4”

40mm

1-1/2”

50mm

2”

45mm

3”

ACSR

(see page 65)

16mm

5/8”

20mm

3/4”

22mm

7/8

32mm

1-1/4”

40mm

1-1/2”

50mm

2” (1590)

Do not cut

Standard Guy Wire 13mm

1/2”

14mm

1/2”

16mm

5/8”

22mm

7/8”

16mm

7/8”

20mm

3/4”

Do not cut 14mm

9/16”

22mm

7/8”

Telephone & lead

sheathed cable

Do not cut Do not cut Do not cut Do not cut Do not cut Do not cut 85mm

3.35”

Do not cut Do not cut

http://www.huskietools.com [email protected]6

MODEL S-40B PARTS DIAGRAM

http://www.huskietools.com [email protected]7

MODEL S-40B PARTS LIST

1 Guide Piece (A) 40-02 1 49 E-3.2 Snap Ring 16-33 1

2 Guide Piece (B) 40-04 1 50 P-3 O-Ring (C.P.) UC-27 2

3 3 X 12 Drive Pin (AW) 40-05 2 51 Spring (371) 51-17 1

4 Head Shear 40-07 1 52 M4 X 5 Screw (F.P.) C58-08 1

5 Bushing 40-12 2 53 Pin (26) 16-27 1

6 M12 Lock Washer 40-09 2 54 E-2.5 Snap Ring 16-28 2

7 M12 X 30 Screw 40-11 2 55 M10 X 12 Screw (F.P.) 40-47 1

8 Blade 40-14 1 56 9/32" Ball 16-40 1

9 Pin (43) 40-15 1 57 Spring (76) 16-39 1

10 CE-10 Snap Ring 40-16 2 58 M3 Flat Washer 16-38 1

11 Lock Pin Ass'y 40-17 1 59 7/32" Ball 16-26 1

12 2 X 12 Drive Pin (AW) 40-21 1 60 Plug C60-17 1

13 M8 Hex. Nut 40-24 4 61 P-3 Back-Up Ring (B.C.) 9H-38 1

14 M8 Lock Washer 40-25 4 62 Spring (395) C60-19 1

15 Roller 40-27 2 63 Spring (396) C60-20 1

16 4 X 40 Drive Pin (AW) 40-28 1 64 Valve Screw (20) C60-21 1

17 Stud Bolt (17) 40-30 2 65 Strainer C60-22 1

18 M10 Hex.Nut 40-31 4 66 Filter C60-23 1

19 M10 Lock Washer 40-32 4 67 SI-15 Ring C60-24 1

20 Support Plate (N.S.) 40-34 2 68 S-40 O-Ring C60-25 1

21 Stud Bolt (16) 40-36 2 69 P-28 O-Ring 300-21 1

22 Body Head 40A-01 1 70 Oil Reservoir (22) 40B-04 1

23 M5 Lock Washer 410-09 1 71 Magnet ROB-25 1

24 Stopper Screw 40A-02 1 72 Reservoir Cap 410-55 1

25 Spring (121) 40-38 1 73 Body Handle Ass'y 40B-05 1

26 Blade Screw 40-40 1 74 Body Handle Grip 40B-06 1

27 Ram 40-42 1 75 2.5 X 10 Dowel Pin (D) 40A-03 2

28 P-32 Back Up Ring (B.C.) 40-43 1

29 P-32 O-Ring 40-44 1

30 CE-7 Snap Ring 40-49 4

31 Pin (158) C60-06 1

32 Pin (157) C60-07 1

33 Pump Handle 40B-01 1

34 Pump Handle Grip 51-25 1

35 Pump Piston C60-10 1

36 P-16 X-Ring C60-11 1

37 P-16 O-Ring (C.P.) C60-12 1

38 P-8 Back-Up Ring (B.C.) 85-33 1

39 PS-8 Pent Seal 16-44 1

40 Valve Screw (1) 300-11 2

41 Spring (227) 300-31 2

42 Spring Holder 300-32 2

43 3/16" Ball 16-49 3

44 Spring (164) 85A-07 1

45 1/8" Ball 40-20 3

46 Body 40B-02 1

47 Release Lever 24-15 1

48 Release Valve Stem 40B-03 1

DESCRIPTION

QTY.

CODE

QTY.

NO.

CODE

NO.

DESCRIPTION

All Huskie REC-Series battery driven products carry a 5 year warranty, and the ECO-Series

carry a 3 year warranty. The BP-70E, BP-70EI, and the BP-70MH batteries carry a 5 year

warranty from the date stamped on the battery. The LED indicator on the BP-70-EI battery

carries a 1 year warranty from purchase date. Hydraulic hammers carry a one year warranty

and all other Huskie products carry a 5 year warranty. Huskie reserves the right to determine

all warranty claims. Failure due to misuse, abuse or repairs attempted by anyone other than

Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our

patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life

of the tool. All factory repaired or reconditioned hydraulic tools carry a one year warranty

on parts and labor.

REPAIR AND WARRANTY CLAIMS

All claims must be sent to Huskie for inspection and authorization. A Return Goods

Authorization is required before shipping tools to Huskie. Secure the authorization by

telephoning 1-800-860-6170 or writing to Huskie's main office with details of claim. Non-

warranty repairs are handled using the same procedure. Repairs exceeding 50% of the cost

of a new tool will be advised before repairs are made.

PLEASE RETAIN FOR YOUR RECORDS

Purchaser’s Name _____________________________________________________

Address _____________________________________________________

City, State, Zip _____________________________________________________

Tool Model Number _____________________________________________________

Serial Number _____________________________________________________

Date Purchased From _____________________________________________________

Purchased From _____________________________________________________

MODEL S-40B WARRANTY

Ce manuel convient aux modèles suivants

Autres manuels Huskie Tools Outils électriques

Huskie Tools

Huskie Tools REC-B658U Manuel utilisateur

Huskie Tools

Huskie Tools SL- C510 Manuel utilisateur

Huskie Tools

Huskie Tools REC-658U Mode d’emploi

Huskie Tools

Huskie Tools SL- BC610 Manuel utilisateur

Huskie Tools

Huskie Tools EP-100WC Manuel utilisateur

Huskie Tools

Huskie Tools IL-ND Manuel utilisateur

Huskie Tools

Huskie Tools REC-3610 Mode d’emploi

Huskie Tools

Huskie Tools REC-BCN658 Manuel utilisateur

Huskie Tools

Huskie Tools SL-750 Manuel utilisateur

Huskie Tools

Huskie Tools REC-5630 Mode d’emploi

Huskie Tools

Huskie Tools REC-3510 Mode d’emploi

Huskie Tools

Huskie Tools REC-6430 Manuel utilisateur

Huskie Tools

Huskie Tools SL-BND Manuel utilisateur

Huskie Tools

Huskie Tools REC-3510K Mode d’emploi

Huskie Tools

Huskie Tools REC-CN658 Manuel utilisateur

Huskie Tools

Huskie Tools REC-B6NDSL Manuel utilisateur

Huskie Tools

Huskie Tools REC-6750 Manuel utilisateur

Huskie Tools

Huskie Tools SL-MKC7510 Manuel utilisateur

Huskie Tools

Huskie Tools PRO LINE REC-MK7510 Manuel utilisateur

Huskie Tools

Huskie Tools ECO-EZO Mode d’emploi

Huskie Tools

Huskie Tools SL-510 Manuel utilisateur

Huskie Tools

Huskie Tools SL-610 Manuel utilisateur

Huskie Tools

Huskie Tools HH1500 Manuel utilisateur

Huskie Tools

Huskie Tools 7M Series Manuel utilisateur

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
