Hunter 21117 Manuel d'instructions

Universal Fan and

Light Remote Control

Universal Fan and

Light Remote Control

Universal Fan and

Light Remote Control

Form# 41316-01

20100625

English

Owner’s Guide and

Installation Manual

Hand-Held Remote and Wall Cradle

41316-01 • 06/25/10 • Hunter Fan Company

1 • Welcome

Table of Contents

1 • Welcome..............................................................2

2 • Installation Preparation...............................3

3 • DIP Switch Settings........................................4

4 • Receiver Installation ......................................5

5 • Transmitter Installation...............................8

6 • Operation............................................................9

7 • Troubleshooting ........................................... 10

8 • Warranty........................................................... 11

Read and Save these Instructions

Caution: Risk of Electrical Shock!

All wiring must be performed in accordance with

national and local electrical codes. If you are

unfamiliar with the wiring codes, you should use a

qualied electrician.

To avoid overheating and possible damage to other

equipment, do not install to control a receptacle,

uorescent light xture, motor operated appliance, or

transformer-supplied appliance. Use only to control

one ceiling fan with or without a light xture.

Ratings: 120 VAC, 60 Hz,1.0 Amp Fan Receiver Weight: 6 oz.

300 Watts incandescent light

41316-01 • 06/25/10 • Hunter Fan Company

2 • Installation Preparation

Notes:

1. This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

2. This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from the one the

receiver is connected to.

• Consult the dealer or an experienced radio/TV technician for help.

3. For use only with electrically reversible ceiling fans rated at 1.0 amp or less,

and fan incandescent light kits rated at 300 watts or less.

4. Not for use with shaded-pole motors, Hunter 42” Low Prole fans, and

Hunter Baseball fans. Not recommended for use with the Hunter Original®.

For Hunter Original® series fans, use Hunter control model numbers 27187,

22691, or 27189.

5. Medium and Low fan speeds are determined by the control and thus may vary

from the factory settings due to normal motor variations.

6. For use with Hunter Hanging Systems (excludes Hunter Original) on at

ceilings or angled ceilings with a pitch up to 34°.

7. Not for use in applications where the fan does not have a wall switch.

Any changes or modications to this equipment not expressly

approved by Hunter Fan Company will void the user’s authority to

operate the equipment.

41316-01 • 06/25/10 • Hunter Fan Company

3 • DIP Switch Settings

BEFORE INSTALLING THE CONTROL:

1. Use the pull chain switch to set the fan speed to the HIGH position before

installation. Do not use the pull chain to change the fan speed after

installation, as damage to your ceiling fan or universal control may result.

The speed of the fan should only be changed by the Hunter control.

2. Set the ceiling fan light kit to the ON position before installation. The light

level should only be changed by the Hunter control.

Installation Instructions:

1. Disconnect power to the ceiling fan and light kit at the main electrical panel. Remove fuse or move

circuit breaker to the OFF position.

2. IMPORTANT! Before installing this control, check the factory default DIP switch settings. Refer

to Figure 1. Be sure the DIP switch positions of the transmitters and receiver match, or the ceiling

fan will not function. Select different combinations of

dip switches to prevent mis-operation due to other

remote control fans.

3. IMPORTANT! If your ceiling fan light kit is using

incandescent bulbs, then slide the CFL / INC switch

to the INC position. If your ceiling fan light kit is using

compact uorescent light bulbs (CFL), then slide the

CFL / INC switch to the CFL position. NOTE: When

the switch is in the CFL position, the dimming feature

is disabled, and you will not be able to dim the light

bulbs. This feature is to protect both your bulbs and

your receiver as CFL bulbs are not able to dim and

will malfunction if dimming is attempted.

Dip Switches

Set to 01110

Dip Switches

Set to 01001

Dip Switches

Set to 01110

Dip Switches

Set to 01001

Receiver Transmitter

Example DIP Switch Settings

DIP Switches

Set to 0111

DIP Switches

Set to 0111

Figure 1

Transmitter DIP

Switches

CFL INC

Figure 2

Receiver DIP

Switches

Figure 3

41316-01 • 06/25/10 • Hunter Fan Company

4 • Receiver Installation

4. Install the ceiling fan according to its instructions, up to the point of making

the electrical connections. Connect receiver to ceiling fan according to the

mounting types shown on the next page. Determine your ceiling fan mounting

type from the images on Pages 5-6. Most installations will be one of these

ve types.

5. If the fan is already installed, turn the power OFF at the main electrical panel.

Reverse the installation procedure according to the fan instructions, to the

point of disconnecting the fan wiring. Connect the receiver to the ceiling fan

according to the mounting type as shown on Pages 5-6.

NOTE: Some fans may have considerable excess lead wire. For easier

canopy installation, cut the excess wire leaving a minimum of 6 inches

remaining. Restrip the fan lead wires 1/2 inch. Place remaining excess wire into

the ceiling electrical box as needed.

Canopy Hanger (Figure 4): Place receiver in canopy. Connect wiring as

shown in Figure 4. Extend antenna through one of the ceiling plate openings

(approximately 3–6˝).

Low Prole Style I (Figure 5): Secure receiver to the fan plate

above the motor with UL listed cable ties (not included). Connect wiring as

shown in Figure 5. Extend antenna through one of the ceiling plate openings

(approximately 3–6˝).

Low Prole Style II (Figure 6): Secure receiver to the ceiling mounting

bracket with UL listed cable ties (not included). Connect wiring as shown in

Figure 6. Extend antenna above the ceiling mounting bracket (approximately

3–6˝).

Cable Tie Routing for Low Prole

Fans (Figs.5-6): Insert cable tie through

openings as shown. DO NOT insert the cable

tie through the inside of the receiver. The

cable tie can be placed across the length or

width of the receiver to best match your fan

installation type.

Low

Prole

Style 1

Canopy

Antenna

Figure 4 Figure 5

Low

Prole

Style 2

Figure 6

41316-01 • 06/25/10 • Hunter Fan Company

Hands

Free

Bracket

Hanger

NOTE: Some fans may have considerable excess lead wire.

For easier canopy installation, cut the excess wire leaving

a minimum of 6 inches remaining. Restrip the fan lead

wires 1/2 inch. Place remaining excess wire into the ceiling

electrical box as needed.

Hunter Hands-Free™ Canopy: Connect wiring

as shown in Figure 7. Place receiver inside mounting

bracket. Extend antenna above the ceiling mounting bracket

(approximately 3–6˝).

Bracket Hanger: Starting with the antenna wire, slide

receiver inside mounting bracket. If a ground wire mounting

screw prevents the receiver from sliding into the bracket,

move ground wire and screw to an unused hole at the top

of the bracket or secure with a canopy mounting screw. The

bracket must remain properly grounded. Connect wiring

as shown in Figure 8. Extend antenna above the receiver

(approximately 5–8˝).

Figure 7

Figure 8

4 • Receiver Installation

41316-01 • 06/25/10 • Hunter Fan Company

4 • Receiver Installation

6.Use the 2 large (orange) wire connectors supplied to connect

the receiver and house wiring, then use the 3 small (blue) wire

connectors supplied to connect the receiver and ceiling fan

wiring. Refer to the Wiring Diagram in Figure 9.

7.Be sure the antenna is positioned securely, so it can not

interfere with the ceiling fan motor. Refer to Figure 9. Do not

modify or damage the antenna wire, as control performance

may be reduced. After securing the receiver, antenna,

and wiring, nish hanging the ceiling fan according to its

instructions.

Red

Antenna

Power

WhiteBlack

Common

Fan

Light

Black/Hot (marked “LIVE

IN on red label)

White/Neutral (marked

“COMMON IN” on red

label

Figure 9

41316-01 • 06/25/10 • Hunter Fan Company

5 • Transmitter Installation

1. Install the 9 Volt alkaline battery inside the hand-held transmitter, after

setting the DIP switches to match the DIP switches in the receiver.

2. Mount the remote holder over the ceiling fan’s wall switch using the

existing wall plate screws. Refer to Figure 10.

3. e transmitter can be placed on the remote holder for convenience or

safekeeping.

ere is a toggle switch beside the DIP switches on the transmitter. Move

the toggle switch toward the side that reads “CFL” if you are going to

operate the fan with CFL bulbs. Move the switch to the “INC” side if you

are going to use incandescent bulbs.

NOTE: Once the transmitter is installed, any household power switches

connected to the fan will no longer operate the fan.

Fan Light

Fan Speed High

Fan Speed

Medium

Fan Speed

Low

Fan O

Figure 10

Toggle Switch

CFL INC

Figure 11

41316-01 • 06/25/10 • Hunter Fan Company

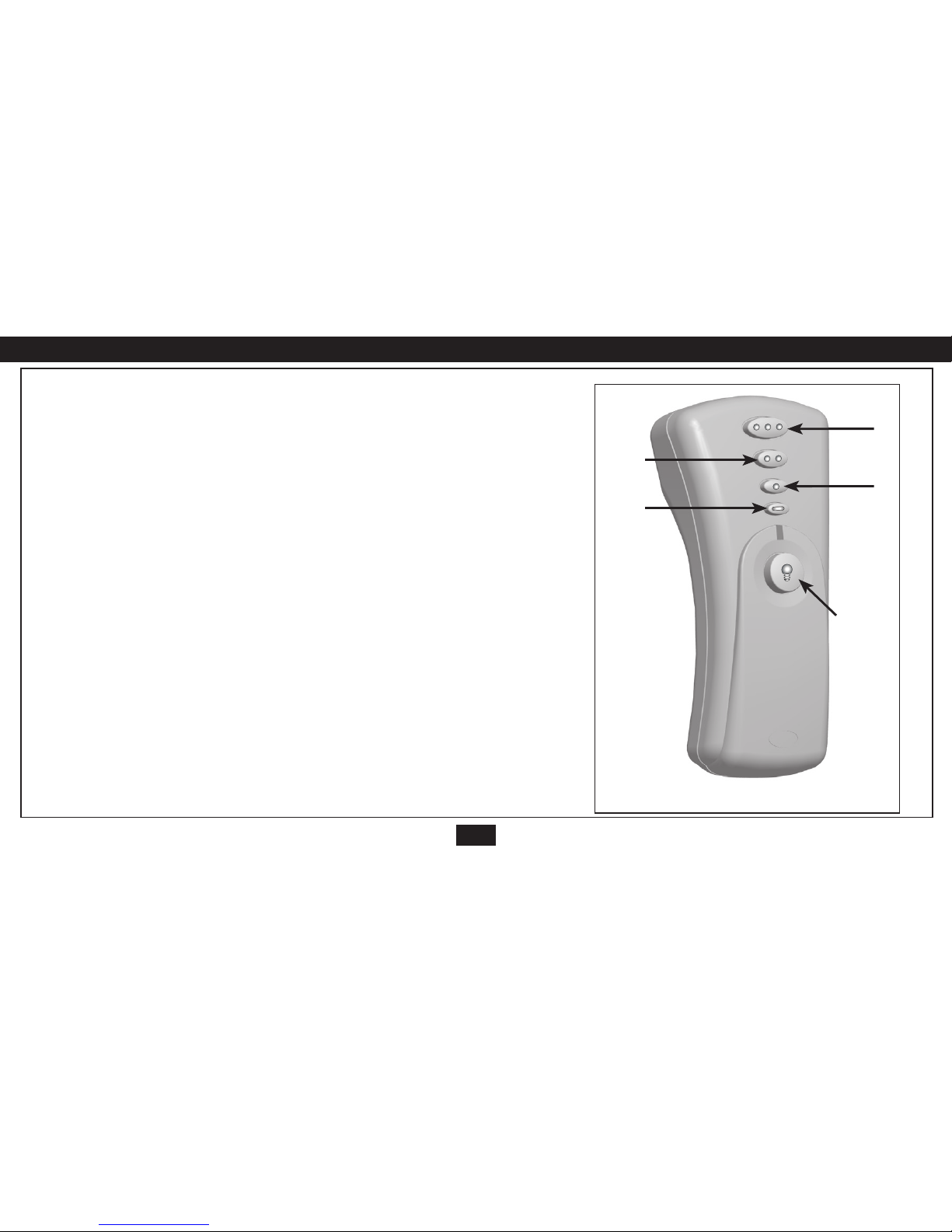

6 • Operation

Light Operation:

• Turn ON wall switch. The light will turn ON at maximum brightness.

• Press and quickly release the light button on the hand held remote or wall transmitter to turn

the light OFF or ON. The light will come ON at maximum brightness. (After a power outage,

the light will turn off and remain off after power is restored. Press and quickly release the light

button once to turn the light back on after a power outage.)

• Press and hold the light button for more than 1 second to turn the light ON and decrease from

maximum brightness to OFF.

• Release the light button when the desired light level is reached.

• Continue to hold the light button to repeat the cycle. (Maximum–light level decrease–OFF)

• While the light is ON, holding the light button will decrease the light brightness.

• Turning the light OFF resets the dimming function. The next press of the light button will start

at maximum brightness.

2. Fan Operation:

• Press the High, Medium, or Low speed buttons to turn the ceiling fan ON at the desired speed.

• Press the fan OFF key to turn the ceiling fan OFF.

For best fan operation: Start the fan on High, and then select the desired speed.

Fan Light

Fan Speed

High

Fan Speed

Medium

Fan Speed

Low

Fan O

Figure 12

41316-01 • 06/25/10 • Hunter Fan Company

7 • Troubleshooting

Symptom Possible Causes Solution

1.No functions operate. Main Power not restored. Replace fuse. Turn ON circuit breaker. Turn ON wall switch.

Fan pull chain not set to High. Set fan pull chain to High speed.

Light pull chain not set to ON. Set light kit to ON.

Receiver wiring incorrect. Verify wiring connections.

Transmitter and receiver DIP

switches do not match.

Set transmitter and receiver to same DIP switch setting.

Battery too weak. Replace with new, 9 Volt alkaline battery. Refer to

“Transmitter Installation”, Section 6.

2.Operates only at close range. Signal blocked from reaching

receiver.

Extend antenna into ceiling box, or move it for better

reception.

Battery too weak. Replace with new, 9 Volt alkaline battery. Refer to

“Transmitter Installation”, Section 6.

Interference Change the DIP switch settings on the remote receiver and

transmitter,

3.Inconsistent operation. Signal partially blocked from

reaching receiver.

Extend antenna into ceiling box, or move it for better

reception.

RF interference. Turn OFF wall switch for 5 seconds, then turn back ON.

Continuing RF interference. Change DIP switch settings to a different code in both

transmitter and receiver.

Autres manuels pour 21117

Table des matières

Autres manuels Hunter Télécommande

Hunter

Hunter 27157 Manuel utilisateur

Hunter

Hunter SRR Mode d'emploi

Hunter

Hunter 99123 Manuel utilisateur

Hunter

Hunter 99772 Manuel utilisateur

Hunter

Hunter ROAM XL Mode d'emploi

Hunter

Hunter 21117 Mode d’emploi

Hunter

Hunter 99123 Manuel utilisateur

Hunter

Hunter 85095 Manuel du propriétaire

Hunter

Hunter Roam Mode d'emploi

Hunter

Hunter 99373 Manuel utilisateur

Hunter

Hunter 99110 Manuel utilisateur

Hunter

Hunter 146-59-1 Manuel

Hunter

Hunter 99119 Manuel utilisateur

Hunter

Hunter 84592 Manuel utilisateur

Hunter

Hunter ICR Manuel de service

Hunter

Hunter 99123 Manuel utilisateur

Hunter

Hunter 99110 Manuel utilisateur

Hunter

Hunter 99370 Manuel utilisateur

Hunter

Hunter 27157 Manuel utilisateur

Hunter

Hunter 99372 Manuel utilisateur

Hunter

Hunter SimpleConnect 99107 Instructions de montage

Hunter

Hunter 99112 Manuel utilisateur

Hunter

Hunter 99770 Manuel utilisateur

Hunter

Hunter 99123 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
