CONGRATULATIONS!

Hunter is proud to present the

Whisperwind 2000™ – year-round

comfortforthenextgeneration.This

manual gives you complete instruc-

tionsforinstallingandoperatingyour

fan.

All Hunter ceiling fans will provide

comfort and performance in your

home or office for many years. The

Hunter Whisperwind 2000™ also

provides the following features:

• The AirMax™ (patent pending)

motor is quieter, provides better

air flow, and comes with a lim-

ited lifetime warranty.

• The new, Hands-Free™ (patent

pending) hanging system makes

wiring the fan even easier.

• The Speed Ring™ (patent pend-

ing)blade attachment system lets

youattach the entireblade assem-

bly in a few simple steps – elimi-

nating the need to attach each

blade to a hanging fan!

We at Hunter are proud of our work.

We appreciate the opportunity to

supply you with the best ceiling fan

availableanywherein the world - the

Whisperwind 2000™.

Before installing your fan, record the

following information for your

records and warranty assistance.

Please refer to the carton and the

Hunter nameplate (located on top

outside fan motor housing) for the

proper information.

Model Name __________________

Catalog No. ___________________

Serial No. _____________________

Date Purchased ________________

Where Purchased ______________

_____________________________

Please attach your Hardware Kit and

Parts Drawing to this manual for fu-

ture reference.

Attach Your Receipt

or a Copy of

Your Receipt Here

41277-01 05/98

CONTENTS

Important Information....................................................................................................................................... 4

Step 1 - Getting Ready ...................................................................................................................................... 5

Step 2 - Installing the Ceiling Plate.................................................................................................................... 7

Step 3 - Assembling the Fan.............................................................................................................................. 9

Step 4 - Wiring the Fan ................................................................................................................................... 11

Step 5 - Hanging the Fan ................................................................................................................................ 13

Step 6 - Attaching Blade Assembly.................................................................................................................. 14

Step 7 - Attaching Light Fixtures ..................................................................................................................... 17

Operating Your Hunter Fan ............................................................................................................................. 22

Troubleshooting .............................................................................................................................................. 23

441277-01 05/98

IMPORTANT INFORMATION

DO YOU NEED HELP?

To install a ceiling fan, be sure you

can do the following:

• Locate ceiling joist or other suit-

able support in ceiling.

• Drill holes for and install wood

screws.

• Identify and connect electrical

wires.

• Lift 40 pounds.

If you need help installing the fan,

yourHunterfandealercan directyou

to a licensed installer or electrician.

CAUTIONS

• Read entire booklet care-

fully before beginning in-

stallation.

• To reduce the risk of per-

sonal injury, attach the fan

directly to the support

structure of the building

according to these instruc-

tions, and use only the

hardware supplied.

• Save these instructions.

WARNINGS

• To avoid possible electrical

shock, before installing

your fan, disconnect the

power by turning off the

circuit breakers to the out-

let box and associated wall

switch location. If you can-

not lock the circuit break-

ers in the off position, se-

curely fasten a prominent

warning device, such as a

tag, to the service panel.

• All wiring must be in accor-

dance with national and lo-

cal electrical codes and

ANSI/NFPA 70- 1993. If you

are unfamiliar with wiring,

you should use a qualified

electrician.

• To reduce the risk of per-

sonal injury, do not bend

the Speed Ring™ blade at-

tachment system when in-

stalling, balancing, or

cleaning the fan. Never in-

sert foreign objects be-

tween rotating fan blades.

• To reduce the risk of fire,

electrical shock, or motor

damage, do not use a solid-

state speed control with

this fan. Use only Hunter

speed controls.

41277-01 05/98

GATHERING THE TOOLS

You need the following tools to in-

stall the fan:

• Electric drill with 9/64" bit

• Standard screwdriver

• Phillips-head screwdriver

• Wrench or pliers

OPTIONAL ACCESSORIES

Consider using Hunter’s optional ac-

cessories, such as a wall-mounted or

remote speed control. Follow the in-

structions for installation and use in-

cluded with each Hunter accessory.

For quiet and optimum performance

of your Hunter fan, use only Hunter

speed controls.

STEP 1 - GETTING READY

PREPARING THE FAN SITE

Reliable operation, efficiency, and

maximum energy savings depend

upon proper placement and attach-

ment of the fan. For this reason, we

have included a separate booklet —

“Guide to Choosing and Preparing

a Ceiling Fan Site” — to help you

select the best location for your fan.

The booklet also provides informa-

tion to ensure your fan support and

electricoutletboxmeetUL-approved

safety codes for ceiling fans.

The instructions in this installation

manual assume that you have used

the “Guide to Choosing and Prepar-

ing a Ceiling Fan Site” to pick the

fan location and make certain the

properfan supportandoutletbox are

installed.

CHECKING YOUR FAN PARTS

Carefully unpack your fan parts to

avoid damage. Check for shipping

damage. If one of the fan blades is

damaged, return all blades for re-

placement.

Hint: Ifinstallingmorethanonefan,

keep the fan blades in sets, as

shipped.

The fan packaging includes a sepa-

rate diagram of all screws and other

smallparts.Keepthis diagram handy

during installation.

If any parts are missing or damaged,

contactyourHunterdealer or call the

Hunter Parts Department at 901/

745-9222.

continued

641277-01 05/98

INSTALLER’S CHOICE®

This patented 3-position mounting

system gives you maximum flexibil-

ity and ease of installation. The steps

in this manual include specific in-

structions for the fan mounting

method of your choice. For a ceiling

8 feet or higher, standard mounting

is recommended.

Flush Mounting (Figure 1a) fits

close to the ceiling, for low ceilings

less than 8 feet high.

Standard Mounting (Figure 1b)

hangs from the ceiling by a connec-

torpipe (included), for ceilings 8 feet

or higher. For ceilings higher than 8

feet, you can also purchase Hunter

extension rods. All Hunter fans use

sturdy 3/4" inner diameter pipe to

assure stability and wobble-free per-

formance.

Figure 1c - Angle Mounting

Figure 1b - Standard Mounting

Figure 1a - Flush Mounting

Angle Mounting (Figure 1c) hangs

from a vaulted or angled ceiling.

10"

12"

34°Max

Pitch

41277-01 05/98

4. Align the slotted holes in the ceil-

ing plate with the pilot holes in

the wood support structure.

Note: The isolation pads should

be flush against the ceiling.

1. Drill twopilotholesintothe wood

support structure through the

outermost holes on the outlet

box. The pilot holes should be

9/64" in diameter.

2. Thread the lead wires from the

outletboxthrough theholeinthe

middle of the ceiling plate.

3. Your fan comes with two neo-

prenenoise isolators. Position the

isolatorsbetweenthe ceiling plate

and ceiling by inserting the raised

areas on each isolator into the

holes in the ceiling plate. Refer to

Figure 2a.

Figure 2a - Adding Isolators to Ceiling

Plate

Figure 2b - Correct Position of Ceiling

Plate for Angle Mounting

Ceiling Plate

Hooks

Isolators

Ceiling

Plate

For Angle Mounting Only: Be

sure to orient the ceiling plate so

that the two hooks point up to-

wards the ceiling peak as shown

in Figure 2b. Note: You will use

the hooks to support the fan dur-

ing STEP 5 - WIRING THE FAN.

continued

STEP 2 - INSTALLING THE CEILING PLATE

841277-01 05/98

Figure 2c - Attaching Ceiling Plate to

2 x 4 Brace

Ceiling Joist

Ceiling

Outlet Box

Ceiling

Plate

Flat

Washer 3" Wood

Screw

5. Placea flat washer on each of the

two 3" screws and pass the

screws through the slotted holes

in the ceiling plate as shown in

Figure 2c.

6. Tighten the screws into the 9/64"

pilot holes; do not use lubricants

on the screws. Do not over-

tighten.

41277-01 05/98

Follow sub-step 1 below for all fans.

Then, use the additional instructions

for the type of mounting you have

selected: flush, standard, or angle.

ALL FANS

1. Position the fan housing over the

motorhangeradapter. Make sure

the tabs in the motor hanger

adapterfit into the notches in the

housing and that the pipe set-

screw (for standard and angle

mounting)passes throughtheslot

in the housing as shown in Fig-

ure 3a.

Flush Mounting

(For Low Ceilings)

1. Fit the canopy over the motor

hanger adapter as shown in Fig-

ure 3b. Make sure the canopy fits

snugly against fan assembly with

no space between the pieces.

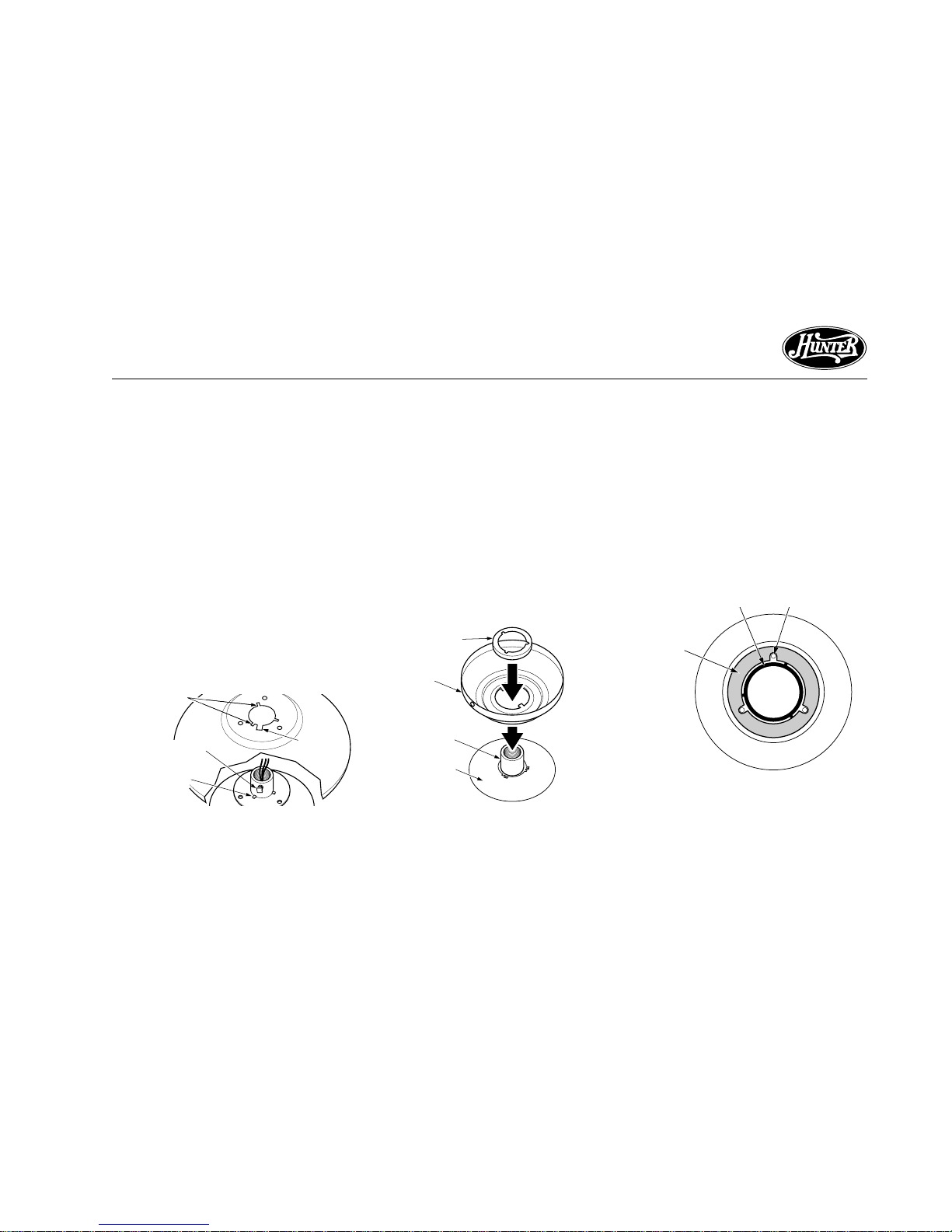

STEP 3 - ASSEMBLING THE FAN 2. Place the large assembly washer

included with the fan over the

adapter and canopy as shown in

Figure 3b.

3. Position the slots in the assembly

washer over the threaded holes

in the adapter as shown in Figure

3c.

Figure 3b - Placing Canopy and

Washer Over Adapter

Figure 3c - Positioning Assembly

Washer Slots Over Threaded Holes

Figure 3a - Motor Hanger Adapter

Tabs and Housing Notches

Assembly

Washer

Canopy

Adapter

Top of Fan

Adapter Threaded

Hole

Assembly

Washer

Motor Hanger

Adapter Tab

Housing

Notches

continued

Setscrew Slot

10 41277-01 05/98

4. Attach the canopy tightly to the

fan assembly with three #8-32 x

3/4" assembly screws and #8

lockwashers as shown in Figure

3d.

Note:Pipe, ball, and setscrewnot

used for flush mounting.

Standard and Angle Mounting

(For 8-foot Ceilings and Higher)

1. Fasten the fan housing to the

motor hanger adapter with three

#8-32x3/4" assembly screwsand

#8 lockwashers as shown in Fig-

ure 3e.

Figure 3d - Attaching Canopy to Fan

Assembly Figure 3e - Attaching Housing to

Motor Hanger Adapter

Assembly Screw

and Lockwasher Motor Hanger

Adapter

Assembly Screw and

Lockwasher

Fan Housing

Figure 3f - Inserting Pipe through

Canopy

Pipe

Canopy

Pipe

Setscrew

3. Screw pipe into fan assembly un-

til tight. IMPORTANT! Tighten

pipe setscrew as shown in Figure

3f. Failure to tighten screw can

cause fan to fall.

2. Insert the pipe through the

canopy as shown in Figure 3f.

Feed wires from the fan through

the pipe.

CAUTION

The pipe has a special coating

on the threads. Do not remove

this coating; the coating pre-

vents the pipe from unscrew-

ing. Once assembled, do not

remove the pipe.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hunter Ventilateur

Hunter

Hunter 41897-01 Manuel utilisateur

Hunter

Hunter M3633-01 Manuel utilisateur

Hunter

Hunter Malden Manuel utilisateur

Hunter

Hunter Dublin Manuel utilisateur

Hunter

Hunter Sentinel Manuel utilisateur

Hunter

Hunter 42679-01 Manuel d'instructions

Hunter

Hunter 23921 Mode d’emploi

Hunter

Hunter 21348 Mode d’emploi

Hunter

Hunter Warrant Manuel utilisateur

Hunter

Hunter Type G Models Manuel de service

Hunter

Hunter 20510 Manuel

Hunter

Hunter 50171 Manuel utilisateur

Hunter

Hunter Hunter Ceiling fans Manuel utilisateur

Hunter

Hunter 28679 Manuel de service

Hunter

Hunter Type 5 Models Manuel d'instructions

Hunter

Hunter Thaden Manuel utilisateur

Hunter

Hunter Rockefeller 94041 Manuel utilisateur

Hunter

Hunter Academy Manuel d'instructions

Hunter

Hunter 20531 Manuel

Hunter

Hunter Brayden 21325 Mode d’emploi

Hunter

Hunter 20552 Manuel utilisateur

Hunter

Hunter Low Profile Manuel utilisateur

Hunter

Hunter SPA SELECT 90051 Manuel utilisateur

Hunter

Hunter Hunter Ceiling fans Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage

Litex Industries

Litex Industries E-CGL52CB5C1 Manuel utilisateur

Lindab

Lindab LTDF Manuel utilisateur
